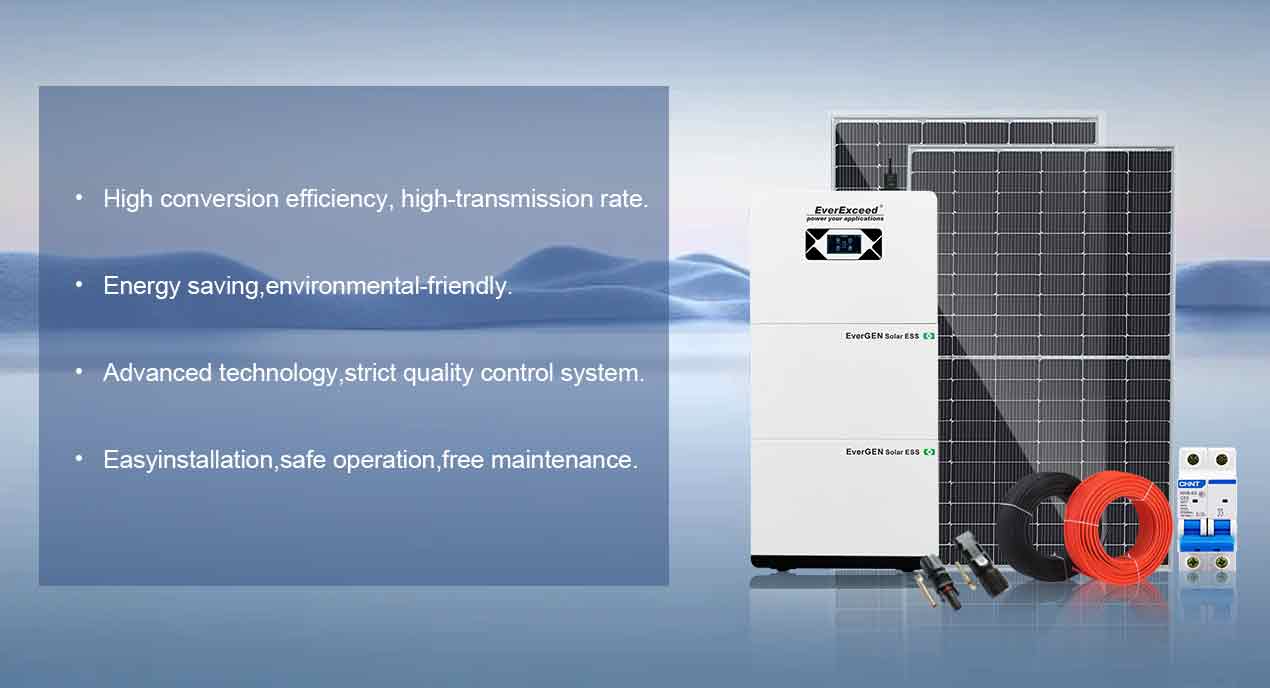

12kWh Full Kit All-in-One Solar Energy Storage System
Additional information
Description
The system consists of high-efficiency solar panels, an integrated all-in-one solar energy storage unit, and essential accessories. During daylight hours, solar panels capture sunlight and convert it into electrical energy, simultaneously storing power in the battery and supplying electricity to connected devices. At night or in low-light conditions, the stored energy in the battery continues to provide reliable power, ensuring continuous and extended backup in any weather.
What’s Included?
| Lifepo4 Battery (built in）
-8000 cycles work life |
 |
|
 |
Solar Panel
-high convension efficiency -Half-cut cell technology, 144 cells Mono type Peak Power Watts: 575W Dimensions:2279x1134x35mm Weight:28.5 kg |
|
| DC Cable & MC4 Connector Cross Section: 4mm2, 6mm2 Optional Rated Voltage:600VDC(UL)/1000VDC(TUV) Rated Current: 55A,70A Colors: Black For STD, Red Optional. |
 |
Single line diagram
| PV3K-EGS5K-5E | ||||
| Iterm | Model | Specifications | QTY | Unit |
| Main part | ||||
| Solar Panel | ESM-575MH | Half-cut Mono cell 575W 42.71Vmp 13.47A | 6 | pcs |
| All-in-one Energy Storage System | EGS5K-5E Pro | 5KW 5KWH LiFePO4 battery ESS | 1 | pcs |
| Mounting Bracket | ER-6-ESM575MH-1R6C | Q235 hot-dip galvanized steel/Aluminum alloy Mounting bracket | 1 | set |
| Accessories | ||||
| Solar Cable | PV Cable 4mm2 | 4mm²/1500V PV cable | 1 | kit |
| Connector | MC4 | MC4 connector | 1 | kit |
| AC Cable | BVR 4mm² | 4mm²/500V AC cable | 1 | kit |
| Terminal | VE4012 | 4mm² cable terminal | 1 | kit |
| PV MCB | NB1-63DC | 32A 2P 6kA | 1 | kit |
| PV SPD | LFM40/PV600 | 600VDC 40kA 2P | 1 | kit |
| AC Input MCB | NXB-63 | 63A 2P 6kA | 1 | kit |
| AC Input SPD | LF M40/2 | 220VAC 40kA 2P | 1 | kit |
| AC Output MCB | NXB-63 | 63A 2P 6kA | 1 | kit |
| Distribution box | PZ30 | 12 circuit distribution box | 1 | kit |
