512V 200Ah High-Voltage Lithium Battery for UPS

SKU: 512V 200Ah High-Voltage Lithium Battery for UPS Category: Tags: , , , , ,
Additional information
Brand

Customer Application

Airports
Customer Type

Airports
Description

EverExceed high voltage LiFePO4 (lithium iron phosphate) battery is a new environment-friendly backup power module specially designed for UPS power systems. With an advanced life span, extra compact size, very lightweight, and strong environmental working conditions, besides indoor, it is also the ideal solution for the outdoor harsh environment found in the field, where the UPS are installed and used.

  • Brand:EverExceed
  • Model:ES512-200NH
  • Rated Voltage(V):512V
  • Rated Capacity(Ah):200Ah
  • Certificates:UN 38.3; CE
  • OEM/ODM Service:Yes, customized service available
  • Usage:UPS/ Data Center

512V 200Ah High-Voltage Lithium Battery for UPS



>Ultra high volume energy density, saving footprint up to 70%

Using environment friendly high-density lithium iron phosphate cell, its volume energy density is 200-300Wh/L, which is 3-5 times that of lead-acid battery. And lithium battery can save more than 50% of the floor space under the same condition,having more footprint for IT cabinet.
>Excellent fast charging ability, charging time is only 1/6 of lead acid

Lithium-ion batteries can be recharged within 1 to 2 hours to restore the backup power capacity of the UPS system and improve system security and stability, while lead-acid batteries take 10 to 15 hours.

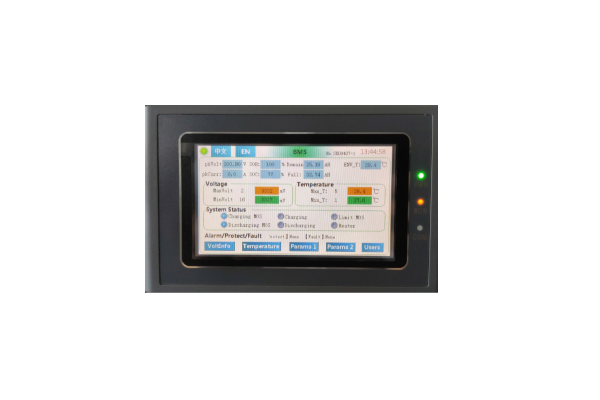

>Smart BMS battery management system

Built-in intelligent battery management system to ensure a full range of real-time data collection, status monitoring, control and protection, which improve the safety and reliable operation of the system.

The BMS has over charge/over discharge/ short circuit/ high and low temperature alarm and protection function.
>Ultra high weight energy density, 70% lighter weight low load-bearing requirements on the floor

The weight energy density of lithium battery is 100-150 Wh/kg, and that of leadacid battery is 30-50Wh/kg. 70% lighter and 70% smaller than the VRLA batteries, save footprint and lessen the weight load and cooling consumption.
>Compact battery design minimizes the installation and maintenance cost

The compact battery size and less weight help minimize the initial installation and transportation cost compare to the lead acid batteries, also the maintenance cost and cooling consumption cost is reduced greatly because of it.
>Long service life and better TCO

The service life of lithium battery can reach 15 years which is 3-5 times longer than that of lead acid batteries. The TCO of lithium battery is only 50%~70% of that of lead acid batteries. Simplify operation and maintenance, reduce OPEX, and increase the service life of the entire power supply system.





Key features:
Performance Safety Installation
Excellent discharge performance;
5X faster charge improves recovery;
BMS provides up-to-date insight into battery performance;
Provide extended backup time during a power event;
Ensures 24/7 system up time while delivering significant total-cost-of-ownership (TCO) savings.

Lithium iron phosphate battery chemistry is stable and safe;
Built-in BMS actively monitors cell voltage, current, temperature in real time;
Adopt high performance grade A cell, all the individual cells are sorted in a very precise range according to their capacity to ensure complete reliability of the battery pack;
Built in module&cabinet fire extinguishers ensure ultimate safety;



Up to 70% weight reduction, minimizes the load-bearing requirements on the floor, and save maximum 70% footprint;

Shift your refresh cycle to be in line with your IT equipment;



Application:

UPS ; Data Center

Basic Specification
Nominal Voltage 512V(±256V)
Nominal Capacity 200Ah
Energy 102.4KWh
Charging
Maximum Charging Voltage 576V
Maximum Charging Current 100A
Discharging
Voltage Range 448V~576V
Maximum Continuous Discharging Current 600A
Cut-off Voltage 448V~464V
Battery Module
Nominal Voltage 51.2V
Nominal Capacity 200Ah
Quantity 10
Others
Fire Protection Battery module-level and Cabinet-level
Protection Over temperature, Over-current, Short circuit, Over charge/discharge, etc.
Communication Interface CAN, RS485, Dry contacts
Temperature Charging: 0~45°C, Discharging: -20°C~60°C
Dimension (W*D*H) 1200*830*2000mm
Weight 1150±50KG
