LS14500CNA
Click to enlarge
LS14500CNA
Home All Products LS14500CNA SAFT battery
LS33600CNR
LS33600CNR SAFT battery
Back to products
LS17500FLC SAFT Lithium Thionyl Chloride battery 3.6V 3.6Ah
LS17500FLC SAFT Lithium Thionyl Chloride battery 3.6V 3.6Ah
SAFT

LS14500CNA SAFT battery

SKU: LS14500CNA Category: All Products Tags: Lithium Batteries, LS14500CNA, SAFT Brand: SAFT
Share:
  • Additional information
  • Description
Additional information
Brand

SAFT

Part Number

LS14500 CNA

Weight

17.11gm

Customer Application

Accessories

,

Airport

,

Airports

,

Alarm and security devices

,

Alarm equipment

,

Alarms and Safety Equipment

,

Alarms and security

,

Alarms and security devices

,

Alarms and security systems

,

Army

,

Automatic meter reading

,

Automotive Electronics

,

Automotive telematics

,

Baby monitor

,

Backup Systems

,

Baggage Scanning

,

Beacons and emergency location transmitters

,

BTC Backup

,

Building Infrastructures

,

Cargo Security

,

CCTV

,

Chemical

,

Connected sensors

,

Construction

,

Control Rooms

,

Court & Correctional Facilities

,

Dataloggers

,

Detection of very tiny metal particles with automatic rejection

,

Digital Multi-Zone Linear Metal Detector Array

,

Dust Tight Metal Detection System

,

Emergency and Security Systems

,

Emergency Transmitters

,

Event Security

,

Explosive / Narcotics – Identification / Detection

,

Explosive Detection

,

Ferromagnetic Detection Application

,

Food Screening

,

Foodstuffs

,

Gas metering

,

Generator

,

GPS

,

Ground Search Metal Detectors

,

Handheld Metal Detector

,

Heat probes for wood drying

,

Heat sterilizable applications

,

Heat sterilization equipment

,

High sensitivity metal detector

,

high temperature environments

,

House Alarm

,

Household

,

Induction Heating

,

Industrial electronics

,

Industrial fire monitors and alarms

,

Internet of Things

,

Launchers

,

Law Enforcement

,

Lead Acid Replacement

,

Loss Prevention

,

Magnetic Metal Detection

,

Mailroom Security

,

Measure While Drilling

,

Measurement while drilling

,

Measuring Instruments

,

Medical

,

Medical equipment

,

Memory back-up

,

Memory back-up Alarm and security devices

,

Metal Detection

,

Metering systems

,

Military

,

Military Applications

,

Military radios

,

Mining

,

Narcotics Detection

,

New product specification

,

Non Magnetic Metal Detection

,

Off-grid solar PV systems

,

Oil and gas well monitoring

,

Oil drilling and all downhole

,

Oil drilling and all downhole high temperature environments

,

Onshore & Offshore Oil & Gas Industries

,

People Screening

,

Pharmaceutical products

,

Pipeline inspection

,

Pipelines

,

Power for Emergency Lighting

,

Power for Fire Alarms

,

Power for Process Control Systems

,

Power for Security Systems Safe Backup

,

Power Plants

,

Process control installations

,

Professional Electronics

,

Public Address

,

R&D analysis

,

Radio Communication

,

Radiocommunication and other military applications

,

Railroad system communication

,

Railway

,

Real-Time Clocks

,

Recycling industrial

,

Refineries

,

Rework confirmation

,

Root cause analysis assistance

,

Scanning bottles

,

Scanning liquid and viscous products

,

Scanning Loose product

,

Scanning People

,

School & Building Security

,

Screening granular and powder products

,

Sea Port

,

Signaling

,

Signaling systems

,

Smoke detectors

,

Solar

,

Sonobuoys

,

Space

,

Space vehicles

,

Spare parts and Accessories

,

Starter Applications

,

Stationary back-up batteries

,

Submarine Operations

,

Substation Switch Gear

,

Substations

,

Switching and Transmission

,

Tablets Solid & Liquid Metal Detection

,

Telecom

,

Textile

,

Tollgate systems

,

Tracking Systems

,

Tram

,

Transportation

,

UPS

,

Utility Metering

,

Vehicle Control

,

Vehicle Power – Input – Generator

,

VRLA Battery Replacement

,

Wash-In-Place Metal Detection System

,

Wireless and Wireline Backup Power

,

Wireless sensors

,

X-ray Baggage Scanning

Customer Type

ADWEA

,

Airports

,

Army

,

Border Control

,

Commercial

,

Critical Infrastructures

,

Crypto Miners

,

Customs

,

DEWA

,

Distribution Centers

,

Du

,

e&

,

Electricity Industry

,

ENEC

,

EOD Team

,

Etihad Rail

,

EtihadWE

,

EWEC

,

Exhibitions

,

FEWA

,

Government Building

,

Government Entities

,

Healthcare

,

Hotel

,

Industrial

,

Jail / Prison

,

Law Enforcement

,

Logistic Hub

,

Masdar

,

Medical

,

Military

,

Navy / Coastal Protection

,

Oil & Gas

,

Other Businesses

,

Private Entities

,

Recycling Industry

,

Security Firms

,

SEWA

,

Shipping Companies

,

Shopping malls

,

Solar Industry

,

Space & Research

,

SWAT Team

,

TAQA

,

Telecom Industry

,

Transportation Authority

,

Utility Industry

,

VIP Locations

Battery Features

Non-rechargeable

Cell Size

AA

Type of Battery

Lithium

Leads

Axial

Description

LS14500CNA

Manufacturer SAFT
Type of Battery Lithium
Cell Size AA
Rated Voltage 3.6v
Capacity 2.6Ah
Battery Features Non-rechargeable
Body Dimensions 14.5mm x  50mm
Leads Axial
Part Number LS14500CNA
Alternate names called LS14500 CNA
LS 14500 CNA
LS14500 Axial version
BAT-ER14500CNA
Gross weight 17.11gm

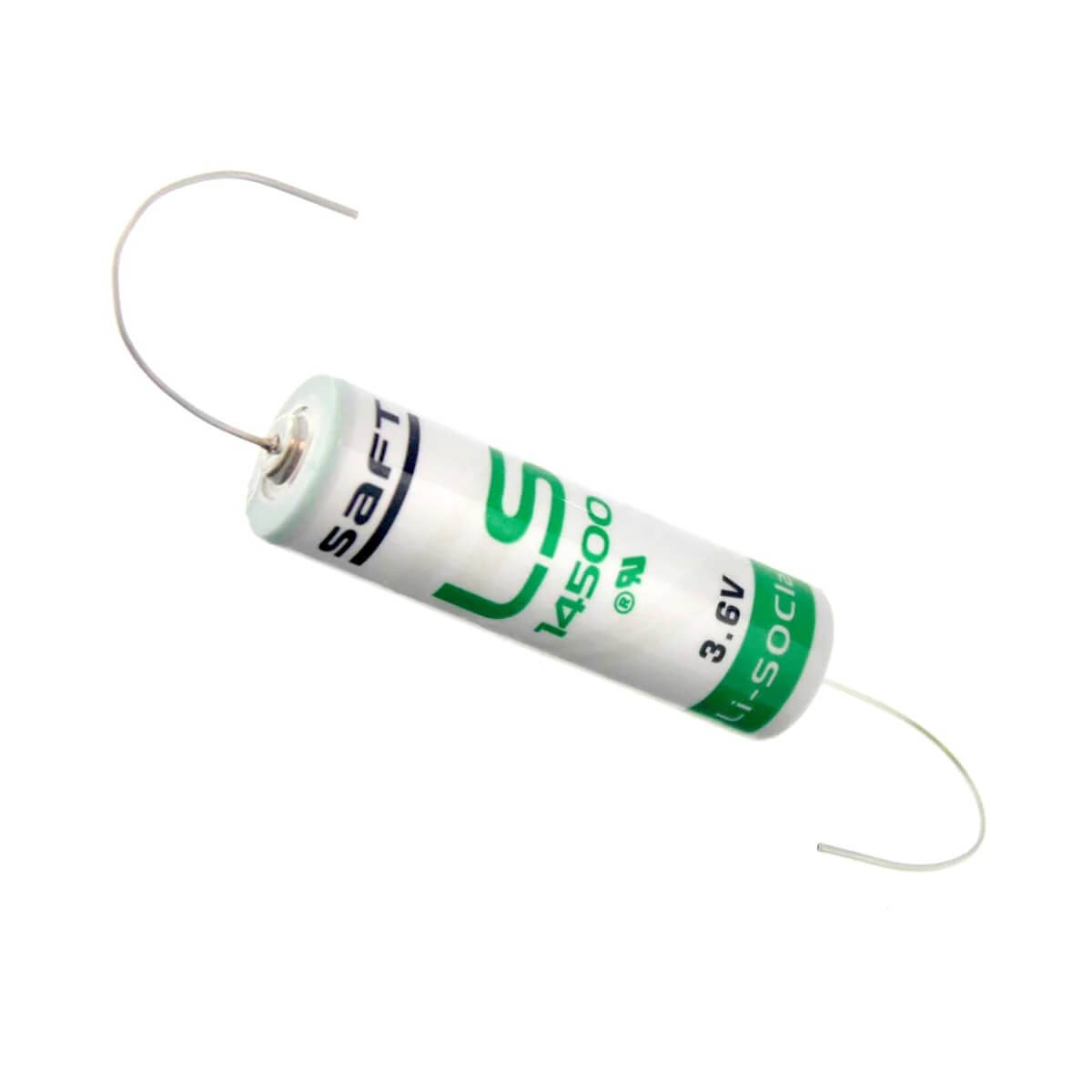

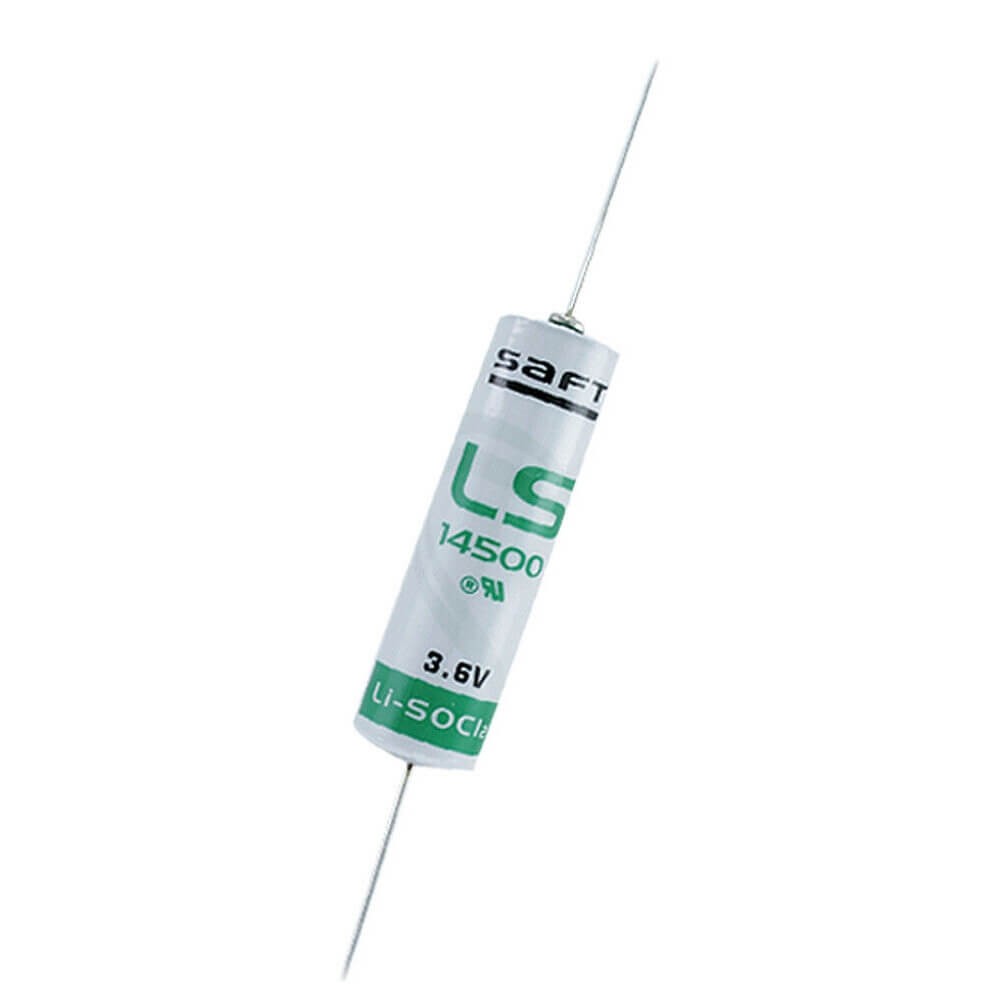

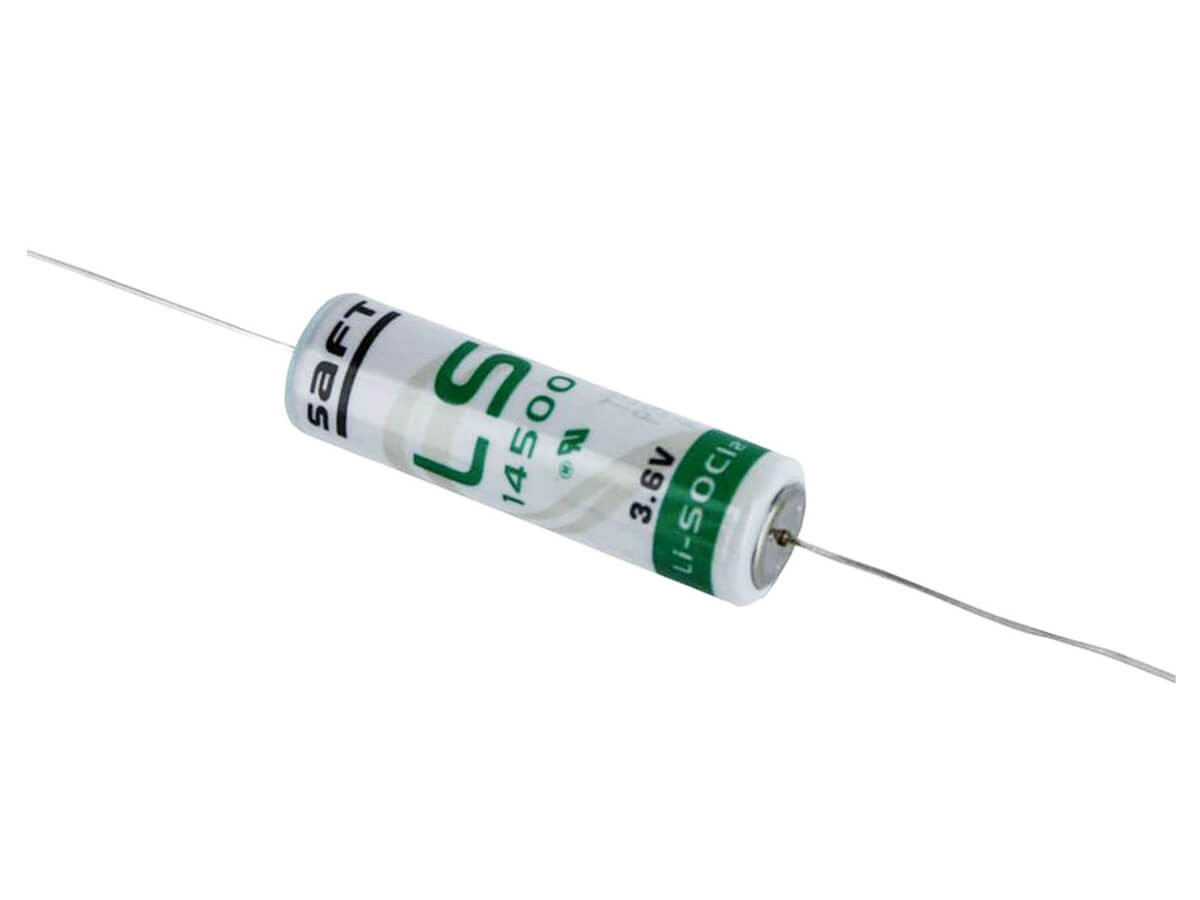

Saft LS 14500 battery with Axial Wires (LS14500CNA) is 3.6v AA lithium thionyl chloride battery Li-SOCl2 manufactured in France. This Saft LS14500 battery with axial wires or axial leads allows the battery to soldered to a circuit board. This battery is being used especially in utility meters, including the new smart electricity meters, automated meter reading. They are also used in security equipment, wireless alarm systems. Memory back up and electronic toll collection machines. Diameter 14.65mm Length 50.3mm Capacity 2600mAh 2.6Ah.. Size AA. 3.6 volt. This Saft LS14500CNA is also known as a 3.6V CR14500 LS14500AX LS14500-AX and it replaces Tadiran TL-5104, Maxell ER6S-TC, ER14505-AX. We also sell this Saft LS14500 battery without wires

SAFT Lithium Non-rechargeable AA Batteries – LS14500

Lithium AA batteries from Saft, designed for use in industrial and commercial applications. These AA batteries are not like typical AA batteries, they have a nominal voltage rating of 3.6V designed for use in applications where a device is used for a long period of time such as utility metering, security and alarms.

LS14500 batteries use lithium-thionyl chloride so they have a high energy density, low discharge rate, ideal for lengthy storage periods plus they are fully compliant with IEC60086-4 and IEC60079-11 safety standards.

Why choose these batteries?

Saft LS14500 lithium AA batteries are 3.6 V rated which is considerably higher than commonly used AA batteries. They are applicable for equipment or instruments designed for this rating otherwise damage will ensue. Saft LS14500 lithium batteries are non-rechargeable and should not be recharged.

Lithium batteries what are the advantages?

• The nominal voltage of 3.6 V, greater than conventional cells

• Wide temperature range −60゚C to +85゚C
• High energy density, the highest of any primary battery

Features and Benefits

• Operating voltage: 3.6 V
• Bobbin construction
• Low self-discharge for extended life
• Operating temperature: – 60°C to + 85°C
• Non-flammable
• Resistance to corrosion
• Low magnetic signature

LS 14500 Series

LS 14500 AA batteries are available with various terminal types;

• Standard
• PCB Pin
• Tags
• Lead or Flying lead (JST, XHP Female Connector Housing, 2.5mm Pitch, 2 Way, 1 Row)

Typical Applications

Lithium AA batteries are used in electronic devices that require a small, compact source of power. Example applications include:
• Utility Meters
• Smoke detectors
• Alarm systems

FAQ’s
Are Alkaline/Lithium Batteries Harmful?

Alkaline batteries can sometimes leak a substance called potassium hydroxide which is a caustic agent that can cause eye, skin and respiratory irritations. This risk is reduced by not mixing different manufacturer battery types, batteries of different chemistries and by the replacement of all batteries at the same time.

How to dispose of Alkaline/Lithium Batteries?

Recycle responsibly, a wide range of schemes are available.
Safety Advice
Keep out of sight and reach of children

Guidance:
• Always install the batteries correctly as per instruction
• Ensure that the contact points are clean and conductive
• Do not mix different types of battery
• Do not heat or attempt to recharge the battery
• Do not dispose of in a fire

Saft LS14500CNA, LS14500AX, Li-SOCI2 2600Mah Lithium Cell With Axial LeadsSaft LS14500, LS-14500 Li-SOCI2 2600Mah Button Top Bare Lithium CellSaft LS14500, LS-14500 Li-SOCI2 2600Mah Button Top Bare Lithium Cell
