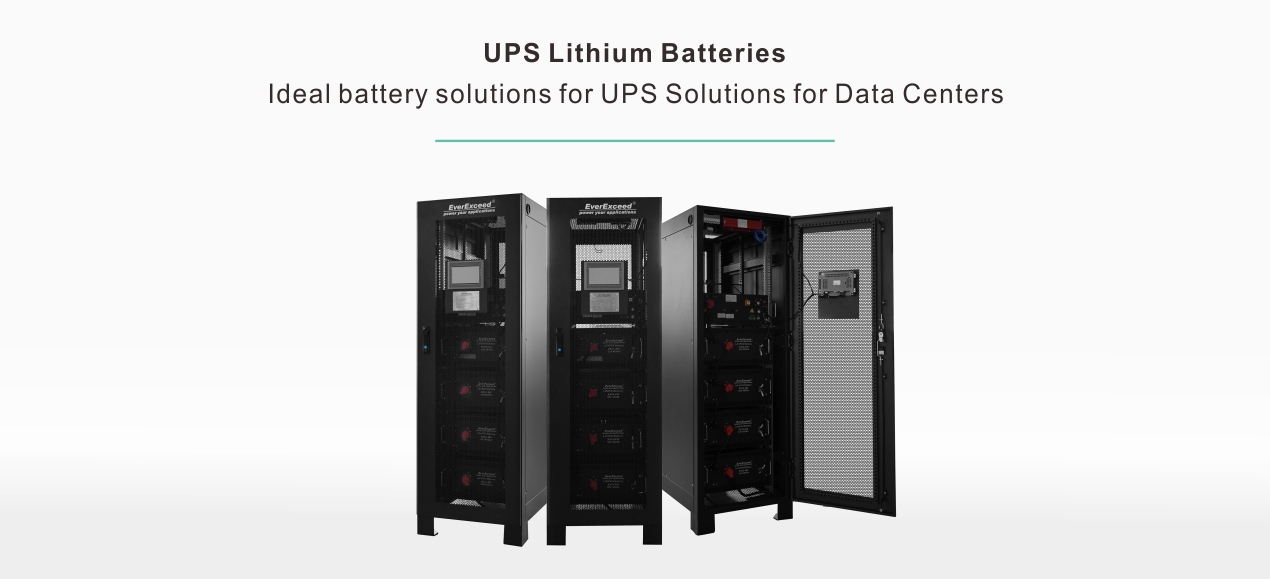

128V 400Ah rack-mounted lithium battery for UPS
Additional information
| Brand | EverExceed |
|---|---|
| Customer Application | Airports |
| Customer Type | Airports |
Description
EverExceed high voltage LiFePO4 (lithium iron phosphate) battery is a new environment-friendly backup power module specially designed for UPS power systems. With an advanced life span, extra compact size, very lightweight, and strong environmental working conditions, besides indoor, it is also the ideal solution for the outdoor harsh environment found in the field, where the UPS are installed and used.
- Brand:EverExceed
- Model:ES128-400
- Rated Voltage(V):128V
- Rated Capacity(Ah):400Ah
- Certificates:UN 38.3; CE
- OEM/ODM Service:Yes, customized service available
- Usage:UPS / Data Center
128V 400Ah rack-mounted lithium battery for UPS
 |
 |
 |
||
| Why it is Safer? | Why it is Simpler? | Why it is Smarter? | ||
|
Long service life：
15 years, 3~5 times longer than lead acid batteries.
|
Better TCO:
Only 50%~70%TCO of lead acid batteries.
|
High compatibility:
Can be used with different UPS brands including EverExceed.
|
||
|
Smart BMS management：
Ensures real-time data collection,status monitoring,control and protection,remote monitoring, etc.
|
Simple operation:
Maintenance free, reduced OPEX.
|
Smart communication:
Support CAN/RS485 communication to achieve intelligent management
|
||
|
High safety：
Using advanced lithium iron phosphate technology to provide full protection of short circuit, over charge, over discharge, over/ under temperature etc to ensures the most perfectly safe operation.
|
Compact battery design:
50%~70% lighter weight than lead acid.
|
| Basic Specification | |
| Nominal Voltage | 128V |
| Nominal Capacity | 400Ah |
| Energy | 51.2KWh |
| Charging | |
| Maximum Charging Voltage | 144V |
| Maximum Charging Current | 200A |
| Discharging | |
| Voltage Range | 112V~144V |
| Maximum Continuous Discharging Current | 200A |
| Cut-off Voltage | 112V~116V |
| Battery Module | |
| Nominal Voltage | 32V |
| Nominal Capacity | 400Ah |
| Quantity | 4 |
| Others | |
| Fire Protection | Battery module-level and Cabinet-level |
| Protection | Over temperature, Over current, Short circuit, Over charge/discharge, etc. |
| Communication Interface | CAN, RS485, Dry contacts |
| Temperature | Charging: 0~45°C, Discharging: -20°C~60°C |
| Dimension (W*D*H) | 600*1000*1800mm |
| Weight | 650±50KG |
