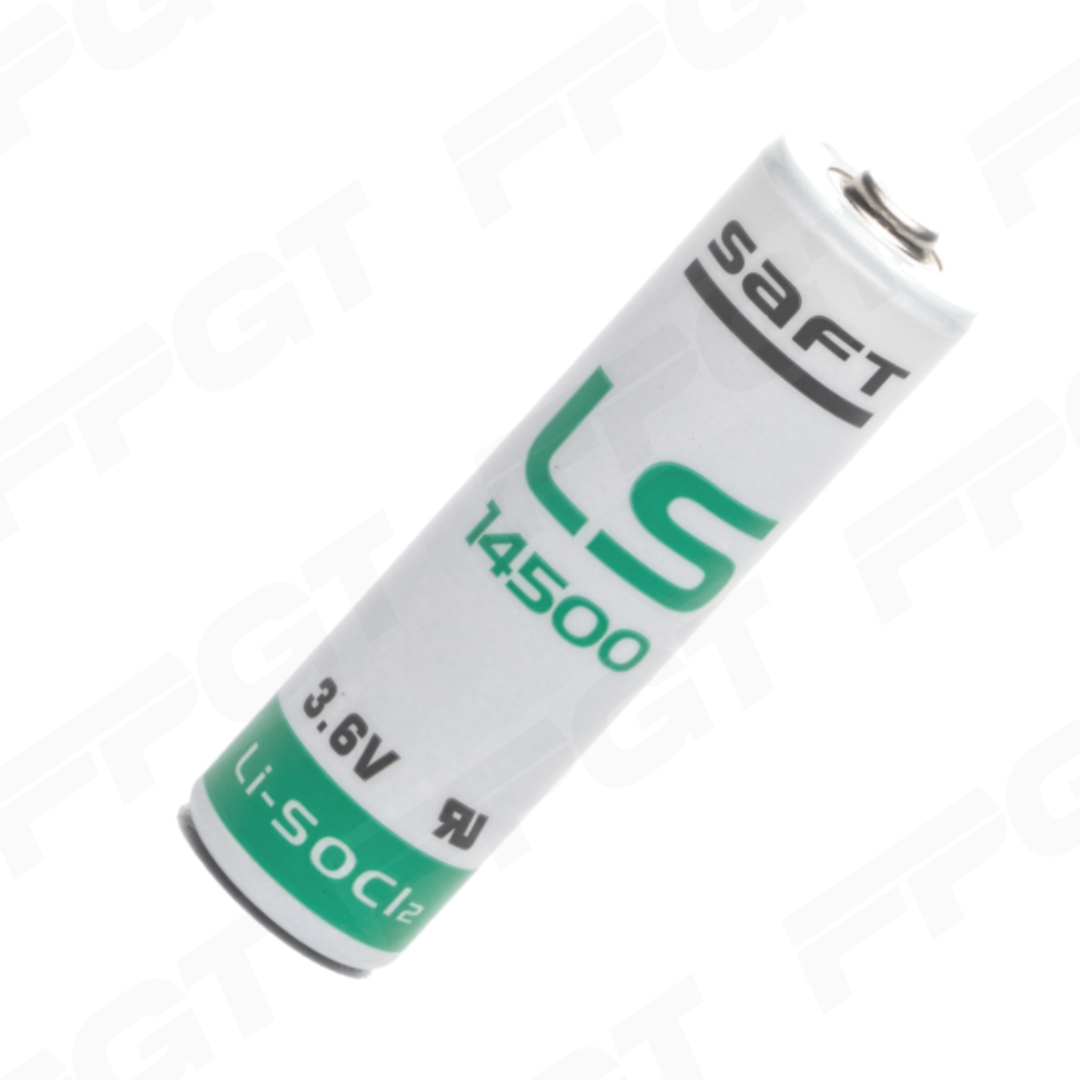

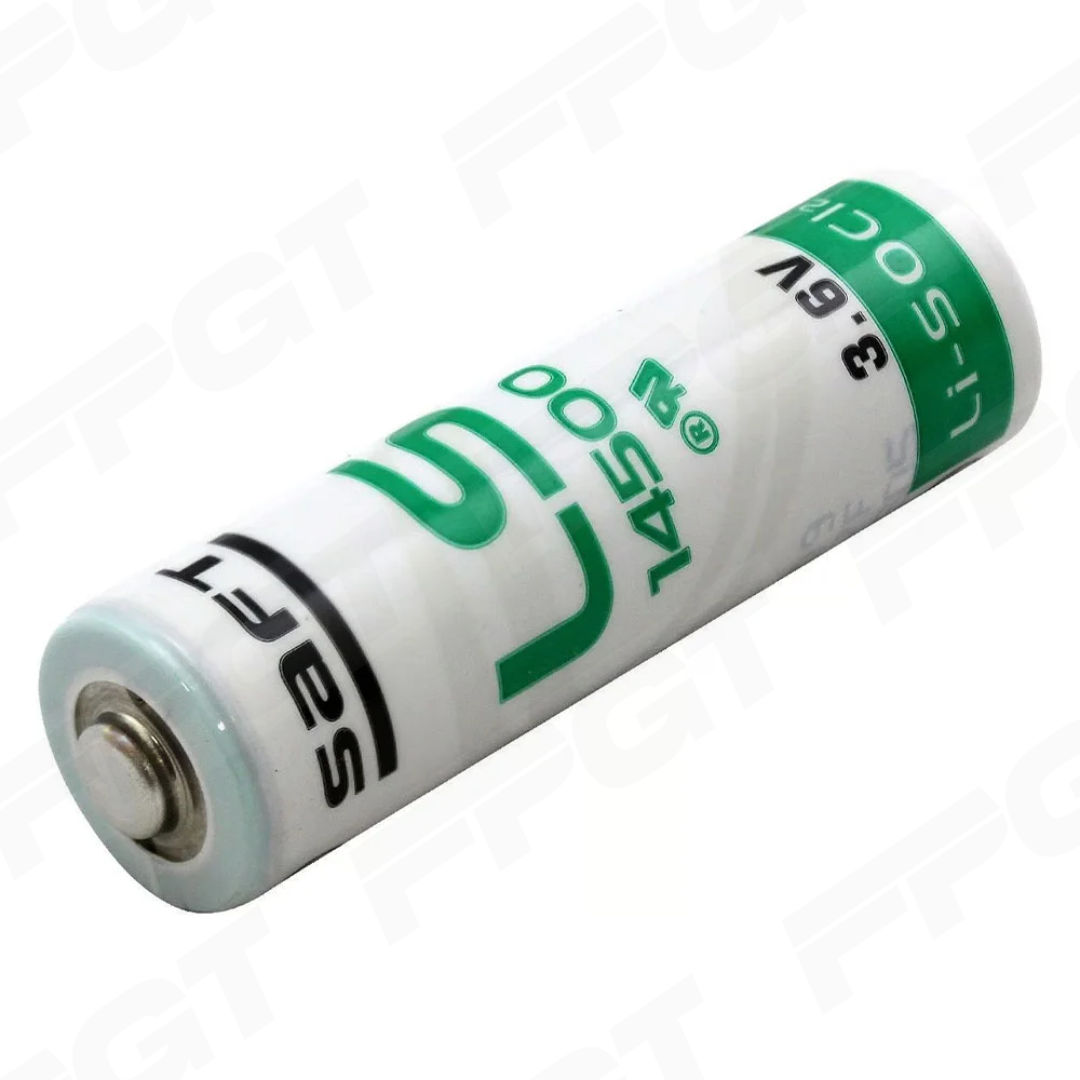

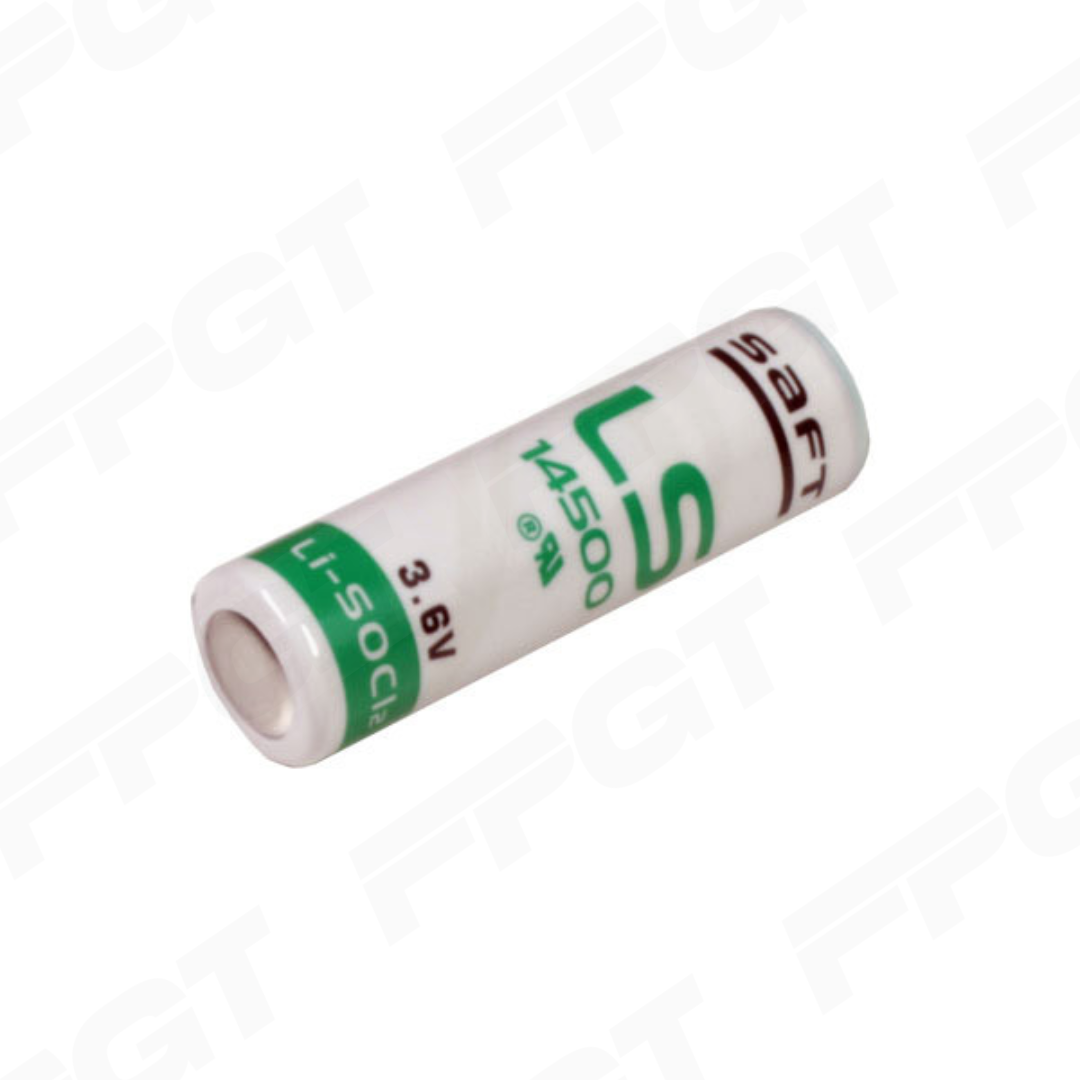

LS14500 Saft Lithium Thionyl Chloride 3.6V AA Battery

LS14500 Saft Lithium Thionyl Chloride 3.6V AA Battery

Availability will be confirmed on request.
Check Availability

Product Specifications

LS14500 | LS 14500 | AA Battery

Authorized distributor for SAFT batteries, LS14500 , UAE Middle East, Bahrain, Saudi Arabia, Qatar, Kuwait, Oman, Iraq – FPGT General Trading

Benefits

  • High capacity and high energy (1122 Wh/l and 520 Wh/kg)
  • High voltage response, stable during most of the lifetime of the application
  • Wide operating temperature range (-60°C/+85°C)
  • Low self-discharge, compatible with a long operating life (less than 1% per year of storage, at +20°C, after 1 year)
  • Superior resistance to corrosion
  • Low magnetic signature

Key features

  • Bobbin construction
  • Well controlled passivation
  • Hermetic construction with glass-to metal seal
  • Stainless steel can
  • Non-flammable electrolyte
  • RoHS and REACH compliance

Technical Specifications

  • Nominal voltage: 3.6 V
  • Nominal capacity: 2.6 Ah
  • Cylindrical format: AA
  • Operating temperature: – 60°C to + 85°C
  • Note: Battery is not rechargeable

Features & Benefits

  • High operating voltage, stable during most of the application lifetime
  • Highest energy density among primary lithium chemistries
  • Lowest self-discharge for extended shelf and operating life
  • High pulse capability, thanks to well-controlled passivation with limited voltage delay
  • Excellent reliability over extended operating life
  • 20 year+ design with best quality components and materials
  • Wide operating temperature range, matching all environment conditions
  • Up to 40 years of mass production, with fully automated process
  • Redundant production lines, to optimize supply chain efficiency and mitigate industrial risk
  • Low magnetic signature

These are original SAFT batteries made in France with certificate of origin (COO). Only buy SAFT batteries from FPGT General Trading – Authorized Distributor for SAFT batteries – there are many counterfeit SAFT batteries in the market which are very difficult to identify sold on Amazon and which can damage your devices. We only sell SAFT direct to customers and through our FPGT Website “only”.

Specification

Manufacturer
SAFT
Type of battery
lithium
Cell size
14500

Rated voltage

For products in the Cables and Wires category, a digit/digit number indicates:
Rated volage U0/U
where:
U0 = cable nominal voltage between the conductor and the metal covering or earth
U = cable nominal voltage between the phase conductors
3.6V
Capacity
2.6Ah
Battery features
non-rechargeable
Body dimensions
Ø14.5x50mm
Leads
none
