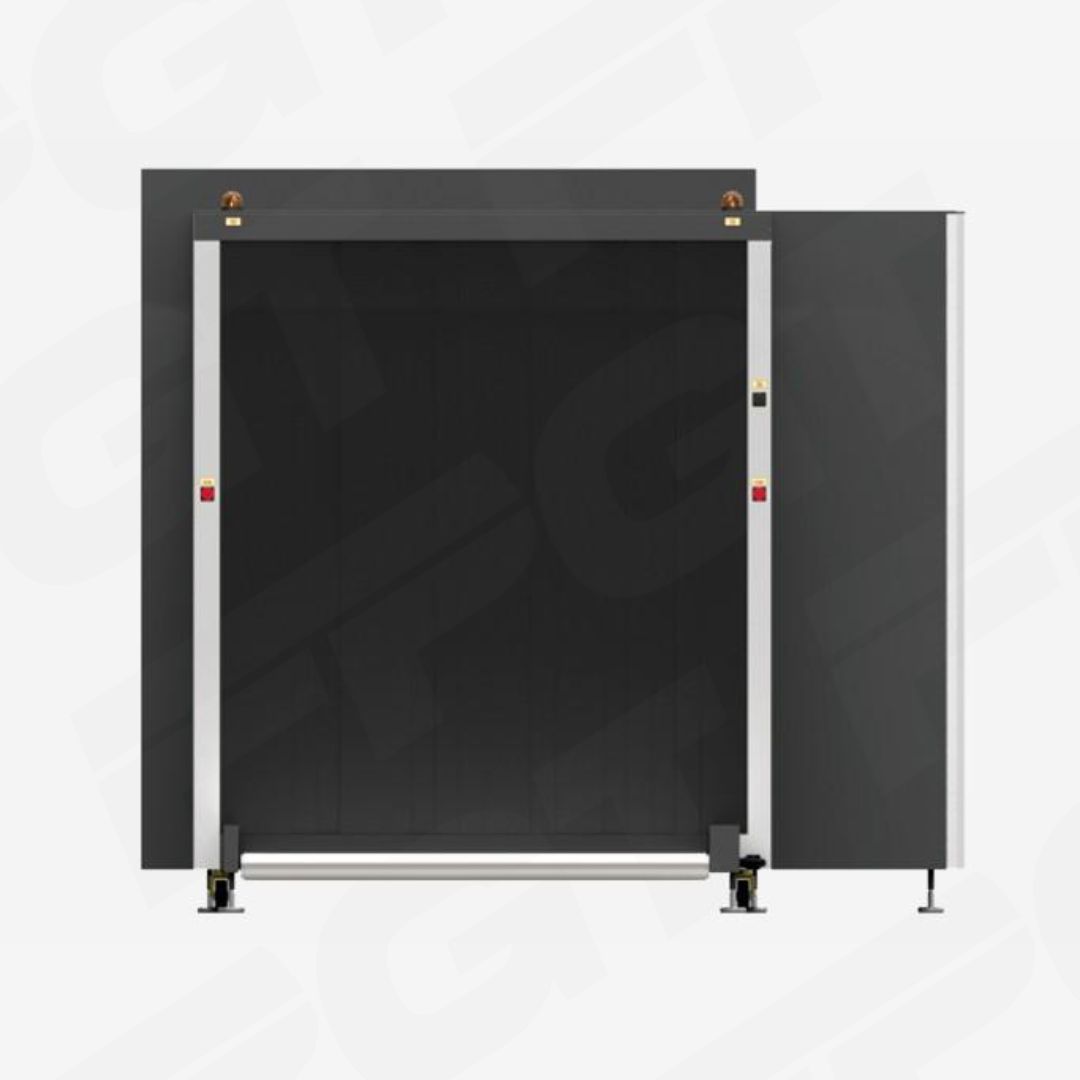

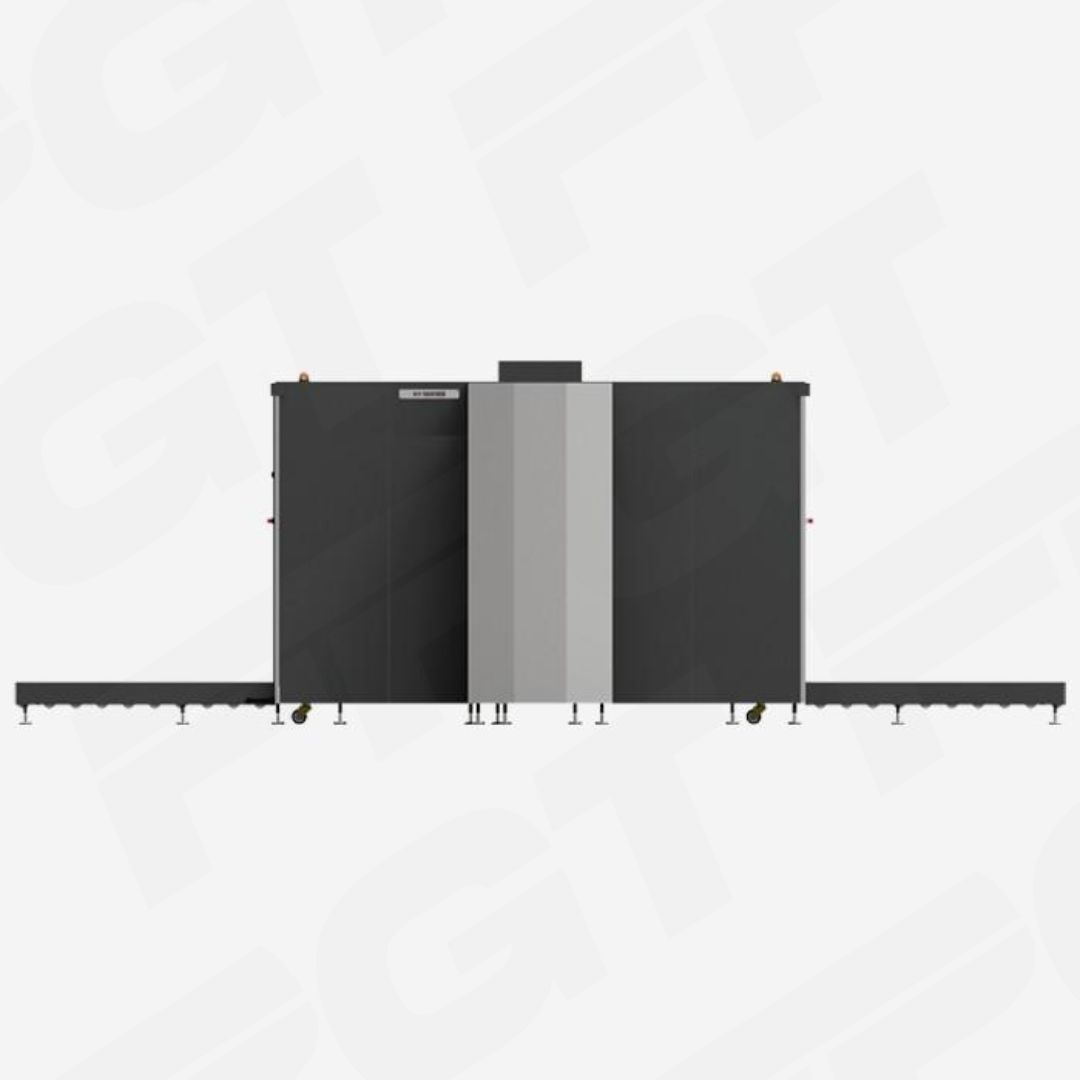

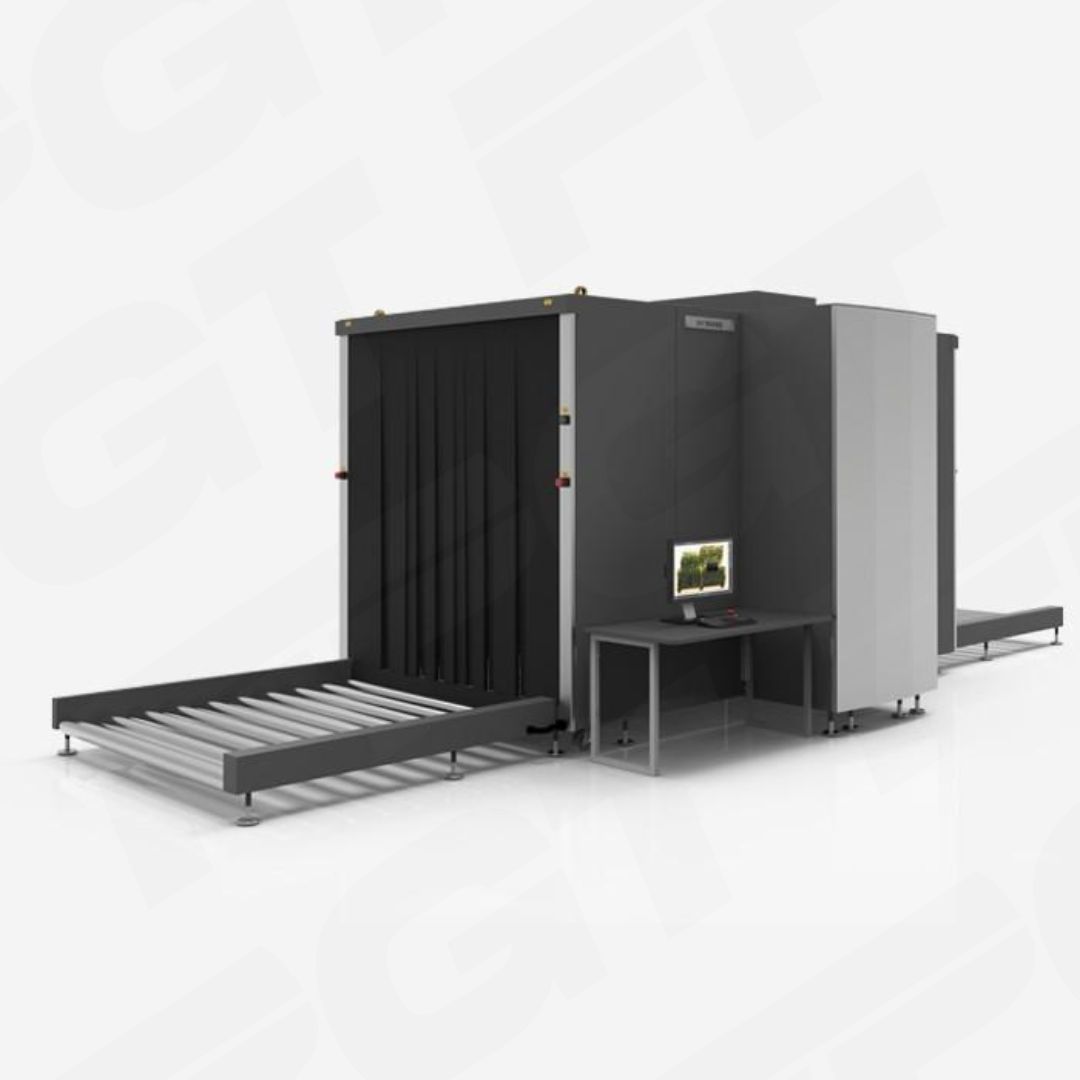

BV 160180 · Single view 1600 by 1800 mm tunnel solution
1600mm by 1800mm tunnel, single view security solution for inspection of mid-size cargo, heavy baggage and large packages
Datasheet
BV 160180 is the optimal security solution for inspection of mid-size cargo, heavy baggage and large packages. The low conveyor design makes it easier to load and unload cargo and goods.
In a matter of seconds BV 160180 detects weapons, explosives (including plastic explosives), knives, drugs and other dangerous objects which may represent a safety hazard. It is an ergonomic, reliable and effective baggage inspection solution.
List of software features available to an operator:
- Automatically calibrating and normalizing the X‑ray detector
- Highlighting optically dense objects
- Adjusting contrast of strongly absorbing objects
- Inverting images
- Gamma–correction of images
- Optimizing the overall contrast
- Coloring substances with atomic numbers from a selected range
- Displaying organic objects with atomic numbers equal to 7, 8, and 9
- Displaying substances according to a selected range of signal strength
- Zooming images up to 96x
- Automatically saving X‑ray images in archive
- Browsing the image (JPEG format) archive
- Copying images on external storage media
- Counting inspected baggage
- Preparing service reports
Options:
- Operator’s workstation stan
- Test objects
- Additional (2nd) monitor
- Touchscreen operation
functionality
- LAN connection
- Increased image storage
capacity (up to 50 000 images)
- Remote operator position (up
to 25 m)
Key features
Quick start-up and shutdown
Thanks to the new hardware configuration, the system is up and running in just 30 seconds. Now it is also possible to instantly shut down the system
Artificial Intelligence
Unique software system for automated detection of firearms, knives, ammunition & pyrotechnics
Color palette
Availability of 7, 3 colour and infinite colour palettes for X-ray images
Automatic identification
Suspicious objects (drugs, explosives) automatic detection and identification
Tolerant configuration
The fault-tolerant configuration of the acquisition/analysis workstation.
Increased load capacity
Chain-driven robust rollers provide a extra weight tolerance on the conveyor of 3 Tn / 6600 lbs
X-ray source
| Anode voltage |
200 kV |
| Beam direction |
Diagonally downward |
X-ray detector
| Detective ability for copper wire |
0,13 mm (36 AWG) |
| Penetration on steel |
44 mm guaranteed |
46 mm typical |
| Spatial resolution, line pairs per mm |
1,5 in the direction of scanning |
1,5 along the detector |
Power supply
| Line voltage |
230 VAC ± 10% / 120 VAC ± 5% |
| Line frequency |
50/60 Hz |
| Power consumption |
A maximum of 3,0 kVA |
Conveyor belt
| Maximum distributed load on the conveyor belt |
3000 kg |
| Conveyor height |
320 mm |
| Conveyor speed |
0,22 ± 0,03 m/s |
Dimensions
| Tunnel dimensions |
|
|
| Width |
1750 mm |
| Height |
1850 mm |
| Overall dimensions (maximum) |
|
| Width |
2750 mm |
| Height |
2400 mm |
| Lenght |
6800 mm |
Climate conditions
| Operation |
|
| Ambient temperature |
0°C to +40°C |
| Maximum relative humidity (at +20°C) |
Up to 90%, non-condensing |
| Storage |
|
| Ambient temperature |
-10°C to + 50°C |
| Maximum relative humidity (at +35°C) |
Up to 98%, non-condensing |
