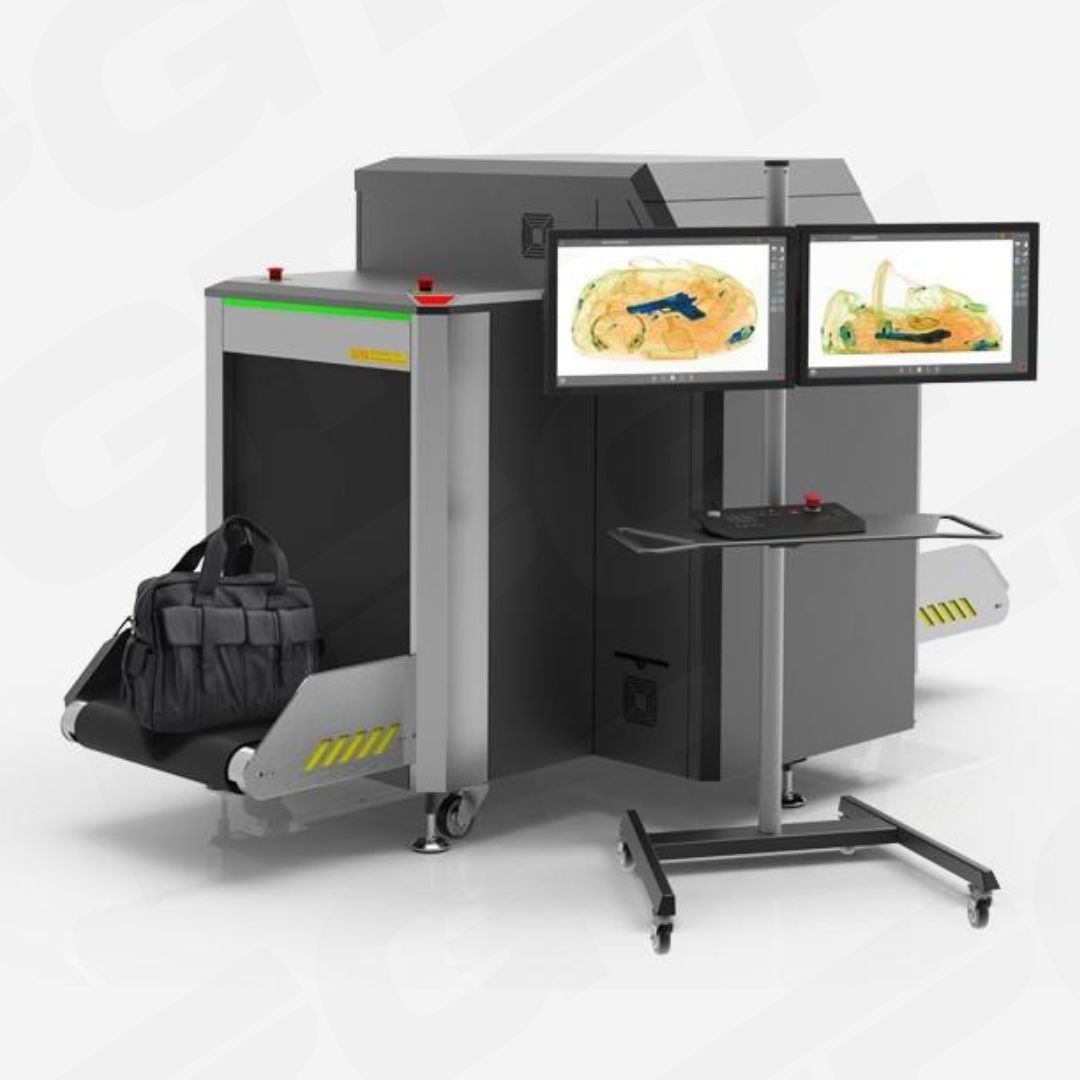

BV 7080DV · Dual view 700 by 800 mm tunnel solution
| Brand | Linev |
|---|---|
| Country of Origin | UAE – UK – USA |
BV 7080DV · Dual view 700 by 800 mm tunnel solution
700mm by 800mm tunnel, dual view solution for quick and accurate inspection of parcels, small and mid-size baggage
Datasheet
The BV 7080DV a high-resolution, dual view X-ray baggage inspection system with the ability to automatically detect prohibited objects and threats.
The dual-view system means that the operator can simultaneously view two separate images (in perpendicular orientation), thus giving a more complete view of the object being scanned and reducing the need for repositioning and rescanning. This enables rapid, accurate and comprehensive threat detection.
The tunnel with a width of 690 mm and a height of 800 mm is optimal for inspection of baggage, bags, hand luggage and parcels. The System may be used at inspection points of critical infrastructure facilities, law enforcement and security agencies, customs, border guards, hotels, event centers, educational institutions, sports arenas, and other places where reliable and uninterrupted operation of inspection systems is required.
The BV 7080DV enables the identification of weapons, explosives, drugs and any other dangerous or prohibited items. Unique colour palettes and touch control provide an exceptional level of operator efficiency.
Options:
- Touchscreen operation functionality
- Ability to connect to a local network
- Remote operator position (up to 25 m)
- Rigid type packaging
Quick start-up and shutdown
Thanks to the new hardware configuration, the system is up and running in just 30 seconds. Now it is also possible to instantly shut down the system
Automatic identification
Suspicious objects (drugs, explosives) automatic detecton and identification
Color palette
Availability of 7, 3 colour and infinite colour palettes for X-ray images
Tolerant configuration
The fault-tolerant configuration of the acquisition/analysis workstation.
Dual-view technology
The operator can simultaneously view two separate images (in perpendicular orientation)
Technical data
X-ray source
| Anode voltage | 160 kV | |
| Beam direction | Diagonally upward & d/sideward |
X-ray detector
| Detective ability for copper wire | 0,08 mm (40 AWG) | |
| Penetration on steel | 36 mm guaranteed | 37 mm typical |
| Spatial resolution, line pairs per mm | 1,0 in the direction of scanning | 1,0 along the detector |
Power supply
| Line voltage | 230 VAC ± 10% / 120 VAC ± 5% |
| Line frequency | 50/60 Hz |
| Power consumption | A maximum of 1,4 kVA |
Conveyor belt
| Maximum distributed load on the conveyour belt | 200 kg |
| Conveyor height | 320 mm |
| Conveyor speed | 0,22 ± 0,03 m/s |
Dimensions
| Tunnel dimensions | ||
|---|---|---|
| Width | 690 mm | |
| Height | 800 mm |
| Overall dimensions (maximum) | ||
|---|---|---|
| Width | 1310 mm | |
| Height | 1610 mm | |
| Lenght | 2800 mm |
| Weight (maximum) | 895 kg |
|---|
Climate conditions
| Operation | ||
|---|---|---|
| Ambient temperature | 0°C to +40°C | |
| Maximum relative humidity (at +20°C) | Up to 90%, non-condensing |
| Storage | ||
|---|---|---|
| Ambient temperature | -10°C to + 50°C | |
| Maximum relative humidity (at +35°C) | Up to 98%, non-condensing |
