DTP 7500LV · Cost-effective solution
| Brand | Linev |
|---|---|
| Country of Origin | UAE – UK – USA |
DTP 7500LV · Cost-effective solution
The lowest dose to vehicle drivers than competing systems; high-throughput cargo and vehicle screening with steel penetration of not less 320 mm for threat and contraband detection; small exclusion zone and operation footprint; easy-to-use operator controls and image analysis software
Description
DTP 7500LV can be chosen for safe and rapid customs screening on the land border crossings, for the container inspection at the seaport or similar applications.

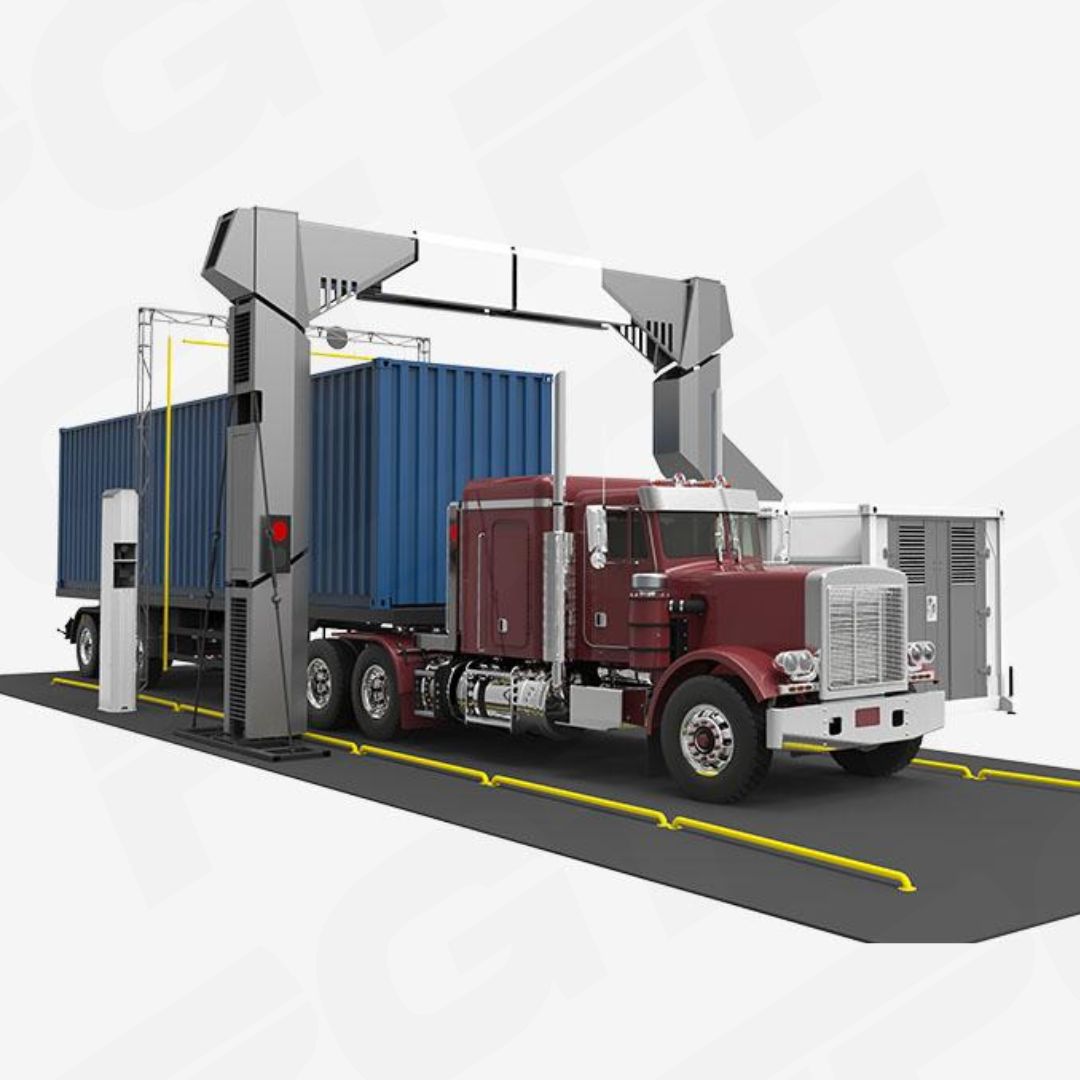

DTP 7500LV is a basic high energy x-ray inspection solution for loaded trucks and containers screening with minimal footprint and exclusion zone. It is a perfect for high density objects inspection and multiple threat and contraband detection when high throughput is vital for the customer. State-of- the-art innovative dual energy technology makes it possible to «see» trough more than 300 mm of steel, differentiate and highlight substances by their atomic numbers. Selective drive-through technology guarantees driver’s radiation safety, automatically preventing cabin inspection or significantly reducing radiation power coming to the cabin that allows a driver to stay safely inside his vehicle during inspection.
Software helps to highlight all dangerous and hidden objects inside the vehicles and have a ware range of tools for effective X-ray image analysis.

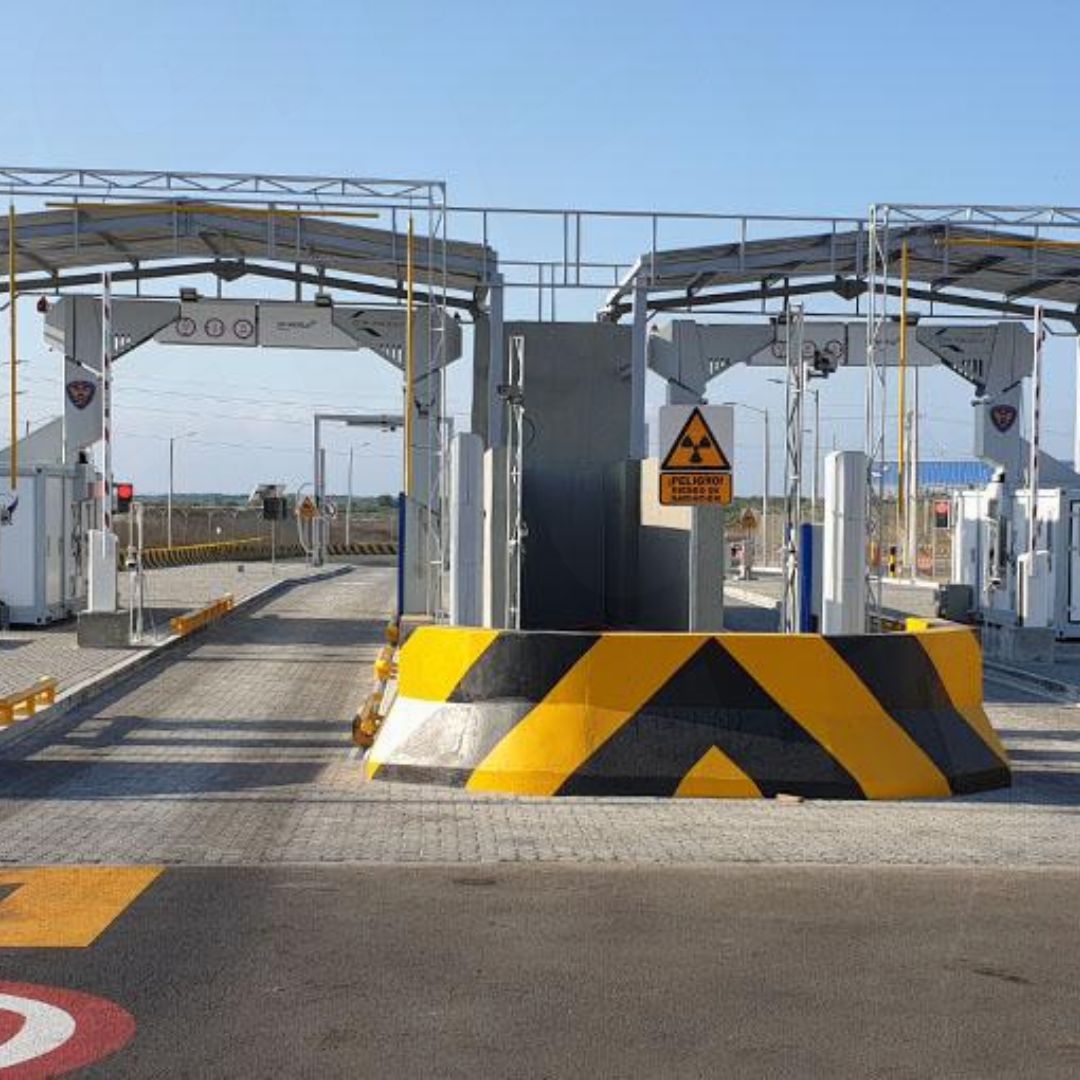

DTP 7500LV is an optimal solution for non-intrusive control of cargo at border check points, seaports and cargo terminals.
This system can be utilized as a cost-effective alternative for DTP 7500/320DV system that is a perfect drive through tool for all kind of threats independent on their thicknesses.
Options:
- Automatic number plate recognition system (ANPR)
- Container code recognition system for freight container numbers recording (ACCR)
- Under vehicle inspection system (UVIS)
- Integrated radiation portal monitor (IRPM)
- ID cards and passports reader
Key features
Drive-through and mobile scanning modes
Lateral projection

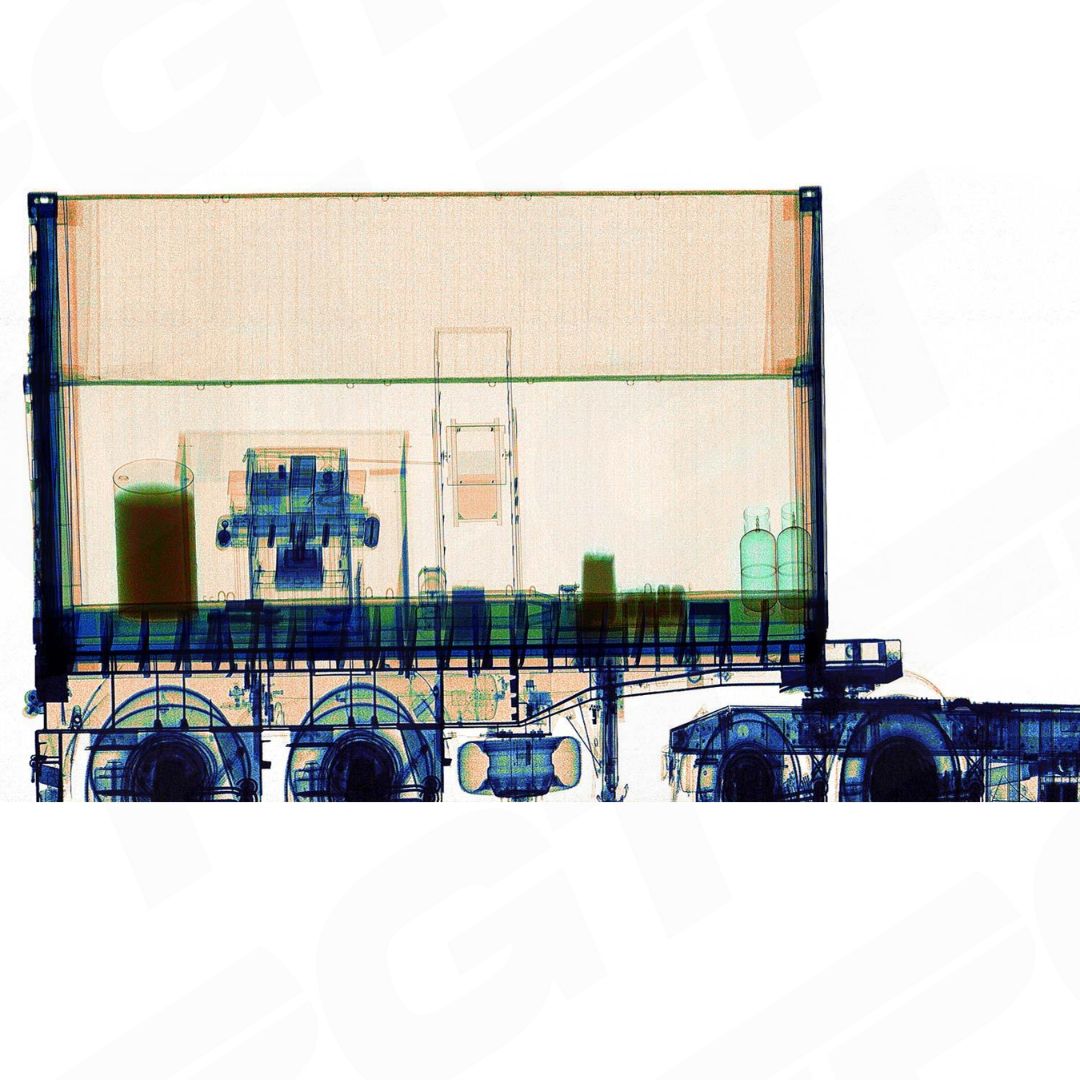

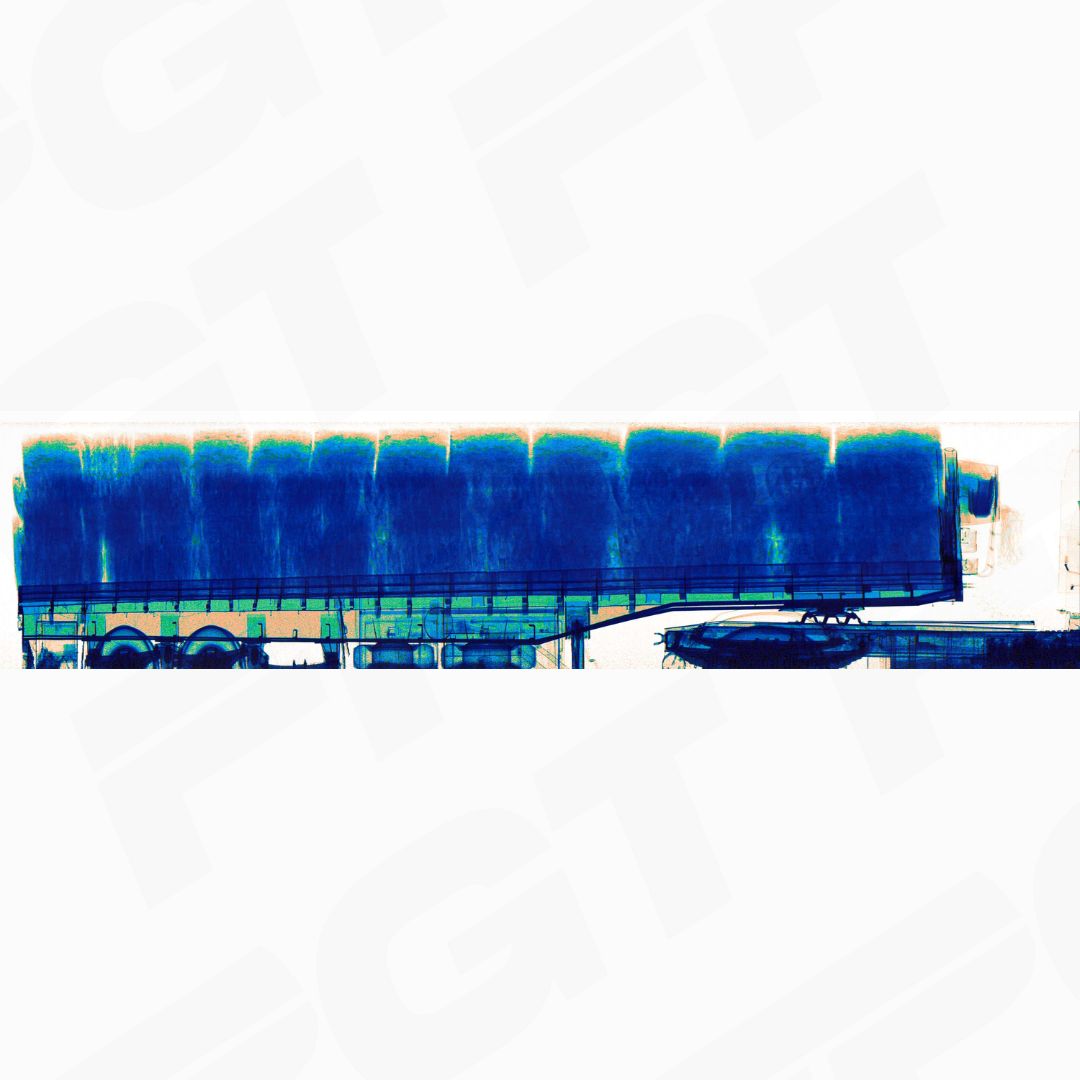

Dual energy technology with color-coding
High penetration 320 mm
High throughput 110 vehicles per hour
Technical data
Generator specifications
| Throughput capacity | up to 150 vehicles/hour |
| Steel penetration | up to 320 mm |
| Wire resolution (copper wire) | n 2 mm |
| Radiation dose to driver per scan | < 0,05 μSv (without scanning the cabin) |
| Number of projections | one, lateral |
Unit specifications
| Dimension of scanning vehicles: | |
|---|---|
| Length | 20,0 m |
| Width | 3,0 m |
| Height | 4,7 m |
| Dimension of inspection tunnel: | |
| Width | 3,5 m |
| Height | 4,8 m |
| Scanning speed | 5 – 10 km/h |
Operation
| Temperature: | |
|---|---|
| Operating | from – 20 °C to + 45 °C |
| With climatic package | from – 30 °C to + 55 °C |
