EMIS CEIA Mail Metal Detector

• Automatic inspection of parcels and letters up to 45 cm in width and 7.5 cm thickness
• Detection of detonators, batteries, trigger circuits and other metallic components of letter bombs
• No alarm on metal staples, paper-clips and metal binding spirals
• Ergonomic, compact design
• Confirmation of signal (OK/ALARM) for each package inspected
• Operates on mains power supply and with NiMH rechargeable batteries (opt.)
• No calibration or periodic maintenance required
• Integrated battery charger
• Optional embedded radioactive material detector

The EMIS^®-MAIL is designed to detect a wide variety of metal threat items including detonators, batteries, trigger circuits and other metal components of parcel bombs without false alarms for non-threat items such as metal staples, paper clips and metal binding spirals.

The EMIS^®-MAIL is very easy to use and provides a fast and automatic alarm/no alarm signal confirmation per each inspected package. Its compact, ergonomic design along with the electric and built-in NiMH rechargeable battery power supply allows for independent operation in a variety of locations. An optional embedded radioactive detector is also available for radioactive material threat detection.

The EMIS^®-MAIL is uniquely qualified to operate in a prison or correctional facility environment with specific settings available for prison parcel inspection. Along with meeting the strictest safety and security standards, EMIS^®-MAIL is also compliant with the EU Regulation 185/2010 for the inspection of letters and parcels.

Key features of the CEIA EMIS^®-MAIL include:

• Ease of Installation and Setup
• Ease and Speed of System Use with Limited Screener Training Required
• Automatic Inspection of Parcels and Letters up to 450 mm x 75 mm
• No Calibration or Periodic Maintenance Required
• Independent Operation with Mains Power Supply or Built-in NiMH Rechargeable Batteries

General characteristics

• Automatic inspection of parcels and letters up to 45 cm in width and 7.5 cm thickness
• Detection of detonators, batteries, trigger circuits and other metallic components of letter bombs
• No alarm on metal staples, paper-clips and metal binding spirals
• High inspection speed
• No alarm on metal staples, paper-clips and metal binding spirals
• Very high discrimination of paper-clips, metal staples and binding spirals

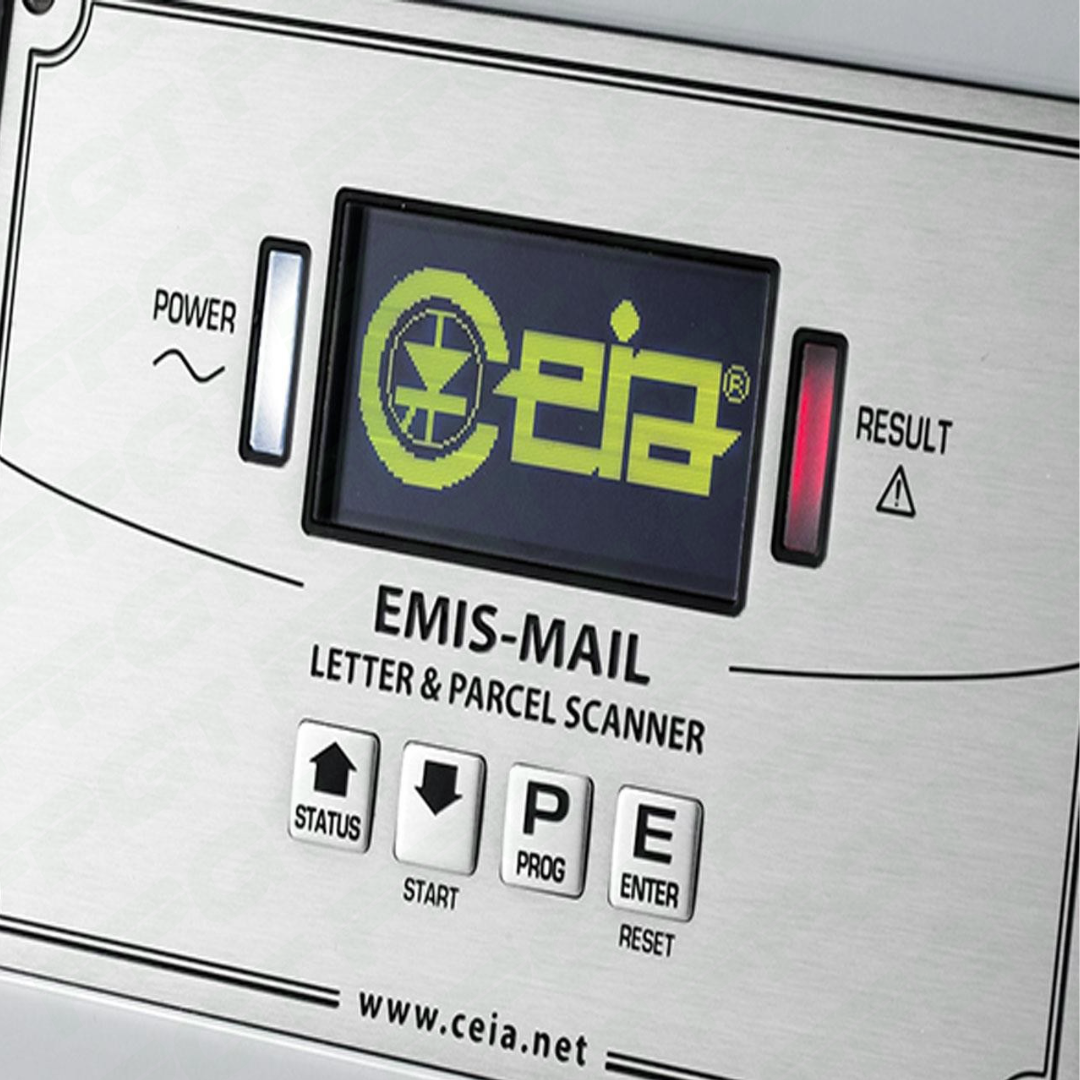

• Digital programming with high-resolution OLED graphic display
• Optical and acoustic alarm signalling
• Integrated autodiagnosis system
• Permanent memory storage of operating parameters without back-up batteries
• Independent operation, with mains power supply or batteries (optional)
• Specific Settings available for Prison parcels inspection (Dept. of Justice applications)
• Compliant with NIJ-0602.02 Dept. of Justice Detection requirements

Structure: Transit opening 450 mm x 75 mm , Degree of protection IP40

Dimensions: 450 mm x 565 mm x 250 mm

Weight: 16 kg

Power supply

• 100-277 V~±10%, 47-63Hz with external AC/DC adapter
• Current 1.3 A max
• Battery operation (optional)
  • 6 x 1.2V NiMH size D
  • Battery life: 12 hours
  • Battery-charger incorporated: Recharging time 6 hours

Programming

• Type
  • Local: via integrated keypad
  • Remote: via BT wireless communication, RS232
• Memory capacity: 10.000 events

Signaling

• Audible: Internal buzzer
• Visual
  • High-contrast OLED graphic display with bar-graph indication / zone location (pinpointing)
  • LED indicators on the control panel
    • WHITE: Power supply
    • RED: Alarm, Autodiagnosis
    • GREEN: OK, Power supply
    • BLUE: Alarm, detection of radioactive substances

Security/safety: Access to programming protected by password , Galvanic isolation: operates on Low DC voltage

Communication: Incorporated BT wireless communication interface, RS232

Environmental data

• Operating Temperature: -10 to +50 °C
• Storage Temperature: -25 to +60 °C
• Relative humidity: 5 to 90 %, without condensation

Conformity (Test Reports available upon request)

• Safety
  • EN61010-1
  • ACGIH, 2014 Threshold Limit Value (TLV)
  • IEEE C95.1-2005
  • EC-Rec. 1999/519/EC
  • EN 50364:2010
• EMC
  • EN61000-6-1
  • EN61000-6-3
• RED
  • EN300330: Short Range Devices (SRD)

NATO stock number

• 6665150105807
