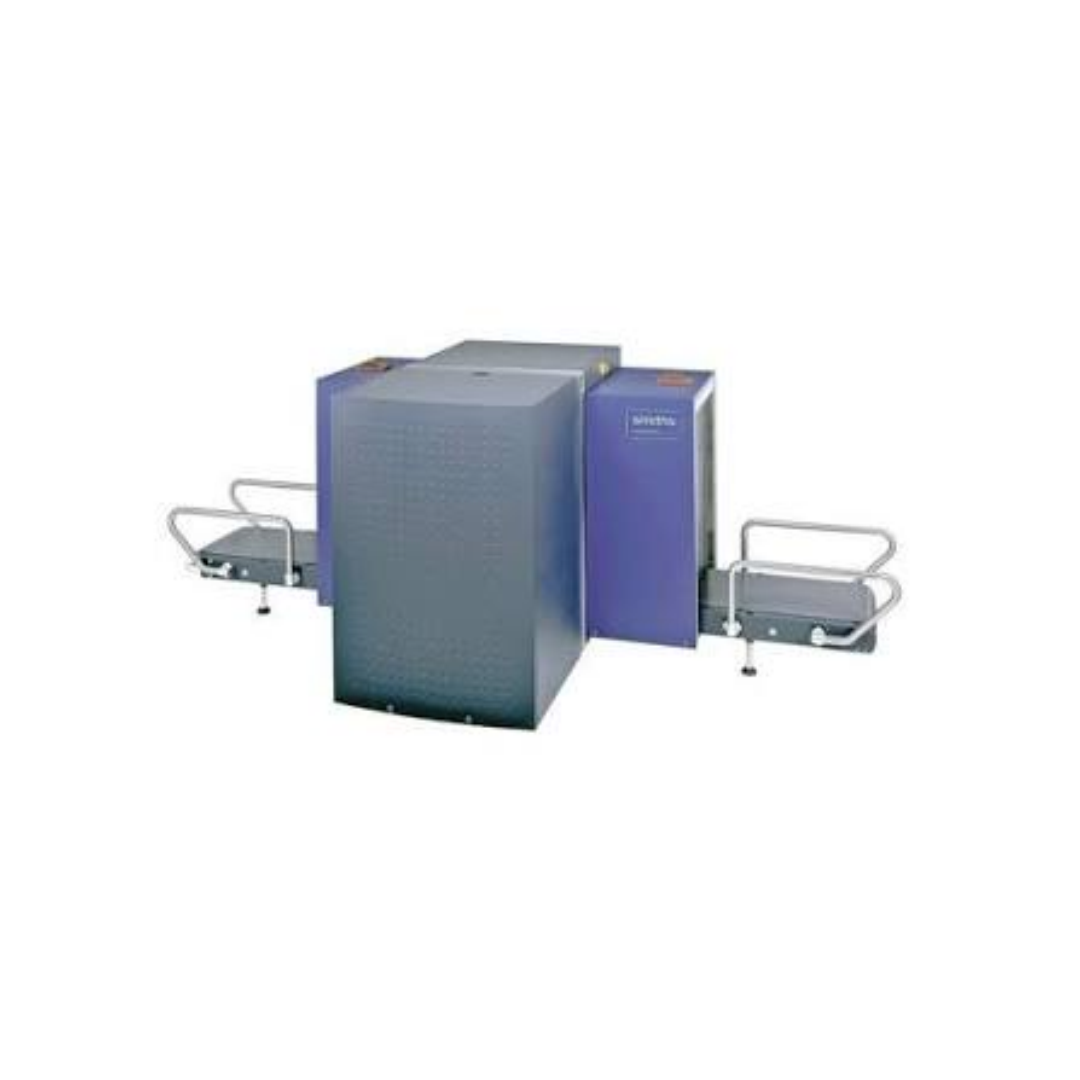

HI-SCAN 5180si – High-Resolution Airport Check-In X-Ray Inspection System
The HI-SCAN 5180si is a high-resolution airport check-in X-ray baggage inspection system designed for detailed checked-baggage screening. It features a 517 × 800 mm tunnel, up to 37 mm typical steel penetration, wire detectability up to 40 AWG, a 160 kV X-ray generator and 100% duty-cycle operation. The system is suitable for airports, aviation security, baggage screening and other demanding security environments.
HI-SCAN 5180si – High-Resolution Airport Check-In X-Ray Inspection System
Product Specifications
| Detection Capability | Prohibited and Suspicious Object Detection |
|---|---|
| Detector Technology | XADA Sensor Technology |
| Dimensions | 3090 (L) x 1452 (W) x 1195 (H) [mm]; 121.6 (L) x 57.2 (W) x 47.0 (H) [in] |
| Image Quality | High-Resolution X-Ray Imaging |
| Imaging Technology | Multi-Energy X-Ray Imaging |
| Key Features | High-resolution X-ray imaging; advanced multi-energy X-ray generator; XADA sensor technology; high steel penetration; fine wire detectability; large tunnel height |
| Max. object size | 510 (W) x 795 (H) [mm]; 20.1 (W) x 31.3 (H) [in] |
| Operational Benefit | Provides highly detailed X-ray images to support accurate security screening of carry-on luggage at airport checkpoints |
| Primary Application | Carry-On Baggage Screening |
| Primary Markets | Airports; aviation security; government facilities; high-security checkpoints |
| Product Category | Baggage Screening Equipment |
| Product Type | Airport Check-In X-Ray System |
| Screening Applications | Airport checkpoint screening; carry-on baggage inspection; passenger security screening |
| Steel Penetration | Up to 37 mm |
| Weight | Approximately 600 kg |
| Wire Detectability | Up to AWG 40 |
HI-SCAN 5180si – High-Resolution Airport Check-In X-Ray Inspection System
The HI-SCAN 5180si is a high-resolution X-ray inspection system for airport check-in and checked-baggage security screening. Developed for demanding aviation security environments, the system produces highly detailed X-ray images to help security operators identify and assess potential threats and prohibited items inside baggage.
The HI-SCAN 5180si is an advanced development of the HI-SCAN 5180i platform and incorporates a high-resolution detector system, multi-energy X-ray technology and advanced image-processing capabilities. Its combination of image quality, large tunnel opening and continuous-duty operation makes it suitable for high-throughput airport security environments.
Key Specifications
- Model: HI-SCAN 5180si
- Application: Airport check-in / checked baggage X-ray inspection
- Tunnel dimensions: 517 × 800 mm (W × H)
- Maximum object size: 510 × 795 mm
- Conveyor height: Approximately 232 mm
- Conveyor speed: Approximately 0.2 m/s at 50 Hz / 0.24 m/s at 60 Hz
- Maximum distributed conveyor load: 160 kg
- Wire detectability: Standard 39 AWG; typical 40 AWG
- Steel penetration: Standard 35 mm; typical 37 mm
- X-ray generator: 160 kV
- Generator cooling: Hermetically sealed oil bath
- Beam direction: Diagonal
- Duty cycle: 100%, no warm-up required
- Film safety: Guaranteed up to ISO 1600
- Typical X-ray dose: Approximately 0.9 µSv; approximately 1.7 µSv with HI-MAT
- Power consumption: Approximately 0.8 kVA
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +60°C
- Humidity: 10%–90%, non-condensing
- Power supply: 230 VAC or 120 VAC, depending on configuration
- Approximate dimensions: 3090 × 1452 × 1195 mm
- Approximate weight: 600 kg
High-Resolution X-Ray Imaging
The HI-SCAN 5180si uses an advanced detector and image-generation system to produce detailed X-ray images. The system stores 4096 grey levels and supports black-and-white and colour image presentation, helping operators analyse the contents of screened baggage.
Its high-resolution imaging capability provides wire detectability up to approximately 40 AWG under typical conditions, while steel penetration is typically up to 37 mm.
Large Screening Tunnel
With a 517 × 800 mm tunnel opening, the HI-SCAN 5180si is designed for screening checked baggage and larger airport luggage. The maximum specified object size is approximately 510 × 795 mm, providing substantial screening capacity for airport check-in operations.
The conveyor supports a maximum evenly distributed load of 160 kg, making the system suitable for demanding baggage-screening environments.
Advanced Image Analysis
The system supports image enhancement and analysis functions including electronic zoom, image review and image-processing tools designed to assist operators in evaluating X-ray images. The documented system options include functions such as X-ACT, HI-TIP, HI-SPOT, SEN, XPlore, IMS and Xport.
Continuous-Duty Operation
The HI-SCAN 5180si is designed for continuous operation with a 100% duty cycle and no warm-up procedure required. This makes it suitable for airport environments where baggage screening must operate continuously throughout security operations.
Typical Applications
The HI-SCAN 5180si is suitable for:
- Airport check-in security
- Checked baggage screening
- Airport security checkpoints
- Aviation security
- Airport employee security screening
- Baggage inspection
- Transportation security
- Critical infrastructure security
- Government security facilities
- High-security screening environments
Smiths Detection currently identifies the HI-SCAN 5180si as an airport check-in X-ray system and lists it within aviation, hold-baggage and airport employee security screening solutions.
Professional Airport Security Screening
The HI-SCAN 5180si combines high-resolution X-ray imaging, a large screening tunnel, strong penetration capability and continuous-duty operation in a system designed for professional airport security. It is particularly suited to organizations requiring reliable checked-baggage inspection and detailed X-ray image analysis.
Note: Specifications and available options may vary according to system configuration and production version. Always confirm the exact configuration, certifications and technical specifications with the supplier before procurement.
