Description

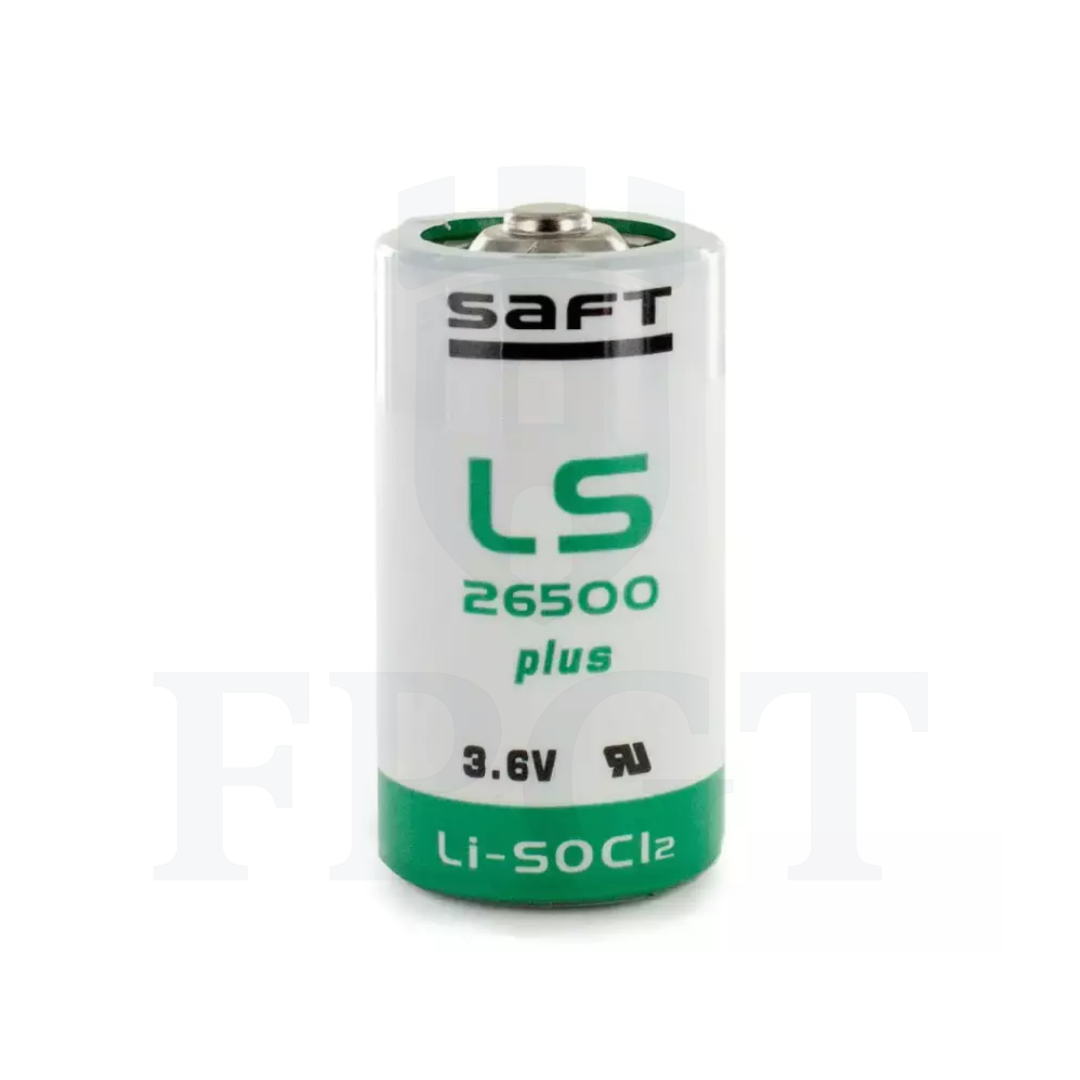

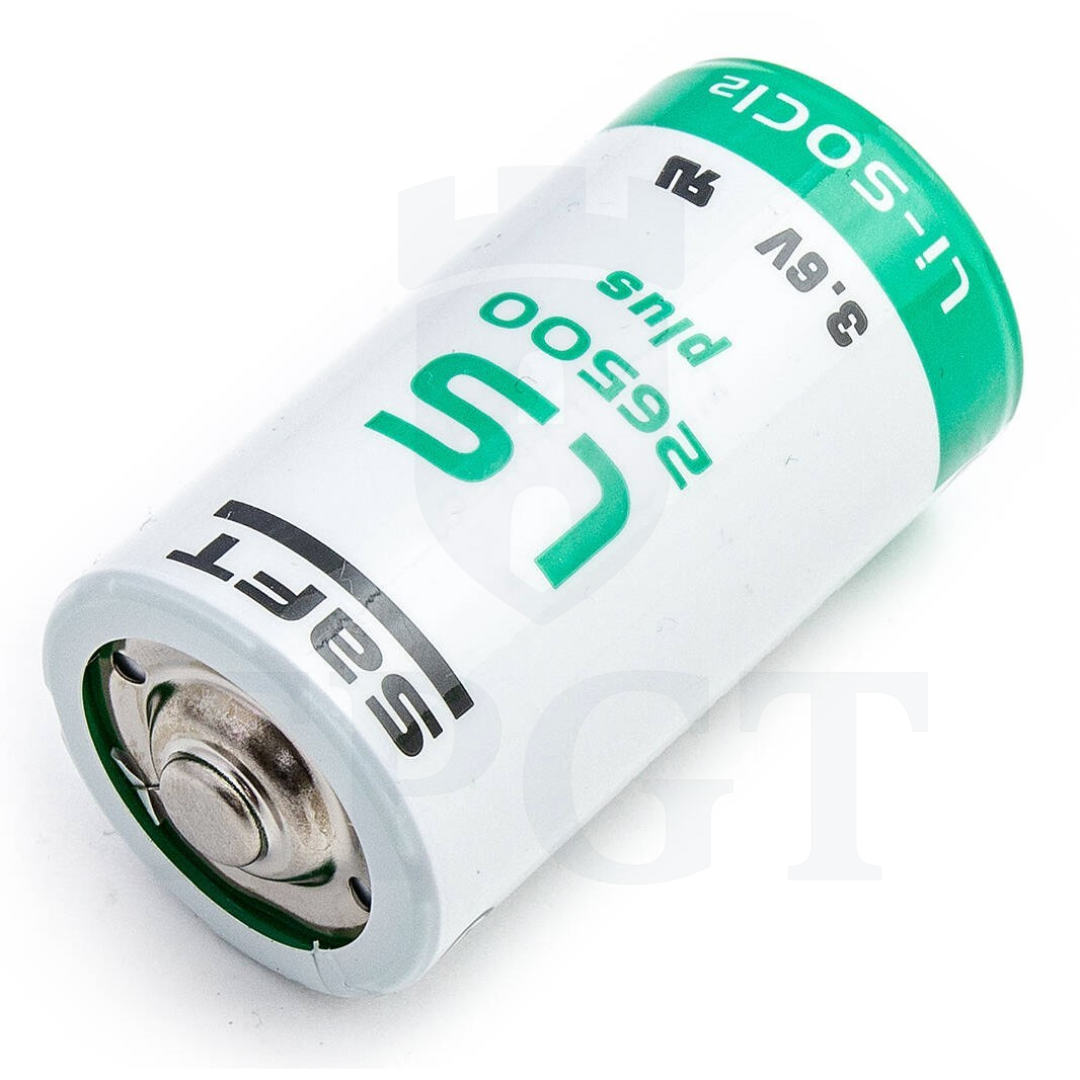

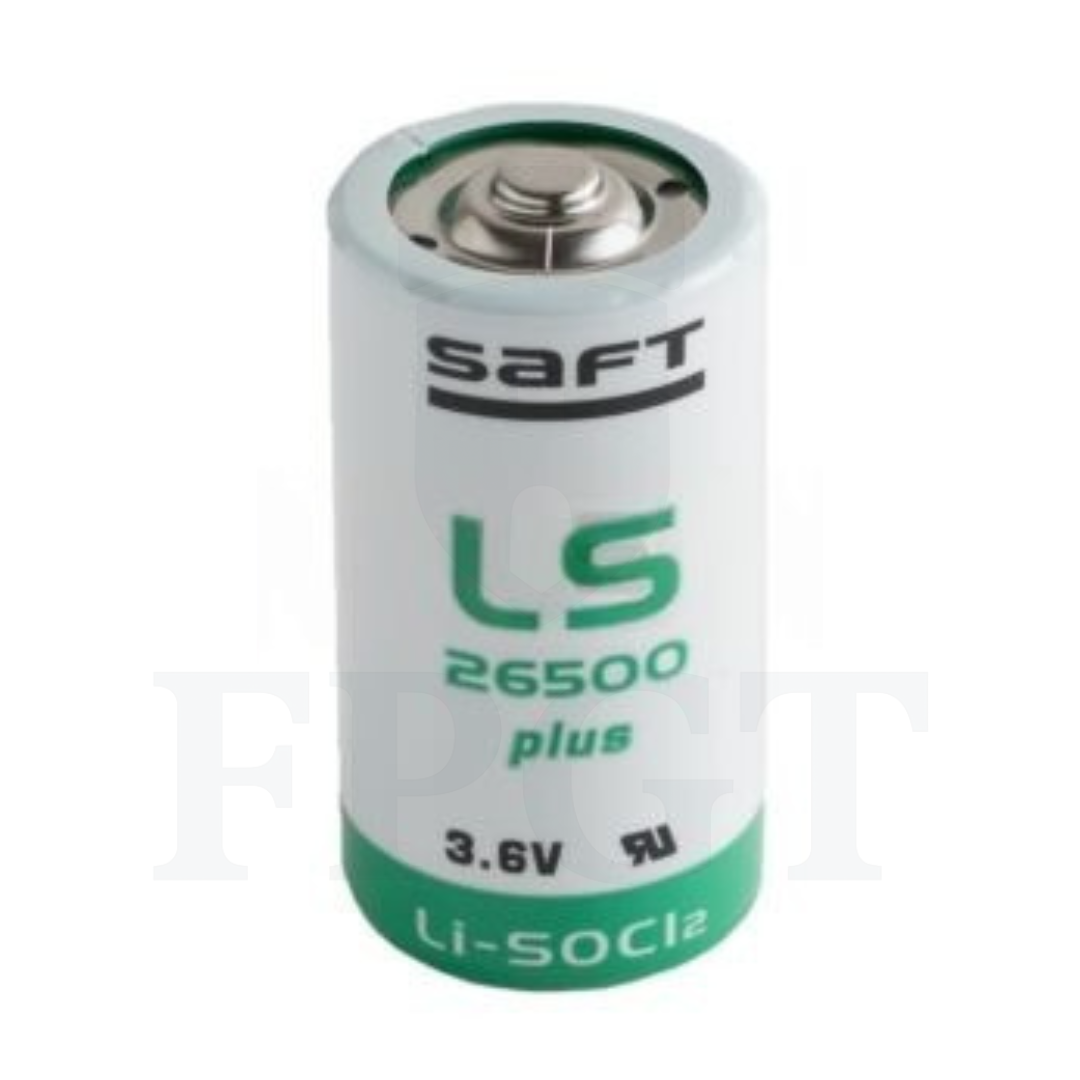

LS26500plus SAFT Lithium Non rechargeable battery

Saft’s LS 26500plus cell is ideally suited for long-term applications (typically from 5 to 20+ years), featuring low base currents and periodic pulses.

Benefits

  • High capacity and high energy (1175 Wh/l and 637 Wh/kg)
  • High voltage response, stable during most of the lifetime of the application
  • Wide operating temperature range (-60°C / + 85°C)
  • Low self-discharge compatible with long operating life (less than 1% after 1 year of storage at + 20°C)
  • Superior resistance to corrosion
  • Low magnetic signature

Key features

  • Bobbin construction
  • Well controlled passivation
  • Hermetic construction with glass-to metal seal
  • Stainless steel can
  • Non-flammable electrolyte
  • RoHS and REACH compliance
  • Made in France

Typical Applications

  • Utility Metering
  • Internet of Things
  • Alarms and security
  • Medical devices
  • Tracking systems
  • Professional electronics

These are original SAFT batteries made in France with certificate of origin (COO). Only buy SAFT batteries from FPGT General Trading – Authorized Distributor for SAFT batteries – there are many counterfeit SAFT batteries in the market which are very difficult to identify sold on Amazon and which can damage your devices. We only sell SAFT direct to customers and through our FPGT Website “only”.

Specification

Manufacturer
SAFT
Type of battery
lithium
Cell size
C, R14

Rated voltage

For products in the Cables and Wires category, a digit/digit number indicates:
Rated volage U0/U
where:
U0 = cable nominal voltage between the conductor and the metal covering or earth
U = cable nominal voltage between the phase conductors
3.6V
Capacity
8.5Ah
Battery features
non-rechargeable
Body dimensions
Ø26×50.4mm
Leads
none
