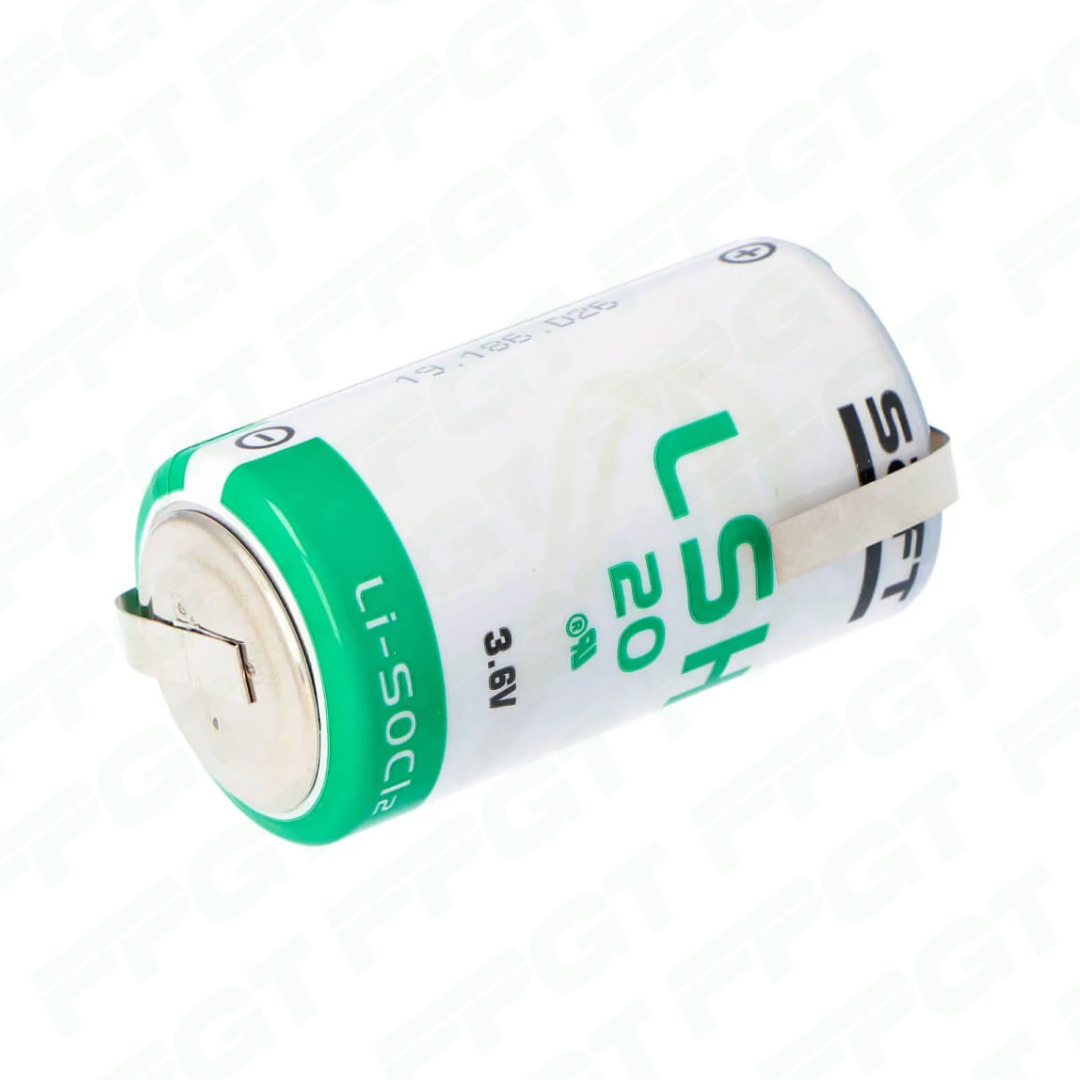

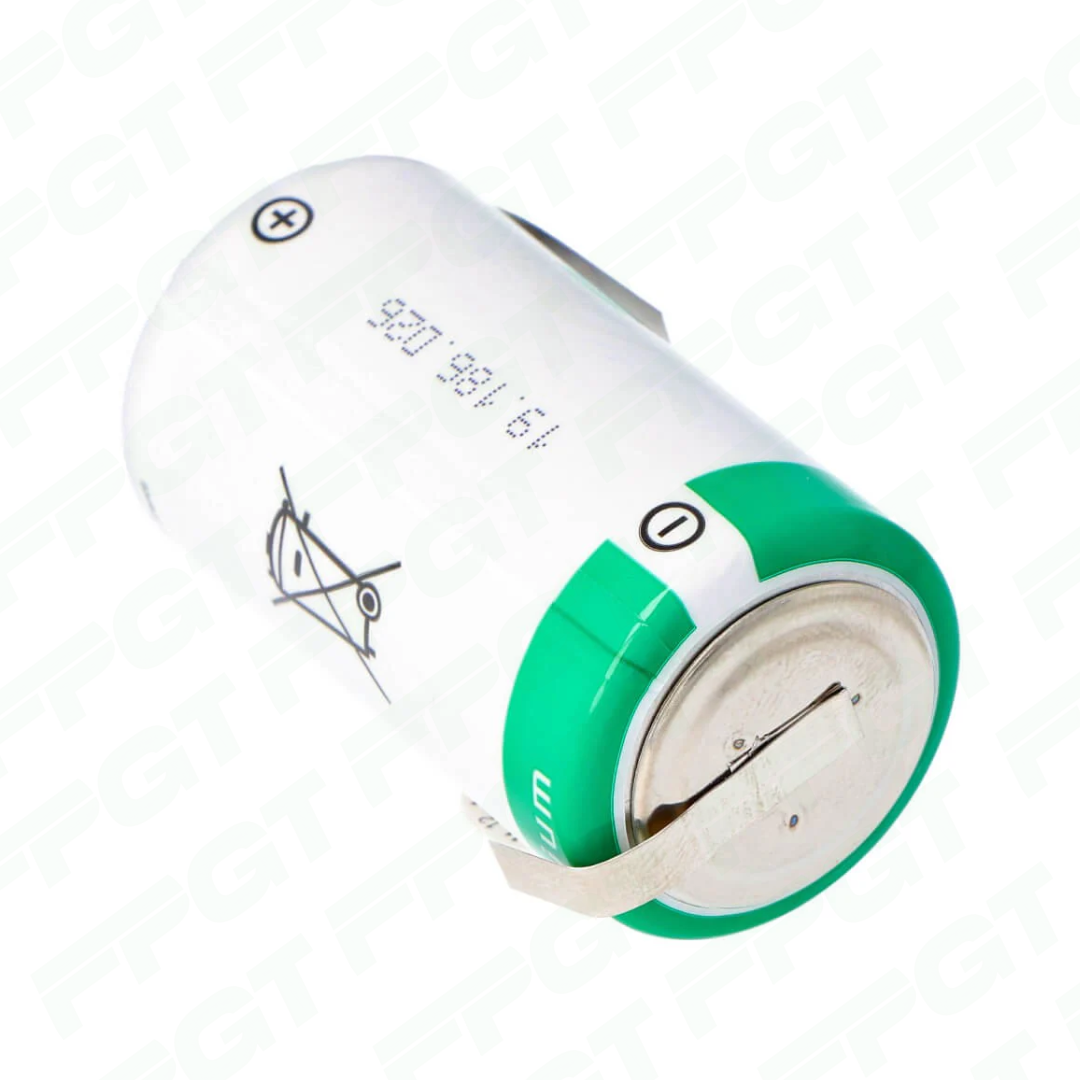

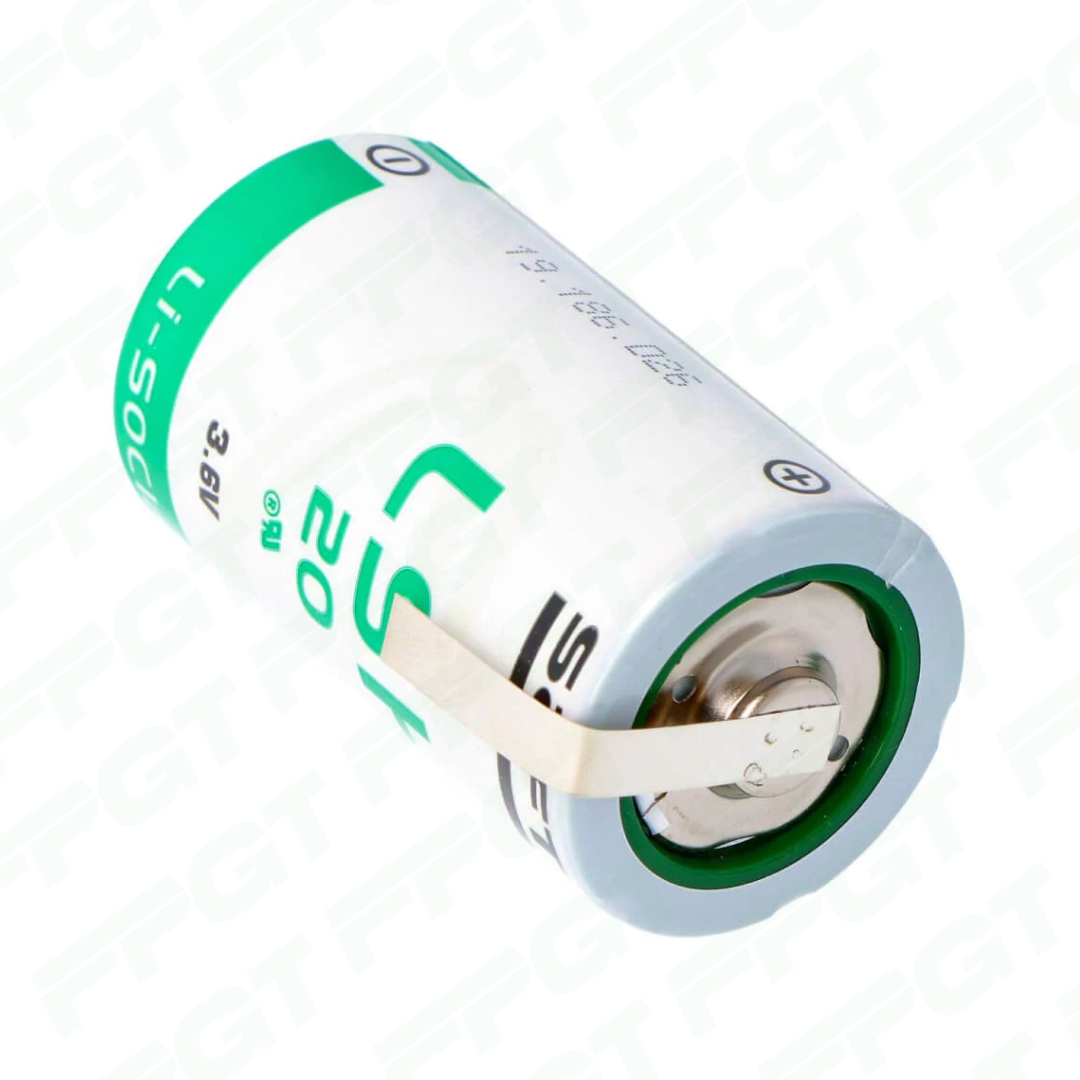

LSH20 CNR SAFT Lithium battery 3.6V 13Ah
FPGT is the Authorized distributor for SAFT batteries in the Middle East and African region. All our batteries are genuine and we DO NOT mix fake copies with the original ones
The SAFT LSH20 CNR lithium battery is a high-performance 3.6V 13Ah D-size primary Lithium Thionyl Chloride (Li-SOCl₂) battery with a spiral-cell design and radial tab terminals. Offering high pulse capability, low self-discharge, and reliable performance from -60°C to +85°C, it is ideal for GPS systems, utility meters, tracking equipment, security systems, industrial electronics, communication equipment, and remote monitoring applications.
LSH20 CNR SAFT Lithium battery 3.6V 13Ah
د.إ102.35
| Quantity | Price | Discount |
|---|---|---|
| 1-10 | د.إ102.35 | 0% |
| 11-50 | د.إ97.48 | 4.76% |
| 51-100 | د.إ92.61 | 9.52% |
| 101-200 | د.إ87.72 | 14.29% |
| 201-300 | د.إ82.85 | 19.05% |
| 301+ | د.إ77.98 | 23.81% |
Product Specifications
| Battery Chemistry | Lithium-Thionyl Chloride (Li-SOCl₂) |
|---|---|
| Battery Type | Non-rechargeable primary lithium battery |
| Cell Construction | Spiral |
| Cell Size | D |
| Diameter | 33.4 mm |
| Electrolyte | Non-flammable electrolyte |
| Height | 61.6 mm |
| Key Advantage | High pulse capability; high power output; long operating life; low self-discharge; wide operating temperature range |
| Manufacturer | SAFT |
| Maximum Continuous Current | 1.8 A |
| Model | LSH20 CNR |
| Nominal Capacity | 13 Ah |
| Nominal Energy | 46.8 Wh |
| Nominal Voltage | 3.6 V |
| Operating Temperature | -60°C to +85°C |
| Primary Applications | Utility metering; tracking systems; security systems; wireless communication; industrial electronics; professional electronics |
| Product Name | SAFT LSH20 CNR Lithium Battery |
| Product Series | SAFT LSH Series |
| Product Type | High-Power Primary Lithium-Thionyl Chloride (Li-SOCl₂) Battery |
| Pulse Capability | Up to 4 A |
| Recommended Storage Temperature | +30°C maximum |
| Safety Feature | Built-in safety vent |
| Terminal Configuration | CNR |
| Terminal Type | Radial Leads |
| Typical Weight | 100 g |
LSH20 Documents
SAFT LSH20 CNR Lithium Battery – 3.6V 13Ah D-Size
The SAFT LSH20 CNR lithium battery is a high-performance 3.6V 13Ah primary Lithium Thionyl Chloride (Li-SOCl₂) battery designed for applications requiring reliable, long-lasting power and high pulse-current performance. The LSH20 is a D-size spiral-cell lithium battery developed for demanding industrial, electronic, communication, tracking, metering, and security applications.
The SAFT LSH20 CNR 3.6V 13Ah battery combines high energy density with a stable voltage response and excellent high-drain capability. Its spiral-cell construction allows it to deliver high pulse currents, making it suitable for electronic equipment that requires short-duration power pulses in addition to long-term energy supply. SAFT specifies pulse capability of typically up to 4000mA, depending on pulse conditions, temperature, and battery history.

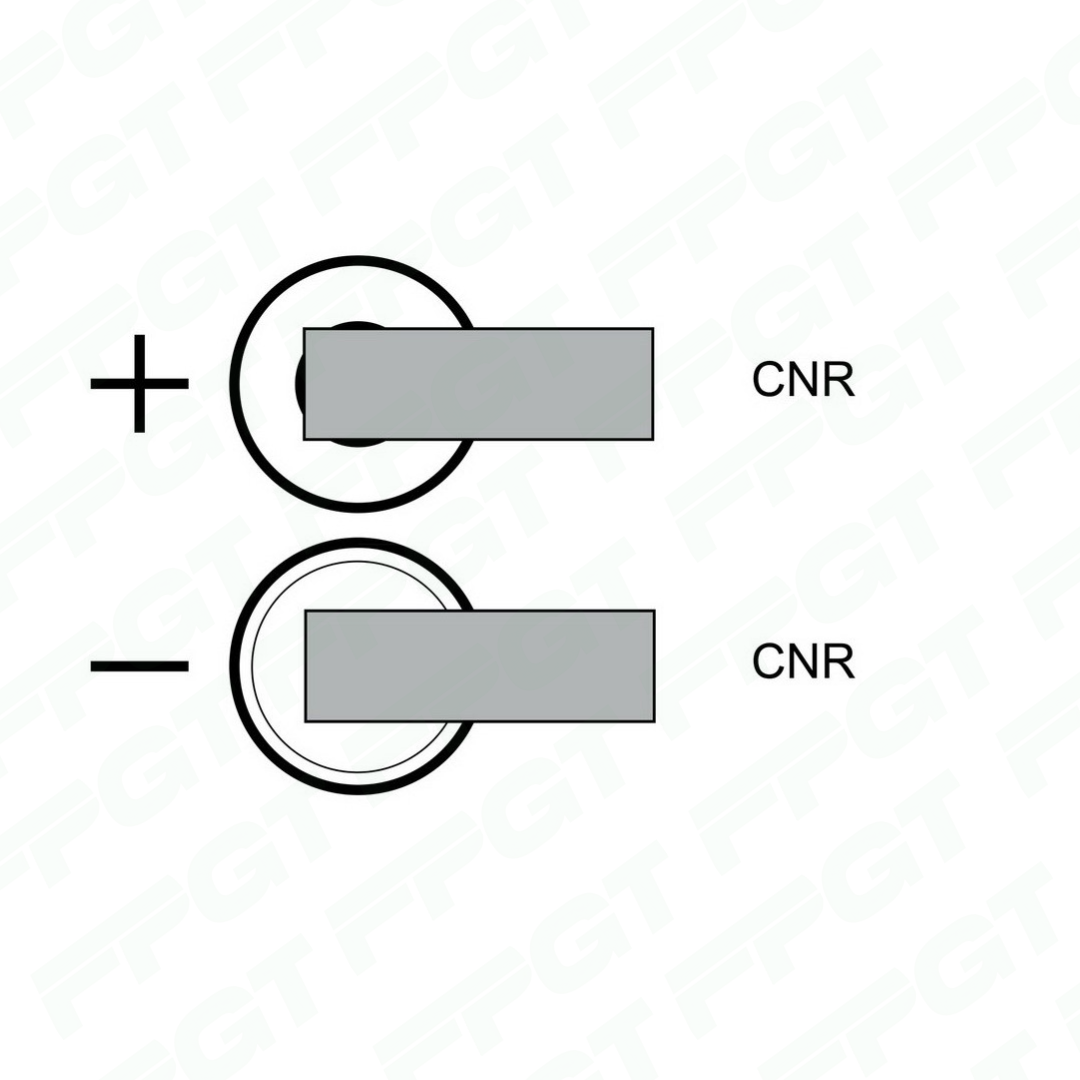

The LSH20 CNR battery uses a radial-tab termination, making it suitable for compatible equipment and battery assemblies requiring this connection configuration. The LSH20 family is also available in other termination configurations, including CNA axial leads and FL flying leads, so the exact terminal arrangement should be verified before replacement.
With an operating temperature range of approximately -60°C to +85°C, the SAFT LSH20 CNR lithium battery is suitable for demanding environments where reliable power and wide-temperature performance are important. The battery also offers low self-discharge, with SAFT specifying less than 3% after one year of storage at +20°C under its stated conditions.
Key Features
- Brand: SAFT
- Model: LSH20 CNR
- Nominal Voltage: 3.6V
- Nominal Capacity: 13Ah
- Chemistry: Lithium Thionyl Chloride (Li-SOCl₂)
- Battery Type: Primary, non-rechargeable
- Size: D / R20
- Cell Construction: Spiral
- Termination: CNR radial tabs
- Pulse Capability: Typically up to 4000mA
- Maximum Recommended Continuous Current: 1800mA
- Operating Temperature: -60°C to +85°C
- Diameter: Approximately 33.4mm maximum
- Height: Approximately 61.6mm maximum
- Typical Weight: Approximately 100g
- High energy density
- High drain and pulse capability
- Stable voltage response
- Low self-discharge
- Stainless-steel container
- Hermetic glass-to-metal sealing
- Built-in safety vent
- Non-flammable electrolyte
Typical Applications
The SAFT LSH20 CNR 3.6V 13Ah lithium battery is suitable for a wide range of professional and industrial applications, including:
- Utility and energy metering
- GPS tracking systems
- Tracking equipment
- Security and alarm systems
- Beacons and emergency location transmitters
- GSM communication equipment
- Radiocommunication equipment
- Industrial monitoring systems
- Remote monitoring equipment
- Professional electronics
- Military communication equipment
- Sonobuoys
- IoT and wireless equipment
The SAFT LSH20 CNR battery is a dependable solution for applications requiring a 3.6V 13Ah D-size lithium battery with radial tab terminals, high pulse capability, long service life, and reliable operation across a wide temperature range.
Important: The LSH20 CNR is a primary, non-rechargeable lithium battery. Always verify the voltage, capacity, dimensions, terminal configuration, current requirements, and equipment specifications before replacement.
