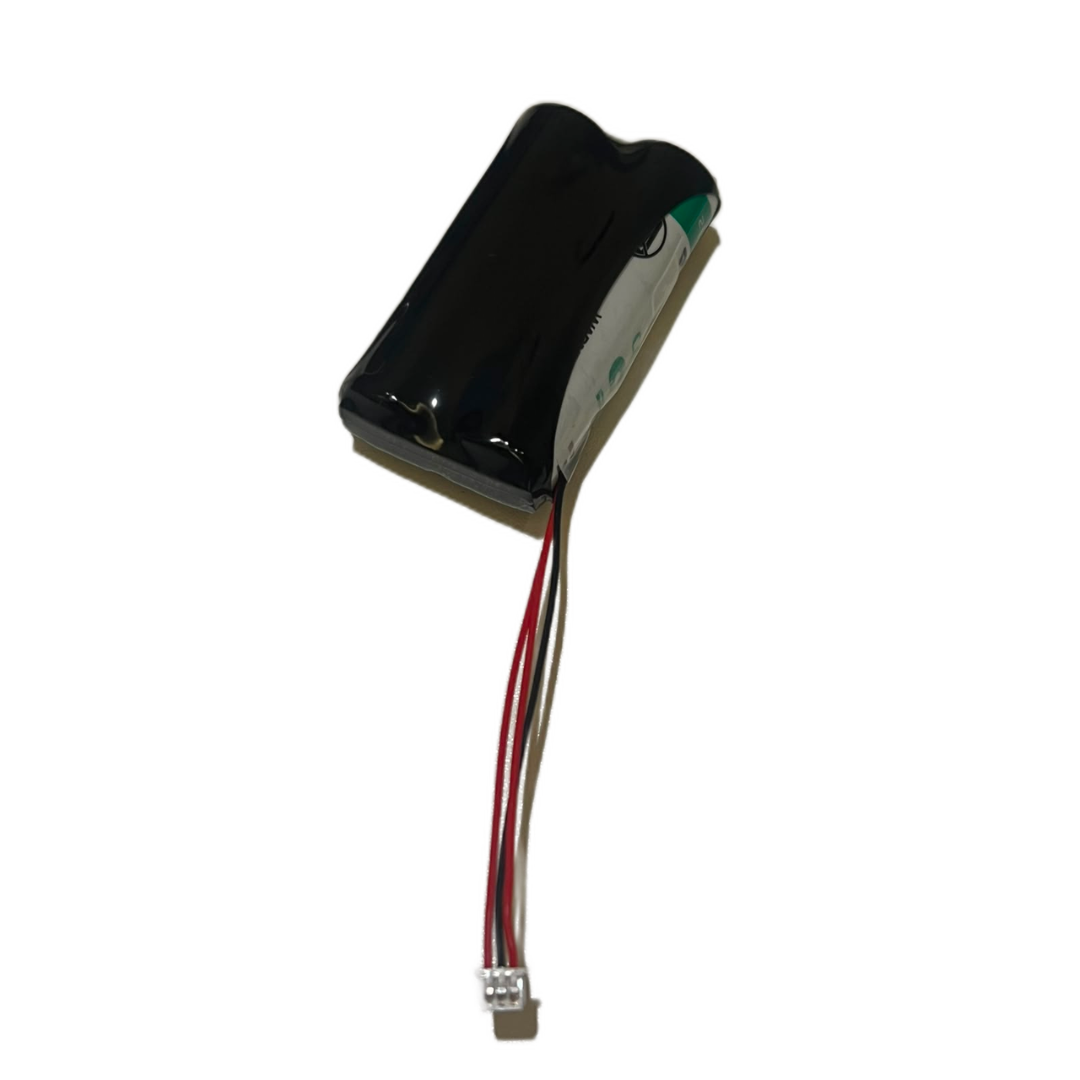

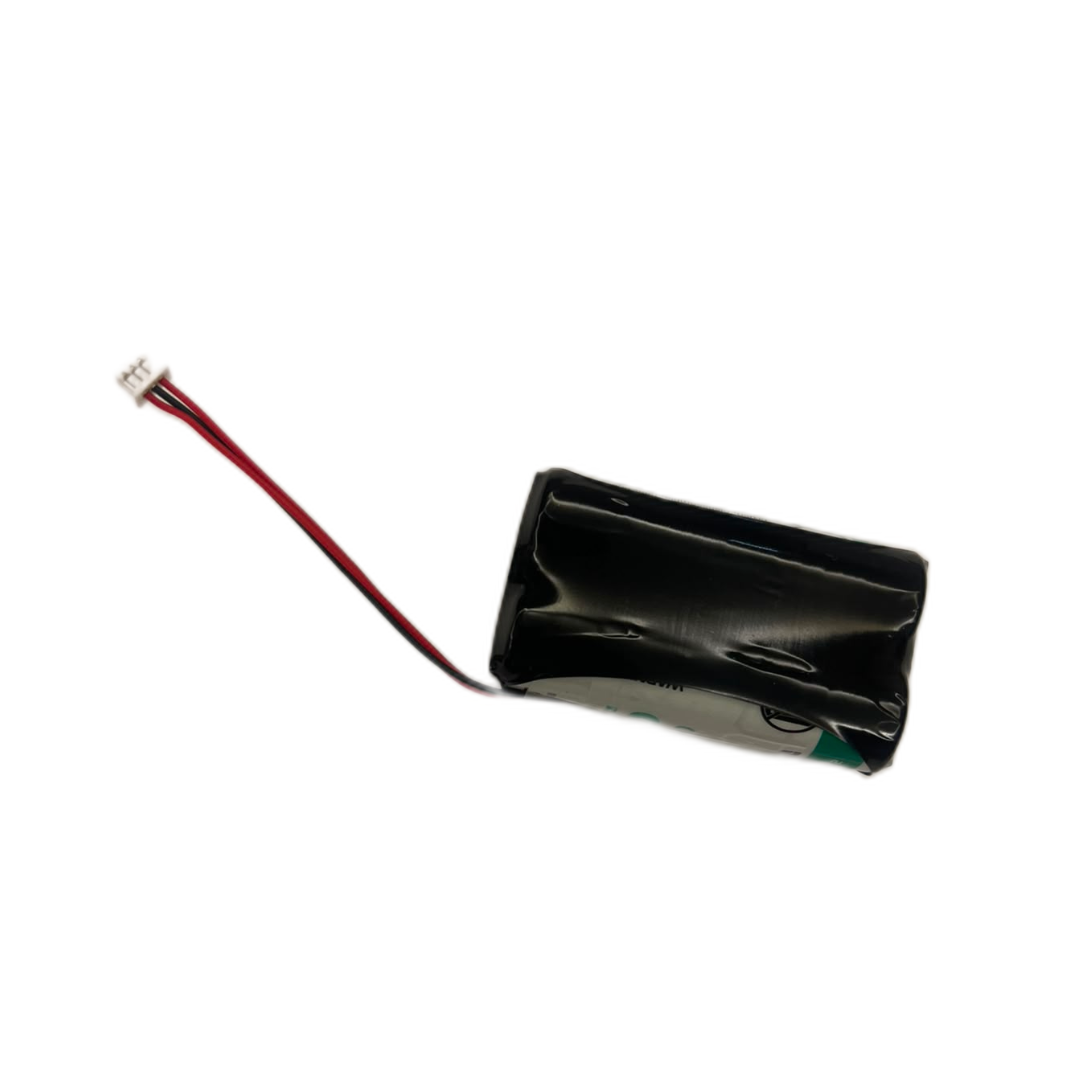

SAFT 1S2P LS14500 CCC5 with Molex 51021-0300 connector
FPGT is the Authorized distributor for SAFT batteries in the Middle East and African region. All our batteries are genuine and we DO NOT mix fake copies with the original ones
SAFT 1S2P LS14500 CCC5 is a 3.6V primary lithium battery pack using two SAFT LS14500 Li-SOCl₂ cells in parallel. Supplied with a Molex 51021-0300 connector, this long-life AA-size lithium battery solution is designed for compatible industrial, metering, monitoring, security, tracking and professional electronic equipment.
SAFT 1S2P LS14500 CCC5 with Molex 51021-0300 connector
د.إ73.54
| Quantity | Price | Discount |
|---|---|---|
| 1-10 | د.إ73.54 | 0% |
| 11-50 | د.إ70.04 | 4.76% |
| 51-100 | د.إ66.54 | 9.52% |
| 101-200 | د.إ63.03 | 14.29% |
| 201-300 | د.إ59.53 | 19.05% |
| 301+ | د.إ56.03 | 23.81% |
Product Specifications
| Battery Chemistry | Lithium-Thionyl Chloride (Li-SOCl₂) |
|---|---|
| Battery Configuration | 1S2P |
| Battery Type | Non-Rechargeable Primary Lithium Battery Pack |
| Cell Configuration | 2 × LS14500 Cells in Parallel |
| Cell Construction | Bobbin |
| Cell Size | AA |
| Connector Series | Molex PicoBlade |
| Connector Type | Molex 51021-0300 |
| Electrolyte | Non-flammable electrolyte |
| Key Advantage | Increased capacity through parallel cell configuration; high energy density; low self-discharge; long operating life; wide operating temperature range |
| Manufacturer | SAFT |
| Maximum Continuous Current | Up to 140 mA |
| Model | 1S2P LS14500 CCC5 |
| Nominal Capacity | 5.2 Ah |
| Nominal Energy | 18.72 Wh |
| Nominal Voltage | 3.6 V |
| Operating Temperature | -60°C to +85°C |
| Primary Applications | Utility metering; alarm systems; security systems; tracking equipment; industrial electronics; memory backup |
| Product Name | SAFT 1S2P LS14500 CCC5 Lithium Battery Pack with Molex Connector |
| Product Series | SAFT LS14500 |
| Product Type | Primary Lithium-Thionyl Chloride (Li-SOCl₂) Battery Pack |
| Pulse Capability | Up to 500 mA |
| Recommended Storage Temperature | +30°C maximum |
| Safety Feature | Built-in safety vent |
| Self-Discharge | Less than 1% per year at +20°C |
| Terminal Type | Wire Leads with Connector |
SAFT 1S2P LS14500 CCC5 Lithium Battery with Molex 51021-0300 Connector
The SAFT 1S2P LS14500 CCC5 lithium battery is a primary lithium battery pack designed for professional and industrial electronic equipment requiring reliable, long-lasting power. This battery uses SAFT LS14500 lithium-thionyl chloride (Li-SOCl₂) cells in a 1S2P configuration, combining two cells in parallel to provide increased capacity while maintaining a nominal battery voltage of approximately 3.6V.
The battery is supplied with a Molex 51021-0300 connector, providing a ready-to-connect configuration for compatible equipment. This makes the battery suitable for replacement and maintenance applications where the original battery uses the same connector and electrical configuration.
The LS14500 is an AA-size primary lithium battery known for its high energy density, low self-discharge and long operating life. The Li-SOCl₂ chemistry is particularly suitable for equipment that requires dependable primary power over extended periods with limited battery replacement.
Key Features
- Brand: SAFT
- Battery model: LS14500
- Configuration: 1S2P
- Battery assembly: 2 × LS14500 cells in parallel
- Nominal voltage: Approximately 3.6V
- Battery chemistry: Lithium-thionyl chloride (Li-SOCl₂)
- Battery type: Primary lithium / non-rechargeable
- Connector: Molex 51021-0300
- Connector configuration: 3-position Molex connector
- AA-size lithium cell technology
- Increased capacity through parallel configuration
- High energy density
- Low self-discharge
- Long service life
- Suitable for professional and industrial equipment
Typical Applications
The SAFT 1S2P LS14500 CCC5 battery with Molex connector can be used in compatible:
- Industrial electronic equipment
- Utility and energy meters
- Remote monitoring systems
- Security and alarm equipment
- Tracking and telemetry systems
- Industrial sensors
- Data logging equipment
- Communication equipment
- Remote instrumentation
- Control systems
- Professional electronic devices
LS14500 Lithium Battery Technology
The SAFT LS14500 is an AA-size primary lithium-thionyl chloride battery designed for applications requiring high energy density and long operating life. Li-SOCl₂ technology provides low self-discharge, making it suitable for equipment that may remain operational for extended periods without frequent battery replacement.
In the 1S2P configuration, two LS14500 cells are connected in parallel. This keeps the nominal voltage at approximately 3.6V while increasing the available capacity compared with a single cell.
The Molex 51021-0300 connector provides a compact connection interface for compatible equipment.
Replacement Battery
If you are searching for a SAFT LS14500 1S2P replacement battery, 3.6V LS14500 battery pack, or LS14500 battery with Molex 51021-0300 connector, verify the original battery’s voltage, capacity, connector, polarity, wiring and physical dimensions before ordering.
Important: Primary lithium-thionyl chloride batteries are non-rechargeable. The replacement battery should match the original equipment’s specified chemistry and electrical configuration.
