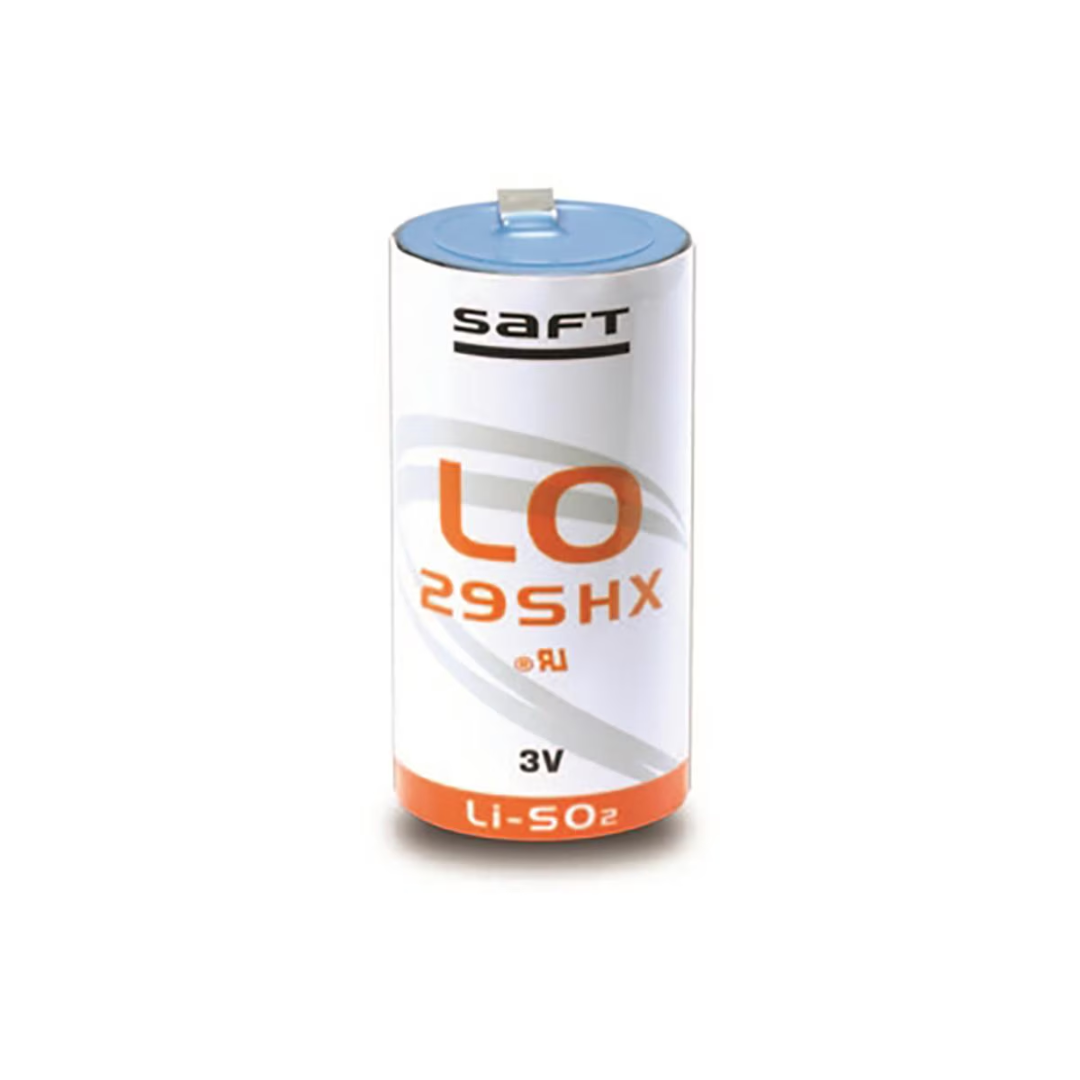

SAFT LO 29 SHX – 3.0V 3.75Ah C-Size Lithium-Sulfur Dioxide Battery
FPGT is the Authorized distributor for SAFT batteries in the Middle East and African region. All our batteries are genuine and we DO NOT mix fake copies with the original ones
SAFT LO 29 SHX 3.0V 3.75Ah Lithium-Sulfur Dioxide Battery is a high-power C-size primary Li-SO₂ battery designed for reliable operation in demanding environments. It offers 3.75Ah capacity, high-drain performance and pulse capability up to 10A, with an operating temperature range of approximately -60°C to +70°C. Suitable for military and defense equipment, radio communications, rescue devices, PLBs, EPIRBs, beacons, security systems and other professional electronic applications.
SAFT LO 29 SHX – 3.0V 3.75Ah C-Size Lithium-Sulfur Dioxide Battery
Product Specifications
| Battery Chemistry | Lithium-Sulfur Dioxide (Li-SO₂) |
|---|---|
| Battery Type | Non-rechargeable primary lithium battery |
| Cell Configuration | 1S1P |
| Cell Construction | Spiral |
| Cell Size | C |
| Country of Manufacture | USA |
| Environmental Performance | Designed to withstand shock; vibration and military environmental requirements |
| Key Advantage | High and stable discharge voltage; superior pulse capability; orientation-independent performance; low self-discharge; long storage life; wide operating temperature range |
| Manufacturer | SAFT |
| Maximum Height | 50.4 mm |
| Maximum Outside Diameter | 25.6 mm |
| Maximum Recommended Continuous Current | 2.5 A |
| Model | LO 29 SHX |
| Nominal Capacity | 3.75 Ah |
| Nominal Energy | 11.25 Wh |
| Nominal Voltage | 3.0 V |
| Nominal Voltage Under Load | 2.8 V at 0.4 A |
| Operating Temperature | -60°C to +70°C |
| Primary Applications | Radiocommunications; military equipment; rescue devices; PLBs; EPIRBs; alarms and security devices |
| Product Name | SAFT LO 29 SHX Lithium Battery |
| Product Series | SAFT LO/G |
| Product Type | Primary Lithium-Sulfur Dioxide (Li-SO₂) Battery |
| Pulse Capability | Typically up to 6 A |
| Recommended Storage Temperature | +30°C maximum |
| Safety Feature | Built-in safety vent at the negative end |
| Sealing | Hermetic glass-to-metal sealing |
| Self-Discharge | Less than 3% after 1 year at +20°C |
| Terminal Configuration | CNR |
| Transport Classification | Class 9 |
| Typical Weight | 40 g |
| UL Recognition | UL Component Recognition |
SAFT LO 29 SHX – 3.0V 3.75Ah C-Size Lithium-Sulfur Dioxide Battery
The SAFT LO 29 SHX is a high-power 3.0V primary Lithium-Sulfur Dioxide (Li-SO₂) battery designed for applications requiring reliable energy delivery, high drain performance and strong pulse capability. This C-size spiral cell provides a nominal capacity of 3.75Ah and is designed to maintain stable discharge performance across demanding operating conditions.
The LO 29 SHX is particularly suited to professional, military and communication equipment where dependable primary lithium power, long storage capability and operation in challenging temperatures are important. SAFT specifies an operating temperature range of approximately -60°C to +70°C.
Key Features
- Model: SAFT LO 29 SHX
- Chemistry: Lithium-Sulfur Dioxide (Li-SO₂)
- Battery type: Primary / non-rechargeable
- Open-circuit voltage: 3.0V
- Nominal operating voltage: 2.8V
- Capacity: 3.75Ah / 3,750mAh
- Cell size: C
- Construction: Spiral
- Maximum recommended continuous current: 2.5A
- Pulse discharge capability: up to 10A, application dependent
- Maximum diameter: approximately 25.6mm
- Maximum height: approximately 50.4mm
- Typical weight: approximately 40g
- Operating temperature: approximately -60°C to +70°C
- Low self-discharge: less than 3% after one year at +20°C
- Hermetic glass-to-metal sealing
- Built-in safety vent
- Stable discharge voltage
- High pulse capability
- Performance independent of cell orientation
High-Drain and Pulse Performance
The LO 29 SHX belongs to SAFT’s high-power Li-SO₂ range. It is designed for applications requiring continuous current as well as short-duration pulses. SAFT’s product selector lists the LO 29 SHX with a 2.5A maximum continuous current and up to 10A pulse discharge capability. Actual performance depends on current profile, pulse duration and frequency, temperature, storage conditions and the application’s minimum acceptable voltage.
Applications
Typical applications for the SAFT LO 29 SHX include:
- Military and defense equipment
- Radio communication equipment
- Radiocommunication systems
- Rescue and emergency equipment
- Personal Locator Beacons (PLBs)
- Emergency Position-Indicating Radio Beacons (EPIRBs)
- Security and alarm equipment
- Beacons and location equipment
- Professional electronic equipment
- High-drain electronic devices
- Specialized industrial applications
Long Storage and Harsh-Environment Operation
The LO 29 SHX is designed for equipment that may need to remain stored before deployment. Its low self-discharge characteristics, hermetic construction and wide operating-temperature range make it suitable for demanding professional and outdoor applications. SAFT also identifies the LO series as suitable for operation in cold environments and military applications.
Note: The LO 29 SHX is a primary lithium battery and must not be recharged. Always verify the required voltage, current profile, terminal configuration and mechanical dimensions before replacing an existing battery.
