.SAFT LS33600 2S1P Pack

Compare
SKU: LS33600 2S1P Pack Category: Tags: , ,
Additional information
Brand
Customer ApplicationDataloggers, Tracking Systems
Customer TypeADWEA, Airports, Army, Border Control, Commercial, Critical Infrastructures, Crypto Miners, Customs, DEWA, Distribution Centers, Du, e&, Electricity Industry, ENEC, EOD Team, Etihad Rail, EtihadWE, EWEC, Exhibitions, FEWA, Government Building, Government Entities, Healthcare, Hotel, Industrial, Jail / Prison, Law Enforcement, Logistic Hub, Masdar, Medical, Military, Navy / Coastal Protection, Oil & Gas, Other Businesses, Private Entities, Recycling Industry, Security Firms, SEWA, Shipping Companies, Shopping malls, Solar Industry, Space & Research, SWAT Team, TAQA, Telecom Industry, Transportation Authority, Utility Industry, VIP Locations
Description

LS33600 2S1P Pack

7.2 V Primary (Non-Rechargeable) Lithium-Thionyl Chloride (Li-SOCI2)

Benefits

  • High voltage response, stable during most of the lifetime of the Application.
  • High drain and pulse capability
  • Low self-discharge rate (less than 1% after 1 year Storage at +20°C.)

Key Features

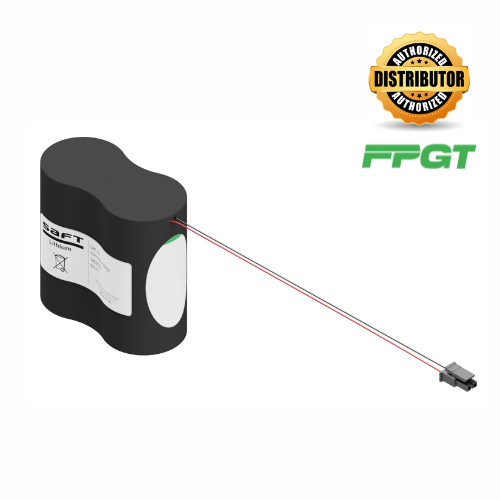

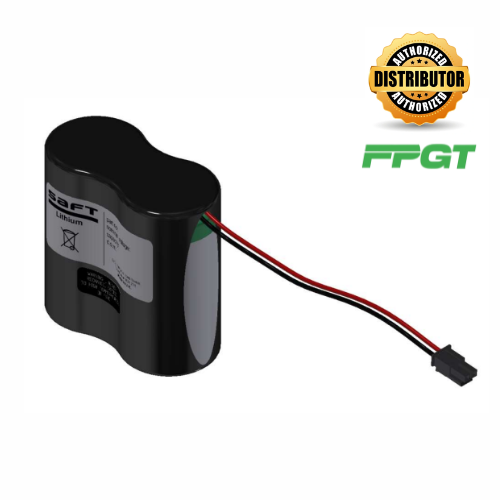

  • Two D-size LS33600 cells in 2S1P Configuration side by side, can be fully customized to suit customers Requirements.
  • Safety feature, Hermetic spiral cell Construction with glass to metal  Seal, non-flammable electrolyte,
    built-in safety vent, and stainless steel body.
  • Protection Devices: Fuse 2A, Diode 2A
  • Fully customizable for cables, connectors
  • Other Pack formats Available on request.
  • Restricted for transport (Class 9)

Designed to meet all major quality, Safety and environment standards

  • Transport: UN3090
  • UN tested assembly via similarity
  • Quality: ISO 9001, Saft world class Continuous program.
  • Environment: ISO 14001, RoHS and REACH compliant.

Typical applications

  • Tracking systems.
  • Data loggers.

Note Of Caution

  • Do not charge..
  • Do not short circuit
  • Do not disassemble

Electrical characteristics

  • (Typical values related to batteries stored up to one year at +30°C max)
  • Typical capacity (at 15 mA, +20°C, 4.0 v cut-off): 17.0 Ah
  • Open circuit voltage (at +20°C): 7.34 V
  • Nominal voltage (at 2 mA +20°C): 7.2 V
  • Nominal energy (at 15 mA, +20°C, 4.0 v cut-off): 122.4 Wh
  • Maximum continuous discharge current (Typical): 250 mA

Operating conditions

  • Operating temperature range: -60°C / +85°C (-76°F / +185°F)
  • Storage temperatures (Recommended): +30°C (+86°F) max

Physical characteristics

  • Length (Approx): 67 mm / 2.63 in
  • Height (Approx) 65 mm / 2.55 in
  • Width (Approx) 34 mm / 1.33 in
  • Battery weight (Typical) 216 grams
  • Battery case Shrink Sleeve

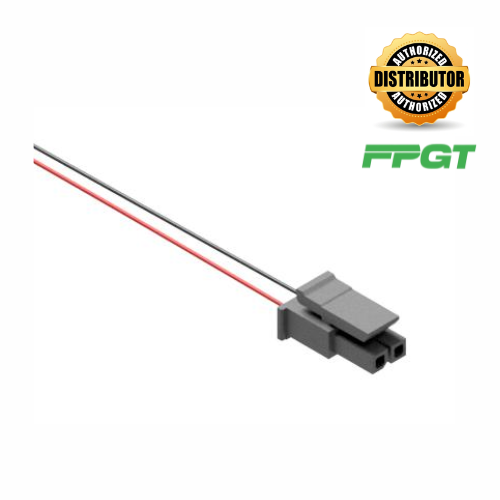

  • Terminals: Cables with optional connectors
  • Lithium metal content 9.0 grams

Manufactured in France, Customized in the UAE
