SAFT LS33600 – LS 33600 – Battery: lithium D Size , 3.6V , Lithium battery , Non rechargeable
FPGT is the Authorized distributor for SAFT batteries in the Middle East and African region. All our batteries are genuine and we DO NOT mix fake copies with the original ones

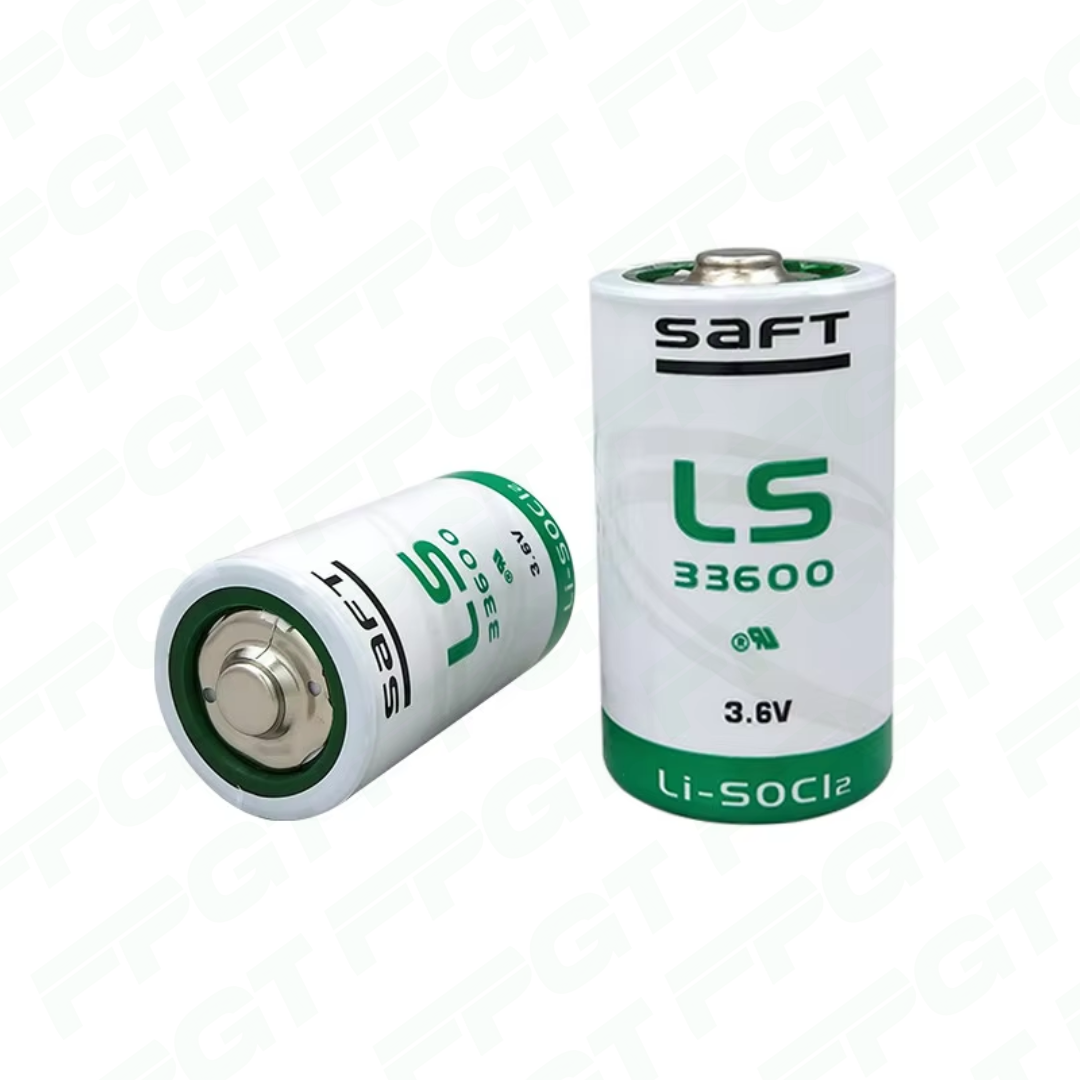

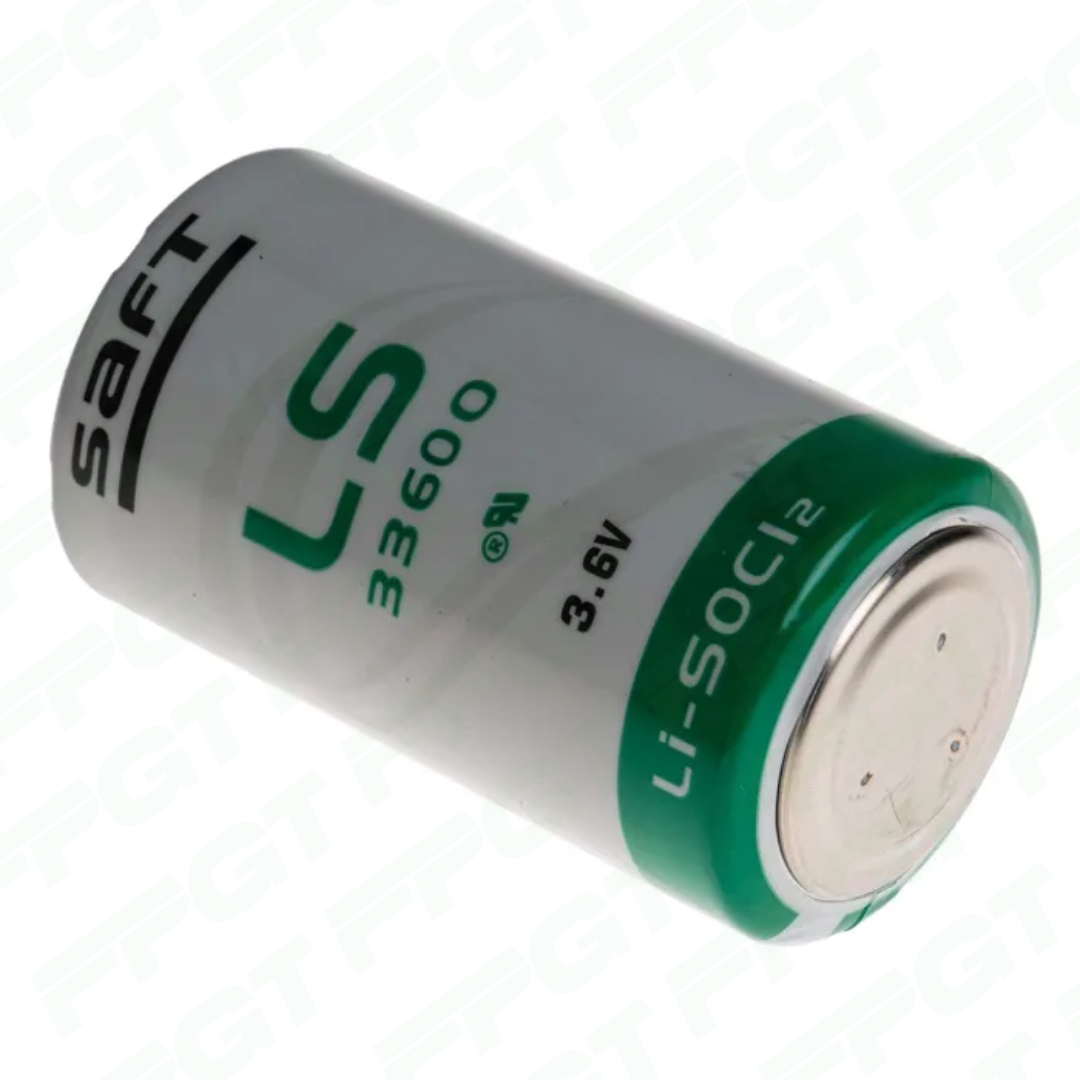

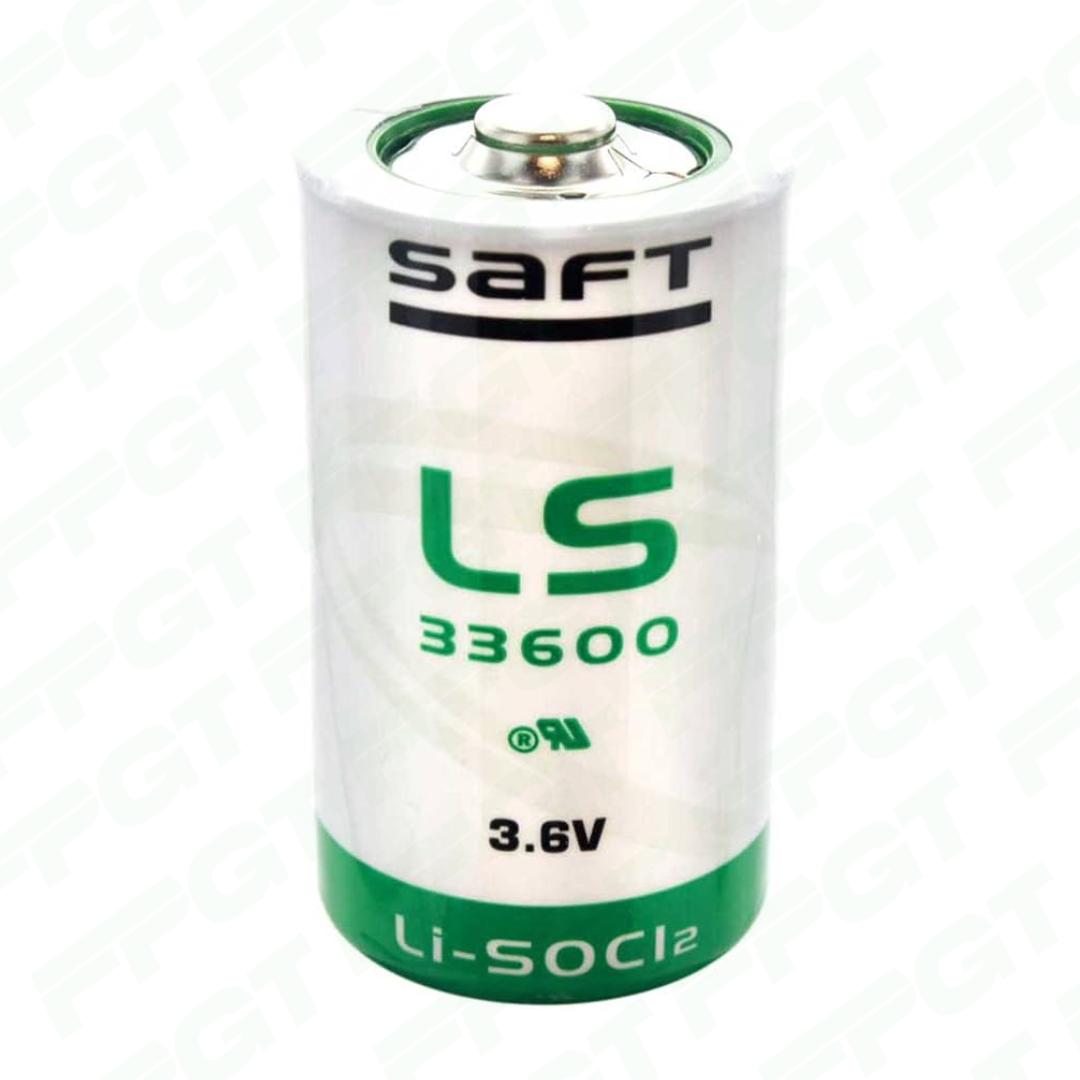

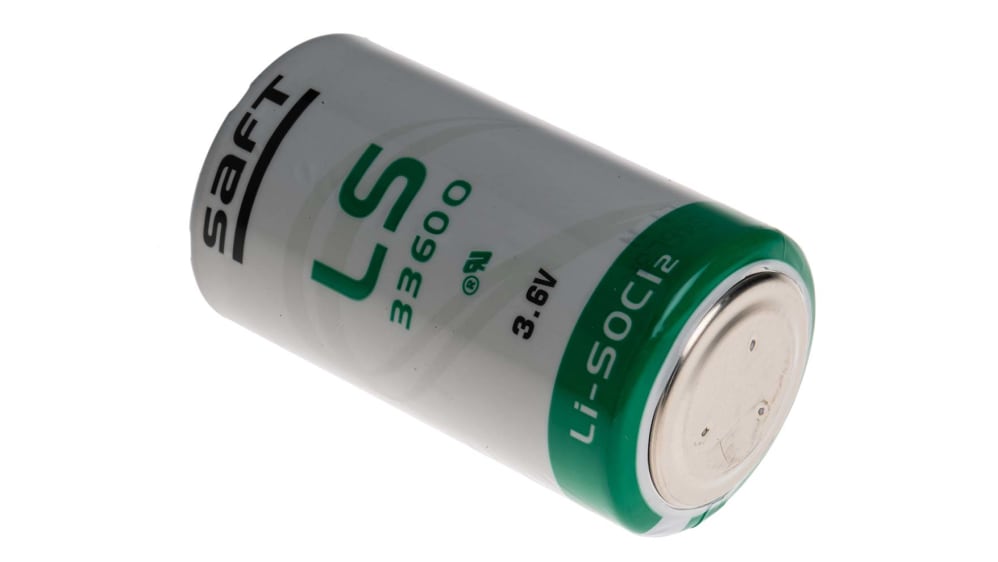

The SAFT LS33600 lithium battery is a high-performance 3.6V 17Ah D-size primary Lithium Thionyl Chloride (Li-SOCl₂) battery designed for reliable, long-lasting power. With high energy density, low self-discharge, and a wide operating temperature range, it is ideal for utility meters, IoT devices, tracking systems, security equipment, industrial electronics, measuring instruments, and backup applications.
SAFT LS33600 – LS 33600 – Battery: lithium D Size , 3.6V , Lithium battery , Non rechargeable
د.إ82.26
| Quantity | Price | Discount |
|---|---|---|
| 1-10 | د.إ82.26 | 0% |
| 11-50 | د.إ78.34 | 4.76% |
| 51-100 | د.إ74.43 | 9.52% |
| 101-200 | د.إ70.51 | 14.29% |
| 201-300 | د.إ66.59 | 19.05% |
| 301+ | د.إ62.67 | 23.81% |
Product Specifications
| Battery Chemistry | Lithium-Thionyl Chloride (Li-SOCl₂) |
|---|---|
| Battery Size | D |
| Battery Type | Non-rechargeable primary lithium battery |
| Cell Construction | Bobbin Cell |
| Cell Size | D / R20 |
| Construction | Stainless steel container |
| Country of Origin | France |
| Diameter | 33.3 mm |
| Electrolyte | Non-flammable electrolyte |
| Height | 61.3 mm |
| Key Advantage | High energy density |
| Manufacturer | SAFT |
| Maximum Recommended Continuous Current | 250 mA |
| Nominal Capacity | 17 Ah |
| Nominal Energy | 61.2 Wh |
| Nominal Voltage | 3.6 V |
| Open Circuit Voltage | 3.67 V |
| Operating Temperature | -60°C to +85°C |
| Primary Applications | Utility metering / IoT / alarms and security / tracking systems / medical devices / professional electronics |
| Product Name | SAFT LS33600 |
| Product Type | Primary Lithium-Thionyl Chloride (Li-SOCl₂) Battery |
| Pulse Capability | Typically up to 400 mA |
| Safety Feature | Built-in safety vent |
| Safety Standards | IEC 60086-4 / IEC 60079-11 |
| Sealing | Hermetic glass-to-metal seal |
| Self-Discharge | Less than 1% per year at +20°C |
| Storage Temperature | +30°C maximum recommended |
| Terminal Type | Standard / Button Top |
| Weight | 90 g |
LS33600 Documents
SAFT LS33600 – LS 33600 – Battery: lithium | D Size | 3.6V
These are original SAFT batteries made in France with certificate of origin (COO). Only buy SAFT batteries from FPGT General Trading – Authorized Distributor for SAFT batteries – there are many counterfeit SAFT batteries in the market which are very difficult to identify sold on Amazon and which can damage your devices. We only sell SAFT direct to customers and through our FPGT Website “only”.
Saft’s LS33600 cell is ideally suited for long-term applications (typically from 5 to 20+ years), featuring low base currents and periodic pulses.
Benefits
- High capacity and high energy (1185 Wh/l and 680 Wh/kg)
- High voltage response, stable during most of the lifetime of the application
- Wide operating temperature range (-60°C / + 85°C)
- Low self-discharge rate, compatible with long operating life (less than 1% per year of storage, at + 20°C, after 1 year)
- Superior resistance to corrosion
- Low magnetic signature
Key features
- Bobbin construction
- Well controlled passivation
- Hermetic construction with glass-to metal seal
- Stainless steel can
- Non-flammable electrolyte
- RoHS and REACH compliance
- Made in France
Typical Applications
- Utility Metering
- Internet of Things
- Alarms and security
- Medical devices
- Tracking systems
- Professional electronics
Specification
|
Manufacturer
|
SAFT | |
|
Type of battery
|
lithium | |
|
Cell size
|
D, R20 | |
|
Rated voltage:
|
3.6V | |
|
Capacity
|
17Ah | |
|
Battery features
|
non-rechargeable | |
|
Body dimensions
|
33.5×61.5mm | |
|
Leads
|
none |
