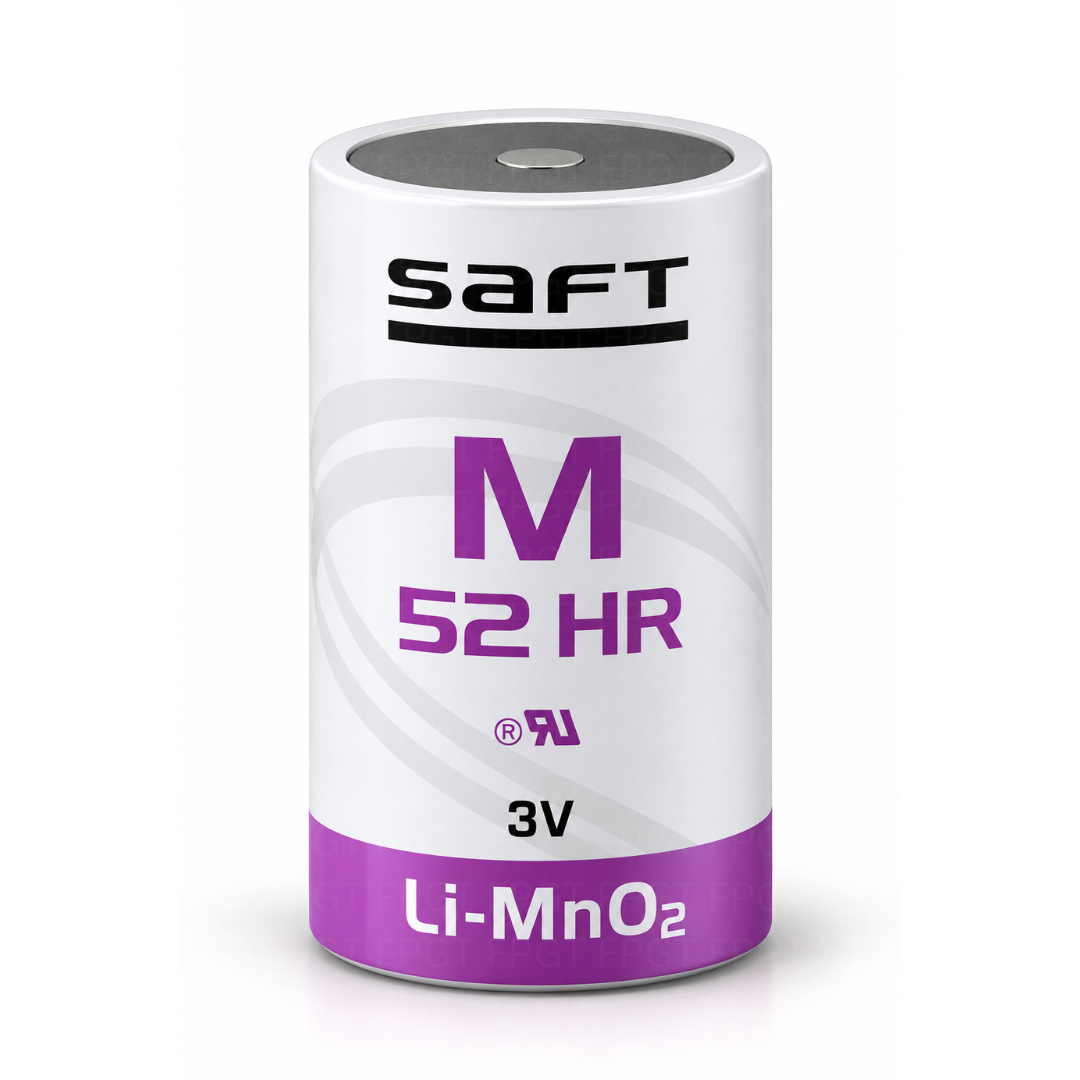

SAFT M 52 HR – 3.0V 5.2Ah C-Size Lithium-Manganese Dioxide Battery
FPGT is the Authorized distributor for SAFT batteries in the Middle East and African region. All our batteries are genuine and we DO NOT mix fake copies with the original ones
The SAFT M 52 HR is a 3.0V C-size primary Lithium-Manganese Dioxide (Li-MnO₂) battery designed for high-power and high-drain applications. The current M52 HR SV NG generation provides 5.2Ah capacity and 15Wh nominal energy, with reliable performance from -40°C to +72°C. Its spiral construction, hermetically sealed stainless-steel housing and integrated safety features make it suitable for tracking systems, radio communications, security equipment, M2M devices, medical equipment, metering, industrial monitoring and oil & gas applications.
SAFT M 52 HR – 3.0V 5.2Ah C-Size Lithium-Manganese Dioxide Battery
Product Specifications
| Allowable Storage Temperature | -55°C to +90°C |
|---|---|
| ATEX Certification | ATEX certified for potentially explosive atmospheres |
| Battery Chemistry | Lithium-Manganese Dioxide (Li-MnO₂) |
| Battery Type | Non-rechargeable primary lithium battery |
| Capacity Test Condition | 150 mA at +20°C to 2.0 V cut-off |
| Cell Configuration | 1S1P |
| Cell Construction | Spiral |
| Cell Size | D |
| Construction | Stainless steel container |
| Country of Manufacture | Germany |
| Electrolyte | Non-corrosive electrolyte |
| Ex Marking | II 2G |
| IECEx Certification | IECEx certified |
| Internal Pressure | Non-pressurized at room temperature |
| Key Advantage | High drain capability; high pulse capability; stable voltage response; high energy density; low self-discharge; superior corrosion resistance; low magnetic signature |
| Lithium Metal Content | Approximately 3.5 g |
| Manufacturer | SAFT |
| Maximum Height | 61.5 mm |
| Maximum Outside Diameter | 34.2 mm |
| Maximum Recommended Continuous Current | 3.5 A |
| Model | M 20 EX SV |
| Nominal Capacity | 12.4 Ah |
| Nominal Energy | 35 Wh |
| Nominal Voltage | 3.0 V |
| Open Circuit Voltage | 3.2 V |
| Operating Temperature | -40°C to +72°C |
| Primary Applications | Smart gas meters; gas and oil tank level monitoring; leak detectors; portable gas detectors; petrochemical facilities; mining applications |
| Product Name | SAFT M 20 EX SV Lithium Battery |
| Product Series | SAFT M EX SV |
| Product Type | Primary Lithium-Manganese Dioxide (Li-MnO₂) Battery |
| Pulse Capability | Up to 8 A |
| Recommended Storage Temperature | +30°C maximum |
| Safety Feature | Integrated safety vent |
| Safety Standards | IEC 60079-0; IEC 60079-11; UL 1642; IEC 60086-4 |
| Sealing | Hermetic glass-to-metal seal |
| Self Discharge | Less than 1% after 1 year at 20°C |
| Temperature Class | T4 |
| Terminal Configuration | Standard terminals |
| Transport Classification | UN 3090 and UN 3091; Class 9 |
| Typical Weight | 115 g |
SAFT M 52 HR – 3.0V 5.2Ah C-Size Lithium-Manganese Dioxide Battery
The SAFT M 52 HR is a high-power, primary lithium-manganese dioxide (Li-MnO₂) C-size battery designed for applications requiring reliable power, high discharge capability and stable voltage performance. The latest M52 HR SV NG generation provides a nominal voltage of 3.0V and a nominal capacity of 5.2Ah, rated at 200mA, +23°C and a 2.0V cut-off voltage.
Its spiral-wound electrode construction is designed for high-power applications, while the hermetically sealed stainless-steel container, integrated safety vent and shut-down separator provide a robust construction for demanding industrial environments.
Key Specifications
- Model: SAFT M 52 HR
- Technology: Primary Lithium-Manganese Dioxide (Li-MnO₂)
- Nominal voltage: 3.0V
- Nominal capacity: 5.2Ah / 5,200mAh
- Nominal energy: 15Wh
- Cell size: C-size
- Maximum recommended continuous discharge: 2.0A
- Open-circuit voltage: 3.2–3.3V
- Operating temperature: -40°C to +72°C
- Maximum diameter: 26.2mm
- Maximum height, tabbed version: 51.5mm
- Typical weight: 60g
- Storage range: -55°C to +85°C
- Low-temperature capacity: approximately 4.4Ah at -20°C and 2.8Ah at -40°C under the specified test conditions.
High-Power Performance
The M 52 HR is designed for equipment that requires more than a simple low-drain primary battery. Its spiral construction provides high-power performance, while the chemistry offers stable voltage and good performance at low temperatures. SAFT’s earlier M 52 HR documentation also specifies pulse capability of up to 5A, depending on pulse characteristics, temperature and application conditions.
Reliable Industrial Construction
The battery uses a hermetically sealed stainless-steel container and incorporates a safety vent and shut-down separator. Its low self-discharge characteristics make it suitable for equipment requiring long storage periods and extended service life.
Typical Applications
The SAFT M 52 HR is suitable for applications such as:
- Radio communication equipment
- Tracking systems
- M2M communication
- Security and alarm systems
- Utility and industrial metering
- Emergency location equipment
- ELTs and EPIRBs
- Medical equipment
- Industrial monitoring equipment
- Professional electronic equipment
- Oil & gas monitoring equipment
The M 52 HR has been documented for radio communications, alarms and security, tracking, M2M communication, medical equipment and oil & gas applications.
Important: The M 52 HR is a primary, non-rechargeable lithium battery. Actual current capability and service life depend on discharge current, pulse profile, temperature, cut-off voltage and the equipment design.
