TRAINSCAN

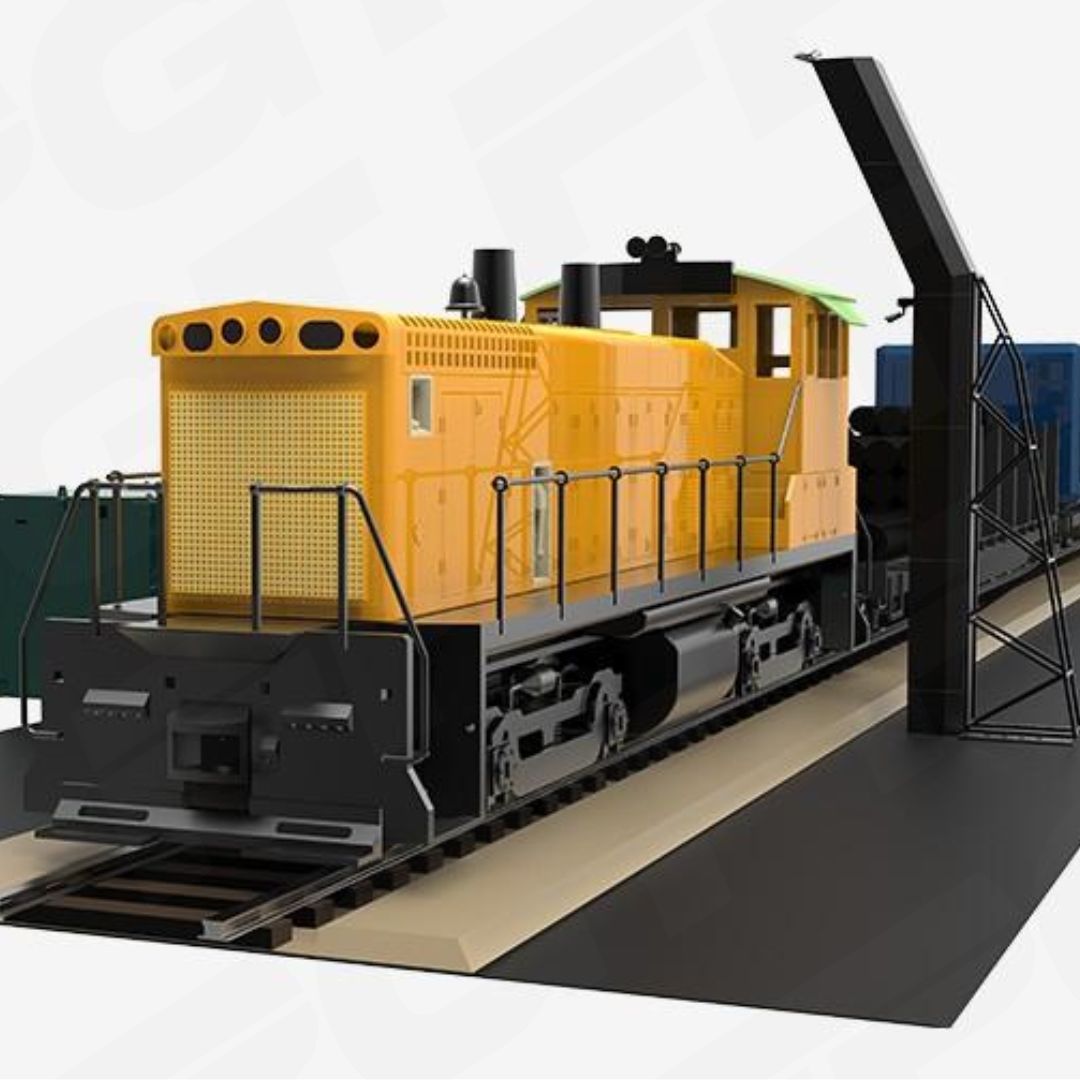

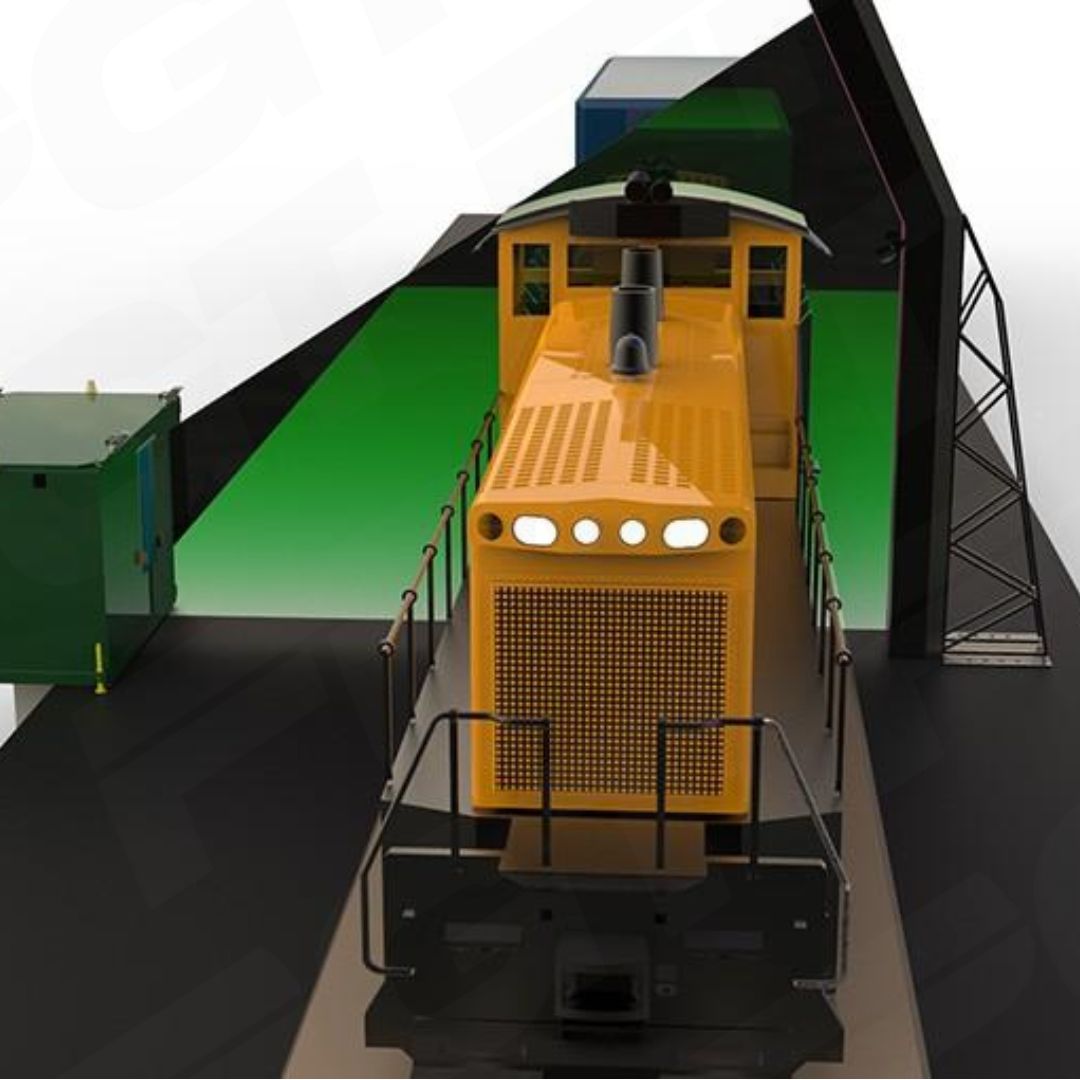

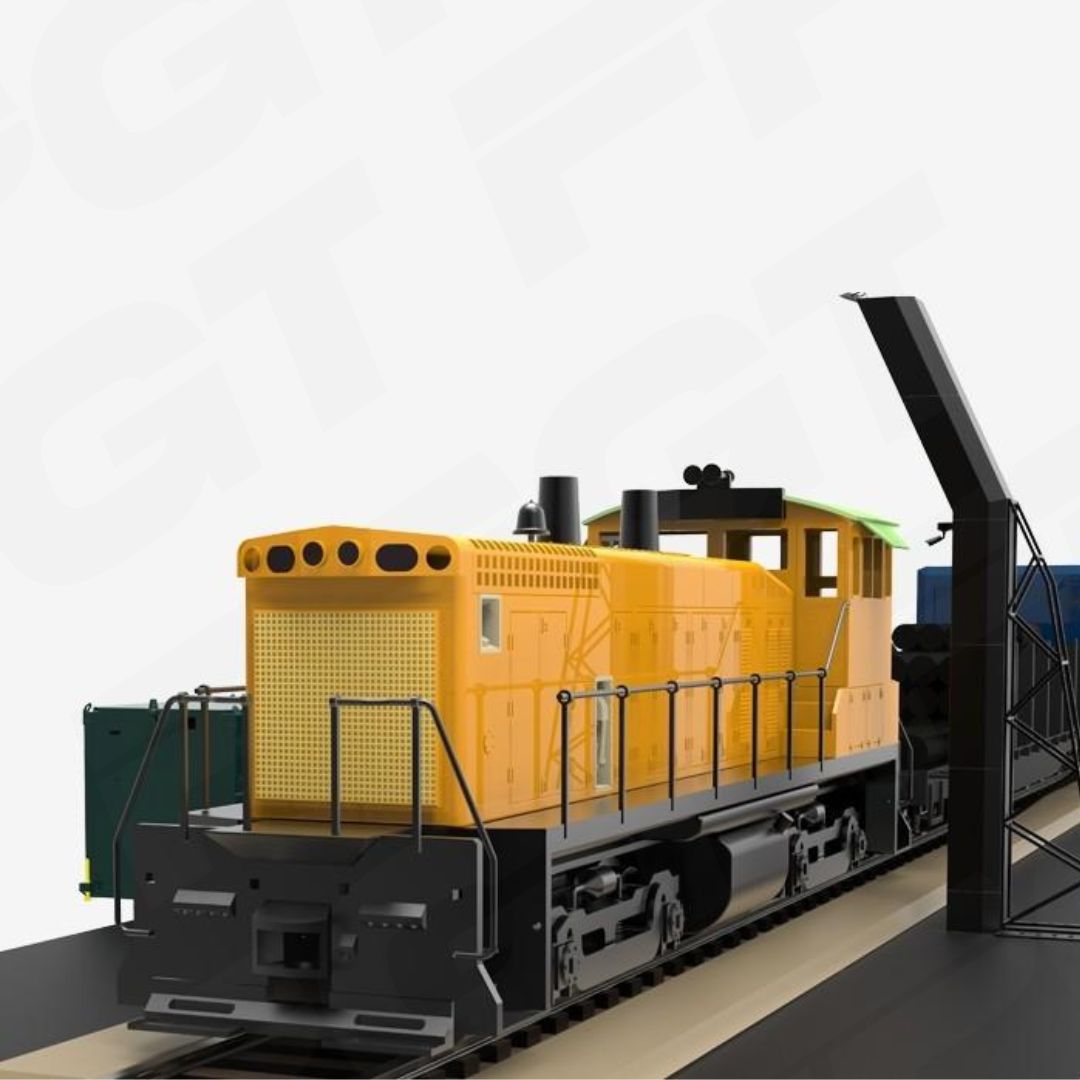

Inspection complex designed for non-intrusive X-ray screening of railway carriages
Description
TRAINSCAN is an inspection complex designed for non-intrusive X-ray scrrening of railway carriages for compliance with the declared documents and detecting all common types of smuggling like drugs, weapons, explosives, illegal migrants and other dangerous or prohibited objects.

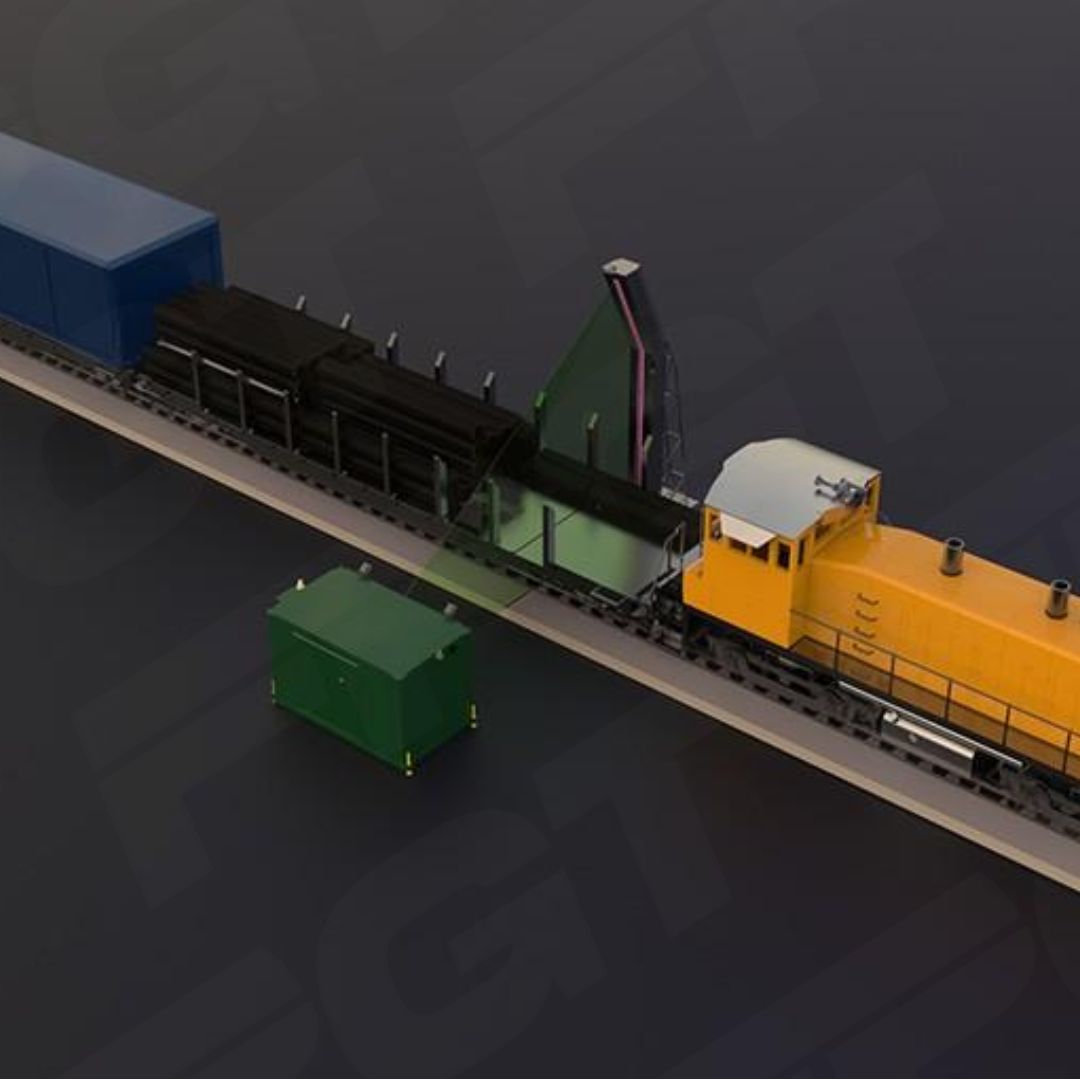

The inspection complex is able to significantly speed up the process of rolling stock inspection, as it is able to scan a train moving at speeds up to 60 km / h forming black and white images, and when speed does not exceed 30km/h the material separation with automatic colour-coding becomes available. With Automatic Container Code Recognition system and Radiation Portal Monitor (options) this complex able to boost performance of any major transport hub. Automatic detection of a humen inside of empty carriages (AI integration) simplifies fighting with criminals and illegal migrants smuggling.
Safety system:
- Radiation environment dosimeter in operator’s automated workstation (AWS) room
- CCTV system
- Beacon
- Traffic light
- Cargo train speed monitoring device
- Emergency stop button
Key features
- Moving train with speed up to 60 km/h image acquisition
- Lateral projection
- Dual energy technology with color-coding
- High penetration up to 350 mm
- Innovative drive-through scanning technology
- Detection of stowaway people onboard
Generator specifications
| Maximum accelerated electron energy, min. |
6,0 MeV |
| Steel penetration |
350 mm |
Unit specifications
| Dimension of inspection tunnel: |
| Width |
5,0 m |
| Height |
9,5 m |
| Scanning speed |
60 km/h |
Operation
| Operating temperature |
from -30 to 40 °C |
| Operating humidity |
90% |
