Walk Through Metal Detector UC7000+CCTV

Walk Through Metal Detector UC7000+CCTV

  • Detection Zones: 33 zone
  • Sensitivity: 1000 levels
  • Infrared Passing Speed: 40-50 people/min
  • Usage: Indoor/Outdoor

Walk Through Metal Detector UC7000+CCTV

Availability will be confirmed on request.
Check Availability

Product Specifications

Alarm Audible and visual alarm indication
Applications Airports / government buildings / schools / factories / prisons / public venues / commercial facilities / security checkpoints
CCTV Integrated CCTV surveillance capability
Detection Sensitivity Adjustable sensitivity levels for different security requirements
Detection Technology Multi-zone electromagnetic metal detection
Detection Zones Multi-zone target localization
Key Advantage Combines walk-through metal detection with CCTV surveillance in a single security-screening solution
Manufacturer UNIQSCAN
Primary Application Personnel screening; security checkpoint monitoring and controlled-entry security
Product Configuration Walk-through detector with CCTV
Product Family UC Series
Product Name UNIQSCAN UC7000+CCTV
Product Series UC Series
Product Type Walk-Through Multi-Zone Metal Detector with Integrated CCTV
Related Models UC6000; UC6000+CCTV; UC7000; UC7000+CCTV
Security Monitoring Combines metal detection and video surveillance at the access point
Target Localization Indicates the approximate location of detected metal on the person's body
Video Surveillance Camera integration allows screening events to be associated with video monitoring

Walk Through Metal Detector UC7000+CCTV

Description

  • Detection Zones: 33 zone
  • Sensitivity: 1000 levels
  • Infrared Passing Speed: 40-50 people/min
  • Usage: Indoor/Outdoor
  • Weather Proofing: IP65
  • Optional Function: NVR+CCTV system
  • Warranty Period: 12 month
  • Certifications: CE, ISO 9001, FCC, ROHS

UC7000 33 Zones CCTV Advanced High-Sensitivity IP Networking Walk-Through Metal Detector

The UC7000 is UNIQSCAN’s premium walk-through metal detector, built for maximum accuracy and professional security operations. Featuring 33 ultra-precise detection zones and ultra-high sensitivity, it provides superior pinpointing of metallic objects. With robust construction, intelligent infrared alarm control, and advanced stability, the UC7000 is the perfect choice for critical infrastructure, border control, major events, and top-level security checkpoints.

Features:

  • 33 Precise Detection Zones: Divides the passageway into 33 distinct areas to detect both magnetic and non-magnetic metals.
  • Integrated 4MP CCTV Camera: Features a 1/2.9″ low-illumination CMOS sensor capable of face, humanoid, and motion detection.
  • 7-Inch LCD Control PanelA graphical user interface supporting mouse operation for easy system management.
  • IP65 Weather Protection: The door frame and control unit are built with high-strength PC material and are waterproof and dustproof.
  • Pure Copper Coils: Upgraded from aluminum to pure copper to reduce DC resistance by 40%.
  • Embedded Linux NVR: A built-in system that supports real-time recording, playback, and 1 SATA interface for up to 14TB of storage.
  • Advanced Materials: Uses anodized aluminum alloy crossbeams and P2-grade eco-friendly panels.

Walk Through Metal Detector: UC7000+CCTV

Benefits:

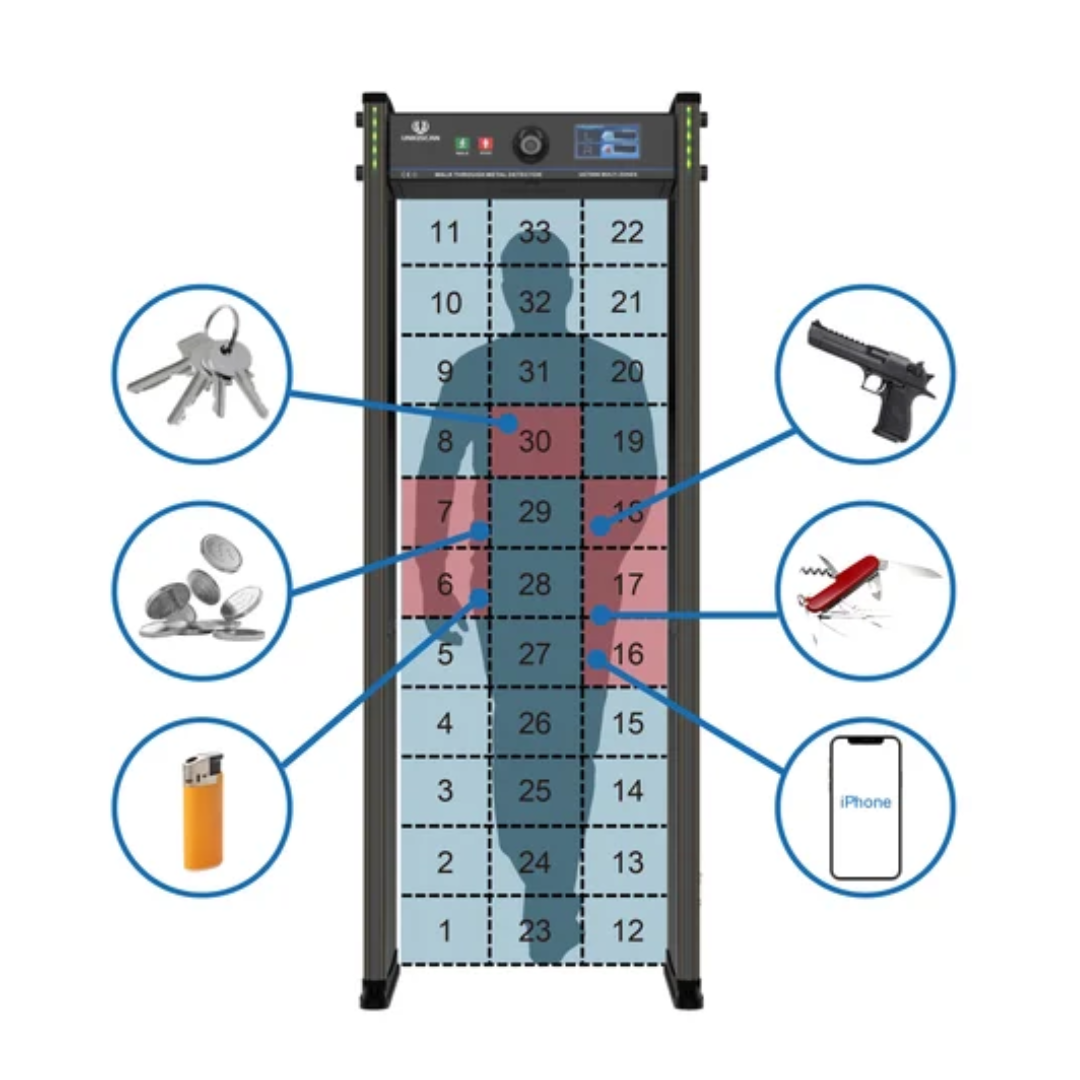

  • Pinpoint Precision: 33 zones allow security personnel to quickly identify the exact location of a hidden object on a person’s body.
  • Reduced False Alarms: Intelligent infrared sensors and high-precision algorithms ensure the alarm only triggers for real threats, minimizing delays.
  • Dual-Layer Monitoring: The combination of metal detection and AI-driven video surveillance (face detection) provides a more comprehensive security screening process.
  • High Throughput: The system supports a passing speed of 40–50 people per minute, making it ideal for high-traffic events.
  • Health & Safety: It is 100% safe for pregnant women, children, and individuals with pacemakers as it emits no radiation.
  • User-Friendly Interface: Automatic calibration and a “Walk/Stop” traffic indicator simplify the operator’s job.
  • Environmental Resilience: With an IP65 rating and corrosion-resistant materials, the unit can be used both indoors and outdoors in harsh environments.
  • Energy Savings: An innovative modular design includes an “auto sleep” mode that reduces standby power consumption by 30%.
