X-Series EDD Spreader Compact Performance
Availability will be confirmed on request.
Product Specifications

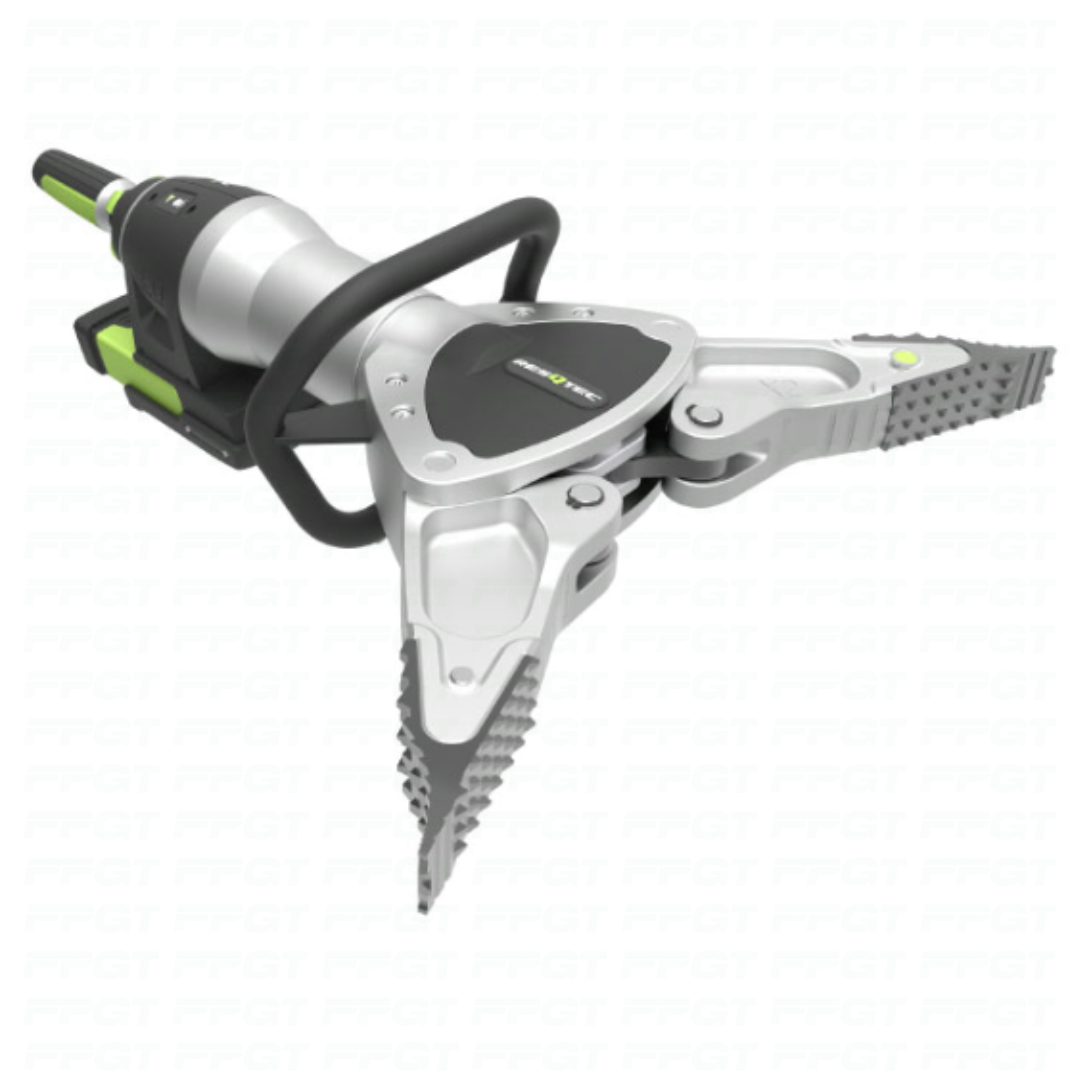

X-Series EDD Spreader Compact Performance
Freedom to move, that’s what the compact X-Series EDD is all about. It is exactly what you want from a battery tool – the perfect combination between size and power, to ensure optimal control.
LARGER OPENING, SMALLER DESIGN

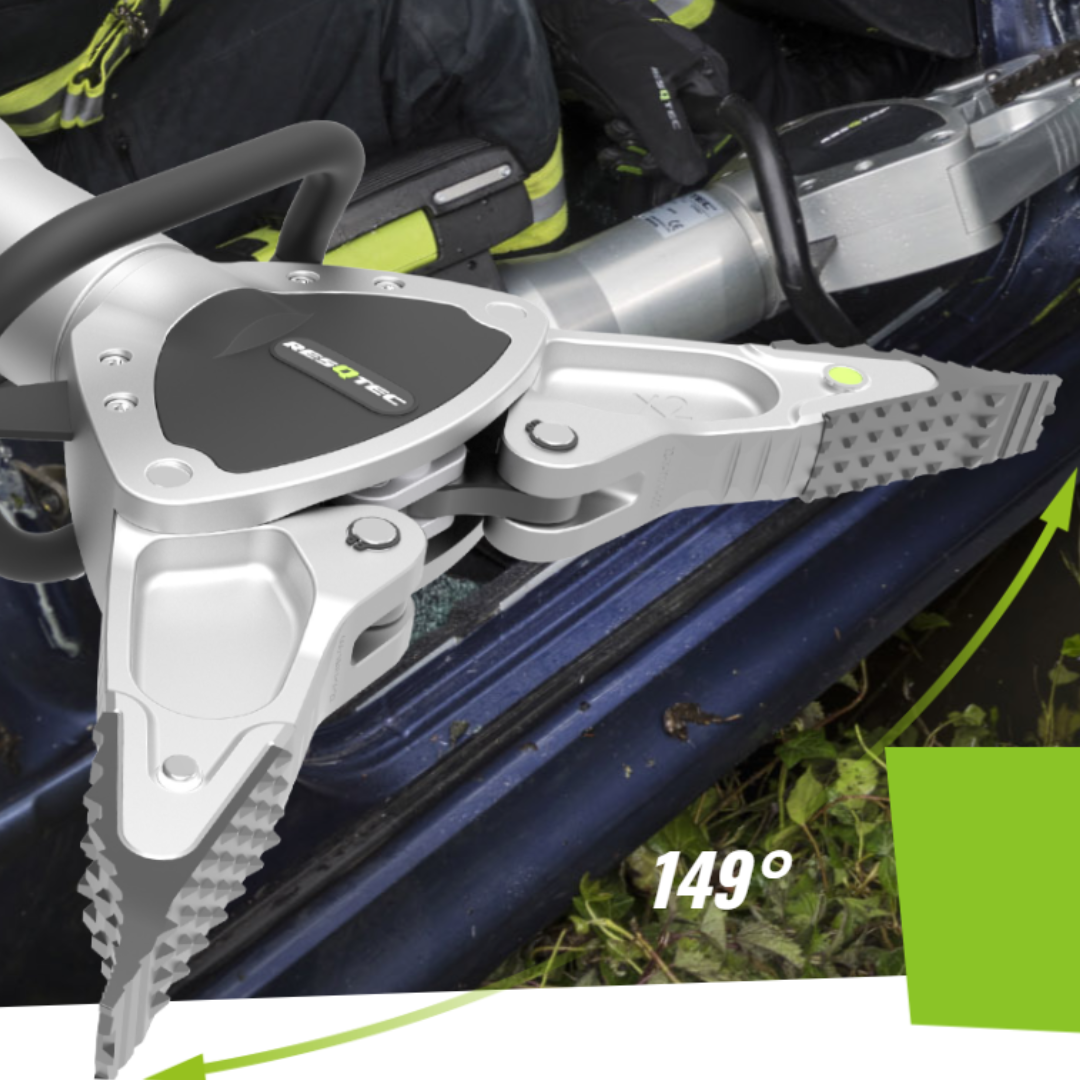

The maximum opening angle has a large impact on the actual spreading performance. Practice shows that an angle larger than approximately 150° loses its practical spreading capabilities.
| X2 EDD SPREADER | |
| Operational weight | 20.5 kg (±0.2 kg) |
| Weight (excl. Battery) | 19.5 kg (±0.2 kg) |

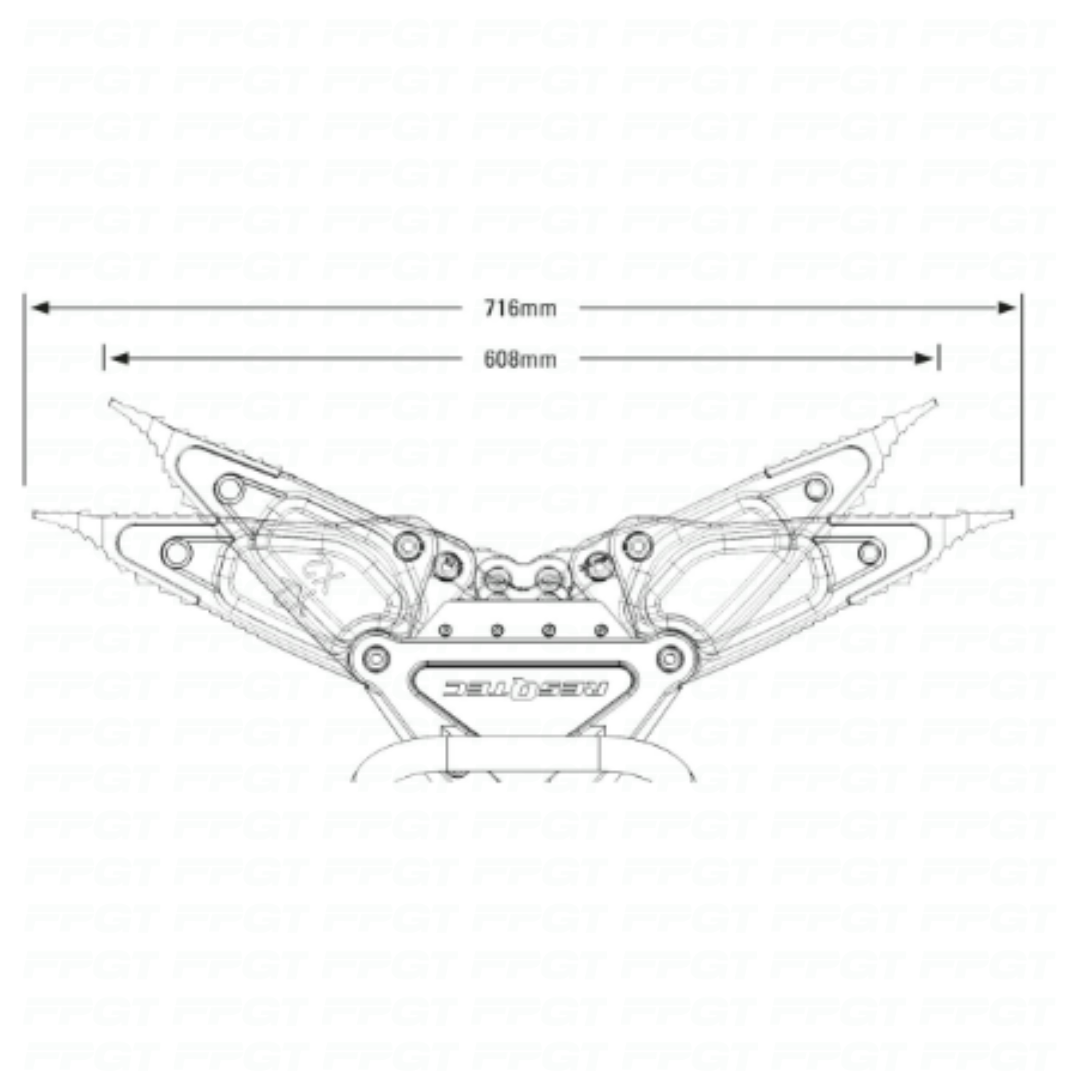

| Max. spreading opening | 607 mm |
| Spreading force at base of arm teeth* | 105 – 342 kN / 10.7 – 34.9 ton |
| Spreading force at base of jaw | 67.6 – 173.2 kN / 6.9 – 17.7 ton |
| Spreading force 25 mm from tips | 38.4 – 83.2 kN / 3.9 – 8.5 ton |
