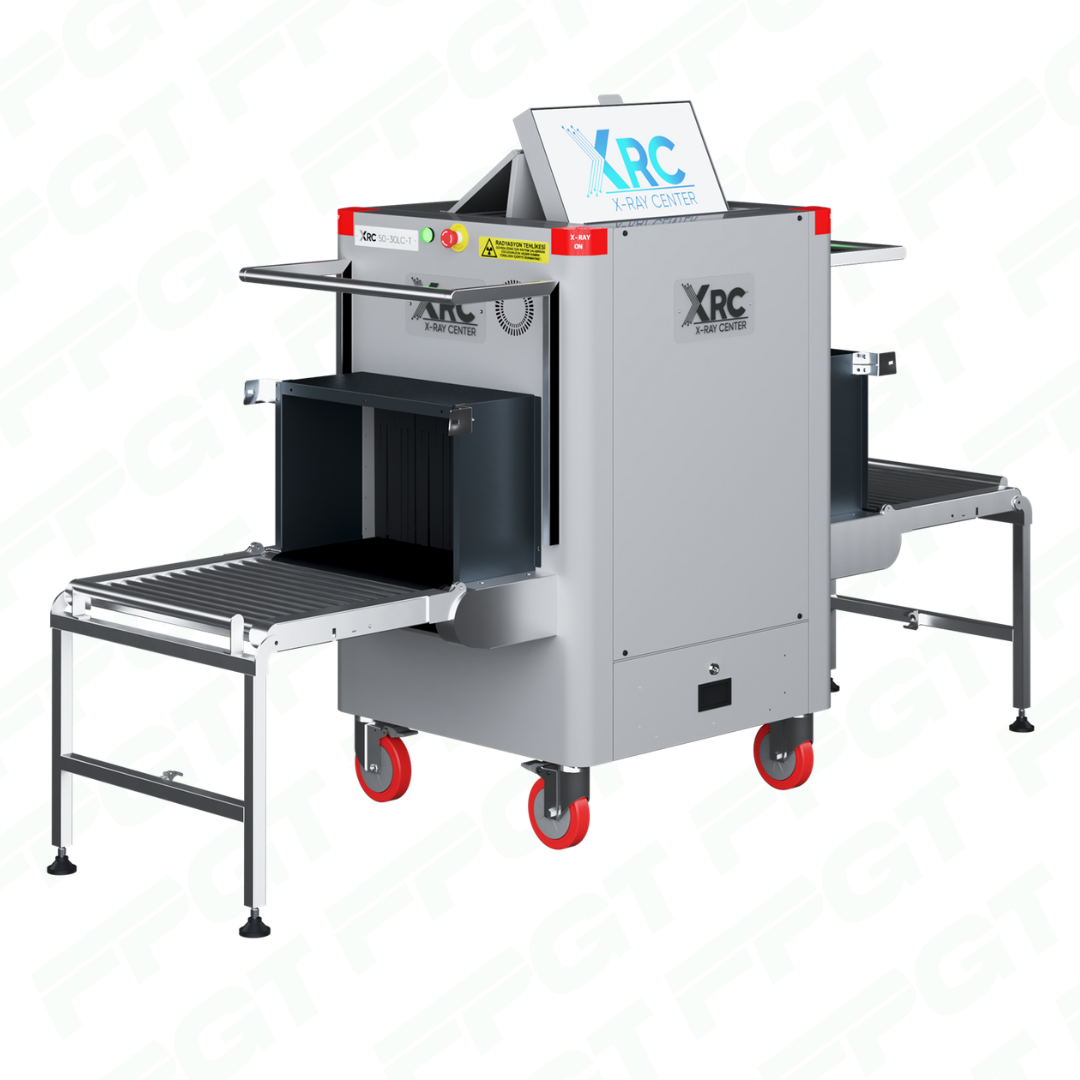

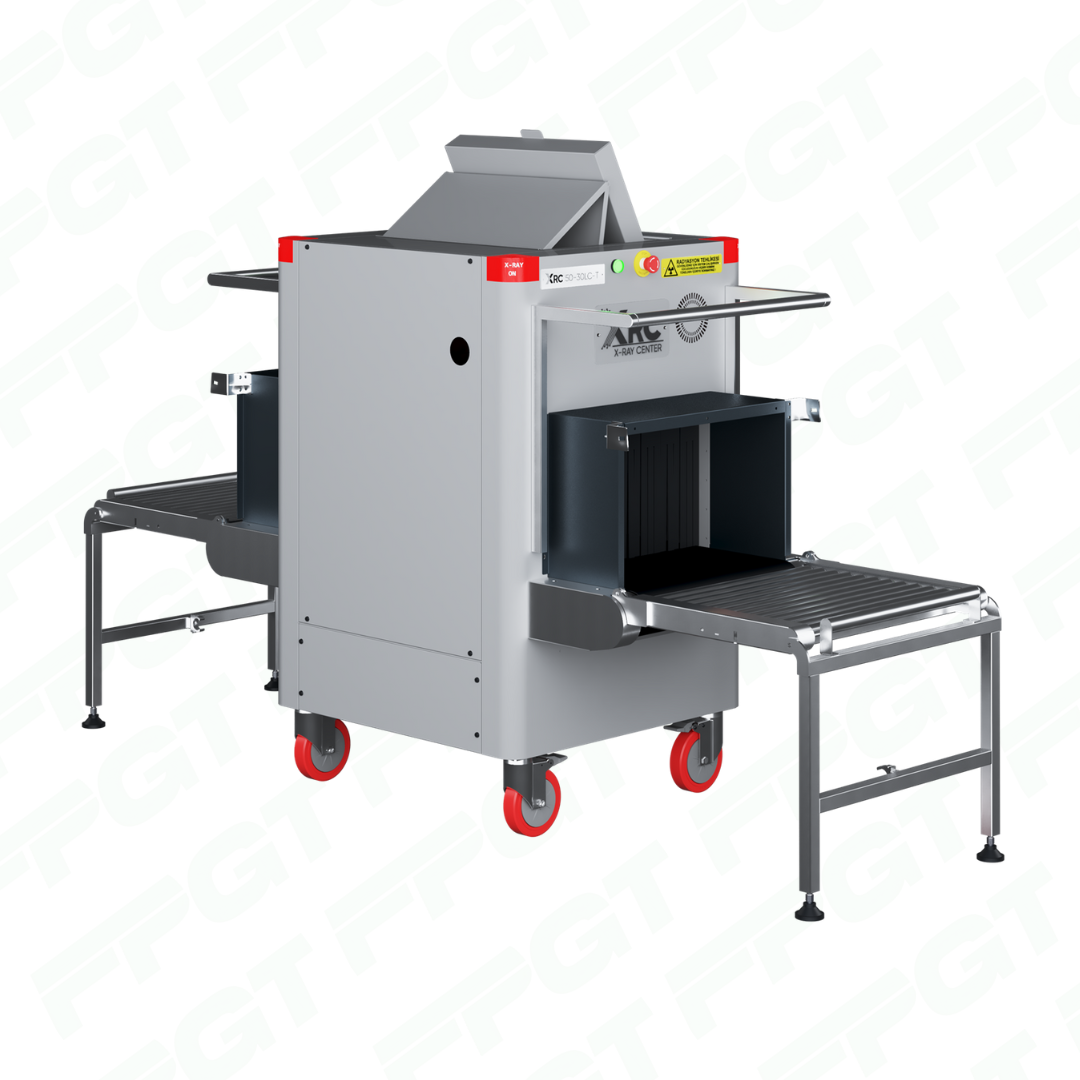

XRC 50-30LCT X-ray baggage scanning machine
The XRC 50-30LCT is a compact and lightweight x-ray baggage scanner designed for environments where space is limited. Equipped with a 100kV x-ray generator, it delivers high-resolution imaging to effectively detect potential threats such as weapons, explosives, and narcotics.
XRC 50-30LCT X-ray baggage scanning machine
Product Specifications
| Alarm System | Automatic liquid explosive and threat alarm indication |
|---|---|
| Applications | Airports government buildings embassies courts and high security facilities |
| Conveyor Capacity | 165 kg evenly distributed load |
| Conveyor Speed | 0.20 m/sec forward and reverse |
| Cooling System | Oil and forced air cooling system |
| Detection Capability | Detects explosives narcotics weapons liquids and concealed threats |
| Detection Coverage | Suitable for cabin baggage handbags parcels and liquid containers |
| Detection Technology | Integrated LCT Liquid Container Threat detection system |
| Display Features | Multi Energy Viewer and Atomic Number Display |
| Generator Power | 100kV high performance X ray generator |
| Image Processing | Edge Enhancement Pseudo Color and Sniper Zoom functions |
| Liquid Detection | Automatic identification of dangerous liquid explosives |
| Manufacturer | X-Ray Center |
| Material Separation | Organic inorganic and mixed material analysis |
| Product Name | XRC 50-30LCT Liquid and Explosive Detection X Ray Scanner |
| Product Type | Cabin Baggage and Liquid Explosive Detection Scanner |
| Software Platform | Linux based upgradable operating system |
| Steel Penetration | 30 mm guaranteed and 32 mm typical |
| Tunnel Size | 550 mm x 350 mm |
| Wire Resolution | 38 AWG guaranteed and 40 AWG typical |
XRC 50-30LCT Documents
XRC 50-30LCT X-ray baggage scanning machine
- Mobile, compact
- Light weight
- Touchscreen monitor
- Foldable SS Rollers
- Suitable for narrow spaces
- Latest generation technology and practical use
- Organic and inorganic alarm
- Upgradable software based on Linux
- Multilanguage support
| Tunnel Size | :532 mm (W) x 332 mm (H) | |
| :20,94 in (W) x 13 in (H) | ||
| Dimensions | ||
| Length | :2300 mm (90,50 in) | |
| Height | :1300 mm (51,18 in) | |
| Width | :770 mm (30,31 in) | |
| Approx. Weight Unpacked | :450 kg (990 lbs) | |
The XRC 50-30LCT is a mobile, compact and light-weight x-ray baggage scanner with a 100kV x-ray generator.
The XRC 50-30LCT has rollers that fold up and handles that make it easy to roll the scanner from one location to another on its low friction wheels. The scanner comes equipped with various image processing functions, a hazard alarm, advanced computer technology, and best-in-class software. It is designed to make it easy for operators to identify potentially threatening objects such as cutting tools, explosives, and narcotics. These features help to minimize the error rate and ensure efficient and effective security screening. Its multi-diode structure and high-quality imaging produce a coloured image that reflects the density of the scanned objects, displaying organic, inorganic, and mixed materials in different shades.
The XRC 50-30LCT is a mobile, compact, and lightweight scanner that is ideal for use in locations with limited working space. This scanner is equipped with the latest technology and can provide detailed scans of small handbags, packages, parcels, and cabin baggage. The x-ray baggage scanner has a built in touch-screen monitor that folds down when not in use. The scanner is designed with operators’ standing operation ergonomics in mind and utilizes a built in touchscreen monitor that folds down when not in use.
It is efficient and powerful, and can be used for inspection in various locations such as courts, police departments, offices, shopping malls, prisons, hotels and anywhere that space is at a premium or where the scanner must be used in multiple locations and needs to be mobile.
The XRC 50-30LCT is a compact and lightweight x-ray baggage scanner designed for environments where space is limited. Equipped with a 100kV x-ray generator, it delivers high-resolution imaging to effectively detect potential threats such as weapons, explosives, and narcotics.
Key Features:
- Mobility and Compact Design: Weighing approximately 400 kg (882 lbs) and featuring foldable stainless steel rollers and integrated handles, the XRC 50-30LCT is easy to maneuver and ideal for locations requiring flexible deployment.
- Advanced Imaging Technology: Utilizing a multi-diode structure, the scanner produces color-coded images that differentiate between organic, inorganic, and mixed materials based on density, enhancing threat detection capabilities.
- User-Friendly Interface: A built-in touchscreen monitor provides intuitive operation and folds down when not in use, optimizing space and ensuring ergonomic use for operators.
- Software and Language Support: The system runs on upgradable Linux-based software and offers multilingual support, catering to diverse operational requirements.
Technical Specifications:
- Tunnel Size: 532 mm (W) x 332 mm (H)
- Dimensions: Length: 2300 mm | Width: 770 mm | Height: 1300 mm
- Weight: Approximately 400 kg (882 lbs)
Ideal Applications:
The XRC 50-30LCT is suited for various settings, including:
- Courts and Police Departments
- Government Offices
- Shopping Malls
- Prisons
- Hotels
- Exhibition Centers
- Any location where space is at a premium and mobility is essential
