XRC 50-30P X-ray Baggage Scanning Machine
XRC 50-30P Documents
Additional information
| Weight | 355 kg |
|---|---|
| Brand | |
| Customer Application |
X-ray Baggage Scanning |
| Customer Type |
Exhibitions ,Hotel ,Jail / Prison ,Law Enforcement |
| Anode Voltage |
170kV |
Description

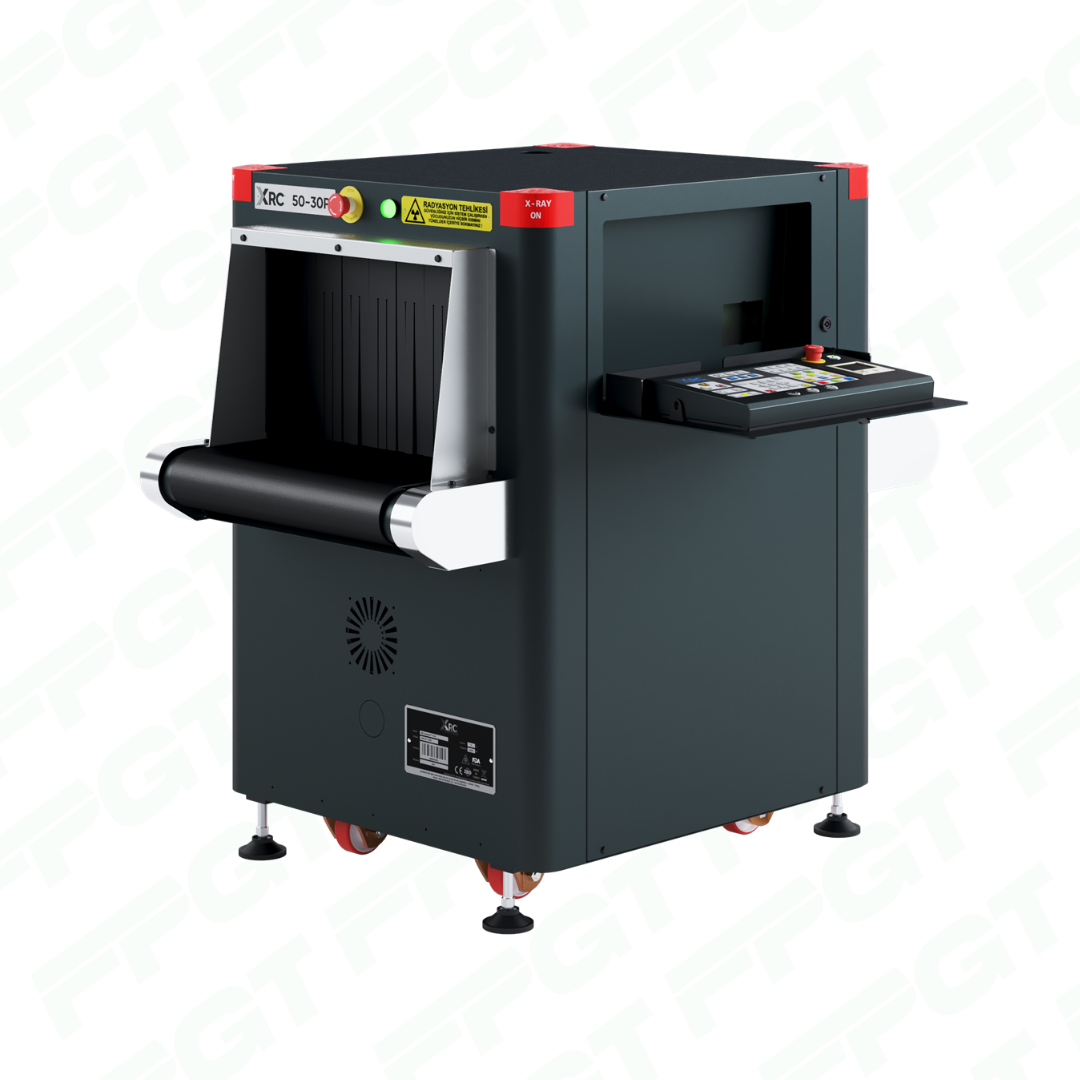

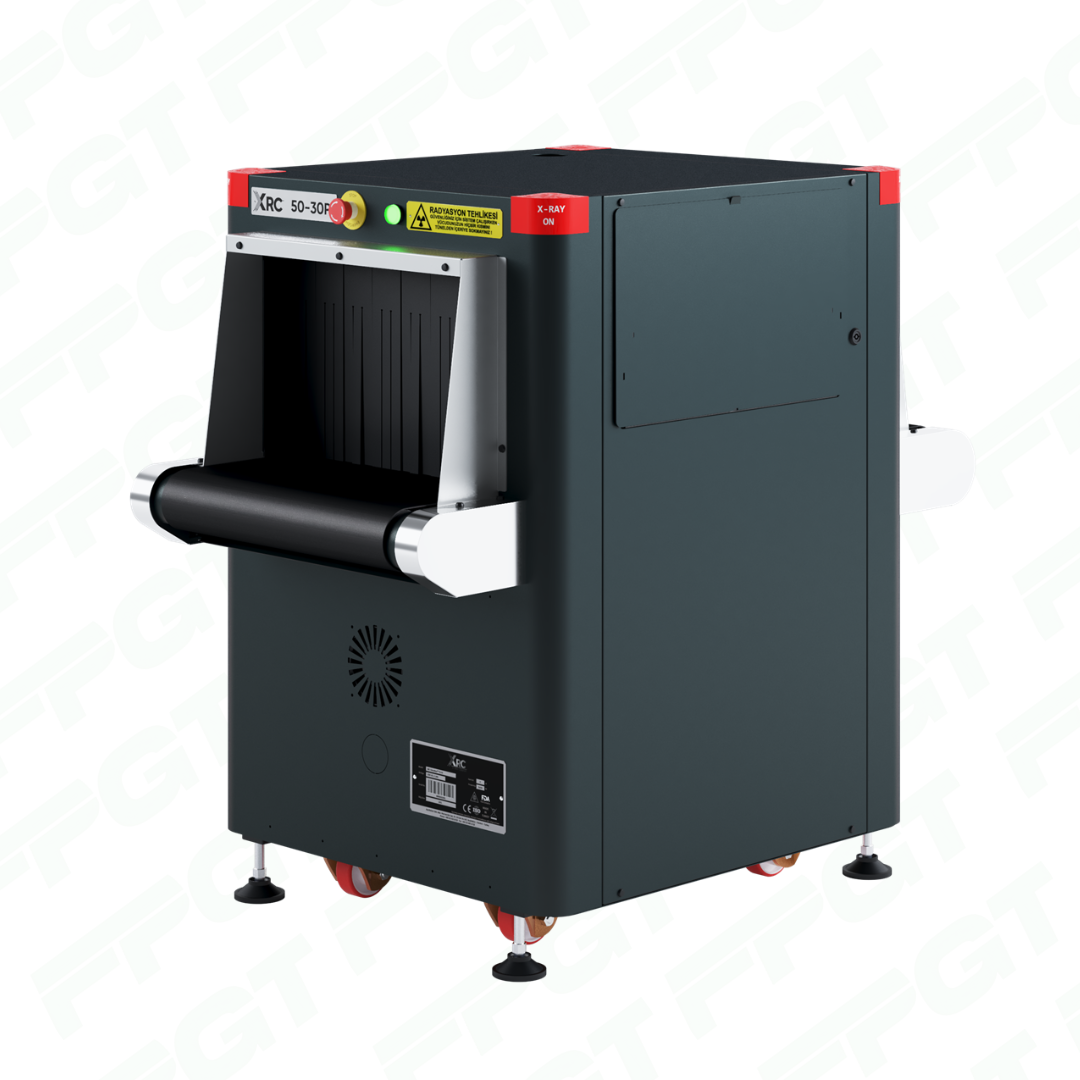

XRC 50-30P X-ray Baggage Scanning Machine
- Suitable for narrow spaces
- Latest generation technology and practical use
- Organic and inorganic alarm
- Upgradable software based on Linux
- Folding and lockable side console
- Multilanguage support
| Tunnel Size | :530 mm (W) x 330 mm (H) | |
| :21,65 in (W) x 13,78 in (H) | ||
| Dimensions | ||
| Length | :1265 mm (49,80 in) | |
| Height | :1150 mm (45,27 in) | |
| Width | :760 mm (29,92 in) | |
| Approx. Weight Unpacked | :355 kg (781 lbs) | |
XRC 50-30P x-ray device facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate and offers unique image quality by showing the scanned organic, inorganic and mixed items in different colors thanks to its multi-diode structure and quality in imaging of scanned objects.
It is a preferred model for locations with limited operating space and it is an efficient and a powerful device for scanning small handbags, packages parcels and cabin baggage in detail. It provides the ideal solution for locations where security screening is required like courts, police departments, offices, shopping malls, prisons and hotels.
STANDARD IMAGE PROCESSING FEATURES
- Perfect View (Detail Enhancement) (PV)
- Edge Enhancement (EE)
- Pseudo Color (PS)
- Organic Materials (OM)
- Inorganic Materials (IM)
- Black & White (B/W)
- Inverse Colors (IN)
- High Penetration (HP)
- Variable Edge Enhancement (+E –E)
- Variable Density (+D –D)
- Variable Gamma (+G –G)
- Variable Color Separation (+C –C)
- Zoom (64x)
- Sniper Zoom
- Recall Previous Images (100,000 or superior)
- Manual/Automatic Archive (100,000 or superior)
- Annotated Archive
- Multi Energy Viewer (4 – 6 Color)
- Atomic Number Display (Z Value)
OPTIONAL ACCESSORIES
- External UPS (For system)
- Operator Console (Open-Closed/Adjustable/I-stand)
- 21,5‘’- 27’’ Flat Monitor
- Input / Output Rollers
- Test Kit (STP/ASTM)
- Protective Cover
- Search Table
- Tray Return System (Motorized/Gravity)
- Inclined Conveyor
- Ultrasonic Rat Repellent
- Radiation Meter
