XRC 60-40
- TSA ACSTL certified
- Suitable for narrow spaces
- Latest generation technology and practical use
- Organic and inorganic alarm
- Upgradable software based on Linux
- Folding and lockable side console
- Multilanguage support
Product Specifications
| Alarm System | Organic and inorganic threat alarm indication |
|---|---|
| Applications | Airports courthouses customs prisons hotels and government facilities |
| Conveyor Capacity | 165 kg evenly distributed load |
| Conveyor Speed | 0.20 m/sec forward and reverse |
| Cooling System | Oil and forced air cooling system |
| Detection Capability | Detects explosives narcotics weapons and concealed threats |
| Detection Coverage | Suitable for small baggage parcels and cabin luggage screening |
| Detection Technology | Advanced single view X ray imaging system |
| Display Features | Multi Energy Viewer and Atomic Number Display |
| Generator Power | 170kV operating at 160kV |
| Image Processing | Edge enhancement pseudo color and multi energy analysis |
| Manufacturer | X-Ray Center |
| Material Separation | Organic inorganic and mixed material classification |
| Product Name | XRC 60-40 X Ray Baggage Scanner |
| Product Type | Compact Baggage and Parcel X Ray Inspection System |
| Software Platform | Linux based upgradable operating system |
| Steel Penetration | 40 mm guaranteed and 42 mm typical |
| Tunnel Size | 610 mm x 440 mm |
| Wire Resolution | 38 AWG guaranteed and 40 AWG typical |
XRC 60-40 Documents

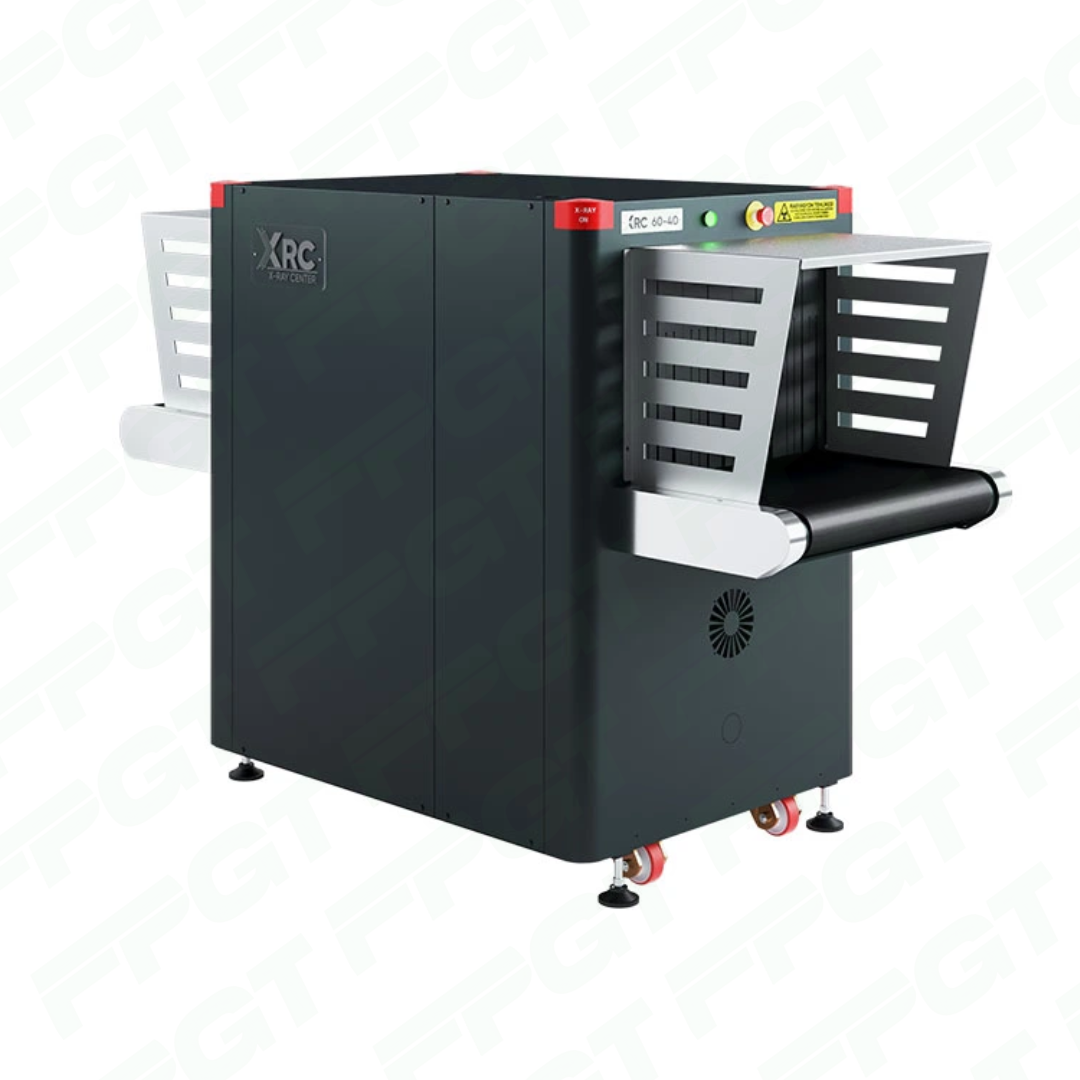

XRC 60-40 X-ray Baggage Scanning Machine
- TSA ACSTL certified
- Suitable for narrow spaces
- Latest generation technology and practical use
- Organic and inorganic alarm
- Upgradable software based on Linux
- Folding and lockable side console
- Multilanguage support
| Tunnel Size | : 610 mm (W) x 440 mm (H) | |
| :24,02 in (W) x 17,32 in (H) | ||
| Dimensions | ||
| Length | :2080 mm (81,89 in) | |
| Height | :1370 mm (53,94 in) | |
| Width | :870 mm (34,25 in) | |
| Approx. Weight Unpacked | :540 kg (1190 lbs) | |
XRC 60-40 is ACSTL qualified by the American Transportation Security Administration (TSA) and is one of the XRC brand’s preferred x-ray devices in terms of its dimensions and functionalities. It facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software and it is a preferred model for locations with limited operating space. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate. It provides unique image quality by showing the scanned organic, inorganic and mixed items in different colors thanks to its multi-diode structure and quality in imaging of scanned objects.
X-ray security scanner is designed with the latest technology system to scan small handbags, packages parcels and cabin baggage in detail. Institutions ensure that packages are inspected in places where inspection is required, such as airports, customs border gates, police departments, ministries, prisons, institutions, courts.
STANDARD IMAGE PROCESSING FEATURES
- Perfect View (Detail Enhancement) (PV)
- Edge Enhancement (EE)
- Pseudo Color (PS)
- Organic Materials (OM)
- Inorganic Materials (IM)
- Black & White (B/W)
- Inverse Colors (IN)
- High Penetration (HP)
- Variable Edge Enhancement (+E –E)
- Variable Density (+D –D)
- Variable Gamma (+G –G)
- Variable Color Separation (+C –C)
- Zoom (64x)
- Sniper Zoom
- Recall Previous Images
- Manual/Automatic Archive
- Annotated Archive
- Multi Energy Viewer (4 – 6 Color)
- Atomic Number Display (Z Value)
STANDARD FEATURES
- Programmable Function Keys
- Parcel Counter
- Date and Time Display
- Virtual Threat Image Projection (TIP)
- Organic/Inorganic Threat Alarm
- Operator Training Program (OTP)
- UPS (For Computer Supply)
- Multi Languages
- Self Diagnosis
- Generator Timer
- Bi-Directional Scanning
- Automatic Stop Conveyor
- Emergency Stop Buttons
