BV 6045 · Single view 600 by 450 mm tunnel solution
| Brand | Linev |
|---|---|
| Country of Origin | UAE – UK – USA |
BV 6045 · Single view 600 by 450 mm tunnel solution
600mm by 450mm tunnel, single view, high resolution, X-ray baggage and parcel inspection system with smart artificial intelligence and detection software
Datasheet

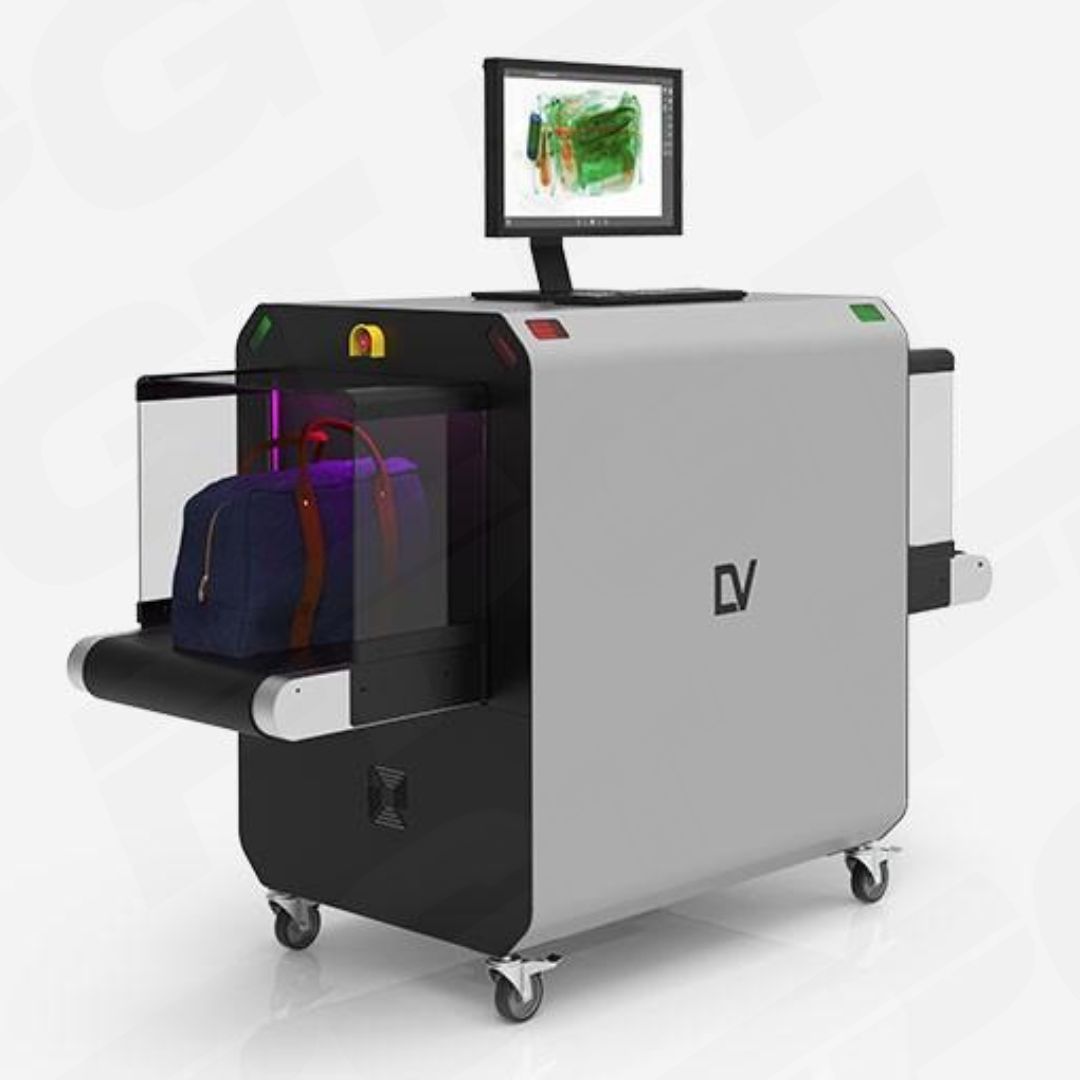

BV 6045 is a high-resolution, single view X-ray baggage inspection system with the ability to automatically detect prohibited objects and threats.
The tunnel with a width of 610 mm and a height of 450 mm is optimal for inspection of baggage, bags, hand luggage and parcels.
The System may be used at inspection points of critical infrastructure facilities, law enforcement and security agencies, customs, border guards, hotels, event centers, educational institutions, sports arenas, and other places where reliable and uninterrupted operation of inspection systems is required.
BV 6045 enables the identification of weapons, explosives, drugs and any other dangerous or prohibited items.
Unique colour palettes and touch control provide an exceptional level of operator efficiency.
Options:
- TIP software for monitoring operator vigilance
- Secure login
- Multi-level user access with the ability to administer users, roles and access levael
- Viewing X-ray images from a previous session
- Quick view of the last 10 images (configurable parameter)
- Modes of operation: scanning with a stop of the conveyor after each object or without stopping, with the possibility of returning the object after scanning
- Automatic warming up of the X-ray generator during prolonged idle time (no warming up is required during daily operation of the System)
- Automatic storage of X-ray images in the archive
- Baggage counter
- Display of date and time, unit serial number and operator ID Multilingual interface
- Display of software version and serial number of the System
- Display of user login time and duration of the current session
Peculiarities:
- Automatic selection of suspicious objects (such as explosives, drugs, Impenetrable areas) using Zeff and optical density
- Bi-directional scanning
- Automatic diagnostics of the System and individual units performance
- Possibility of choice by the operator of 3, 7-colour or infinite colour palette
Modular build
Easier assembly & repair, enhanced part compatibility

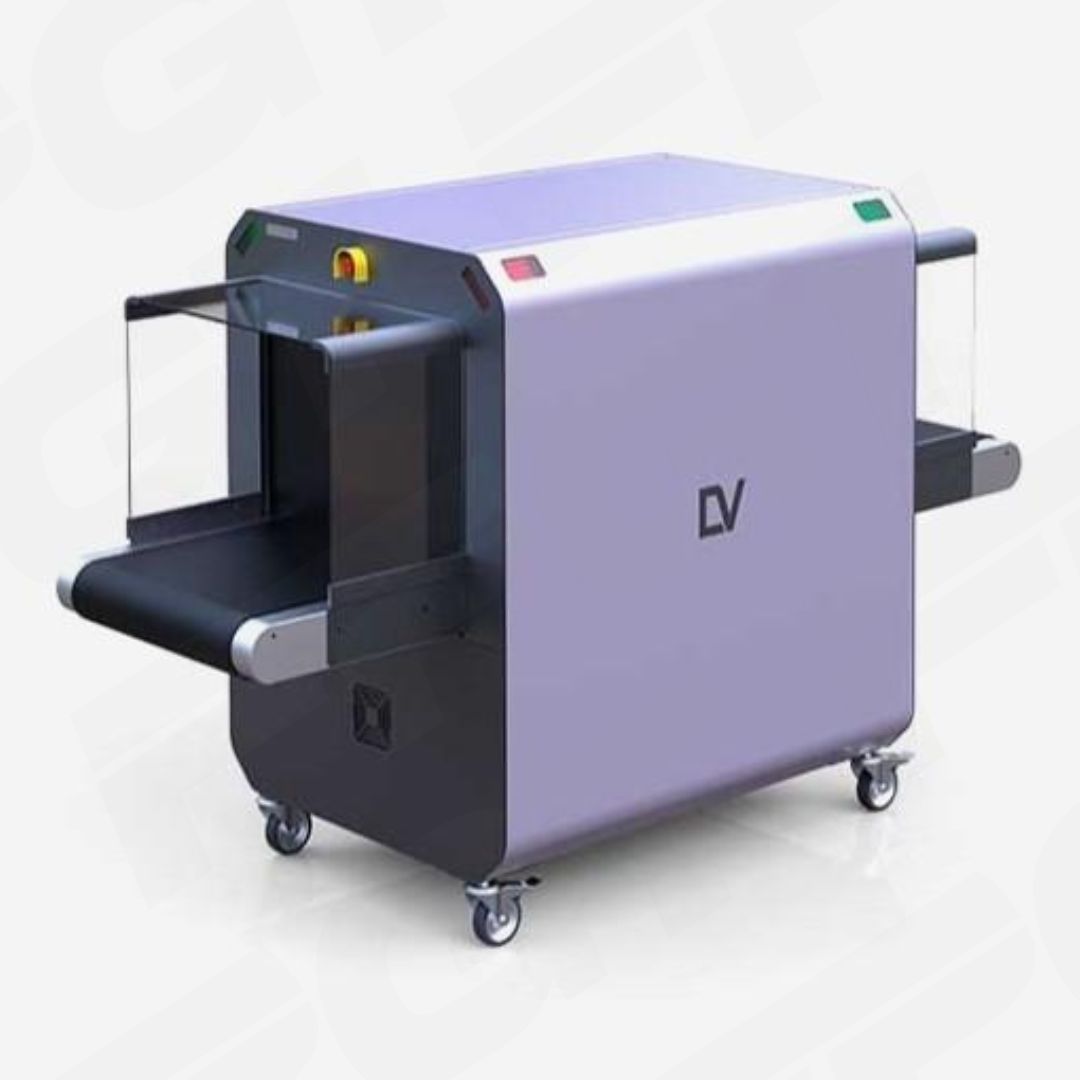

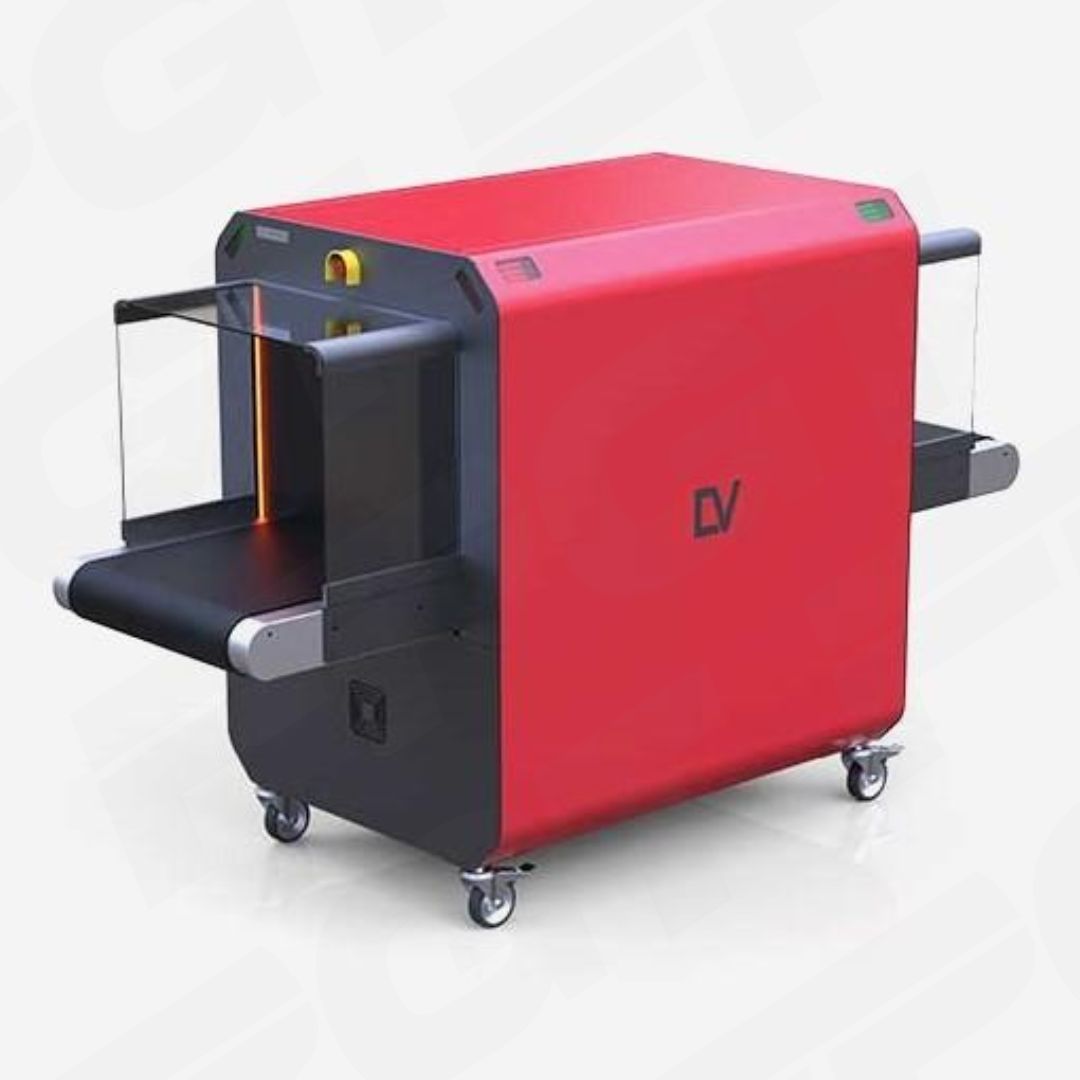

Color Solutions
Customer-focused casings colors
Telemetry (predictive analytics)
Full remote monitoring and control over health status and device functionality

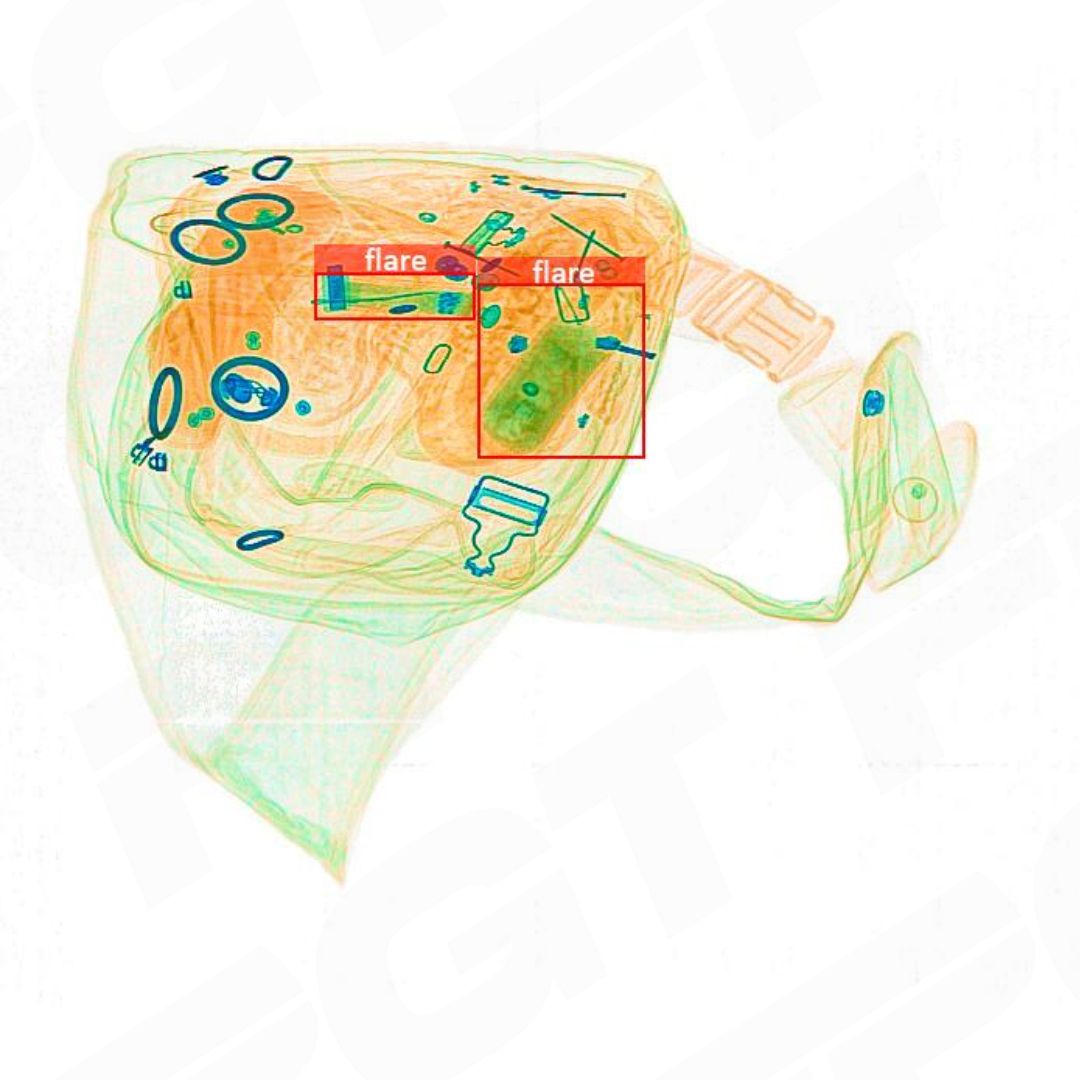

Artificial Intelligence
Unique software system for automated detection of firearms, knives, ammunition & pyrotechnics
Automatic identification
Suspicious objects (drugs, explosives) automatic detection and identification
Color palette
Availability of 7, 3 colour and infinite colour palettes for X-ray images
General Specifications
X-ray source
| Anode voltage | 160 kV |
| Beam direction | Diagonally upward |
X-ray detector
| Detective ability for copper wire | 0.08 mm (40 AWG) | |
| Penetration on steel | 36 mm guaranteed | 37 mm typical |
| Spatial resolution, line pairs per mm | 1.0 in the direction of scanning | 1.0 along the detector |
Power supply
| Line voltage | 230 VAC ± 10% / 120 VAC ± 5% |
| Line frequency | 50/60 Hz |
| Power consumption | A maximum of 0.9 kVA |
Conveyor belt
| Maximum distributed load on the conveyor belt | 180 kg |
| Conveyor height | 713 mm |
| Conveyor speed | 0.22 ± 0.03 m/s |
Dimensions
| Tunnel dimensions | ||
|---|---|---|
| Width | 610 mm | |
| Height | 450 mm |
| Overall dimensions (maximum) | ||
|---|---|---|
| Width | 845 mm | |
| Height | 1325 mm | |
| Length | 2140 mm |
| Weight (maximum) | 480 kg |
|---|
Climate conditions
| Operation / storage | ||
|---|---|---|
| Ambient temperature | 0°C to +40°C | |
| Maximum relative humidity (at +20°C) | Up to 90%, non-condensing |
| Storage | ||
|---|---|---|
| Ambient temperature | -10°C to + 50°C | |
| Maximum relative humidity (at +35°C) | Up to 98%, non-condensing |
