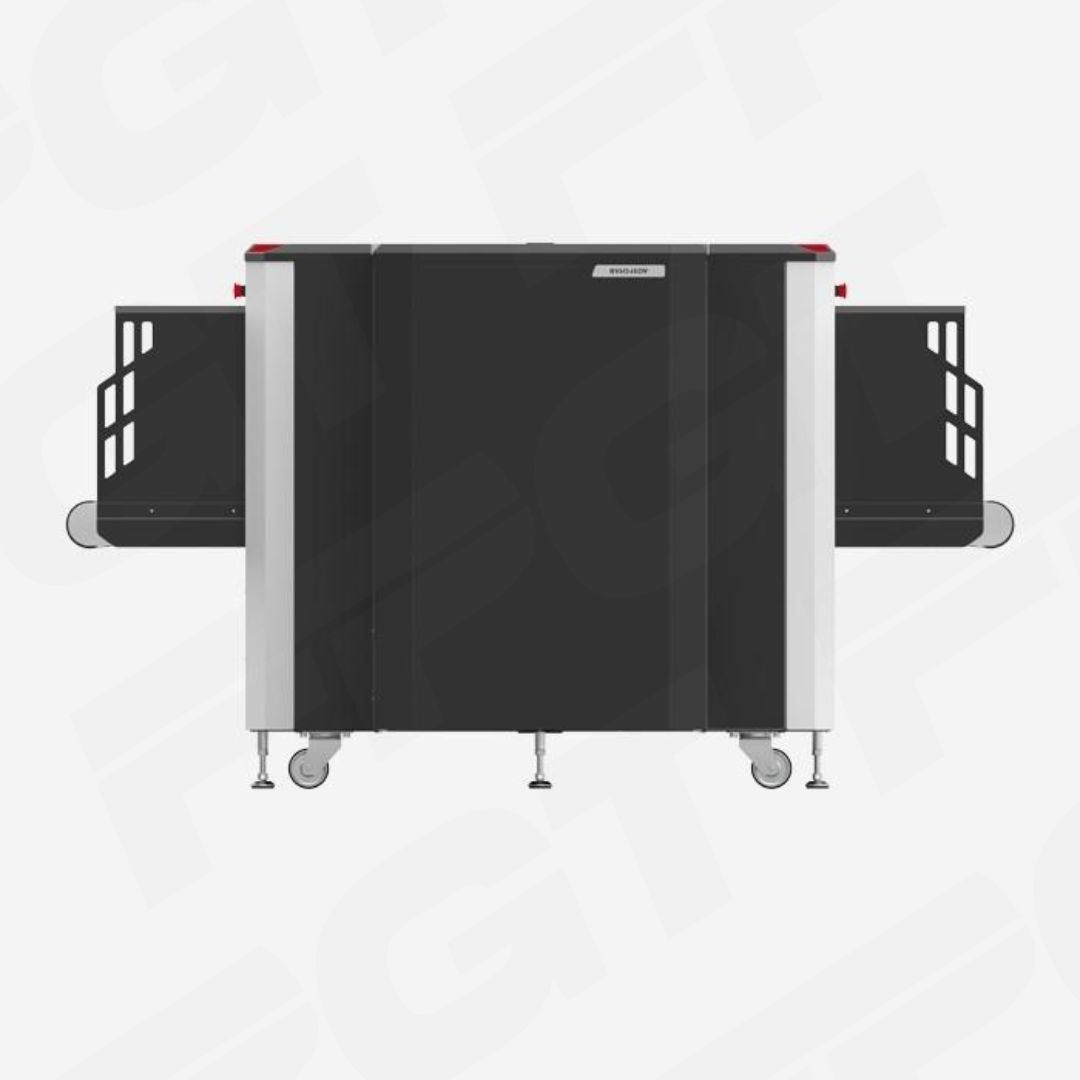

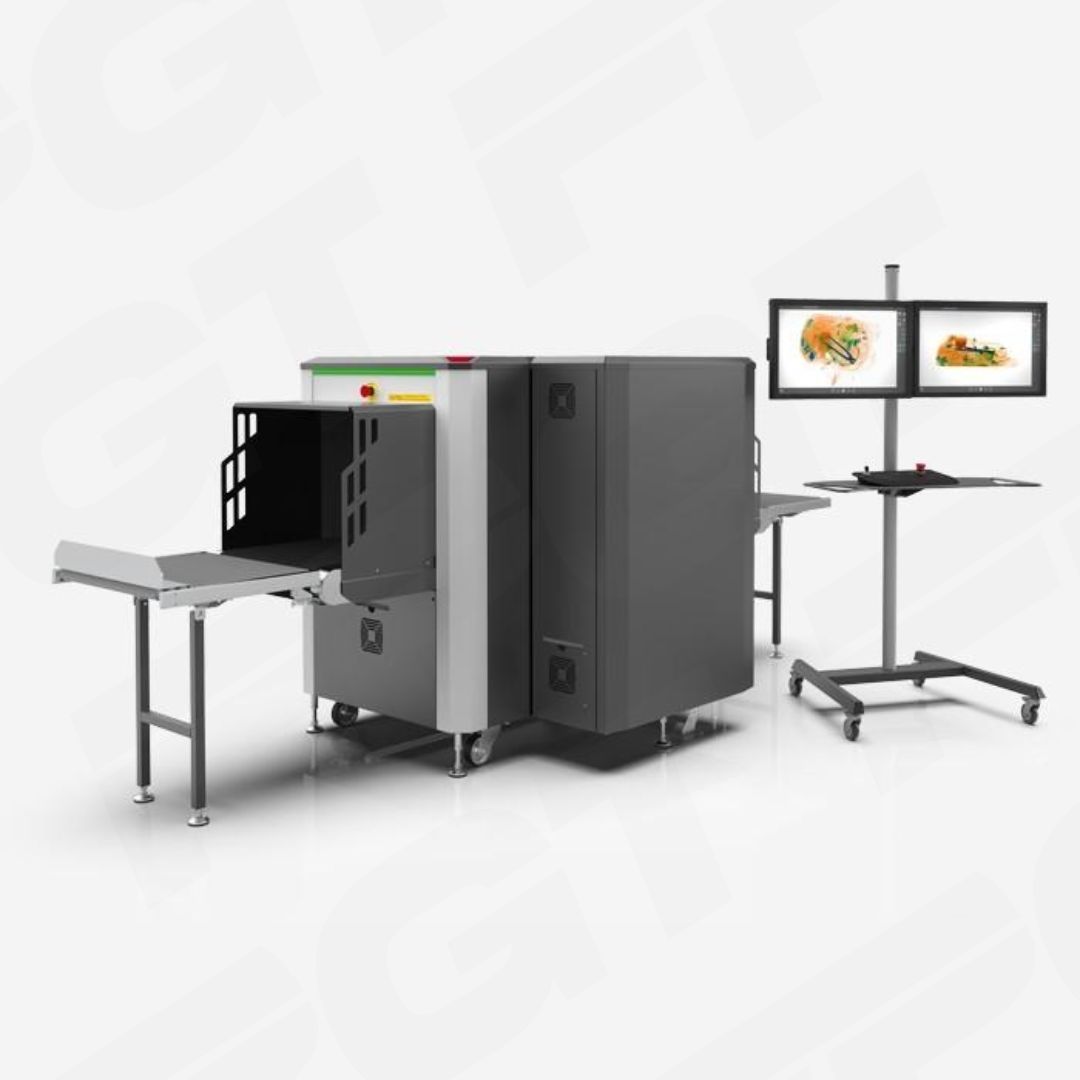

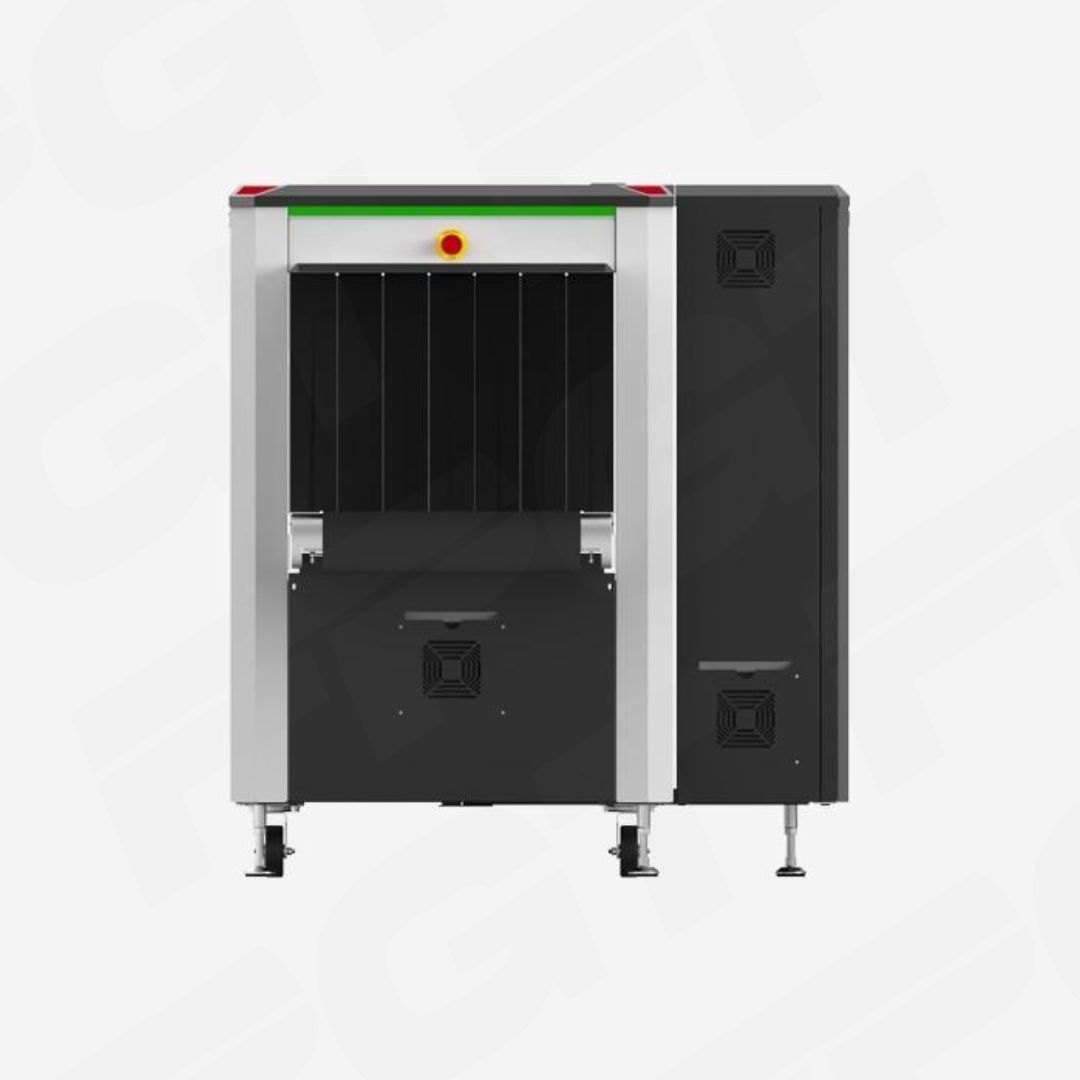

BV 6045DV · Dual view 600 by 450 mm tunnel solution
| Brand | Linev |
|---|---|
| Country of Origin | UAE – UK – USA |
BV 6045DV · Dual view 600 by 450 mm tunnel solution
600mm by 450mm tunnel, dual view and optimal solution for quick and accurate inspection of parcels, small and mid-size baggage
Datasheet
The BV 6045DV a high-resolution, dual view X-ray baggage inspection system with the ability to automatically detect prohibited objects and threats.
The dual-view system means that the operator can simultaneously view two separate images (in perpendicular orientation), thus giving a more complete view of the object being scanned and reducing the need for repositioning and rescanning. This enables rapid, accurate and comprehensive threat detection
The tunnel with a width of 620 mm and a height of 450 mm is optimal for inspection of baggage, bags, hand luggage and parcels. The System may be used at inspection points of critical infrastructure facilities, law enforcement and security agencies, customs, border guards, hotels, event centers, educational institutions, sports arenas, and other places where reliable and uninterrupted operation of inspection systems is required.
The BV 6045DV enables the identification of weapons, explosives, drugs and any other dangerous or prohibited items. Unique colour palettes and touch control provide an exceptional level of operator efficiency.
Options:
- Artificial Intelligence software system for automated detection of firearms, knives and ammunition
- Touchscreen operation functionality
- Ability to connect to a local network
- Remote operator position (up to 25 m)
- Monitor top position
- Rigid type packaging
Key features
Artificial Intelligence
Unique software system for automated detection of firearms, knives, ammunition & pyrotechnics
Color palette
Availability of 7, 3 colour and infinite colour palettes for X-ray images
Automatic identification
Suspicious objects (drugs, explosives) automatic detecton and identification
Tolerant configuration
The fault-tolerant configuration of the acquisition/analysis workstation.
Dual-view technology
The operator can simultaneously view two separate images (in perpendicular orientation)
Technical data
X-ray source
| Anode voltage | 160 kV |
| Beam direction | Diagonally upward & d/sideward |
X-ray detector
| Detective ability for copper wire | 0,08 mm (40 AWG) | |
| Penetration on steel | 36 mm guaranteed | 37 mm typical |
| Spatial resolution, line pairs per mm | 1,0 in the direction of scanning | 1,0 along the detector |
Power supply
| Line voltage | 230 VAC ± 10% / 120 VAC ± 5% |
| Line frequency | 50/60 Hz |
| Power consumption | A maximum of 1,2 kVA |
Conveyor belt
| Maximum distributed load on the conveyor belt | 200 kg |
| Conveyor height | 700 mm |
| Conveyor speed | 0,22 ± 0,03 m/s |
Dimensions
| Tunnel dimensions | |
|---|---|
| Width | 620 mm |
| Height | 450 mm |
| Overall dimensions (maximum) | |
|---|---|
| Width | 1200 mm |
| Height | 1350 mm |
| Lenght | 2350 mm |
| Weight (maximum) | 800 kg |
|---|
Climate conditions
| Operation | |
|---|---|
| Ambient temperature | 0°C to +40°C |
| Maximum relative humidity (at +20°C) | Up to 90%, non-condensing |
| Storage | |
|---|---|
| Ambient temperature | -10°C to + 50°C |
| Maximum relative humidity (at +35°C) | Up to 98%, non-condensing |
