MIP BV · Minivan-based baggage inspection solution
Additional information
| Brand | Linev |
|---|---|
| Country of Origin | UAE – UK |
Description
MIP BV · Minivan-based baggage inspection solution

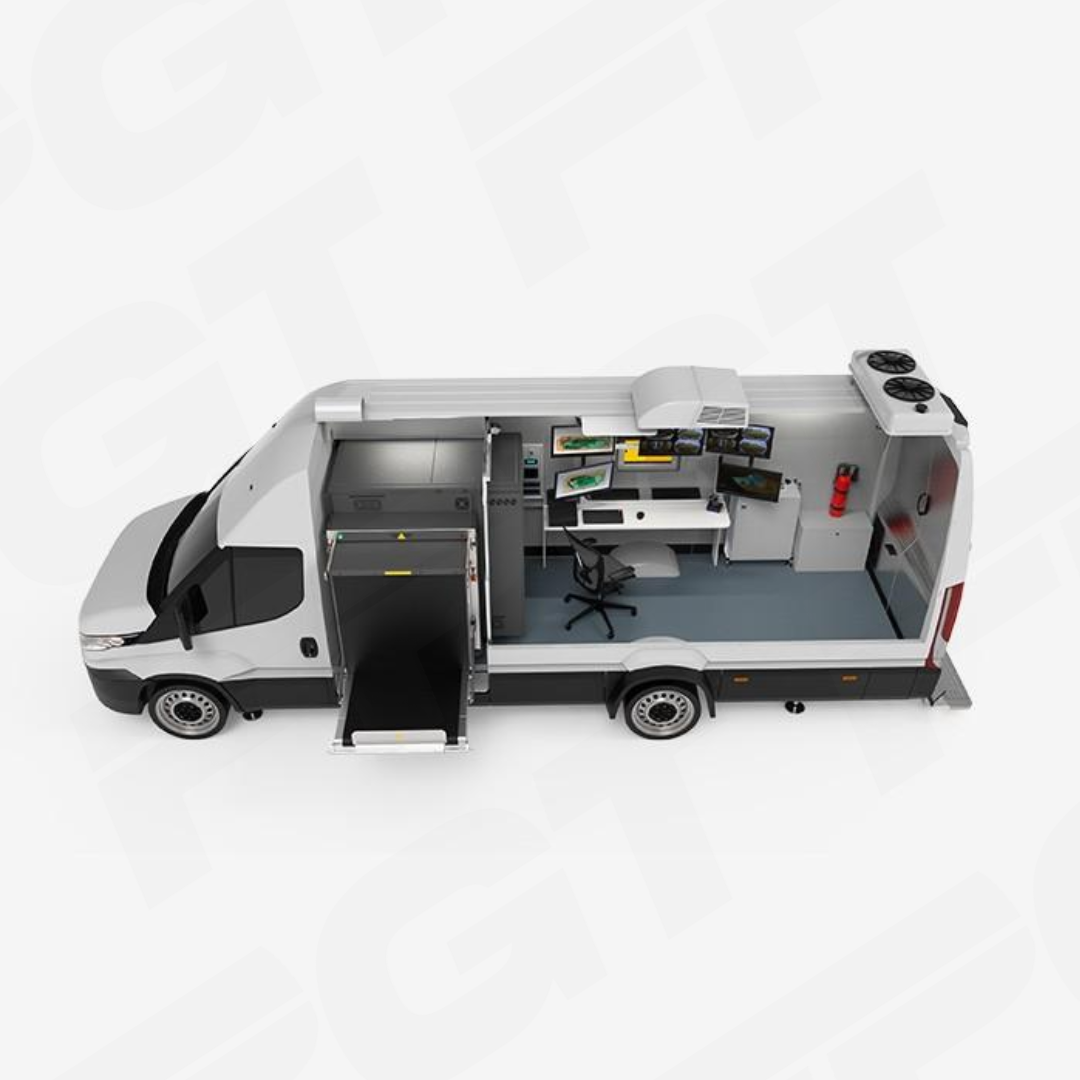

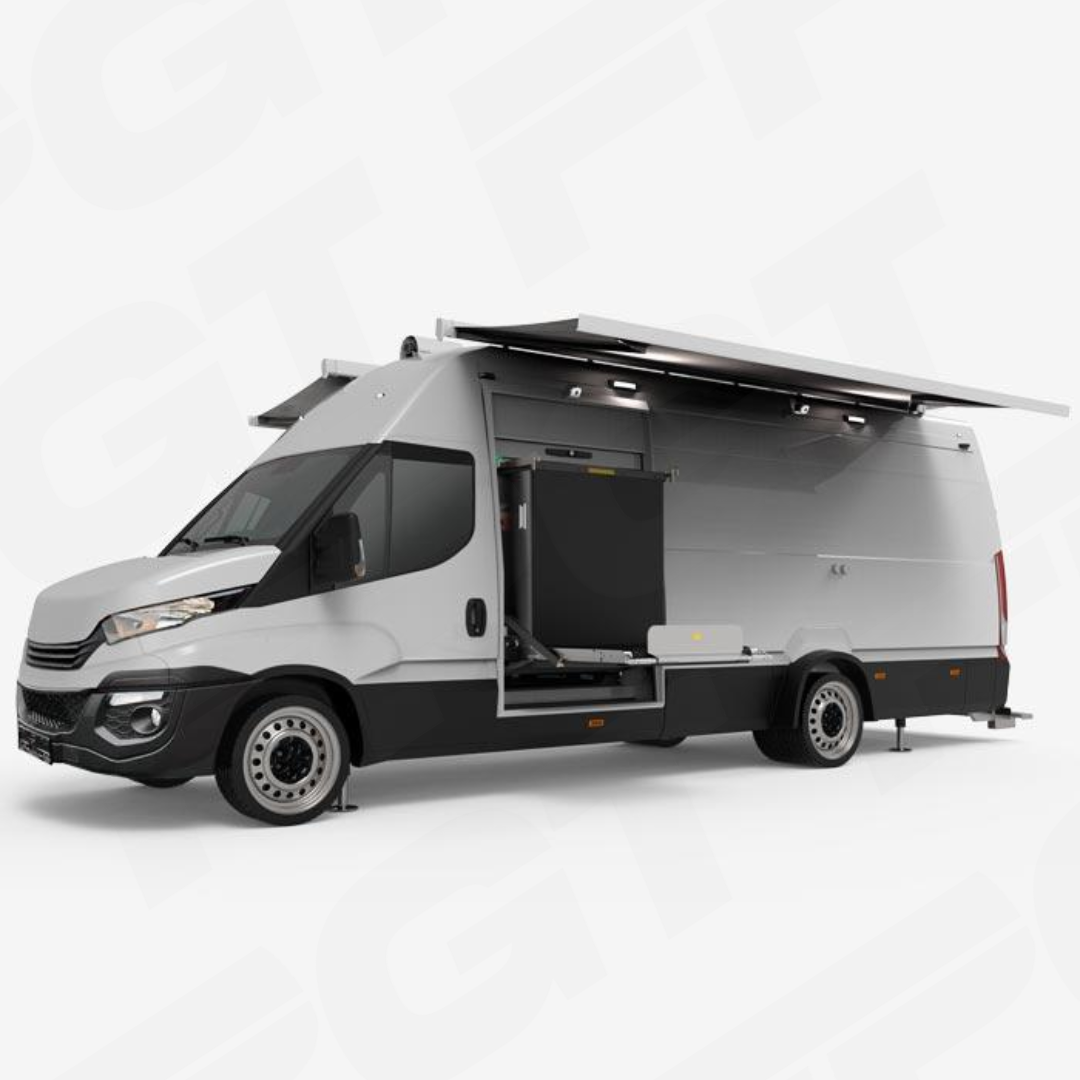

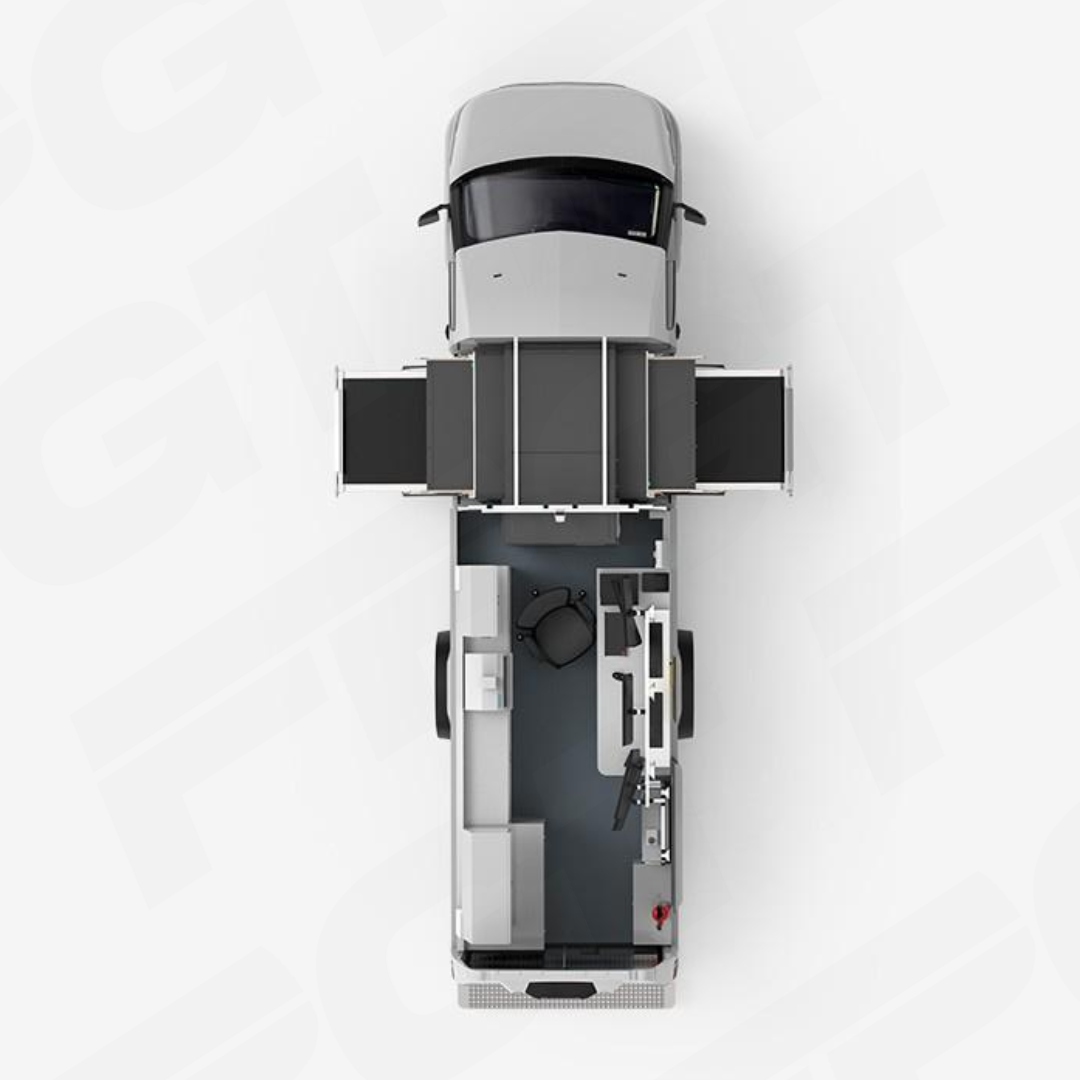

X-ray luggage inspection system BV100100 mounted in minivan
Datasheet
MIP CONPASS BV is an effective temporary checkpoint inspection solution for screening of personal belongings, hand luggage and small cargo.
BV 6080M, BV 100100M and Dual View BV 100100DVM baggage systems are available for all MIP BV and MIP CONPASS BV van series.
Detected objects:
- Explosives solid or liquid
- Weapons guns and knives
- Electronics and cell phones
- Narcotics and drugs
- Precious stones
- Ceramic and plastics
Key Features
- X-ray screening technology
- Complex people & baggage inspection
- DRUGUARD drug detection software
- Module for operator (control room)
- Infrared access limiting barriers
- Remote station for image analysis
Options
- Variable chassis integration
- CCTV
- Diesel generator
- Heater
- Electrical driven awnings
- Intercom
- Any options on request
BAGGAGE SCANNER functionality:
- Real-time self-diagnostics
- Automatic identification of threats
- The fault-tolerant configuration of the system
- Tunnel sizes up to 60×80 cm
Key features
- Superior high quality images : Smart HD images for increased penetration and resolution
- Fast scan acquisition time : Only 5 second scan acquisition time
- Contraband detection software : Patented advanced software aiding operators in detecting contraband
- Real Dual View : Two generators make two images providing the best detection capabilities
- ANSI/HPS N43.17-2009 : Fully compliant to ANSI standards
- Modular design : Easily installed and relocated
Technical data
Scan settings
| Scan time | 7 – 15 sec. |
| Dose per scan | from 0,25 μSv |
| Wire Detectability | 38 AWG |
| Minimum Throughput | 240 scans per hour |
Dimensions
| Scanner dimensions | ||
|---|---|---|
| Width | 1600 mm | |
| Height | 1825 mm | |
| Lenght | 3700 mm | |
| Weight (maximum) | 1350 kg |
Power
| Power Requirements | 230 VAC ± 10% / 120 VAC ± 5% |
| Consumption | a maximum of 1,4 kVA |
