MIP CONPASS BV · Minivan-based universal screening solution

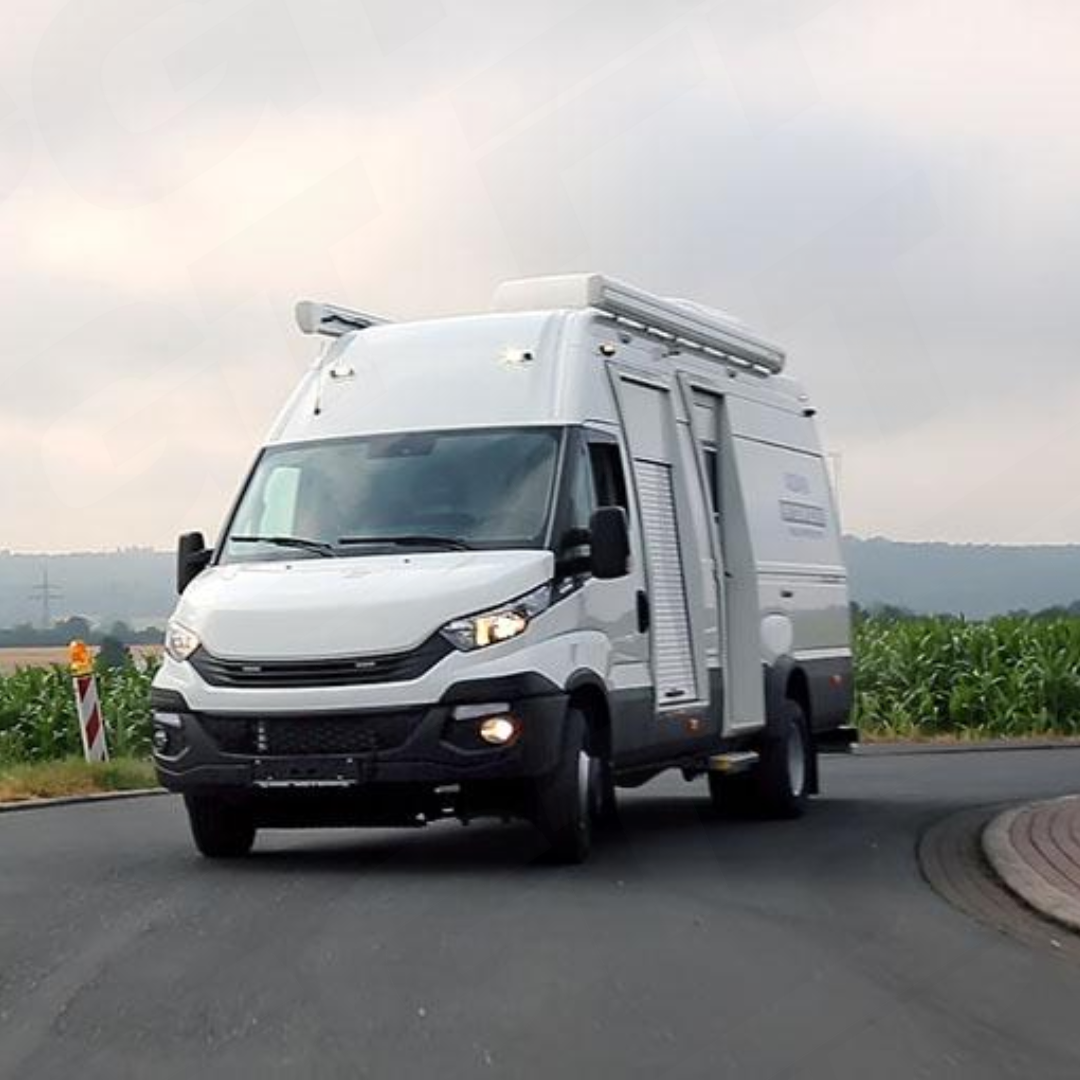

Best-in-class CONPASS DV body scanner plus x-ray baggage inspection system BV6045 mounted in Ford / Mercedes type minivan
Datasheet

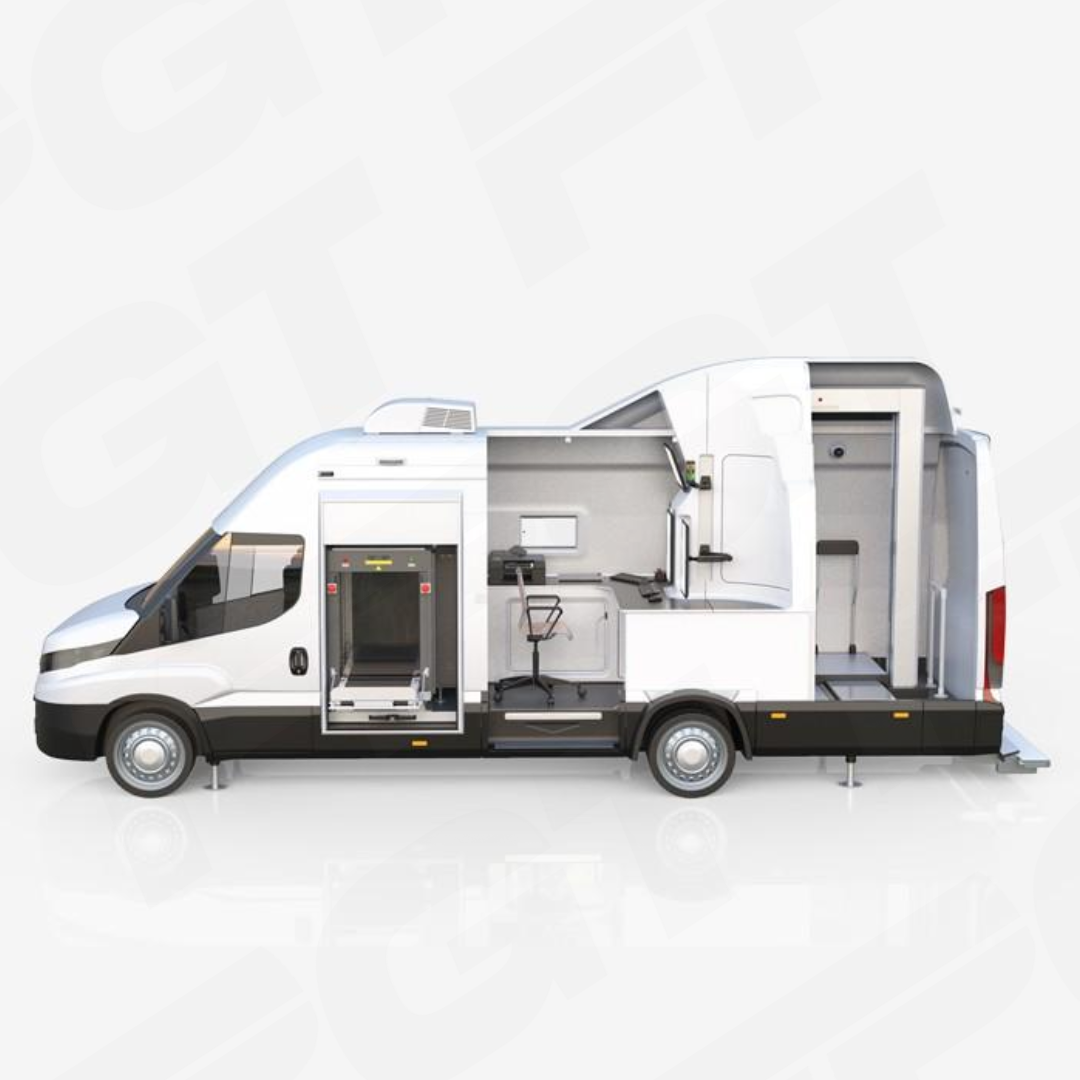

MIP CONPASS BV is a unique van based security inspection point that comprises a full body X-ray inspection system, a baggage scanner and operator’s workstation designed as a mobile and most flexible screening solution for use by the law enforcement agencies at various applications.
Key Features
- X-ray screening technology
- Complex people & baggage inspection
- DRUGUARD drug detection software

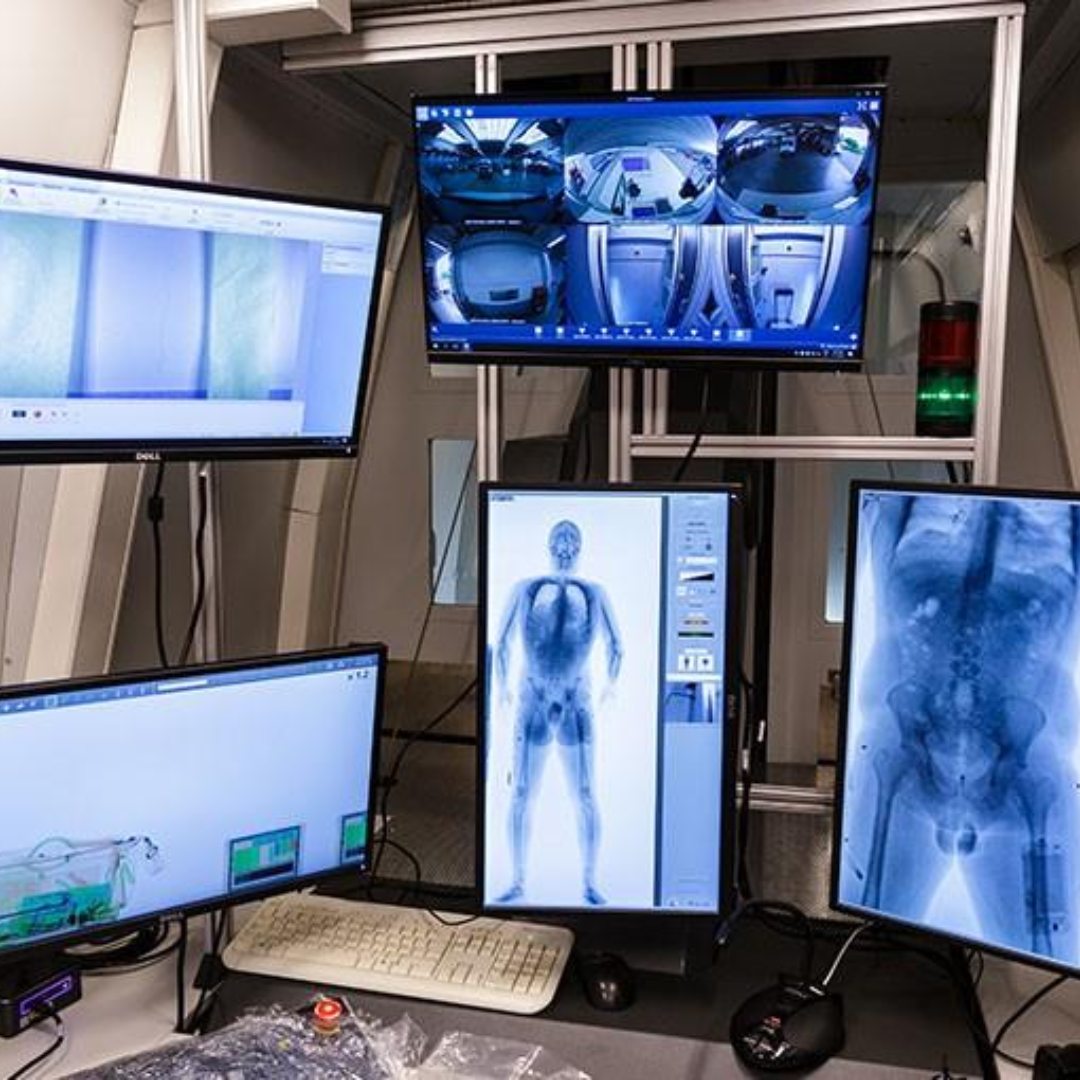

- Module for operator (control room)
- Infrared access limiting barriers
- Remote station for image analysis
Options
- Variable chassis integration
- CCTV
- Diesel generator
- Heater
- Electrical driven awnings
- Intercom
- Any options on request
BAGGAGE SCANNER functionality:
- Real-time self-diagnostics
- Automatic identification of threats
- The fault-tolerant configuration of the system
- Tunnel sizes up to 60×80 cm
BODY SCANNER functionality:
- CONPASS DV functionality
- Low dose rate per inspection
- Smart “DRUGUARD” Automatic drugs detection software algorithms
- Operator assistance & control
Detected objects:
- Explosives solid or liquid
- Weapons guns and knives
- Electronics and cell phones
- Narcotics and drugs
- Precious stones
- Ceramic and plastics
Key features
- Superior high quality images : Smart HD images for increased penetration and resolution
- Fast scan acquisition time : Only 5 second scan acquisition time
- Contraband detection software : Patented advanced software aiding operators in detecting contraband
- Real Dual View : Two generators make two images providing the best detection capabilities
- ANSI/HPS N43.17-2009 : Fully compliant to ANSI standards
- Modular design : Easily installed and relocated

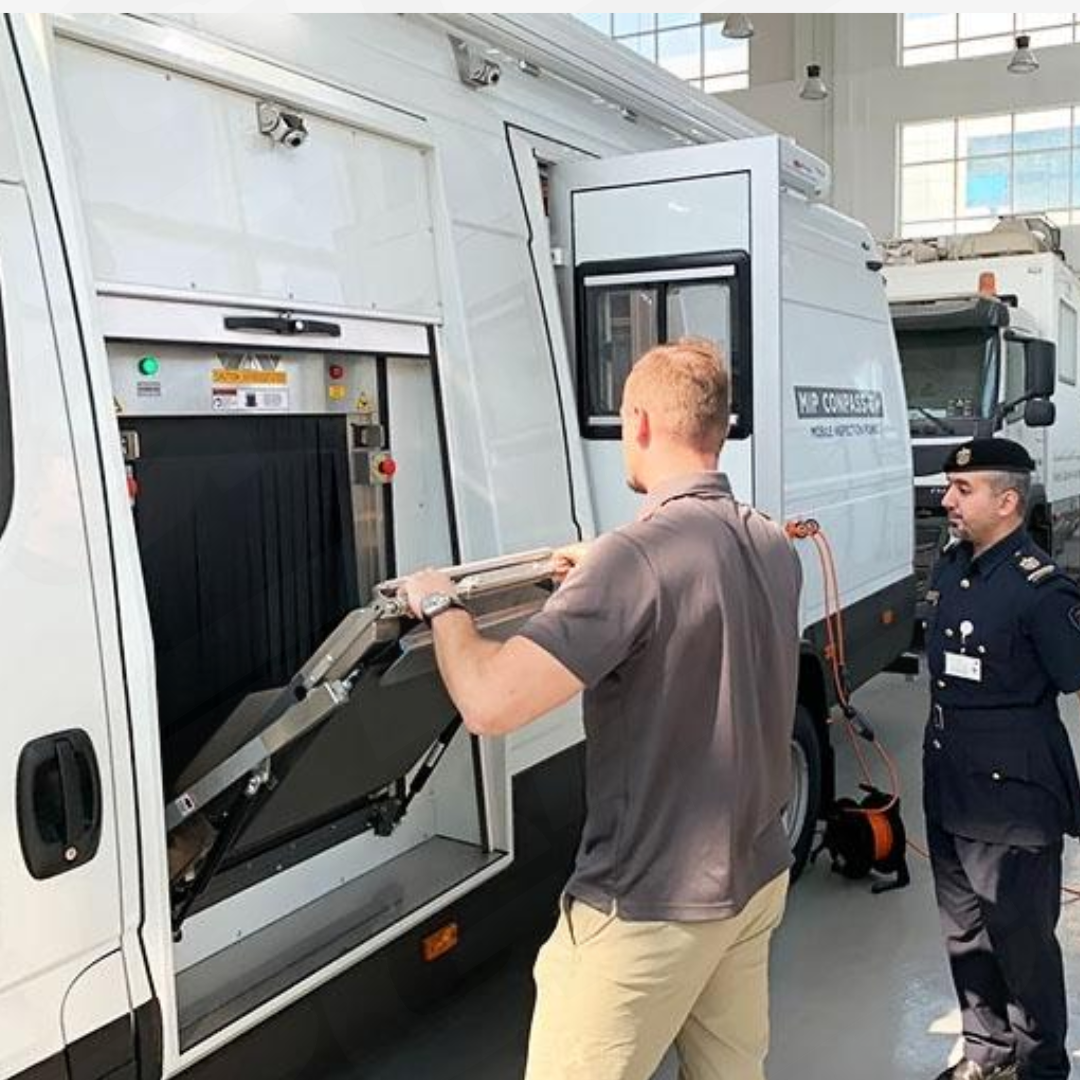

BAGGAGE SCANNER
Scan settings
| Scan time |
7 – 15 sec. |
| Dose per scan |
from 0,25 μSv |
| Wire Detectability |
Up to 40 AWG |
| Minimum Throughput |
240 scans per hour |
Dimensions
| Scanner dimensions |
|
|
| Width |
1200 mm |
| Height |
810 mm |
| Lenght |
1300 mm |
| Weight (maximum) |
640 kg |
Power
| Power Requirements |
230 VAC ± 10% / 120 VAC ± 5% |
| Consumption |
A maximum of 0,9 kVA |

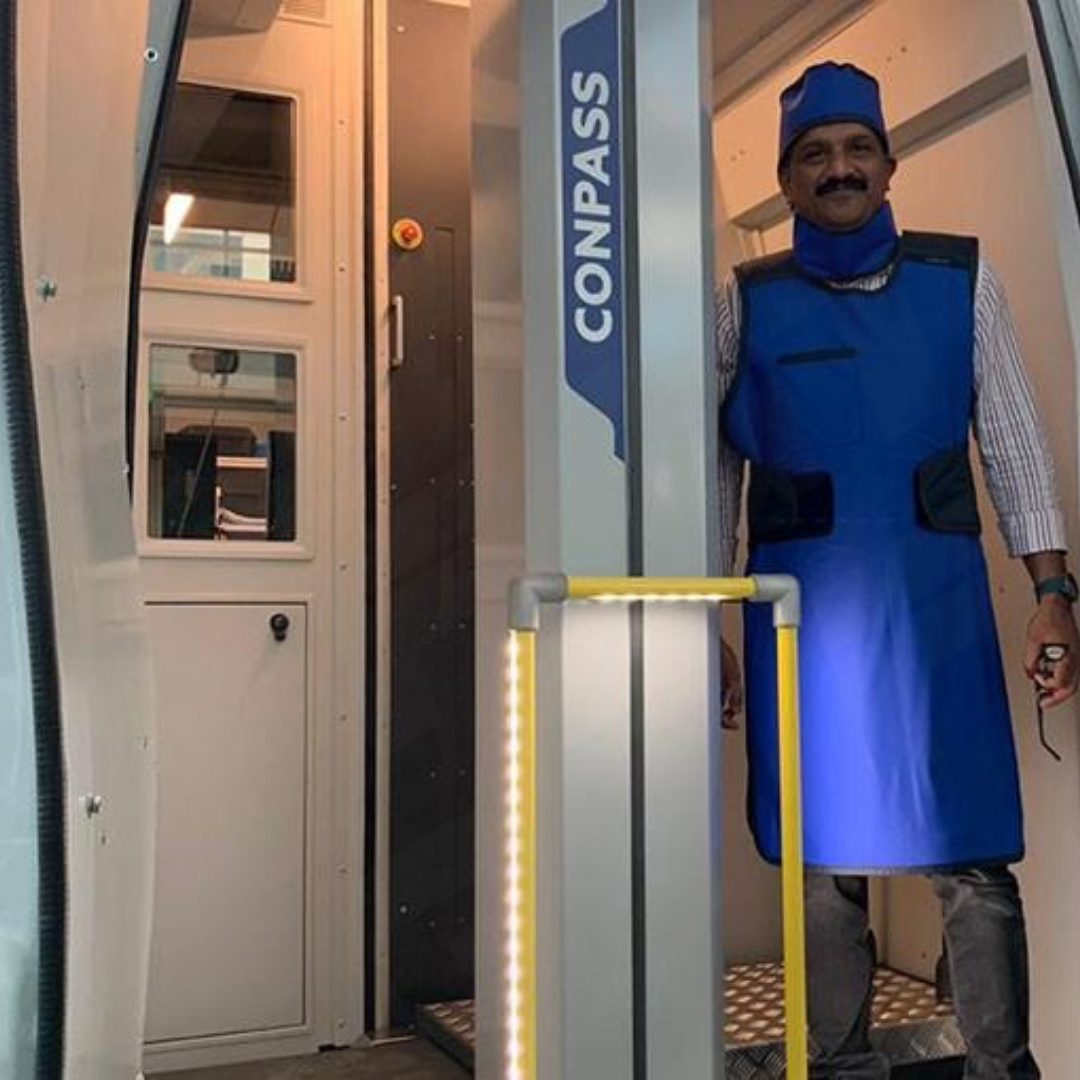

BODY SCANNER
Scan settings
| Scan time |
7 – 15 sec. |
| Dose per scan |
from 0,25 μSv |
| Wire Detectability |
Up to 40 AWG |
| Minimum Throughput |
240 scans per hour |
Dimensions
| Scanner dimensions |
|
|
| Width |
1840 mm |
| Height |
2500 mm |
| Lenght |
2260 mm |
| Weight (maximum) |
860 kg |
Power
| Power Requirements |
120 VAC / 20 A |
| Consumption |
1 kVA maximum |
