MIP CONPASS V · Van-based dual-view screening solution
| Brand | Linev |
|---|---|
| Country of Origin | UAE – UK |
MIP CONPASS V · Van-based dual-view screening solution

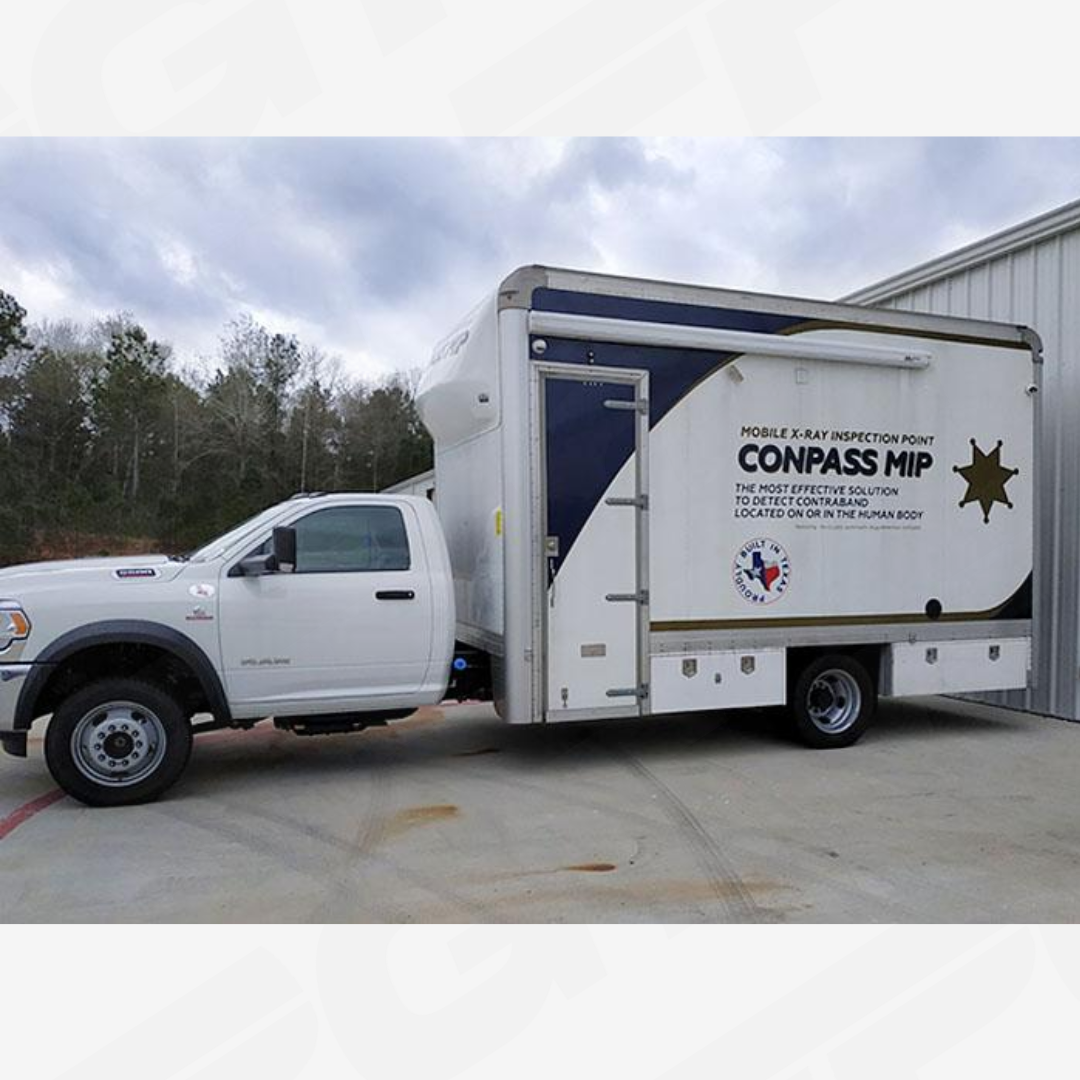

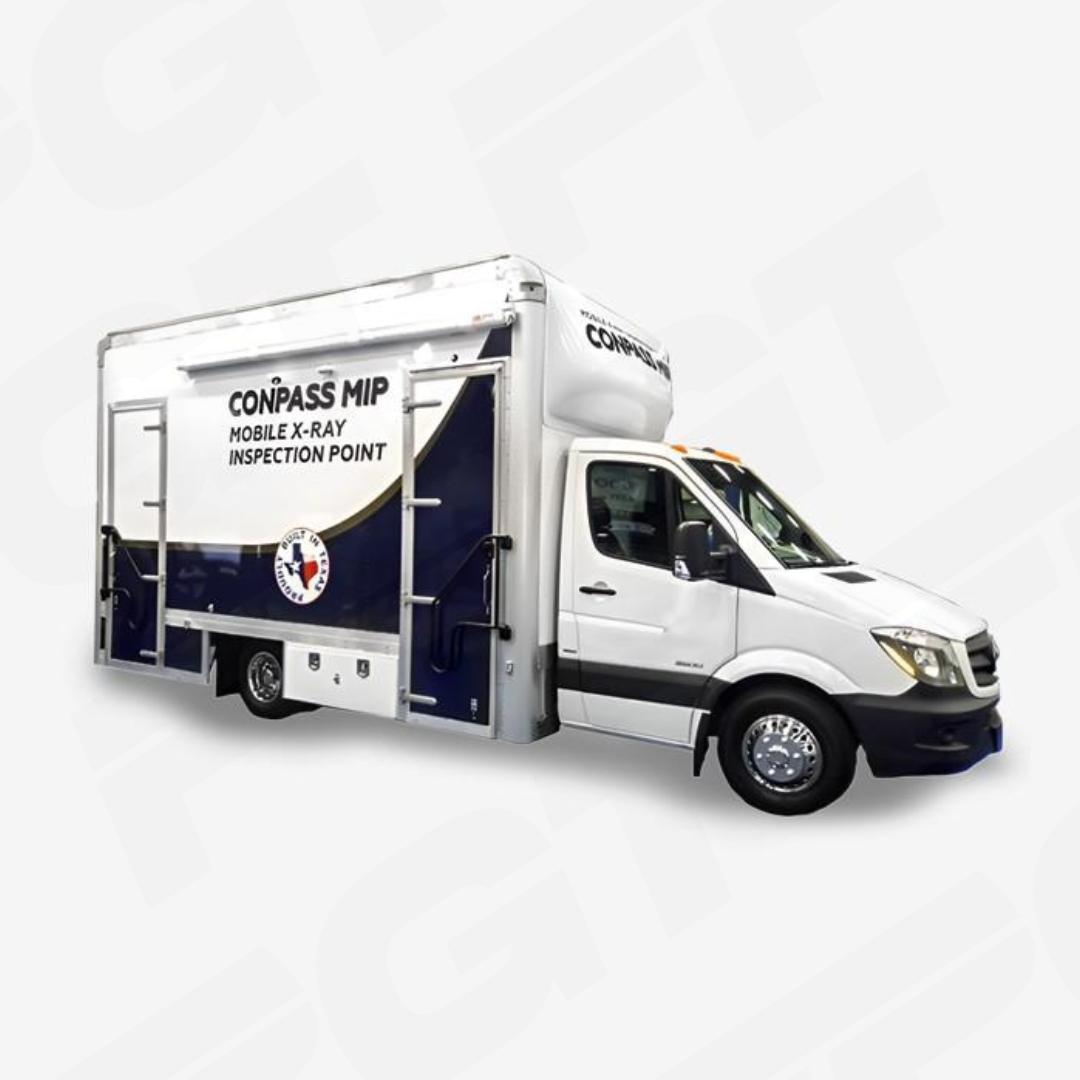

Best-in-class CONPASS DV body scanner mounted in van
MIP CONPASS V is the unique industry available solution to deliver advanced Dual View personnel X-ray screening technology where it is required.
The system enables organizations to protect assets, employees, passengers and visitors from potential terrorist threats in public areas including ports, airports and border crossings; effective implementation of counter-terrorism measures; protection against loss of life through detection of potentially dangerous objects such as drugs, weapons or explosives. MIP CONPASS V is a system designed to automatically and reliably detect the presence of threats.
The unit is built to operate in any type of weather conditions and under a wide range of ambient temperatures and humidity levels. It was designed and tailor-made to be the most flexible personnel screening solution for the use by any law enforcement agency. MIP CONPASS V is a robust and fully autonomous solution, ready to be used immediately upon arrival to the location.
The MIP CONPASS V is an innovative system that fully reduces the risk of irradiation of the operator or bystanders, making it fully X-ray protected.
The system has a flexible design, which allows for many options to be catered with specific customer preferences in mind.
Unit Options
- Full CONPASS DV functionality
- Choice of chassis
- Mechanized remote operated doors and steps
- Video surveillance in and outside the vehicle
- Inspection compartment
- Intercom
Bodyscanner Options
- Use of A-EYE software – artificial intelligence system for automatic detection and classification of objects located inside and on the human body
- High quality and information content of the image
- High detection capacity
- High throughput
- Integration into existing infrastructure, integration with access control systems and databases
- A wide range of image processing algorithms (tools)
- Easy storage and transfer of the received information
Detected Objects:
- Explosives solid or liquid
- Weapons guns and knives
- Electronics and cell phones
- Narcotics and drugs
- Precious stones
- Ceramic and plastics
Key features
- Superior high quality images : Smart HD images for increased penetration and resolution
- Mobility : Can be delivered to any desired location
- Contraband detection software : Patented advanced software aiding operators in detecting contraband
- Real Dual View : Two generators make two images providing the best detection capabilities
- ANSI/HPS N43.17-2009 : Fully compliant to ANSI standards
- Bodyscanner Inside : Full CONPASS SMART DV Functionality
Technical data
Scan settings
| Scan time | 5 – 15 sec. |
| Dose per scan | from 0,25 μSv |
| Wire Detectability | Up to 40 AWG |
| Minimum Throughput | 240 scans per hour |
Dimensions
| Scanner dimensions | ||
|---|---|---|
| Width | 1850 mm | |
| Height | 2350 mm | |
| Lenght | 2260 mm | |
| Weight (maximum) | 650 kg |
Power
| Power Requirements | 120 VAC / 20 A |
| Consumption | 1 kVA maximum |
