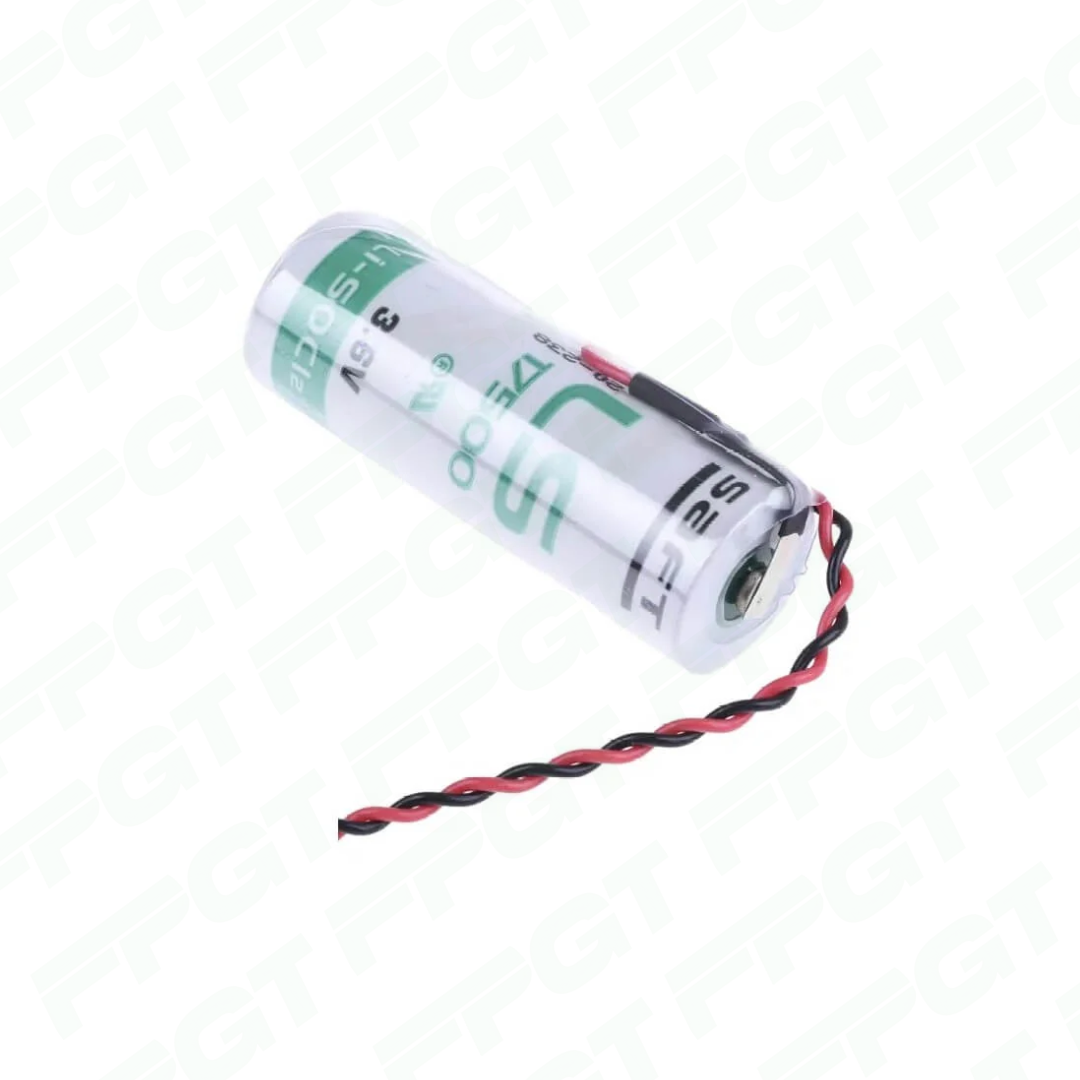

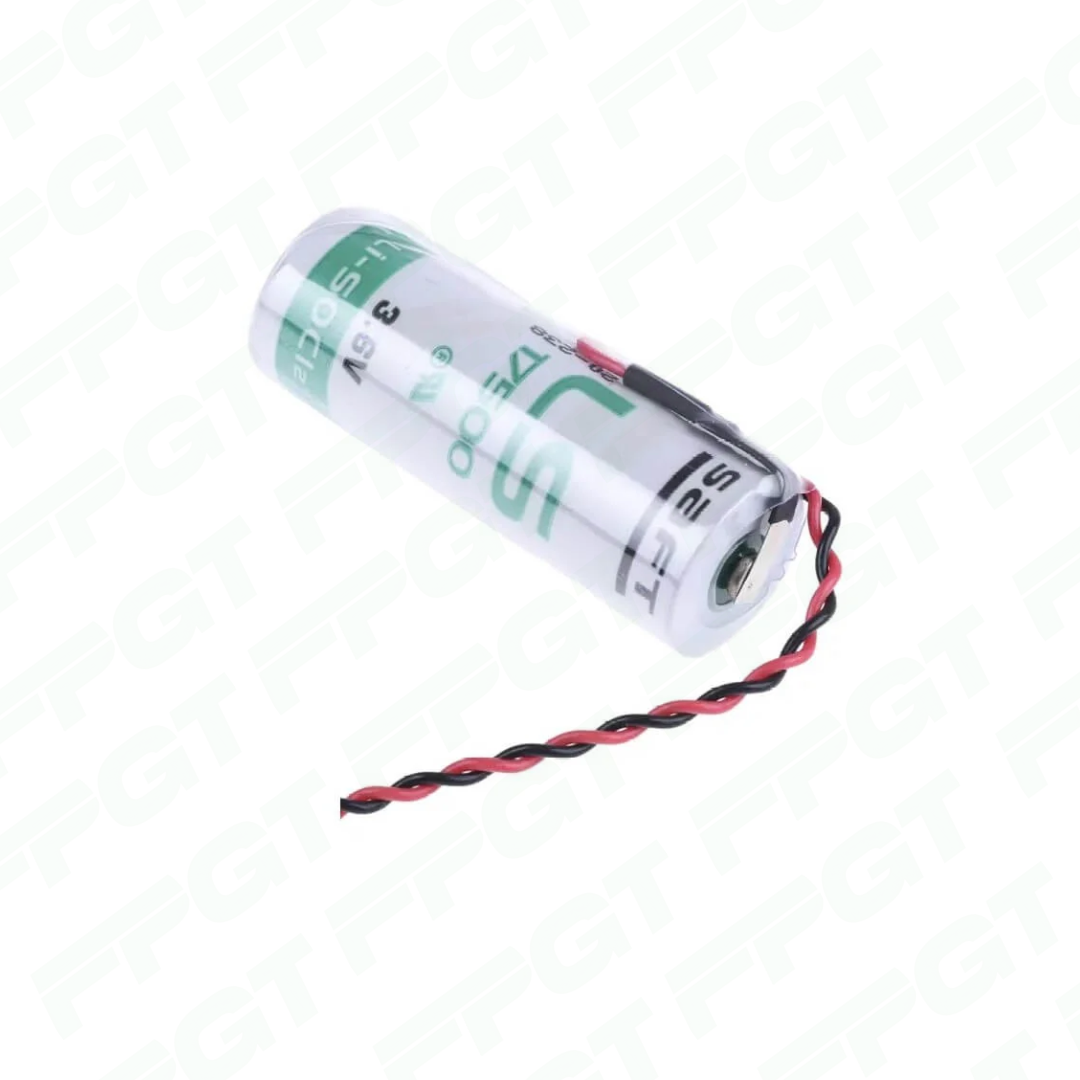

Saft LS14500, AA 3.6V, 2600mah with fly leads
FPGT is the Authorized distributor for SAFT batteries in the Middle East and African region. All our batteries are genuine and we DO NOT mix fake copies with the original ones
SAFT LS14500 AA 3.6V 2600mAh lithium battery with fly leads is a primary Li-SOCl₂ battery designed for long-life industrial and professional applications. The pre-wired AA-size battery provides high energy density, low self-discharge and reliable 3.6V power for compatible meters, sensors, security systems, monitoring equipment and electronic devices.
Saft LS14500, AA 3.6V, 2600mah with fly leads
د.إ31.52
| Quantity | Price | Discount |
|---|---|---|
| 1-10 | د.إ31.52 | 0% |
| 11-50 | د.إ30.02 | 4.76% |
| 51-100 | د.إ28.52 | 9.52% |
| 101-200 | د.إ27.02 | 14.29% |
| 201-300 | د.إ25.52 | 19.05% |
| 301+ | د.إ24.02 | 23.81% |
Product Specifications
| Battery Chemistry | Lithium-Thionyl Chloride (Li-SOCl₂) |
|---|---|
| Battery Type | Non-rechargeable primary lithium battery |
| Cell Construction | Bobbin |
| Cell Size | AA |
| Diameter | 14.55 mm |
| Electrolyte | Non-flammable electrolyte |
| Height | 50.3 mm |
| Key Advantage | High energy density; low self-discharge; long operating life; stable voltage output; wide operating temperature range |
| Lead Type | Flexible Wire Leads |
| Manufacturer | SAFT |
| Maximum Continuous Current | 70 mA |
| Model | LS14500 with Fly Leads |
| Nominal Capacity | 2600 mAh |
| Nominal Energy | 9.36 Wh |
| Nominal Voltage | 3.6 V |
| Operating Temperature | -60°C to +85°C |
| Primary Applications | Utility metering; alarm systems; security systems; memory backup; industrial electronics; tracking systems |
| Product Name | SAFT LS14500 AA 3.6V 2600mAh Lithium Battery with Fly Leads |
| Product Series | SAFT LS14500 |
| Product Type | Primary Lithium-Thionyl Chloride (Li-SOCl₂) Battery |
| Pulse Capability | Up to 250 mA |
| Recommended Storage Temperature | +30°C maximum |
| Safety Feature | Built-in safety vent |
| Self-Discharge | Less than 1% per year at +20°C |
| Terminal Configuration | Axial Wire Leads |
| Terminal Type | Fly Leads |
| Typical Weight | 17 g |
LS14500FL Documentation
SAFT LS14500 AA 3.6V 2600mAh Lithium Battery with Fly Leads
The SAFT LS14500 AA lithium battery is a 3.6V 2600mAh primary lithium battery designed for professional and industrial electronic equipment requiring reliable, long-lasting power. Using lithium-thionyl chloride (Li-SOCl₂) technology, the LS14500 offers high energy density, low self-discharge and long service life.
This version is supplied with fly leads, providing a flexible wired connection for compatible equipment. The pre-wired configuration makes the battery suitable for applications where the battery needs to be connected directly to the equipment or circuit without using a standard battery holder.
The LS14500 is an AA-size primary lithium battery, offering a compact form factor while providing dependable 3.6V power. Its Li-SOCl₂ chemistry is suitable for equipment that operates for extended periods and requires a low-maintenance primary power source.
Key Features
- Brand: SAFT
- Model: LS14500
- Battery size: AA
- Nominal voltage: 3.6V
- Capacity: 2600mAh
- Chemistry: Lithium-thionyl chloride (Li-SOCl₂)
- Battery type: Primary lithium / non-rechargeable
- Connection: Fly leads / wire leads
- High energy density
- Low self-discharge
- Long service life
- Compact AA-size design
- Flexible wired connection
- Suitable for professional and industrial electronics
Typical Applications
The SAFT LS14500 3.6V 2600mAh battery with fly leads can be used in compatible:
- Industrial electronic equipment
- Utility and energy meters
- Remote monitoring systems
- Security and alarm equipment
- Industrial sensors
- Tracking and telemetry systems
- Data logging equipment
- Measuring instruments
- Memory backup systems
- Remote instrumentation
- Professional control systems
LS14500 Lithium-Thionyl Chloride Technology
The SAFT LS14500 uses lithium-thionyl chloride technology to provide reliable primary power for long-term applications. Its high energy density and low self-discharge characteristics make it suitable for equipment that needs dependable power with infrequent battery replacement.
The fly-lead configuration provides installation flexibility and can be connected to compatible equipment using the required wiring arrangement. Wire length, polarity and termination should be matched to the original battery configuration.
Replacement Battery
If you are searching for a SAFT LS14500 replacement battery with fly leads, 3.6V 2600mAh AA lithium battery, LS14500 wire battery, or SAFT AA lithium battery with wires, verify the original battery’s polarity, wire length, terminal arrangement and dimensions before installation.
Important: The LS14500 is a primary, non-rechargeable lithium battery. It should only be used in equipment designed for 3.6V Li-SOCl₂ batteries.
