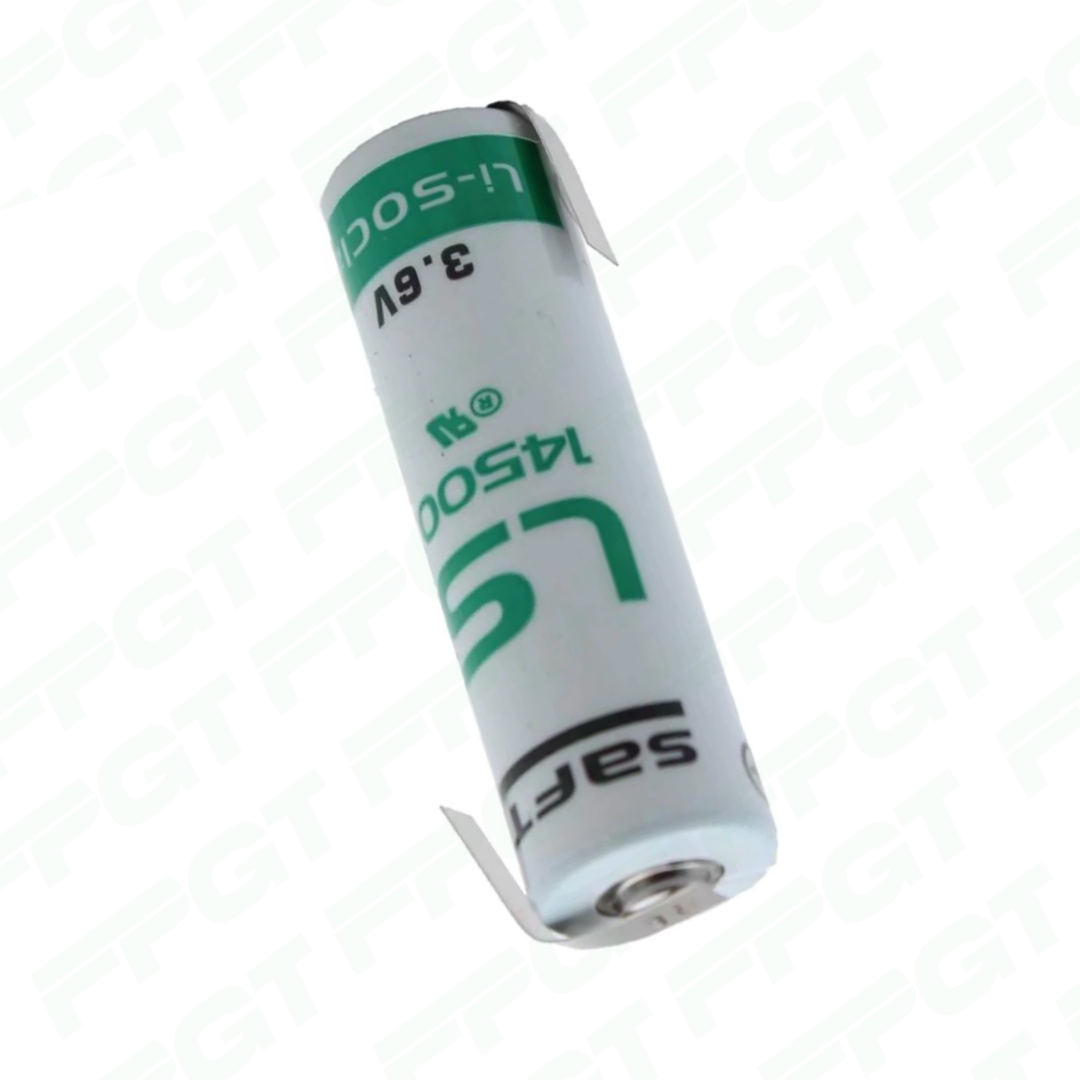

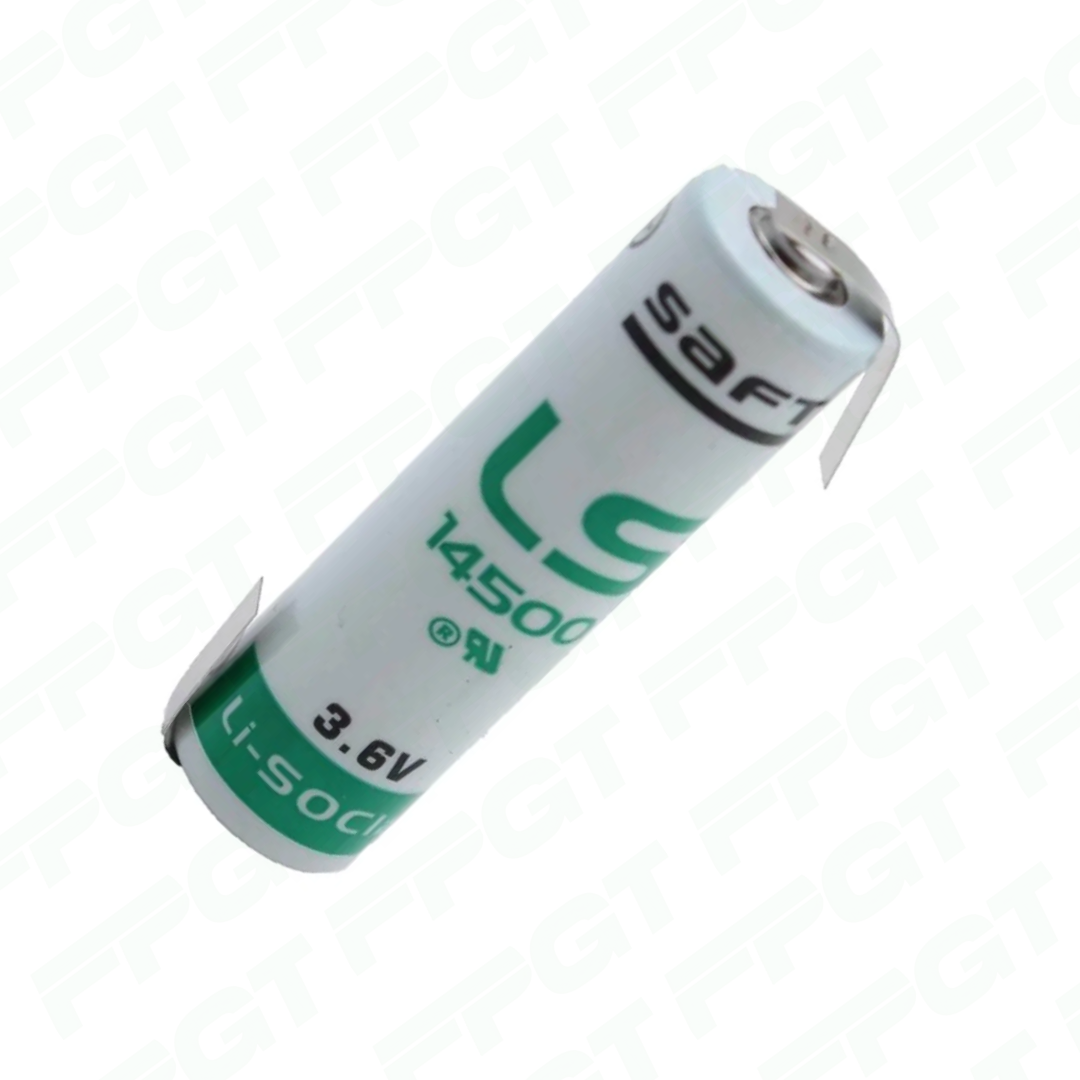

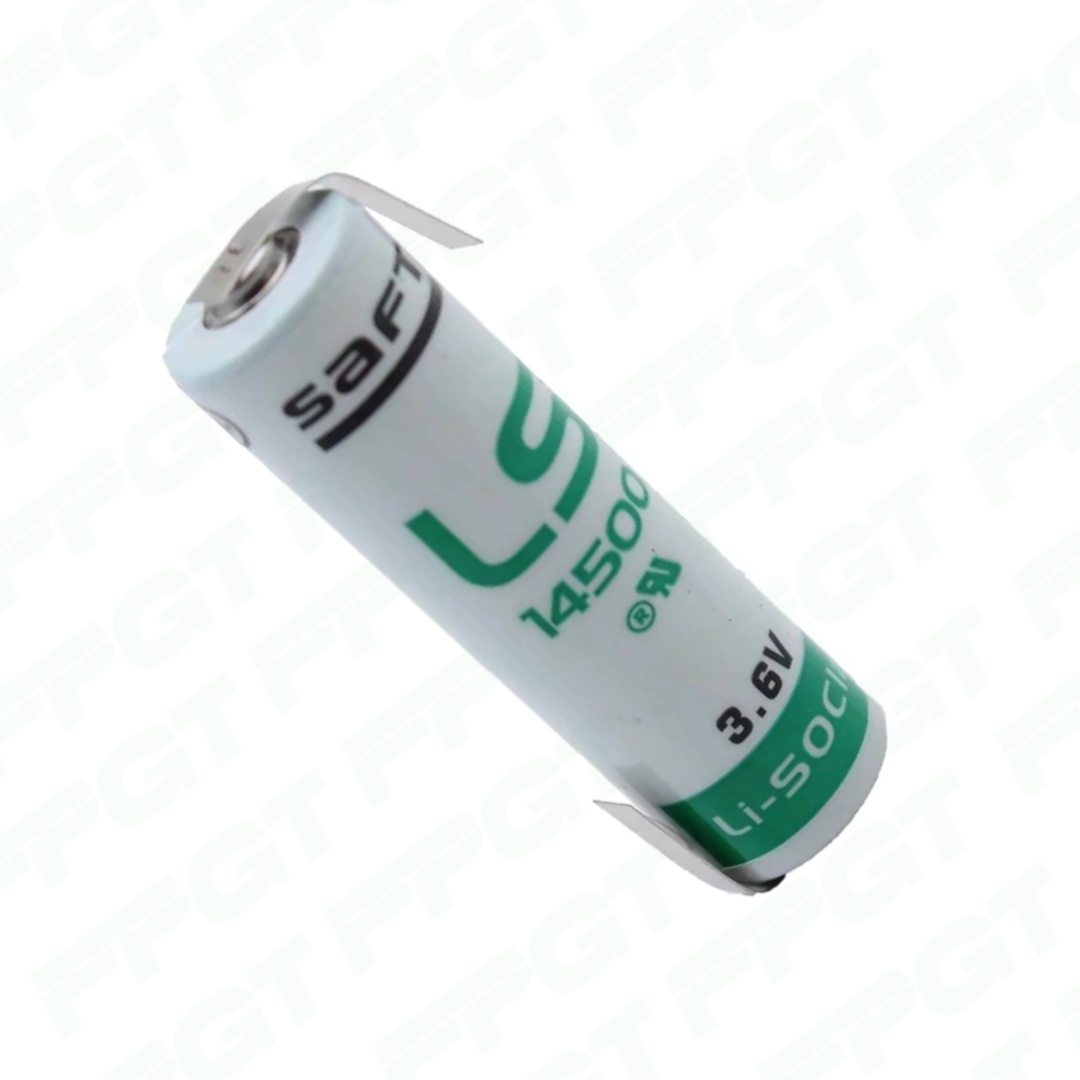

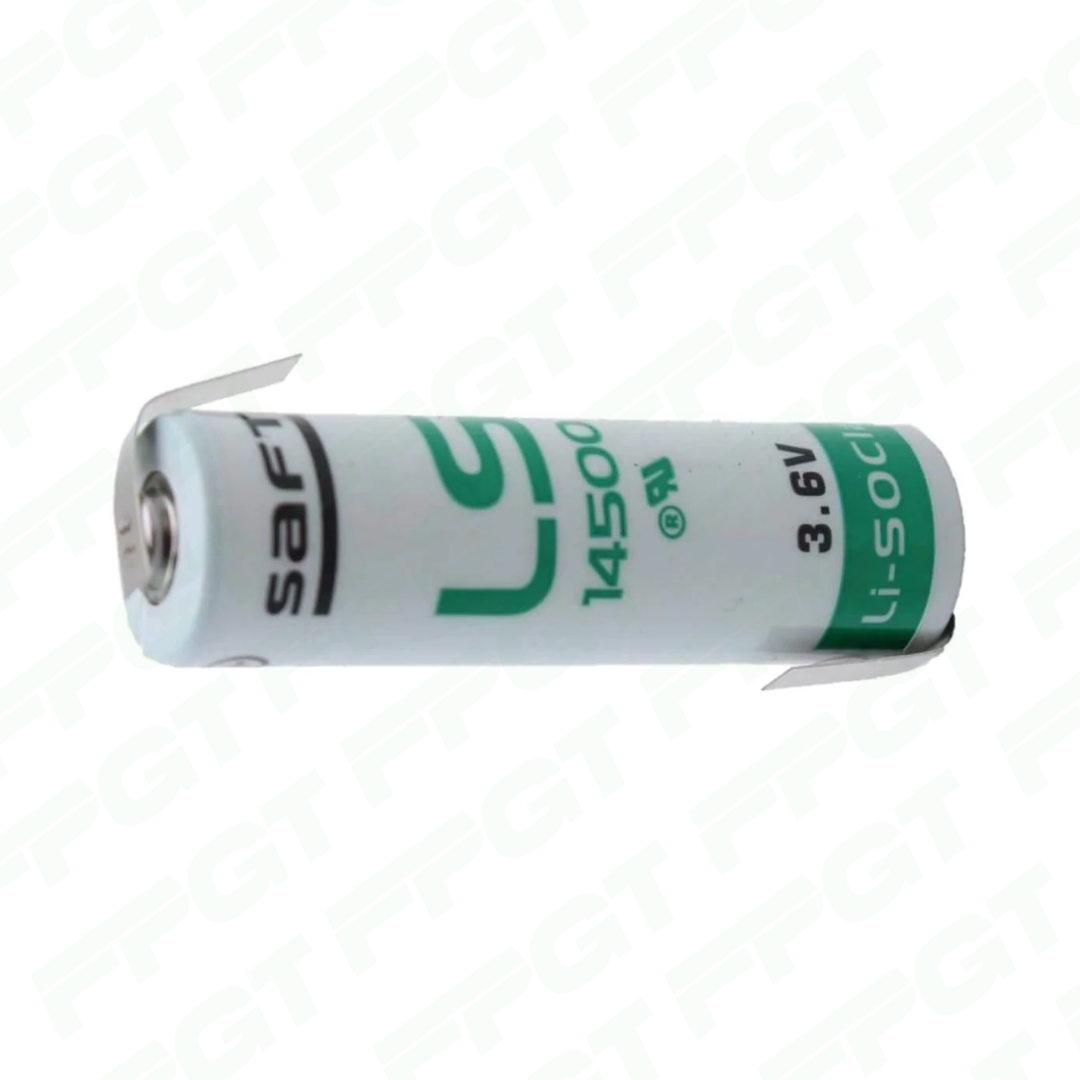

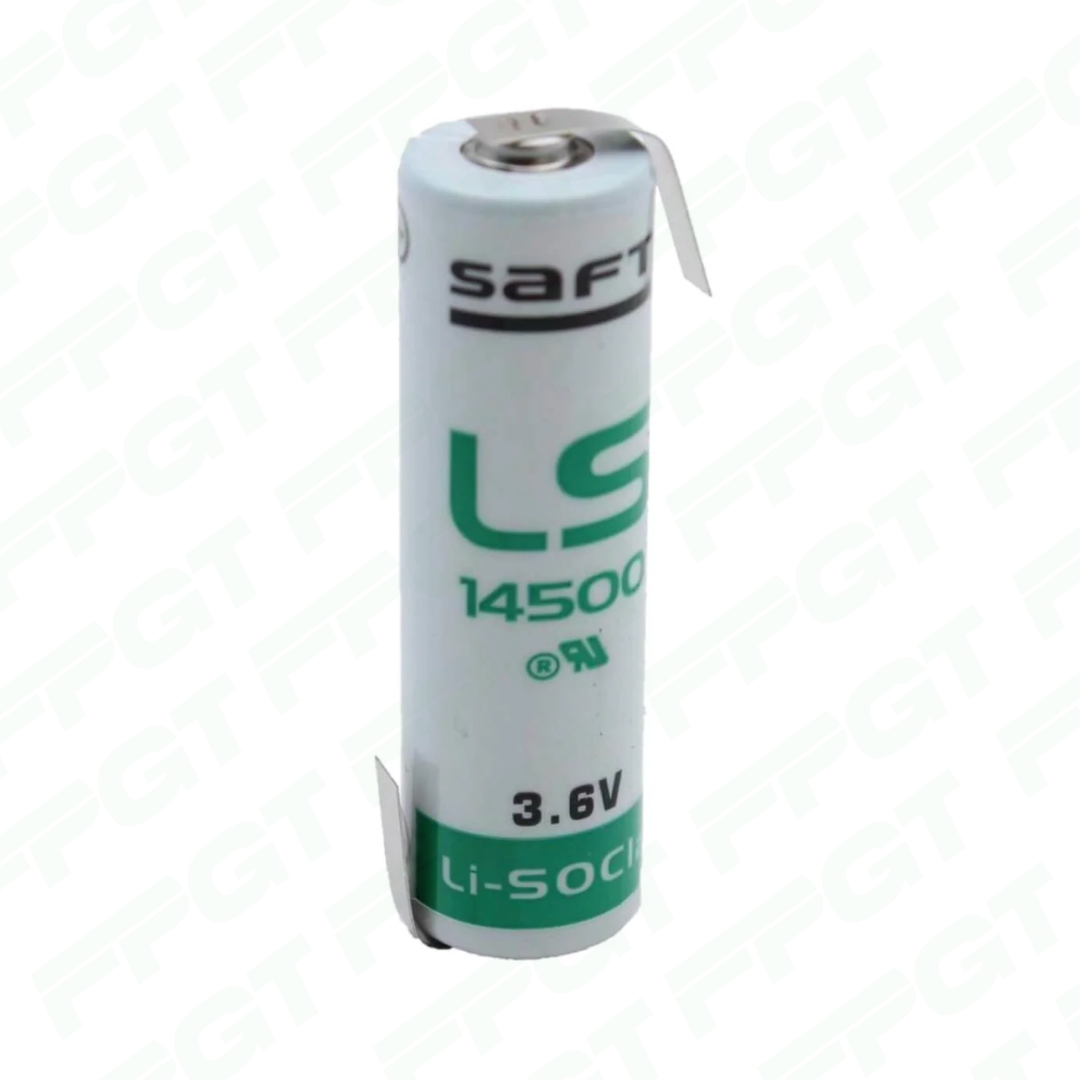

Saft LS14500-stsz AA 3.6V 2600mah battery with reverse/z solder tabs
FPGT is the Authorized distributor for SAFT batteries in the Middle East and African region. All our batteries are genuine and we DO NOT mix fake copies with the original ones
SAFT LS14500-STSZ AA 3.6V 2600mAh lithium battery uses primary Li-SOCl₂ technology and features reverse/Z solder tabs for compatible PCB and electronic assembly applications. It provides high energy density, low self-discharge and long service life for industrial electronics, meters, sensors, security systems and memory backup applications.
Saft LS14500-stsz AA 3.6V 2600mah battery with reverse/z solder tabs
د.إ28.89
| Quantity | Price | Discount |
|---|---|---|
| 1-10 | د.إ28.89 | 0% |
| 11-50 | د.إ27.51 | 4.76% |
| 51-100 | د.إ26.14 | 9.52% |
| 101-200 | د.إ24.76 | 14.29% |
| 201-300 | د.إ23.39 | 19.05% |
| 301+ | د.إ22.01 | 23.81% |
Product Specifications
| Battery Chemistry | Lithium-Thionyl Chloride (Li-SOCl₂) |
|---|---|
| Battery Type | Non-rechargeable primary lithium battery |
| Cell Construction | Bobbin |
| Cell Size | AA |
| Diameter | 14.55 mm |
| Electrolyte | Non-flammable electrolyte |
| Height | 50.3 mm |
| Key Advantage | High energy density; low self-discharge; long operating life; stable voltage output; wide operating temperature range |
| Manufacturer | SAFT |
| Maximum Continuous Current | 70 mA |
| Model | LS14500-STSZ |
| Nominal Capacity | 2600 mAh |
| Nominal Energy | 9.36 Wh |
| Nominal Voltage | 3.6 V |
| Operating Temperature | -60°C to +85°C |
| Primary Applications | Utility metering; alarm systems; security systems; memory backup; industrial electronics; tracking systems |
| Product Name | SAFT LS14500-STSZ AA 3.6V 2600mAh Lithium Battery |
| Product Series | SAFT LS14500 |
| Product Type | Primary Lithium-Thionyl Chloride (Li-SOCl₂) Battery |
| Pulse Capability | Up to 250 mA |
| Recommended Storage Temperature | +30°C maximum |
| Safety Feature | Built-in safety vent |
| Self-Discharge | Less than 1% per year at +20°C |
| Tab Configuration | Reverse Z solder tabs |
| Terminal Configuration | STSZ |
| Terminal Type | Solder Tabs |
| Typical Weight | 17 g |
LS14500-stsz
SAFT LS14500-STSZ AA 3.6V 2600mAh Lithium Battery with Reverse/Z Solder Tabs
The SAFT LS14500-STSZ is an AA-size 3.6V 2600mAh primary lithium battery designed for professional and industrial electronic equipment requiring reliable, long-lasting power. Using lithium-thionyl chloride (Li-SOCl₂) technology, this SAFT LS14500 battery provides high energy density, low self-discharge and long service life.
The LS14500-STSZ is supplied with reverse/Z solder tabs, providing a convenient configuration for direct connection to compatible printed circuit boards and electronic assemblies. The solder-tab design eliminates the need for a conventional battery holder and allows the battery to be secured and electrically connected within the equipment.
With its compact AA-size form factor, 3.6V nominal voltage and approximately 2600mAh capacity, the LS14500 is suitable for applications where dependable primary lithium power is required in a compact package.
Key Features
- Brand: SAFT
- Model: LS14500-STSZ
- Battery size: AA
- Nominal voltage: 3.6V
- Capacity: 2600mAh
- Chemistry: Lithium-thionyl chloride (Li-SOCl₂)
- Battery type: Primary lithium / non-rechargeable
- Terminal type: Reverse/Z solder tabs
- PCB and electronic assembly compatible
- High energy density
- Low self-discharge
- Long service life
- Compact AA-size design
- Reliable long-term primary power
Typical Applications
The SAFT LS14500-STSZ 3.6V 2600mAh lithium battery with solder tabs can be used in compatible:
- Industrial electronic equipment
- Utility and energy meters
- Security and alarm systems
- Remote monitoring equipment
- Industrial sensors
- Data logging equipment
- Measuring instruments
- Memory backup systems
- Tracking and telemetry equipment
- Professional control systems
- Electronic circuit boards
LS14500 Li-SOCl₂ Battery Technology
The SAFT LS14500 uses lithium-thionyl chloride chemistry, providing high energy density and low self-discharge for long-term primary power applications. This makes the battery suitable for equipment where long operating life and minimal battery maintenance are important.
The reverse/Z solder-tab configuration provides a specific terminal arrangement for compatible PCB and electronic applications. The tab orientation is important for proper installation and should match the original battery configuration.
Replacement Battery
If you are looking for a SAFT LS14500-STSZ replacement battery, 3.6V 2600mAh AA lithium battery with solder tabs, or LS14500 battery with reverse Z tabs, verify the original battery’s tab orientation, tab position, polarity, dimensions and PCB layout before replacement.
Important: The LS14500-STSZ is a primary, non-rechargeable lithium battery. Do not recharge or install it in equipment designed for rechargeable batteries.
