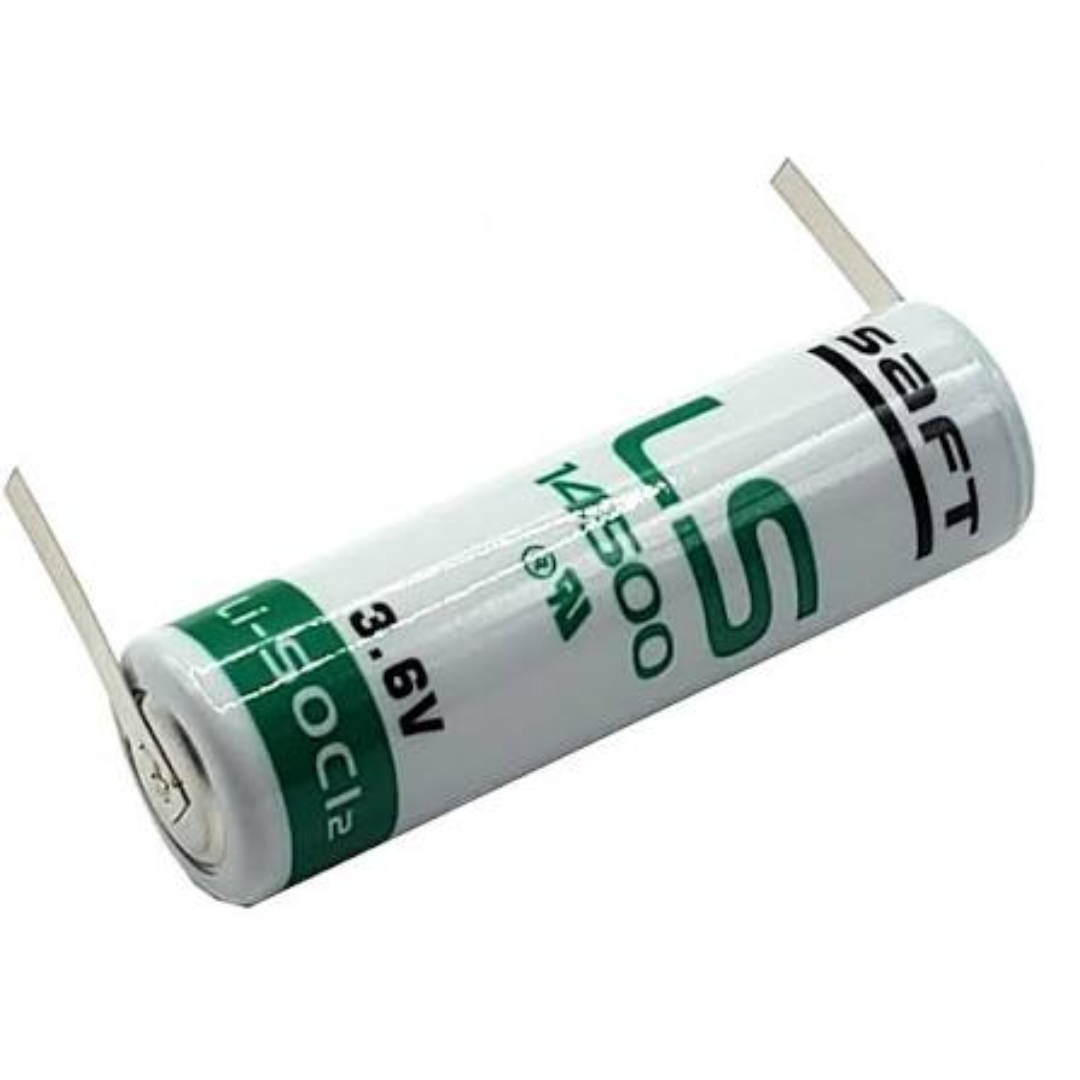

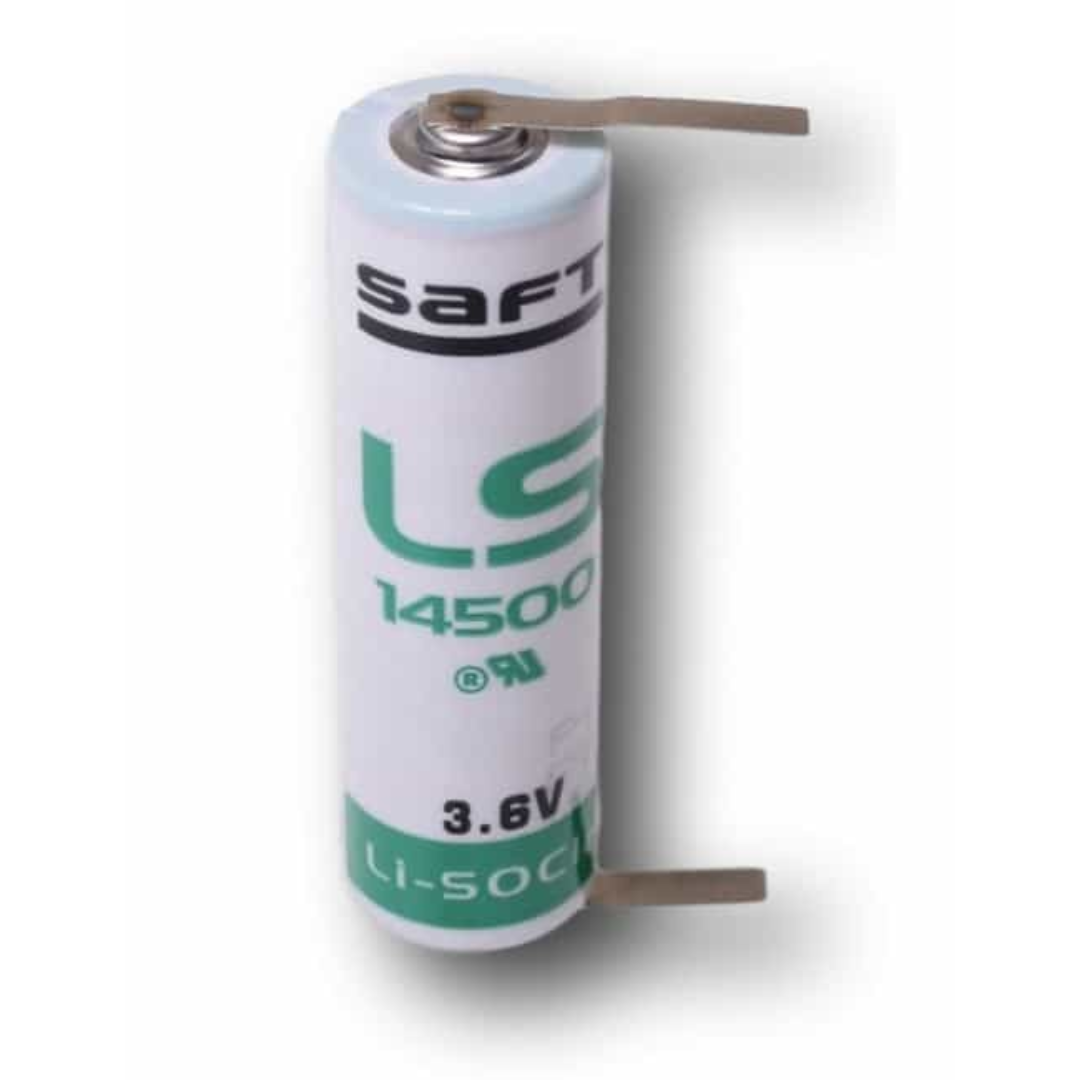

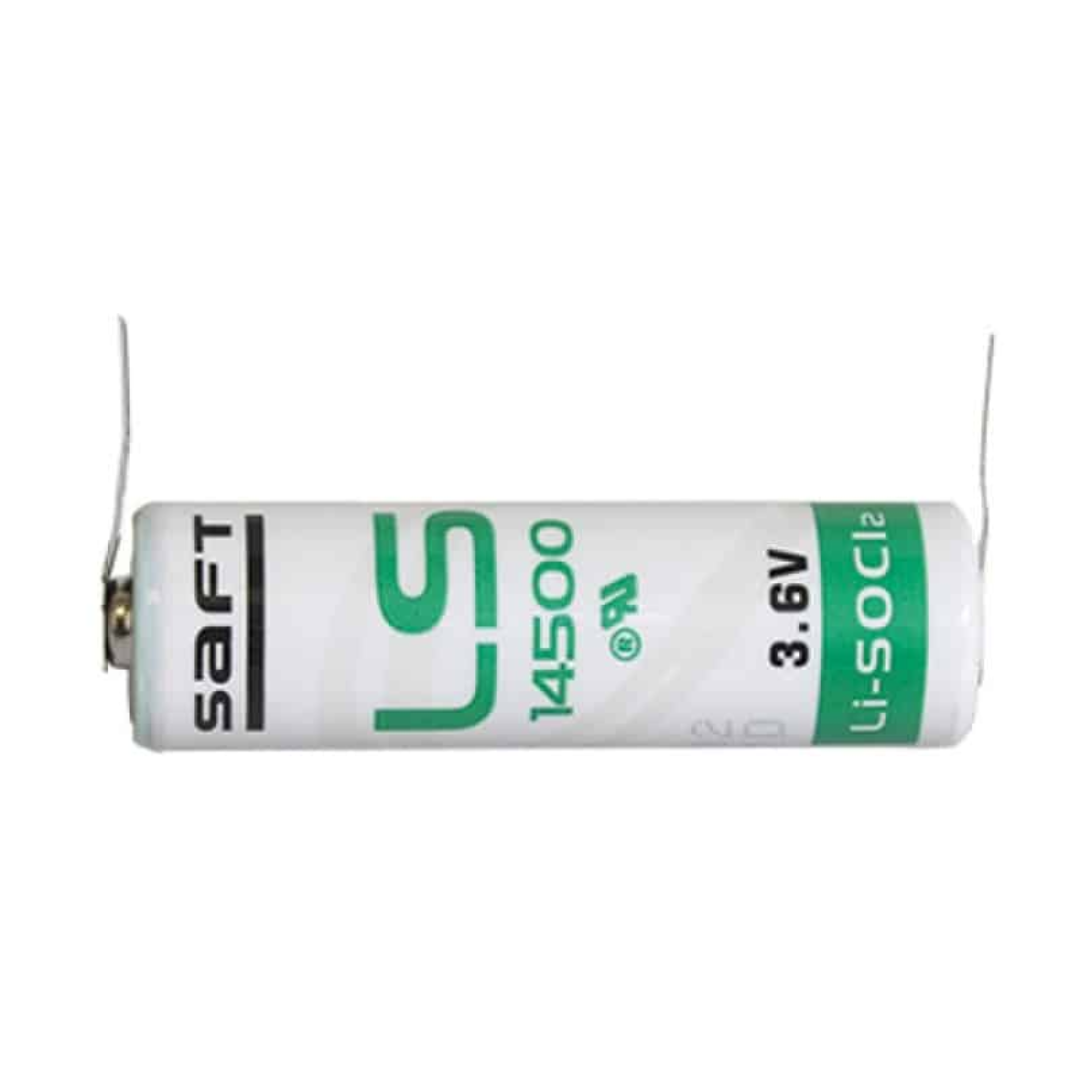

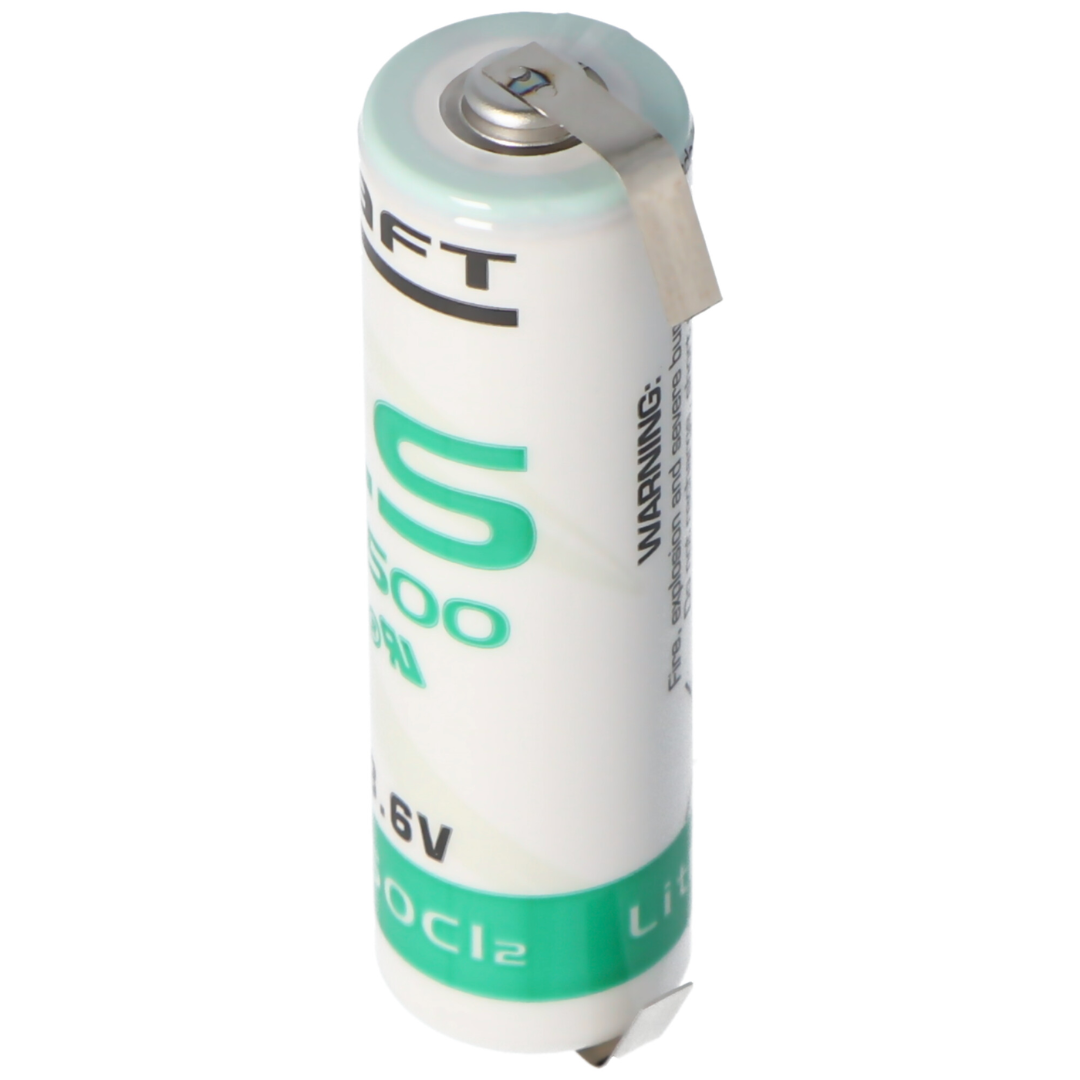

SAFT LS14500CNR AA 3.6V 2600mAh Lithium Thionyl Chloride Battery
FPGT is the Authorized distributor for SAFT batteries in the Middle East and African region. All our batteries are genuine and we DO NOT mix fake copies with the original ones
SAFT LS14500CNR is a 3.6V 2600mAh AA-size primary lithium battery using Lithium Thionyl Chloride (Li-SOCl₂) technology. Designed for long-life professional applications including telecommunications, measurement equipment, memory backup, alarms, security systems, beacons, toll systems, military electronics, metering and tracking equipment. The battery measures approximately 50.25mm × 14.50mm and weighs approximately 16.3g.
SAFT LS14500CNR AA 3.6V 2600mAh Lithium Thionyl Chloride Battery
د.إ28.89
| Quantity | Price | Discount |
|---|---|---|
| 1-10 | د.إ28.89 | 0% |
| 11-50 | د.إ27.51 | 4.76% |
| 51-100 | د.إ26.14 | 9.52% |
| 101-200 | د.إ24.76 | 14.29% |
| 201-300 | د.إ23.39 | 19.05% |
| 301+ | د.إ22.01 | 23.81% |
Product Specifications
| Applications | Telecommunications; diving equipment; measurement equipment; memory backup; beacons; alarm systems; electronic toll collection; military equipment; odometers |
|---|---|
| Battery Chemistry | Lithium-Thionyl Chloride (Li-SOCl₂) |
| Battery Type | Non-rechargeable primary lithium battery |
| Cell Size | AA |
| Diameter | 14.50 mm |
| Equivalent References | ER14505; ER14505H; ER6; ER6AA; ER6C; ER6H; ER6LV; ER6S-TC; ER6V; LCT2400; LS14500; LS14500C; LS14500W; LS6; SB-AA11; TL-2100; TL-4903; TL-5104; TL-5903 |
| Height | 50.25 mm |
| Key Advantages | High energy density; exceptional storage life; high reliability; wide operating temperature range |
| Manufacturer | SAFT |
| Minimum Capacity | 2.6 Ah |
| Model | LS14500 CNR |
| Nominal Energy | 9.36 Wh |
| Nominal Voltage | 3.6 V |
| Operating Temperature | Wide temperature range |
| Product Name | SAFT LS14500 CNR AA Lithium Battery |
| Product Series | SAFT LS14500 |
| Product Type | Primary Lithium-Thionyl Chloride (Li-SOCl₂) Battery |
| Terminal Type | CNR |
| Weight | 16.30 g |
SAFT LS14500CNR AA 3.6V 2600mAh Lithium Thionyl Chloride Battery
The SAFT LS14500CNR is a high-performance 3.6V 2600mAh AA-size primary lithium battery designed for professional electronic and industrial applications requiring reliable, long-lasting power. It uses Lithium Thionyl Chloride (Li-SOCl₂) technology, providing high energy density, low self-discharge and dependable performance over extended operating periods.
The LS14500CNR is part of the SAFT LS14500 family and is designed for applications with moderate current requirements. The product listing specifies a minimum capacity of 2.6Ah, a nominal voltage of 3.6V, and an AA-size cylindrical format.
Key Features
- Brand: SAFT
- Model: LS14500CNR
- Battery type: Primary lithium battery
- Chemistry: Lithium Thionyl Chloride (Li-SOCl₂)
- Nominal voltage: 3.6V
- Capacity: 2.6Ah / 2600mAh
- Size: AA / 14500
- Diameter: Approx. 14.50mm
- Height: Approx. 50.25mm
- Weight: Approx. 16.3g
- High energy density
- Low self-discharge
- Long storage life
- Reliable long-term performance
- Designed for professional and industrial equipment
- Non-rechargeable primary battery
Typical Applications
The SAFT LS14500CNR can be used in a variety of professional electronic applications, including:
- Telecommunications equipment
- Measurement and instrumentation
- Memory backup systems
- Security and alarm systems
- Beacons and transmitters
- Toll collection and tollgate equipment
- Military and professional electronics
- Odometers and vehicle electronics
- Utility metering
- Automatic meter reading
- Tracking equipment
- Industrial monitoring devices
The SAFT LS14500 platform is also commonly used in utility metering, automatic meter reading, alarms and security devices, tollgate systems, memory backup, tracking systems and professional electronics.
Lithium Thionyl Chloride Technology
The Li-SOCl₂ chemistry gives the LS14500CNR a higher energy density and lower self-discharge characteristics than conventional alkaline AA batteries, making it suitable for equipment that needs to operate for long periods without frequent battery replacement.
SAFT’s LS14500 data identifies the battery as a 3.6V primary lithium cell with approximately 2.6Ah nominal capacity, with typical pulse capability depending on the discharge conditions and application.
The SAFT LS14500CNR is intended for professional use and must not be recharged. Correct polarity and the equipment manufacturer’s electrical requirements should always be observed before installation.
