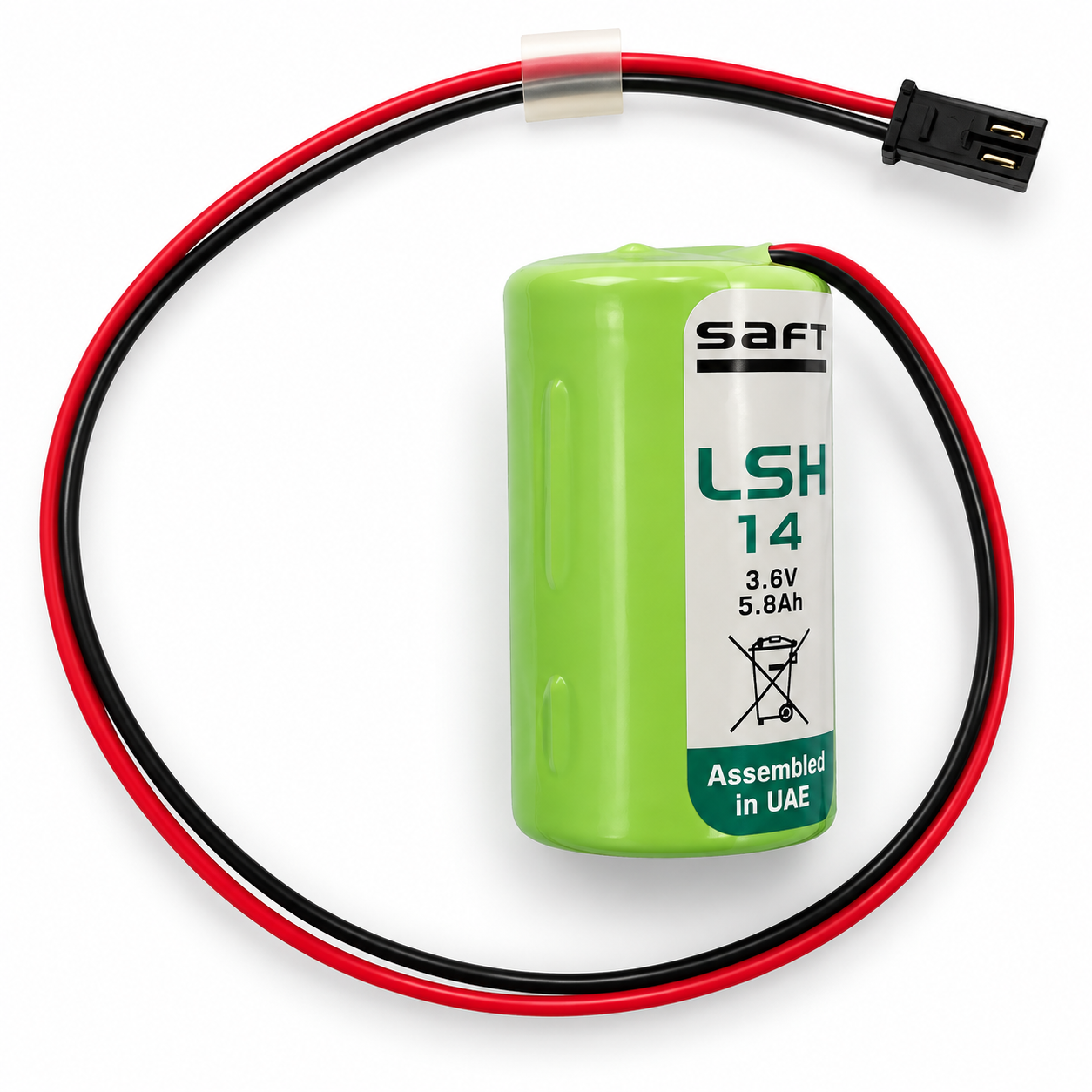

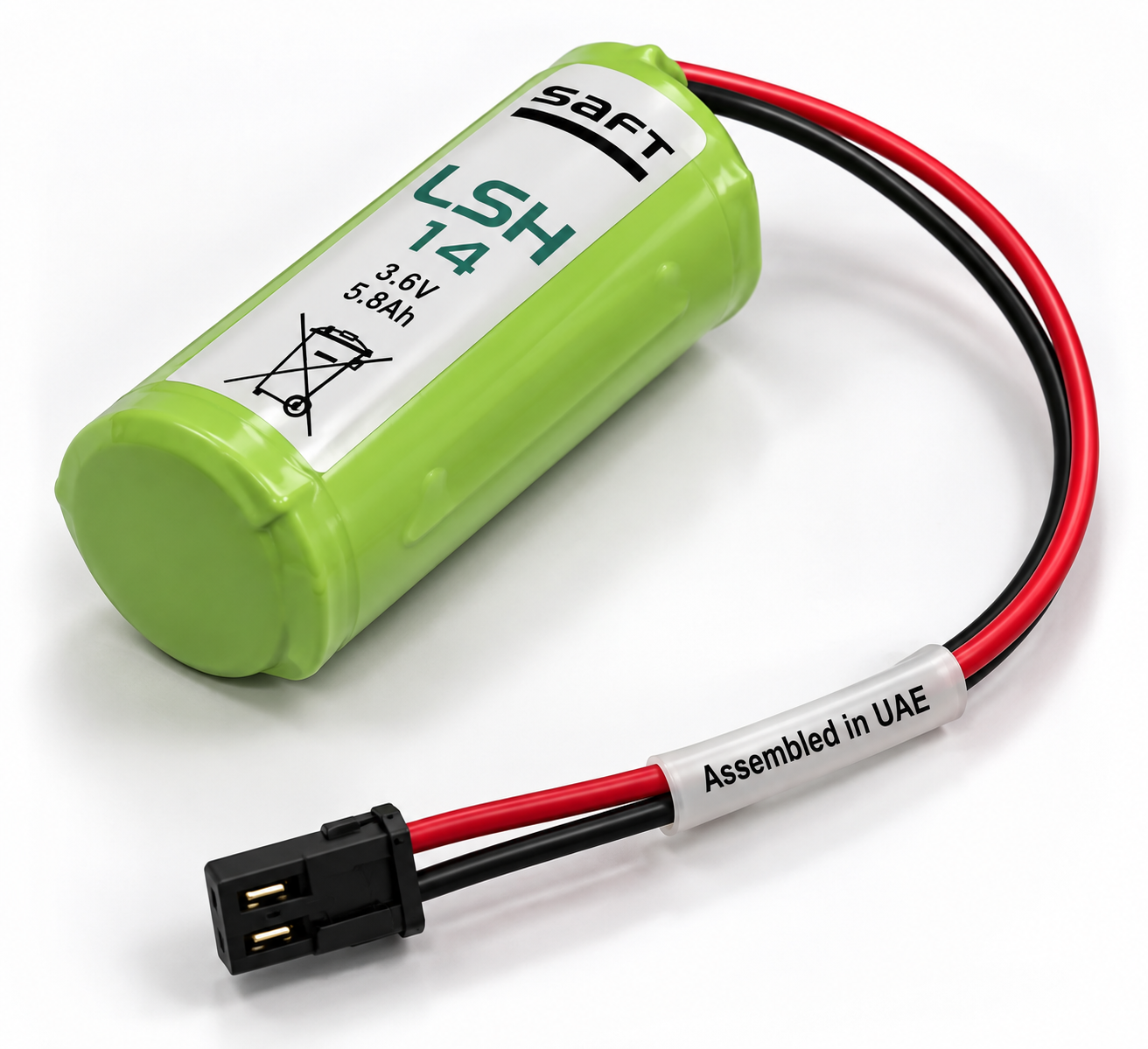

SAFT LSH14-AVS – 3.6V 5.8Ah Lithium Battery for AVS Safety Systems
FPGT is the Authorized distributor for SAFT batteries in the Middle East and African region. All our batteries are genuine and we DO NOT mix fake copies with the original ones
SAFT LSH14-AVS is a 3.6V 5.8Ah C-size primary Lithium Thionyl Chloride (Li-SOCl₂) battery for compatible AVS safety systems. Based on SAFT’s high-power LSH14 spiral-cell technology, it provides high energy density, stable voltage performance, low self-discharge and high pulse capability for safety, security and professional electronic equipment.
SAFT LSH14-AVS – 3.6V 5.8Ah Lithium Battery for AVS Safety Systems
د.إ101.58
Product Specifications
| Battery Chemistry | Lithium-Thionyl Chloride (Li-SOCl₂) |
|---|---|
| Battery Type | Non-rechargeable primary lithium battery |
| Cell Size | C |
| Compatible Systems | AVS security systems; AVS safety equipment |
| Diameter | 26.00 mm |
| Height | 50.4 mm |
| Key Advantage | High energy density; long operating life; reliable power supply; compact C-size design |
| Manufacturer | SAFT |
| Model | LSH14-AVS |
| Nominal Capacity | 5.8 Ah |
| Nominal Energy | 20.88 Wh |
| Nominal Voltage | 3.6 V |
| Operating Temperature | -60°C to +85°C |
| Primary Application | AVS safety systems |
| Primary Applications | Security alarm systems; wireless security systems; safety systems; alarm sensors |
| Product Name | SAFT LSH14-AVS Lithium Battery |
| Product Series | SAFT LSH14 |
| Product Type | Primary Lithium-Thionyl Chloride (Li-SOCl₂) Battery |
| Terminal Type | Battery terminal |
| Typical Weight | 55 g |
SAFT LSH14-AVS – 3.6V 5.8Ah Lithium Battery for AVS Safety Systems
The SAFT LSH14-AVS is a 3.6V 5.8Ah primary lithium battery designed for compatible AVS safety and security systems. It uses Lithium Thionyl Chloride (Li-SOCl₂) chemistry and SAFT’s high-power spiral-cell technology to provide dependable, long-life power for professional safety and electronic equipment.
The LSH14 is a C-size (R14) lithium battery offering high energy density, stable voltage performance, low self-discharge and high drain/pulse capability. SAFT specifies a nominal capacity of 5.8Ah, nominal voltage of 3.6V, and an operating temperature range of -60°C to +85°C.
Key Features
- Brand: SAFT
- Model: LSH14-AVS
- Battery type: Primary / non-rechargeable lithium battery
- Chemistry: Lithium Thionyl Chloride (Li-SOCl₂)
- Nominal voltage: 3.6V
- Nominal capacity: 5.8Ah
- Cell size: C / R14
- Application: Compatible AVS safety systems
- High energy density
- High drain and pulse capability
- Stable voltage response
- Low self-discharge
- Wide operating temperature range
- Compact cylindrical design
- Designed for long operating life
Technical Specifications
| Specification | Details |
|---|---|
| Model | SAFT LSH14-AVS |
| Chemistry | Lithium Thionyl Chloride (Li-SOCl₂) |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 5.8Ah |
| Cell Size | C / R14 |
| Diameter | 26.0 mm max. |
| Height | 50.4 mm max. |
| Typical Weight | 51 g |
| Operating Temperature | -60°C to +85°C |
| Pulse Capability | Up to 2000 mA* |
| Max. Recommended Continuous Current | 1300 mA |
| Battery Type | Primary / non-rechargeable |
*Pulse performance depends on pulse characteristics, temperature and battery history; SAFT recommends consulting its sizing guidance for specific applications.
Typical Applications
The SAFT LSH14-AVS is intended for compatible AVS safety and security equipment and can be used in applications requiring reliable primary lithium power, including:
- AVS safety systems
- Security and alarm systems
- Safety monitoring equipment
- Remote monitoring systems
- Emergency and warning equipment
- Tracking equipment
- Beacons and transmitters
- Industrial monitoring equipment
- Metering equipment
- Professional electronic systems
The underlying SAFT LSH14 platform is specified for alarms and security systems, radio communication, beacons and emergency location transmitters, tracking devices, metering, automotive telematics and pipeline inspection applications.
SAFT LSH14 Lithium Technology
The LSH14 uses a spiral-cell Lithium Thionyl Chloride design for applications requiring high power and long operating life. SAFT specifies high voltage response with stable performance during most of the application’s lifetime, high drain/pulse capability and a self-discharge rate of less than 3% after one year of storage at +20°C.
The cell incorporates a stainless-steel container, hermetic glass-to-metal sealing, non-flammable electrolyte, built-in safety vent and 5A fuse. SAFT also lists compliance with relevant safety and transport standards for the LSH14 platform.
The SAFT LSH14-AVS is a suitable replacement or original-equipment battery where the equipment specifically requires the corresponding LSH14 battery configuration. Always verify the equipment model, terminal configuration, polarity and electrical requirements before installation.
Important: This is a primary lithium battery and must not be recharged.
