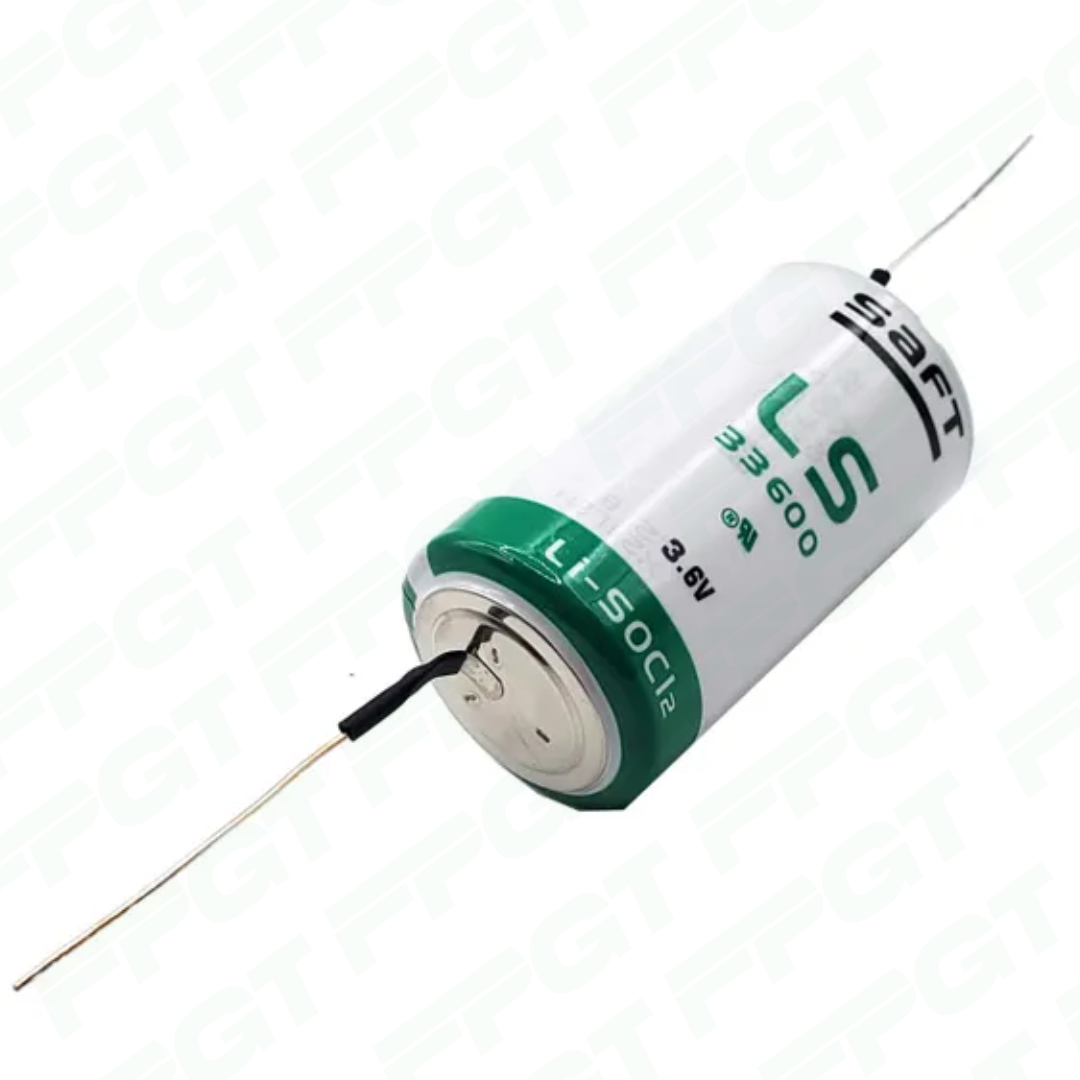

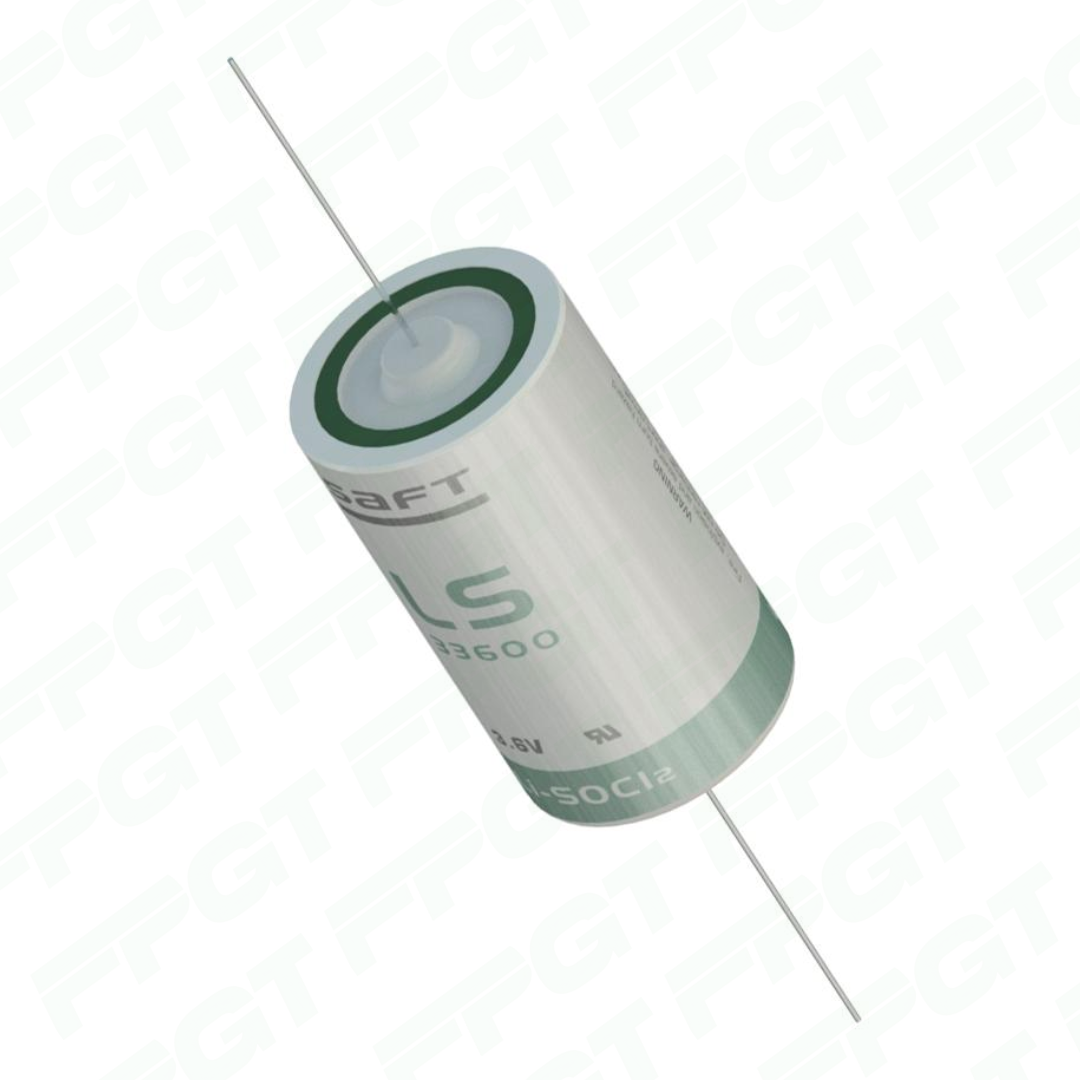

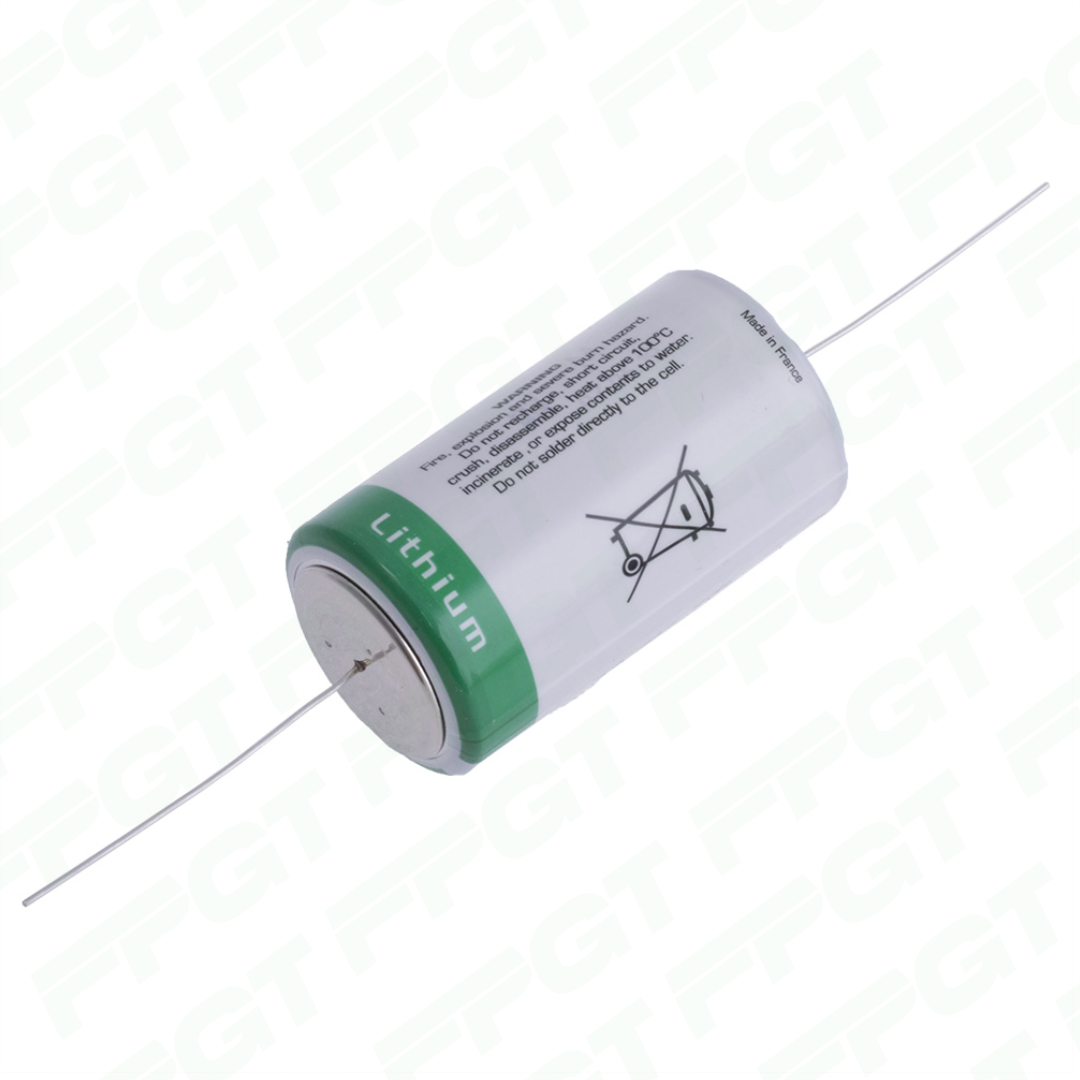

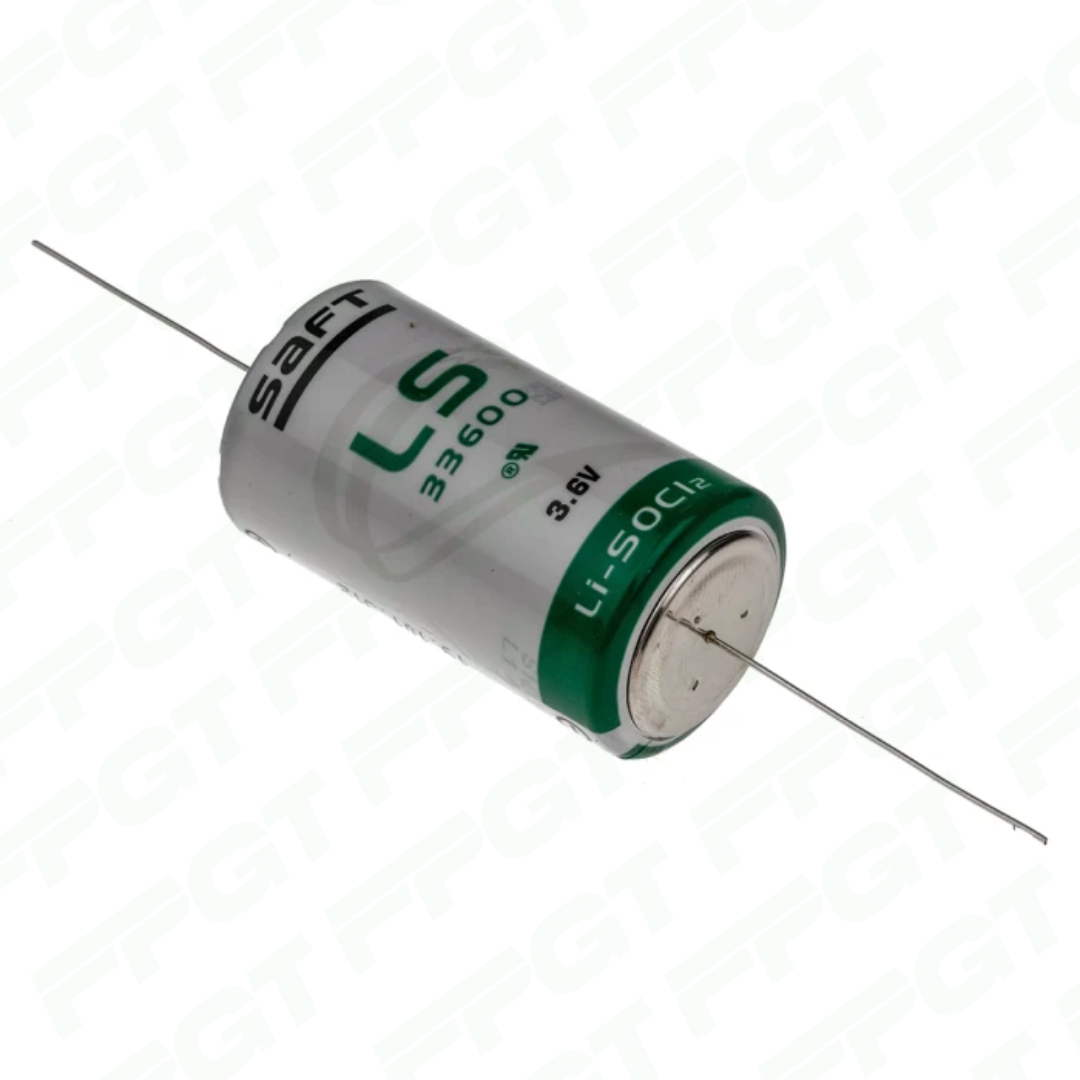

SAFT LS33600CNA – LS 33600CNA – Battery: lithium D Size 3.6V Lithium battery Non rechargeable Axial tabs
SAFT LS33600CNA – LS 33600CNA – Battery: lithium D Size 3.6V Lithium battery Non rechargeable Axial tabs
| Quantity | Price | Discount |
|---|---|---|
| 0-9 | د.إ101.81 | 0% |
| 10-59 | د.إ84.74 | 16.77% |
| 60-119 | د.إ72.21 | 29.07% |
| 120+ | د.إ67.70 | 33.50% |
Out of stock
Product Specifications
| Battery Features | Non-rechargable |
|---|---|
| Body Dimension | 33.5mmx61.5mm |
| Brand | SAFT |
| Capacity | 17Ah |
| Cell Size | D / R20 |
| HS Code | 8506501000 |
| Leads | Axial |
| Quantity in set/package | 1pcs |
| Rated Voltage | 3.6V |
| Type of battery | Lithium |
LS33600CNA Documents
SAFT LS33600CNA – LS 33600CNA – Battery: lithium D Size 3.6V Lithium battery Non rechargeable Axial tabs
| Manufacturer | SAFT |
| Type of Battery | Lithium |
| Cell Size | D | R20 | IEC R20 |
| Rated Voltage | 3.6v |
| Capacity | 17Ah |
| Battery Features | Non-rechargeable |
| Body Dimensions | 33.5mm x 61.5mm |
| Leads | Axial Tabs |
| Maximum Current | 250mA |
| Current Rating | 5mA |
| Part Number | LS33600 CNA |
| Alternate names called | LS33600CNA |
| LS33600 CNA | |
| LS33600 Axial version | |
| Gross weight | 86.98gm |
Saft’s LS 33600 cell is ideally suited for long-term applications (typically from 5 to 20+ years), featuring low base currents and periodic pulses.
Benefits
• High capacity and high energy (1185 Wh/l and 680 Wh/kg)
• High voltage response, stable during most of the lifetime of the application
• Wide operating temperature range (-60°C / + 85°C)
• Low self-discharge rate, compatible with long operating life (less than 1% per year of storage, at + 20°C, after 1 year)
• Superior resistance to corrosion
• Low magnetic signature
Key features
• Bobbin construction
• Well controlled passivation
• Hermetic construction with glass-to metal seal
• Stainless steel can
• Non-flammable electrolyte
• RoHS and REACH compliance
• Made in France
Designed to meet all major quality, safety and environment standards
• Safety: UL 1642, IEC 60086-4
• ATEX: IEC 60079-11 part 10.5 (T4 rating at 40°C)
• Transport: UN 3090 and UN 3091
• Quality: ISO 9001, Saft Excellence
• System, continuous program
Typical Applications
• Utility Metering
• Internet of Things
• Alarms and security
• Medical devices
• Tracking systems
• Professional electronics
