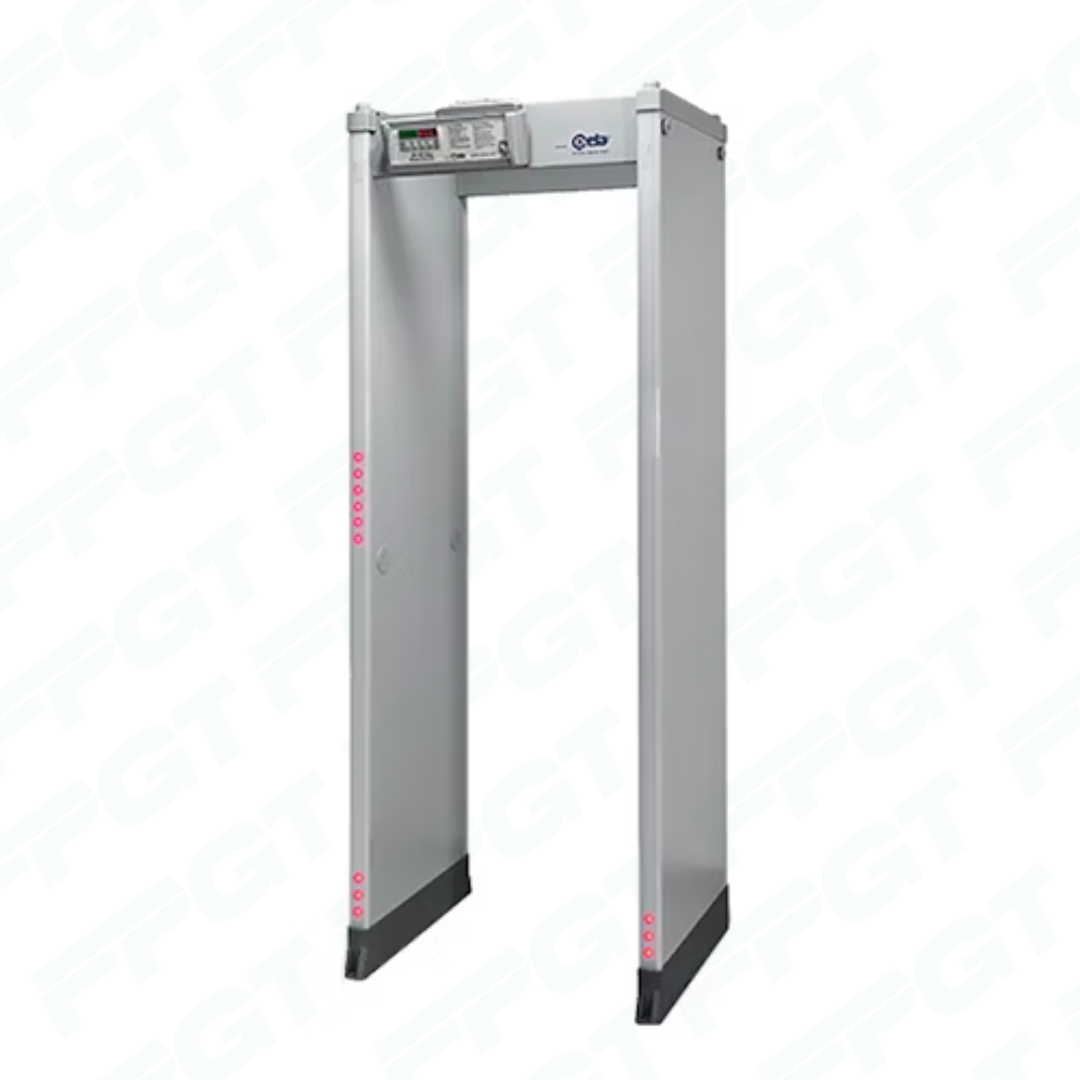

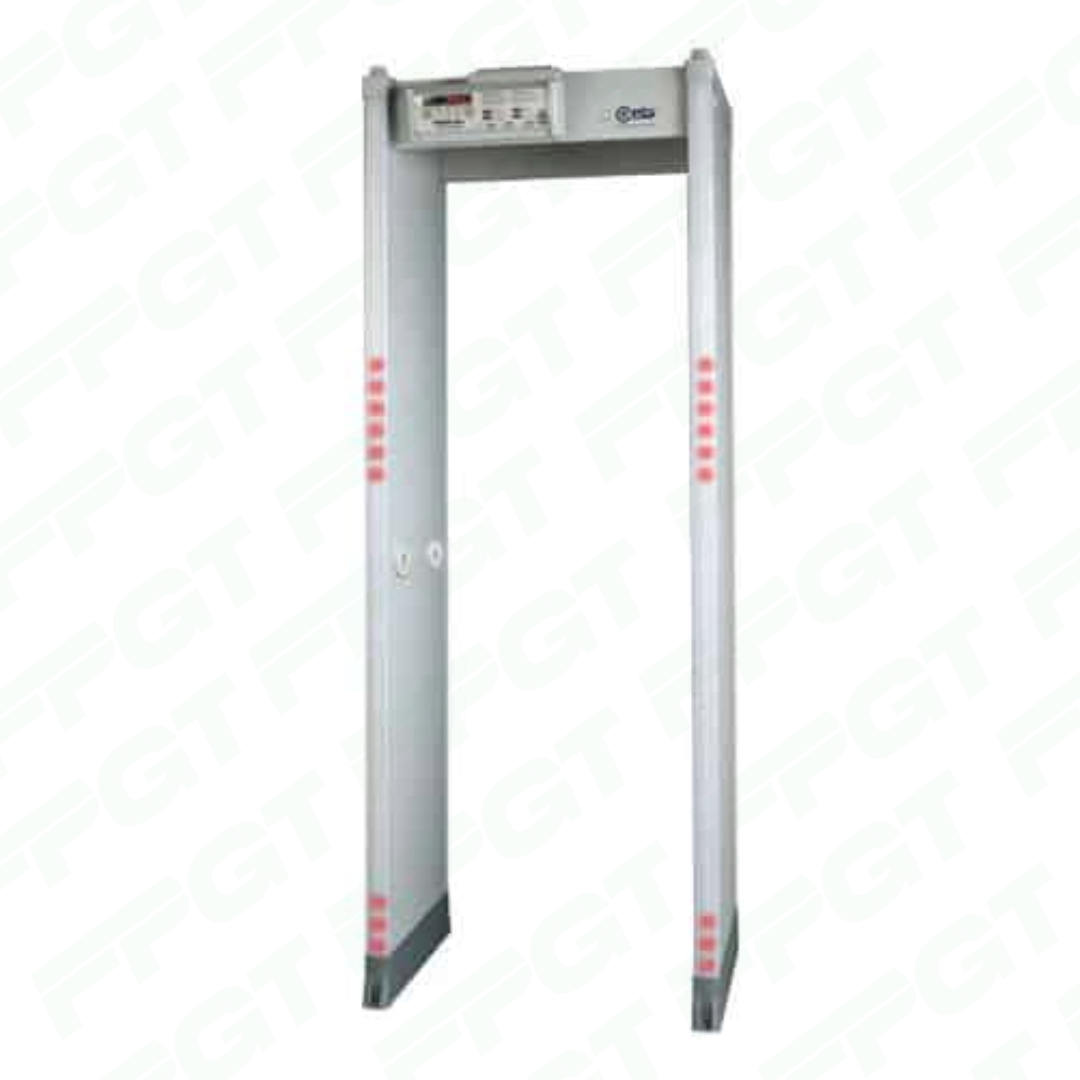

SMD®600 Plus CEIA Walkthrough Metal Detector

SMD®600 Plus CEIA Walkthrough Metal Detector

• High sensitivity: fully compliant with the NIJ-0601.02 Law Enforcement Standard
• High discrimination: Compliant with and Certified to the strictest Standards for Airport security screening
• The SMD600 Plus is the first Metal Detector in the market fully compliant with the NIJ-0601.02 Standard, as required in very high sensitivity applications, which also allows very high throughput in high security public screening checkpoints.

The SMD^®600 Plus is a very high sensitivity Metal Detector that also offers characteristics of high discrimination and high detection uniformity.

High sensitivity

• Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
• Built-in programs to screen visitors and staff for weapons and contraband
• Met-Identity technology for Identification of Threat Composition
• Accurate pinpointing of individual and multiple metal targets

High throughput

• Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
• No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
• Low nuisance alarm rate even at the strictest Security Levels
• High transit flow rates and the minimum need for intervention by inspection personnel

New certified ip66 control unit

• New integrated design
• Total compatibility with previous IP20 (plastic) and IP65 (stainless steel) control units
• Robust structure through the use of high-performance polymers for the construction of housing
• Waterproof / Dustproof: IP66 compliant (IEC 60529)
• Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
• Display made with specific polymer to improve the visibility of the LEDs by increasing the definition

Unique alarm signaling

• Dual Side 20 x 2 localization zones
• High visibility of the control unit and of the zone indication, independent from the operator position and the installation environment
• Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
• 10 Alarm Volume Levels
• Very High Precision Transit Counter

Most powerful and versatile security features

• Up to 50 built-in Security Programs: Up to 30 International Standards; Up to 20 Customizable Levels
• Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.) and security level selection.
• Any security standard can be enhanced with selectable random alarm probability
• MI2 sensor
• SMD®600 Plus can be upgraded anytime either with MI2 Sensor for superior smartphone and cellphone detection, or with TDU including advanced IR processing for fully automatic, highly selective and precise detection of maximum facial temperature measurements even in harshest environmental conditions.
• The SMD®600 Plus with integrated MI2 sensor provides unmatched versatility in its ability to screen people in applications that require simultaneous detection of all metal (magnetic and non-magnetic) fi rearms and cellphone/smartphone devices, including the most miniaturized, lowmetal content versions.
• In this configuration both panels of the archway are equipped with dual color light bars (red and yellow colors) and 4-beam photocells modules.

TDU Thermal Detection Unit

• The TDU (Thermal Detection Unit) is an upgrade sensing kit for covid screening compliance:
• Simultaneous threat and fever detection on all screened persons
• Accurate person measurement using an infrared camera with automatic determination of the highest temperature

Integrated web-server & logger

• Monitor the status of Metal Detector network in real time
• Centralized Setting of the Metal Detectors’ working parameters
• Transits flow monitoring
• Report on number of people screened and alarm rates automatically
• Detailed reporting of the transits data and the Security Device configuration data
• Remotely control and verify the security level
• No server or specific client software required, only a web browser
• Zero configuration network for simple setup
• 2 x Ethernet 100base-TX

Gate structure

• Useful transit area (W x H): 720 mm x 2050 mm (standard configuration); 820 mm x 2050 mm (wider passage width)
• Antivandalic and antitampering IP66 control unit
• Embedded high precision transit counters (2-beam photocells)
• Antitampering ON/OFF switch
• State-of-the-art, robust and washable panels
• Protected against aging, weather and wear

Operational features

• High discrimination and transit flow rates five or more times greater than other metal detection systems
• Quick reset time as short as 0.2 seconds for high throughput rate
• Very high detection speed (up to 15 m/sec.)
• Built-in operational functional verification (OFV)
• One-touch key reading of inbound, outbound and Security Level Data

Quality

• Continuous self diagnostic system
• Proven reliability
• No periodic re-calibration required
• Fully digital design

Alarm signalling

• Multi-zone display bar for “height on person” localization
• Dual side 20 x 2 localization zones
• Specific shoe alarm color indication
• 4 light bars with selectable entry/exit and pacing indication
• Green and red metering signals proportional to the mass of the detected target
• 10 selectable continuous and pulsed tone plus 34 special tones
• 10 selectable sound intensities ranging from 0 to 90 dbA at 1m
• Random alarm capability with independent counters, alarm tone and alam volume
• Met-Identity technology (separate Ferrous and Non-Ferrous alarm signaling)

Type of signalling

• Fixed or proportional to the mass in transit – visible from 6m under lighting of 4000lux
• 20 x4 distinct zones (20×2 entry side and 20×2 exit side)

Programming

• Up to 50 built-in Security Programs
• Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
• Security level: International Standard (IS) command / Chip card
• Local by Control Unit alphanumeric display and keyboard
• Automatic Channel Search (CS)
• Automatic Floor Gain Adjustment (FGA) and Automatic Technical Functional Verification (TFV)
• Automatic Vibration Compensation (AVS, EVA) and Automatic Environmental Noise Compensation (ENA)

Environmental data

• Powered by safe low voltage DC through external switching power supply adapter
• Power Supply : 100…277V~ ±10%, 47…63Hz, 40 VA typical consumption
• Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
• Storage temperature: -37°C to +70°C
• Relative humidity: 0 to 95% (without condensation)

Installation data

• Automatic synchronisation between two or more metal detectors with distance of down to 5 cm without the use of external cables
• One Touch Automatic Self Installation (OTS)

Certification and compliance

• Fully compliant with the NIJ-0601.02 Standard requirements
• Complies with the applicable Standards for Law Enforcement and Correctional Facilities
• Compliant with and certified to the strictest Standards for Airports Security
• Compliant with applicable International Standards for electrical safety and EMC
• Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
• Harmless to magnetic media (CD, tapes, etc.)
