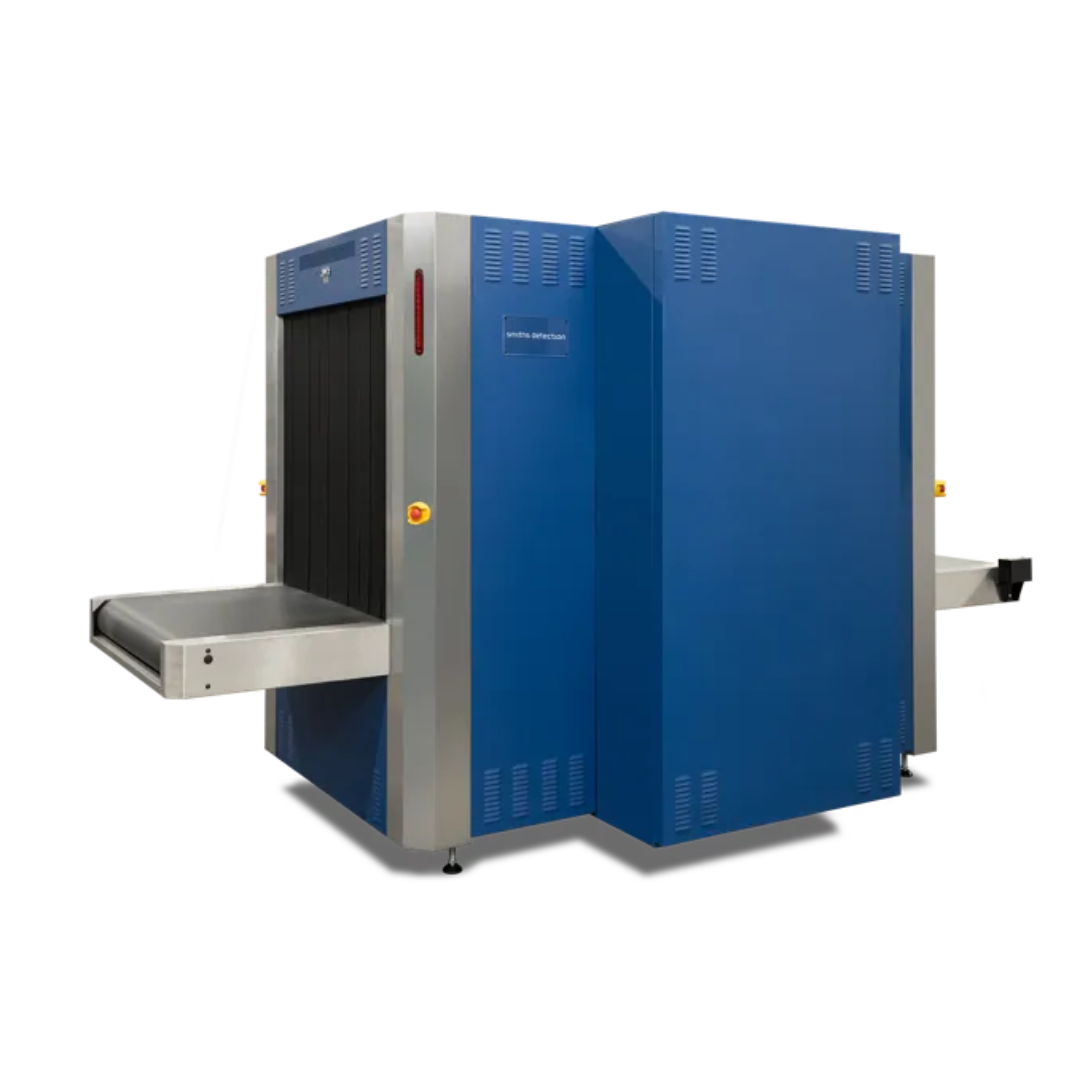

Smiths Detection SDX 100100 DV HC

The Smiths Detection SDX 100100 DV HC is a high-throughput dual-view X-ray screening system for oversized baggage, break-bulk freight and heavy parcels. Featuring a 1,000 × 1,000 mm tunnel, two 160 kV X-ray generators and a 200 kg conveyor capacity, it produces horizontal and vertical images in a single pass. With HiTraX 3 image processing, optional iCMORE automated threat detection and integration capabilities, it is designed for airports, customs facilities and air cargo hubs.

Compare
SKU: SDX 100100 DV HC Categories: , , ,

Smiths Detection SDX 100100 DV HC

Availability will be confirmed on request.
Check Availability

Request Bulk Price

Product Specifications

Automated Threat Detection Optional iCMORE Weapons Detection and Lithium Battery Detection
Centralised Image Processing Supported
Certifications TSA Air Cargo Screening Technology List (ACSTL) Qualified
Conveyor Design Ergonomic High Conveyor
Conveyor Load Capacity 200 kg Evenly Distributed
Conveyor Speed 0.2 m/s; Optional 0.5 m/s
Dimensions 3591 (L) x 1765 (W) x 1992 (H) mm
Image Processing Platform HiTraX 3
Image Quality High-Quality X-Ray Images with Advanced Enhancement Tools
Imaging Technology Dual-View X-Ray Imaging
Key Features Dual-view imaging; two 160 kV generators; 200 kg conveyor capacity; high conveyor design; high steel penetration; AWG 41 wire resolution; optional AI-based threat detection
Maintenance Modular Design with Common Parts for Reduced Maintenance Time and Cost
Maximum object size 1000 x 1000 mm (39.4 x 39.4in)
Operational Benefit Screens large and heavy items in a single pass using horizontal and vertical X-ray views to improve inspection efficiency and reduce rescreening
Primary Application Oversized baggage and break-bulk freight screening
Primary Markets Airports; customs facilities; air cargo hubs; parcel services; freight terminals
Product Category Air Cargo and Oversized Baggage Screening Equipment
Product Type High-Throughput Dual-View X-Ray Screening System
Screening Applications Air cargo screening; oversized baggage inspection; parcel screening; customs inspection; threat detection
Steel Penetration Up to 37 mm
System Integration Compatible with External Material Handling Systems
Threat Detection Suspicious Object and Contraband Detection
Viewing Configuration Simultaneous Horizontal and Vertical Views
Weight approx 1600 kg
Wire Resolution Up to AWG 41
X-Ray Generator Two 160 kV X-Ray Generators

Smiths Detection SDX 100100 DV HC

Advanced dual-view scanners for large objects

The Smiths Detection SDX 100100 DV HC is an advanced dual-view X-ray inspection system engineered for high-throughput screening of oversized baggage, break-bulk freight and heavy parcels. Combining two X-ray generators with a high-conveyor design, the system delivers horizontal and vertical images of inspected objects in a single pass, helping operators examine complex or densely packed items more efficiently.

With a large 100 × 100 cm tunnel and a conveyor load capacity of up to 200 kg, the SDX 100100 DV HC is designed for airports, air cargo facilities, customs operations, parcel services and other high-security environments.

Key Features and Benefits

  • Dual-view X-ray technology: Two 160 kV generators produce horizontal and vertical images simultaneously, supporting comprehensive inspection.
  • Large inspection tunnel: A 1,000 × 1,000 mm maximum object size accommodates oversized baggage, bulky parcels and break-bulk freight.
  • Heavy-duty conveyor: Supports evenly distributed loads of up to 200 kg.
  • High-throughput operation: Standard conveyor speed is 0.2 m/s, with an optional 0.5 m/s configuration.
  • High-resolution imaging: Wire resolution down to AWG 41 supports the examination of small details.
  • High steel penetration: Penetration of up to 37 mm helps inspect densely packed objects.
  • HiTraX 3 image processing: Provides image-quality and enhancement tools to assist operator analysis.
  • Optional iCMORE software: AI-based detection options can support the identification of threats such as weapons and lithium batteries.
  • System integration: Designed to connect with external material-handling systems and central image-processing networks.
  • Modular design: Common components and modular construction can help simplify maintenance and reduce downtime.

Applications

The SDX 100100 DV HC is suitable for security screening in:

  • Airports and air cargo terminals
  • Customs and border inspection facilities
  • Freight and logistics hubs
  • Parcel and courier sorting facilities
  • Oversized baggage screening areas
  • Government and critical infrastructure facilities
  • High-security industrial and commercial sites

Advanced Screening for Large and Heavy Objects

The Smiths Detection SDX 100100 DV HC combines large-item handling, dual-view imaging and optional automated threat detection in one integrated system. Its high conveyor supports ergonomic manual handling, while its integration capabilities allow it to be incorporated into wider material-handling and centralized image-processing workflows.
