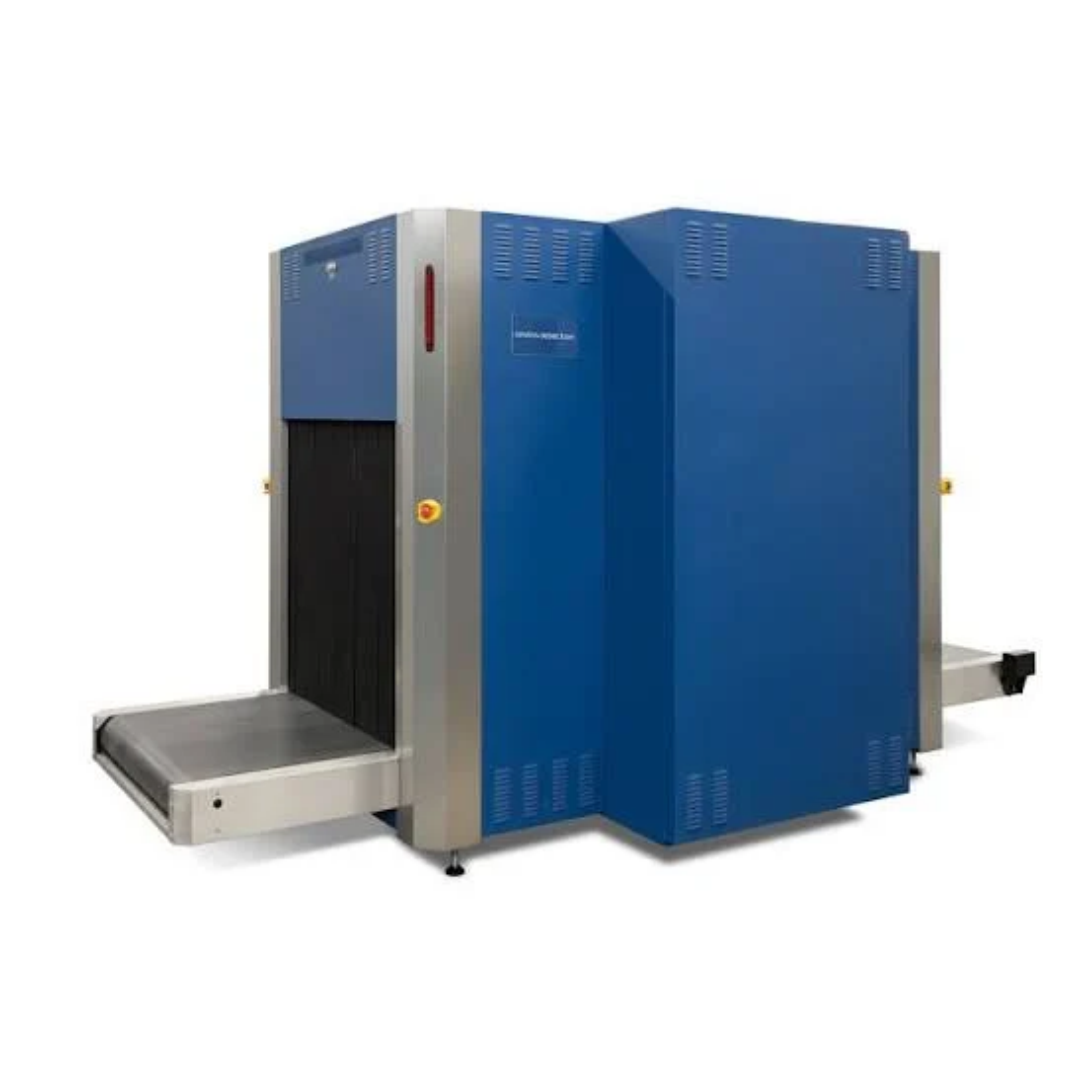

Smiths Detection SDX 100100 DV LC

The Smiths Detection SDX 100100 DV LC is a low-conveyor dual-view X-ray screening system for oversized baggage, break-bulk freight and heavy parcels. Featuring two 160 kV X-ray generators, a 1,000 × 1,000 mm tunnel and a 200 kg conveyor capacity, it captures horizontal and vertical images in a single scan. Its approximately 350 mm conveyor height supports easier loading and integration with external material-handling systems. Optional iCMORE software provides automated detection capabilities for selected threats, including weapons and lithium batteries.

Compare
SKU: SDX 100100 DV LC Categories: , , ,

Smiths Detection SDX 100100 DV LC

Availability will be confirmed on request.
Check Availability

Request Bulk Price

Product Specifications

Automated Threat Detection Optional iCMORE Weapons Detection and Lithium Battery Detection
Centralised Image Processing Supported
Conveyor Design Low-Profile Conveyor
Conveyor Height Approximately 350 mm
Conveyor Load Capacity 200 kg Evenly Distributed
Conveyor Speed 0.2 m/s; Optional 0.5 m/s
Dimensions 3591 (L) x 1860 (W) x 1992 (H) mm
Image Processing Platform HiTraX 3
Image Quality High-Quality X-Ray Images with Advanced Enhancement Tools
Imaging Technology Dual-View X-Ray Imaging
Key Features Dual-view imaging; two 160 kV generators; low-profile conveyor; 200 kg load capacity; high steel penetration; AWG 41 wire resolution; optional automated threat detection
Maintenance Modular Design with Common Parts for Reduced Maintenance Time and Cost
Maximum object size 1000 x 1000 mm (39.4 x 39.4in)
Operational Benefit Screens heavy and oversized cargo using horizontal and vertical X-ray views while simplifying integration with low-height feed and discharge conveyor systems
Optional Accessories Passive Roller Conveyors; Motorised Roller Conveyors; Tunnel Extensions; Barcode Readers; Attendance Detectors; iLOC Monitor Consoles
Primary Application Oversized baggage and break-bulk freight screening
Primary Markets Airports; customs facilities; air cargo hubs; parcel services; freight terminals
Product Category Air Cargo and Oversized Baggage Screening Equipment
Product Type Low-Conveyor Dual-View X-Ray Screening System
Screening Applications Air cargo screening; oversized baggage inspection; parcel screening; customs inspection; threat detection
Steel Penetration Up to 37 mm
System Integration Compatible with External Material Handling Systems
Threat Detection Suspicious Object and Contraband Detection
Viewing Configuration Horizontal and Vertical Views
Weight approx 1600 kg
Wire Resolution Up to AWG 41
X-Ray Generator Two 160 kV X-Ray Generators

Smiths Detection SDX 100100 DV LC

Advanced dual-view scanners for large objects

The Smiths Detection SDX 100100 DV LC is a dual-view X-ray screening system designed for inspecting oversized baggage, break-bulk freight and heavy parcels in high-security environments. Its low-profile conveyor makes it particularly suitable for installations where heavy items must be loaded and unloaded at a reduced height or where the scanner needs to connect with existing material-handling systems.

Equipped with two 160 kV X-ray generators, the system captures horizontal and vertical images in a single scan. Its 1,000 × 1,000 mm tunnel and 200 kg conveyor capacity support the inspection of large and heavy objects at airports, customs facilities, parcel centers and freight-handling operations.

Key Features and Benefits

  • Dual-view X-ray technology: Two 160 kV generators provide horizontal and vertical views of inspected objects in a single pass.
  • Large inspection tunnel: A 1,000 × 1,000 mm tunnel accommodates oversized baggage and bulky freight.
  • Low-profile conveyor: An approximately 350 mm conveyor height supports easier loading and integration with external feed and discharge systems.
  • Heavy-duty handling: Supports evenly distributed conveyor loads of up to 200 kg.
  • Flexible conveyor speed: Standard speed of 0.2 m/s, with an optional 0.5 m/s configuration.
  • High-resolution imaging: Wire resolution up to AWG 41 supports detailed examination of screened objects.
  • Steel penetration: Up to 37 mm, according to manufacturer specifications.
  • HiTraX 3 image processing: Provides image enhancement tools to support operator assessment.
  • Optional iCMORE software: Supports automated threat-detection applications, including weapons and lithium batteries, depending on the selected configuration.
  • System integration: Designed to connect with external material-handling systems and centralized image-processing networks.
  • Modular construction: Common components and flexible configuration options support maintenance and integration planning.

Applications

The Smiths Detection SDX 100100 DV LC is suitable for:

  • Airport and air cargo security screening
  • Customs and border inspection facilities
  • Oversized baggage screening
  • Break-bulk freight and parcel inspection
  • Courier and logistics distribution centers
  • Automated conveyor and material-handling installations
  • Government and critical infrastructure facilities
  • High-security freight and cargo operations

Efficient Screening for Heavy and Oversized Freight

The SDX 100100 DV LC combines dual-view imaging with a low conveyor design to support the inspection of bulky items while helping reduce manual handling demands. Its integration options allow it to form part of a wider cargo-screening workflow, while optional automated detection software can provide additional assistance in identifying selected threats.
