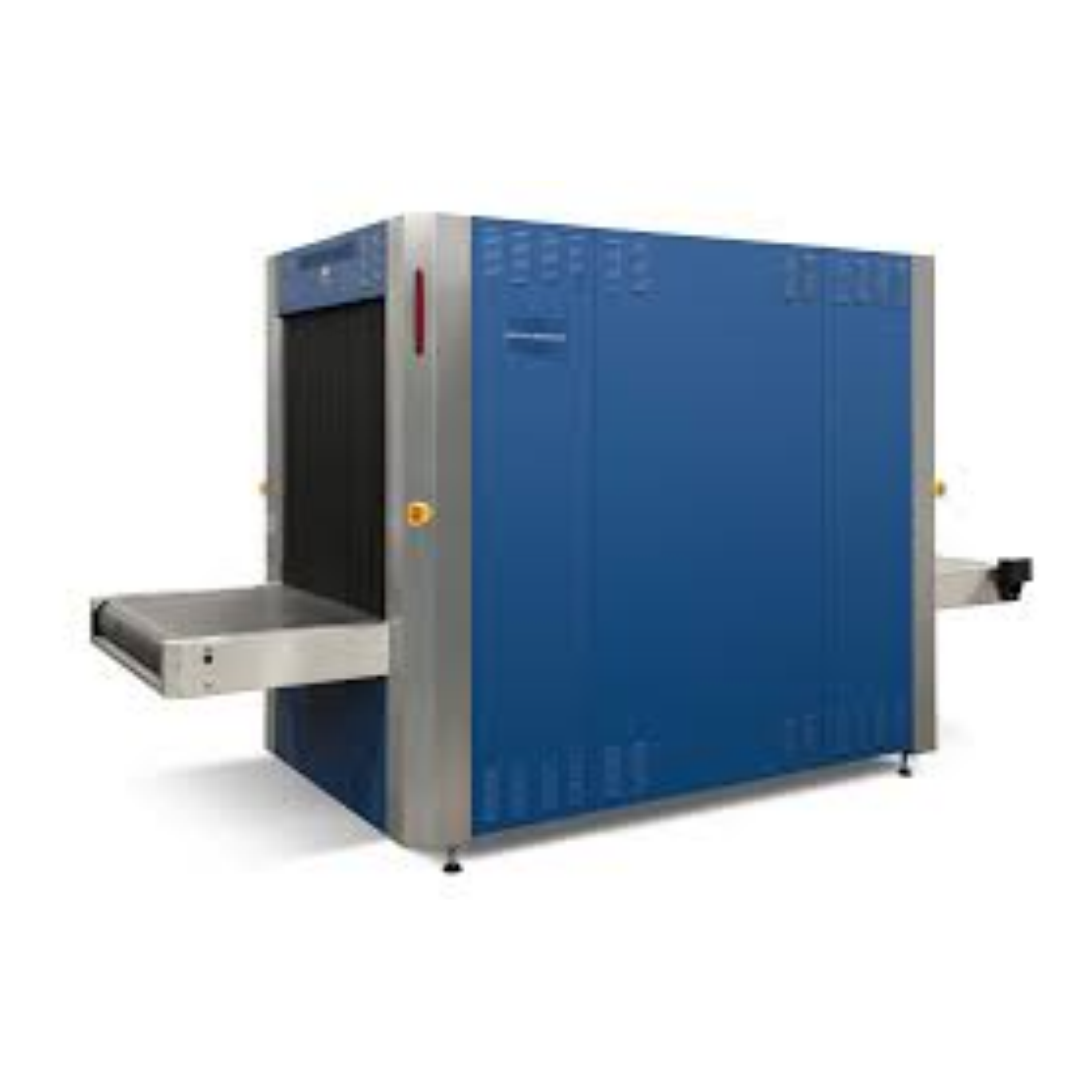

Smiths Detection SDX 100100 HC

The Smiths Detection SDX 100100 HC is a high-conveyor X-ray screening system designed for oversized baggage, break-bulk freight and heavy parcels. It features a 1,000 × 1,000 mm inspection tunnel, a 160 kV X-ray generator and a conveyor capacity of up to 200 kg. With HiTraX 3 image processing, optional iCMORE automated threat detection and integration capabilities, it is suitable for airports, customs facilities and cargo-screening operations.

Compare
SKU: SDX 100100 HC Categories: , , ,

Smiths Detection SDX 100100 HC

Availability will be confirmed on request.
Check Availability

Request Bulk Price

Product Specifications

Automated Threat Detection Optional iCMORE Weapons Detection and Lithium Battery Detection
Conveyor Design Ergonomic High Conveyor
Conveyor Height Approximately 750 mm
Conveyor Load Capacity 200 kg
Conveyor Speed 0.2 m/s
Detection Capability Threat and Contraband Detection
Dimensions 3591 (L) x 1410 (W) x 1992 (H) mm
Image Processing Platform HiTraX 3
Image Quality High-Quality X-Ray Images with Advanced Image Enhancement
Imaging Technology Single-View X-Ray Imaging
Key Features 160 kV X-ray generator; high-conveyor design; 200 kg load capacity; 37 mm steel penetration; AWG 40 wire resolution; HiTraX 3 image processing; optional AI-based threat detection
Maintenance Modular Design with Common Parts for Reduced Maintenance Time and Cost
Maximum Object Size 1000 mm x 1000 mm (39.4” x 39.4”)
Operational Benefit Screens large and heavy items with high-quality X-ray imaging while ergonomic conveyor height helps simplify manual loading and unloading
Optional Accessories Passive Roller Conveyors; Motorised Roller Conveyors; Tunnel Extensions; Barcode Readers; Attendance Detectors; iLOC Monitor Consoles
Primary Application Oversized baggage and break-bulk freight screening
Primary Markets Airports; customs facilities; air cargo hubs; parcel services; freight terminals
Product Category Air Cargo and Oversized Baggage Screening Equipment
Product Type High-Conveyor X-Ray Screening System
Screening Applications Air cargo screening; oversized baggage inspection; parcel screening; customs inspection; threat detection
Steel Penetration Up to 37 mm
System Integration Compatible with External Material Handling Systems and Centralised Image Processing Networks
Weight approx 1450 kg
Wire Resolution Up to AWG 40
X-Ray Generator 160 kV

Smiths Detection SDX 100100 HC

Efficient screening for oversized baggage and break-bulk freight

The Smiths Detection SDX 100100 HC is a high-performance X-ray screening system designed for inspecting oversized baggage, break-bulk freight and heavy parcels. Its large inspection tunnel and robust conveyor enable operators to screen bulky or heavy objects in demanding airport, customs, logistics and cargo-security environments.

The system features a 160 kV X-ray generator and Smiths Detection’s HiTraX 3 image-processing platform to produce detailed X-ray images that support operator assessment. Its elevated conveyor design helps reduce manual handling strain and supports efficient integration into cargo-screening workflows.

Key Features and Benefits

  • Large inspection tunnel: A 1,000 × 1,000 mm tunnel accommodates oversized baggage, parcels and freight.
  • High conveyor design: A conveyor height of approximately 750 mm supports ergonomic loading and unloading.
  • Heavy-duty conveyor: Handles loads up to 200 kg, evenly distributed.
  • 160 kV X-ray generator: Supports inspection of densely packed objects.
  • High-resolution imaging: Wire resolution down to AWG 40 supports detailed image assessment.
  • High steel penetration: Up to 37 mm, according to manufacturer specifications.
  • HiTraX 3 image processing: Provides image enhancement tools for security operators.
  • Optional iCMORE software: Supports automated detection of selected threats, including weapons and lithium batteries, depending on configuration.
  • Flexible conveyor speed: Standard speed of 0.2 m/s, with an optional 0.5 m/s configuration.
  • Integration capabilities: Connects with compatible external material-handling systems and centralized image-processing networks.
  • Modular construction: Common components and available accessories help support maintenance and operational flexibility.

Applications

The SDX 100100 HC is suitable for:

  • Airport and air cargo security screening
  • Oversized baggage inspection
  • Customs and border-security facilities
  • Freight and logistics hubs
  • Parcel and courier sorting centres
  • Government and critical infrastructure facilities
  • High-security commercial and industrial sites
  • Screening operations involving heavy or bulky objects

Reliable Screening for Large and Heavy Items

The Smiths Detection SDX 100100 HC combines a large inspection tunnel, heavy-load handling and detailed X-ray imaging in a system designed for demanding security operations. Its high conveyor supports ergonomic manual handling, while its integration options enable use in broader cargo and freight-screening workflows.
