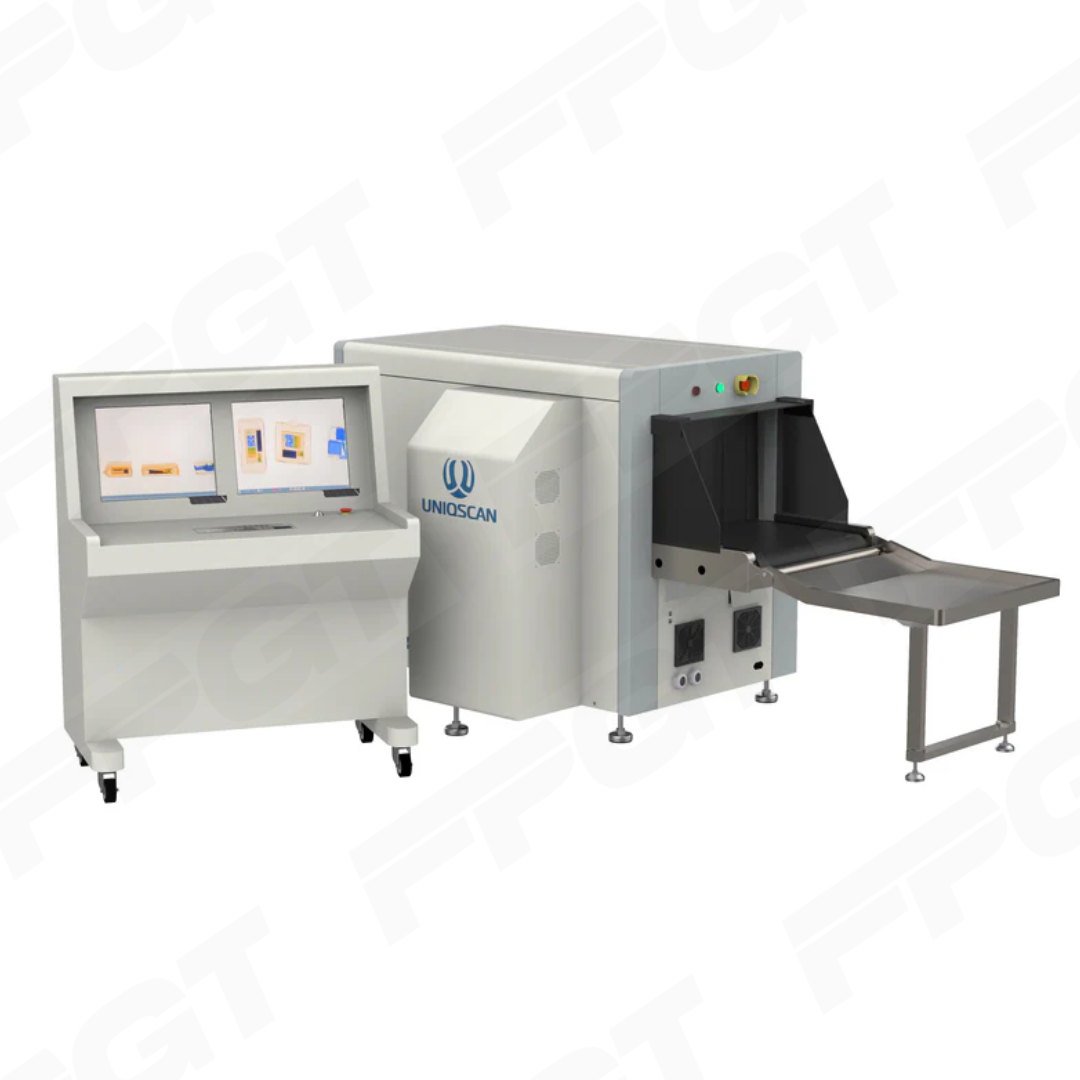

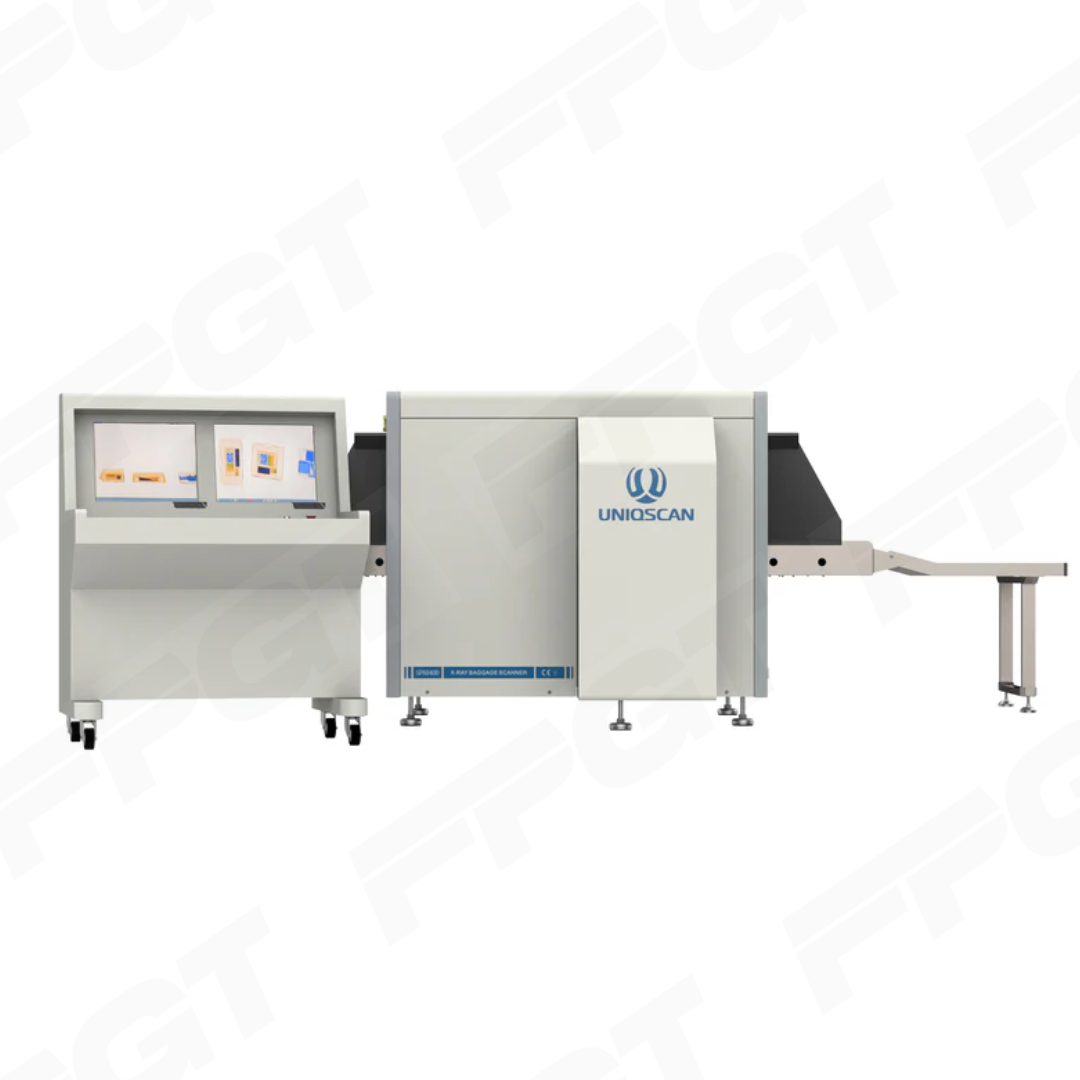

SF6040D Dual-View X-Ray Baggage Inspection System:

The SF6040D integrates dual-view and double-energy imaging technology to provide comprehensive and more accurate threat detection. By minimizing blind spots and improving material identification, it enhances overall inspection reliability. This model is ideal for high-security environments such as courts, embassies, correctional facilities, and logistics centers requiring advanced screening precision.

Features:

• Dual‑view imaging – two X‑ray generators provide orthogonal views, eliminating blind spots.

• Tunnel size: 600 mm (W) × 400 mm (H).

• X‑ray generator: 100–160 kV, tube current 1.0 mA.

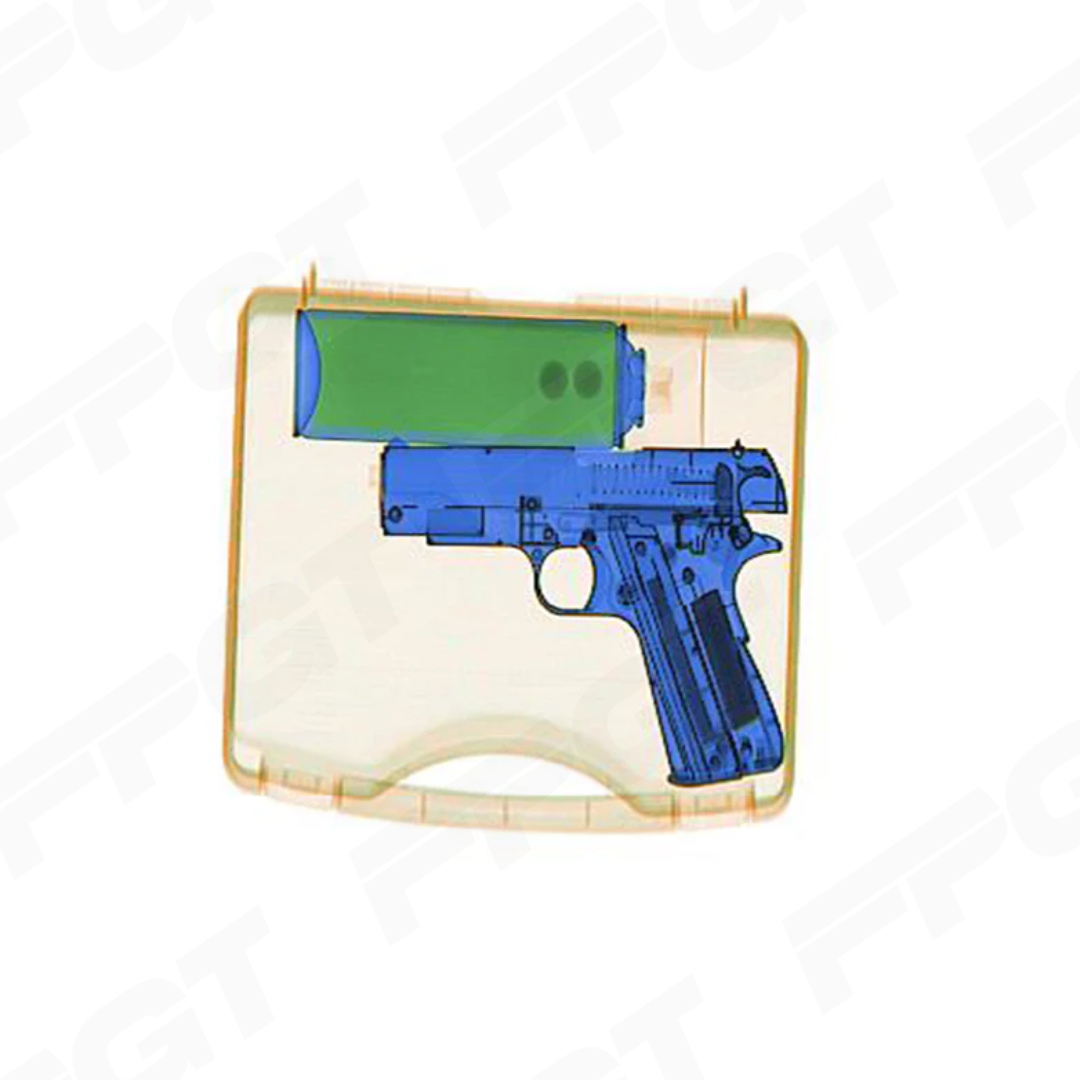

• Dual‑energy technology for material discrimination (organic/inorganic/metal).

• Steel penetration: 40 mm standard.

• Detector: L‑type photodiode array.

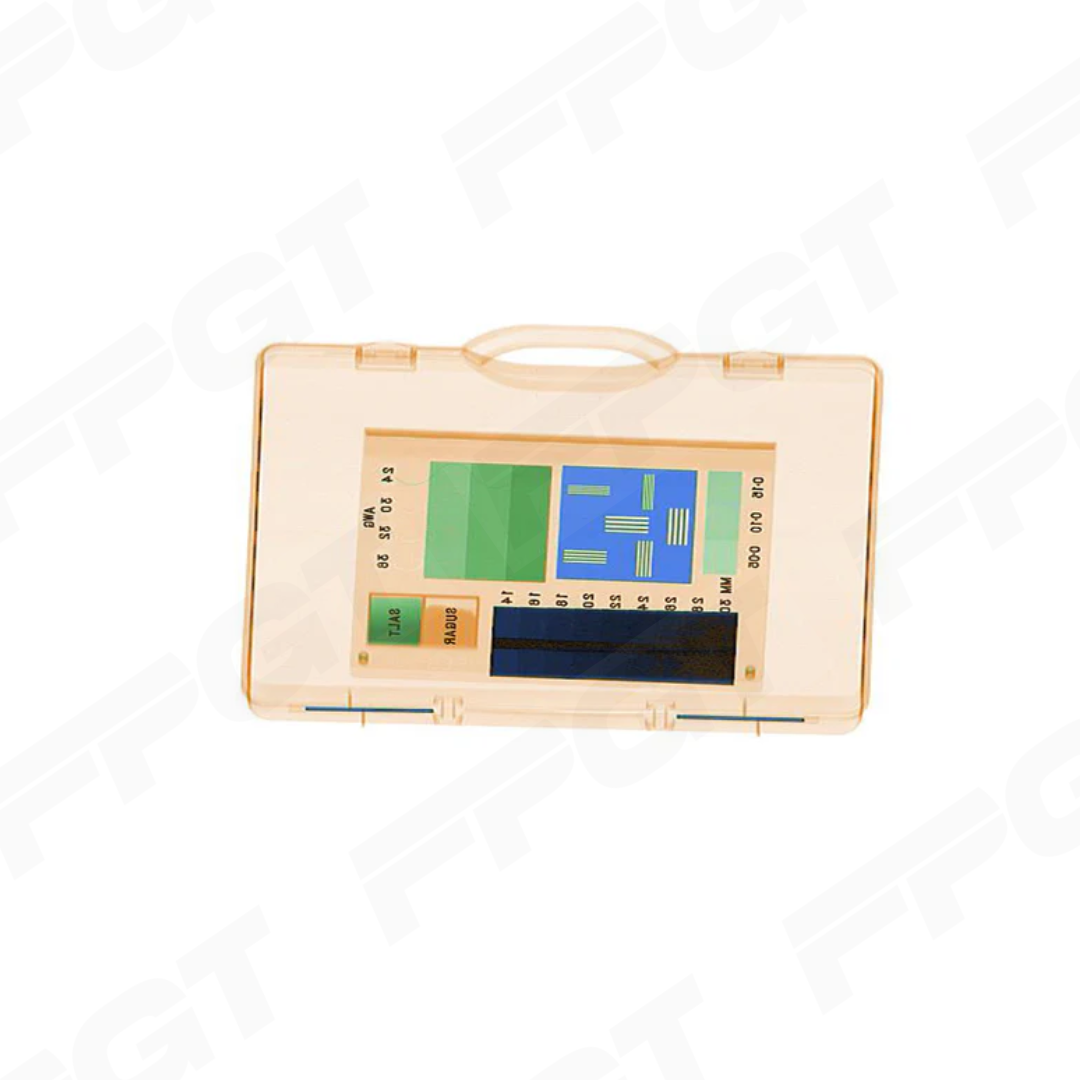

• Wire resolution: 40 AWG (0.0787 mm metal line).

• Radiation leakage: ≤0.1 μGy/h at 5 cm from shell.

• Conveyor speed: 0.22 m/s, load capacity 170 kg.

• Conveyor height: 652 mm ±50 mm adjustable.

• Display: Two 24‑inch LCD color monitors, 1920×1080 resolution.

• Operating system: Windows 7 (Windows 10 optional).

• Storage: 1 TB HDD, up to 100,000 images, 30‑day adjustable retention.

• Optional: AI object recognition, remote network monitoring, UPS, fingerprint login, entrance/exit roller tables, 6‑color imaging, Windows 10.

Benefits:

• Eliminates blind spots – dual‑view technology captures two orthogonal angles, so objects hidden behind dense materials in one view are clearly visible in the other. This dramatically improves threat detection reliability.

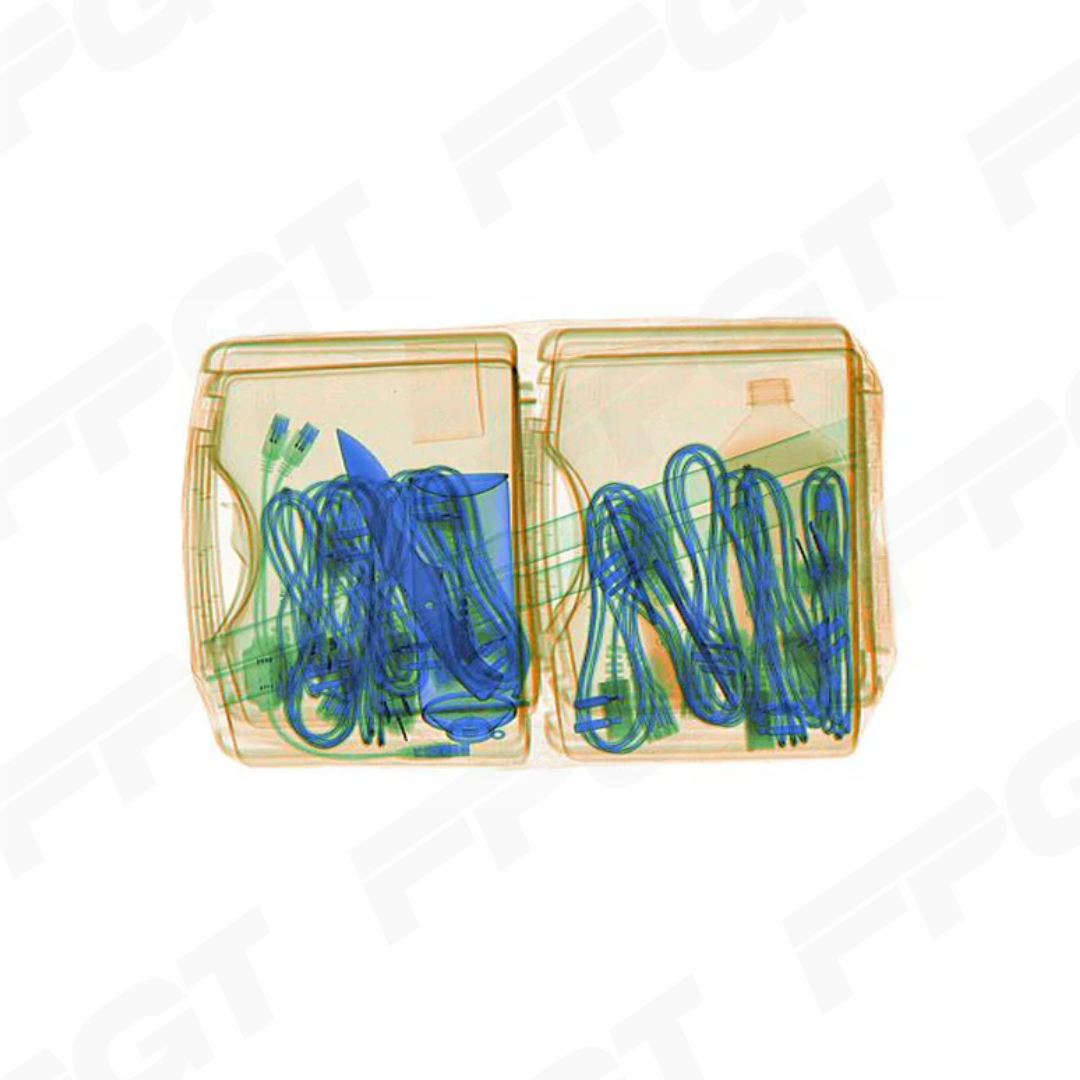

• Exceptional penetration – 40 mm steel penetration (160 kV) sees through thick laptops, toolboxes, and bundled cables, ensuring nothing is missed.

• Operator‑friendly workstation – two large 24” monitors let operators compare views simultaneously; real‑time tools (zoom, edge enhancement, color reversal) speed up decision‑making.

• Continuous high‑throughput screening – 100% duty cycle, no warm‑up, and 0.22 m/s conveyor keep baggage moving even during peak hours.

• Rugged and reliable – sealed oil‑bath cooling, reinforced construction, and wide operating temperature range allow 24/7 use in demanding environments.

• Customizable to your security needs – optional AI threat recognition, remote monitoring, UPS, and roller tables let you adapt the system to courts, embassies, logistics centers, or any high‑security facility.

• Large data storage – keep up to 100,000 images with adjustable 30‑day retention, supporting audit trails and post‑event analysis.

Description

• Display: High-resolution 19-inch color LCD display；
• Color quality: 24-Bit
• X-ray sensor—L type photodiode array detector (energy), 24-bit depth
• Single energy: L-shaped Array detector
• Beam Direction: Upward;
• Tube Current: 1.0mA;
• Anode voltage: 100-160KV;
• X-ray divergence angle: 80 °;
• Cooling: Sealed oil bath with forced air;
• Sealed oil bath with forced air/100%;
• Warranty 12months
• Have CE , ISO, FCC, ROSH certification
