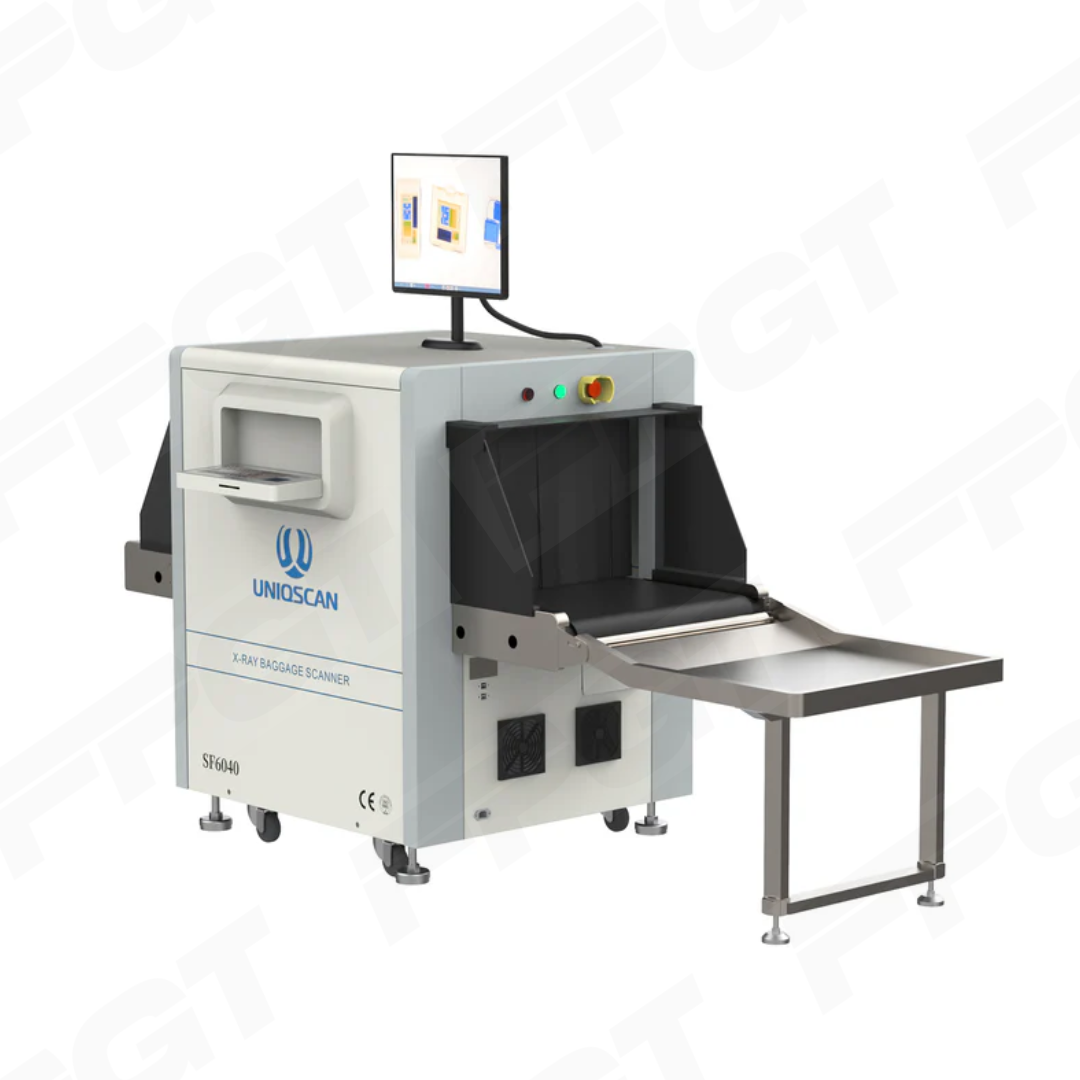

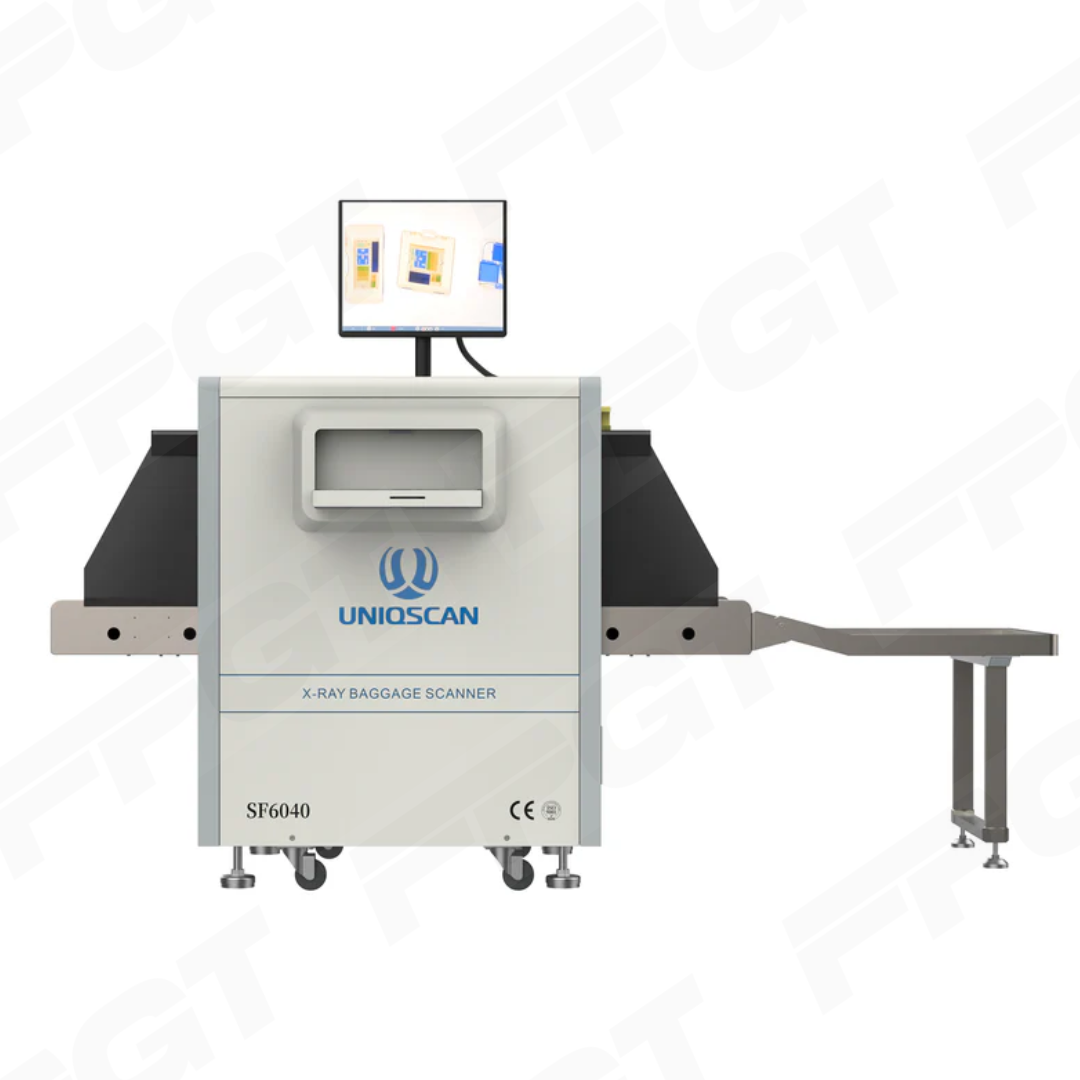

SF6040 X-Ray Baggage Inspection System for Medium Parcel and Handbag:

The SF6040 offers enhanced screening capability with a 600 × 400 mm tunnel size, making it suitable for carry-on luggage and medium-sized parcels. Equipped with advanced imaging technology and high penetration performance, it delivers clear and precise inspection results. Designed for durability and ease of operation, it is widely used in government facilities, transportation hubs, exhibition centers, and industrial environments.

Feature:

• Tunnel size: 600 mm (W) × 400 mm (H) – ideal for carry‑on luggage and medium parcels.

• X‑ray generator: 160 kV, tube current 0.4–1.2 mA (adjustable).

• Penetration: 36 mm steel.

• Detector: L‑type photodiode array.

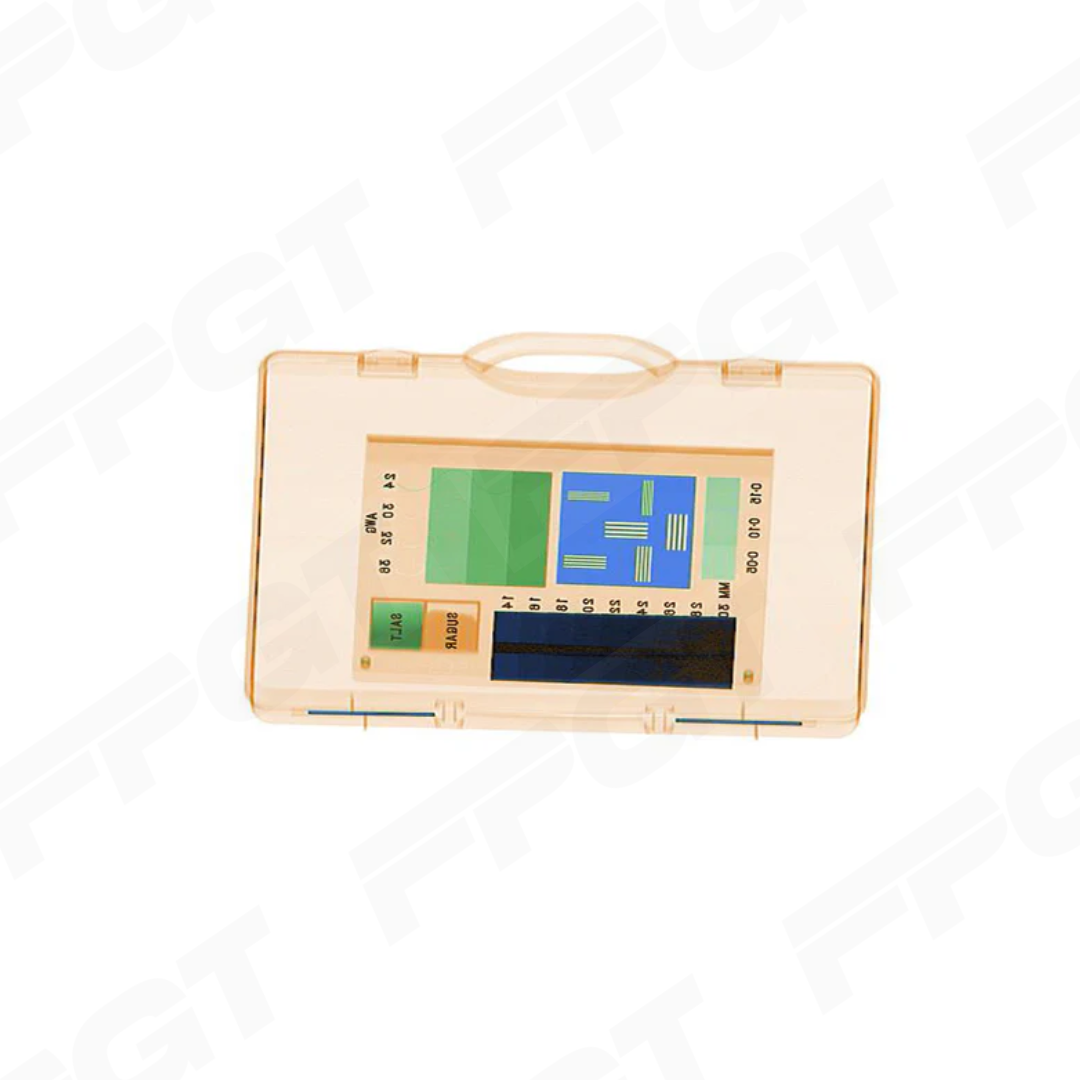

• Wire resolution: 40 AWG (0.0787 mm metal line).

• Radiation leakage: ≤0.1 μGy/h at 5 cm from shell.

• Conveyor speed: 0.22 m/s, load capacity 150 kg.

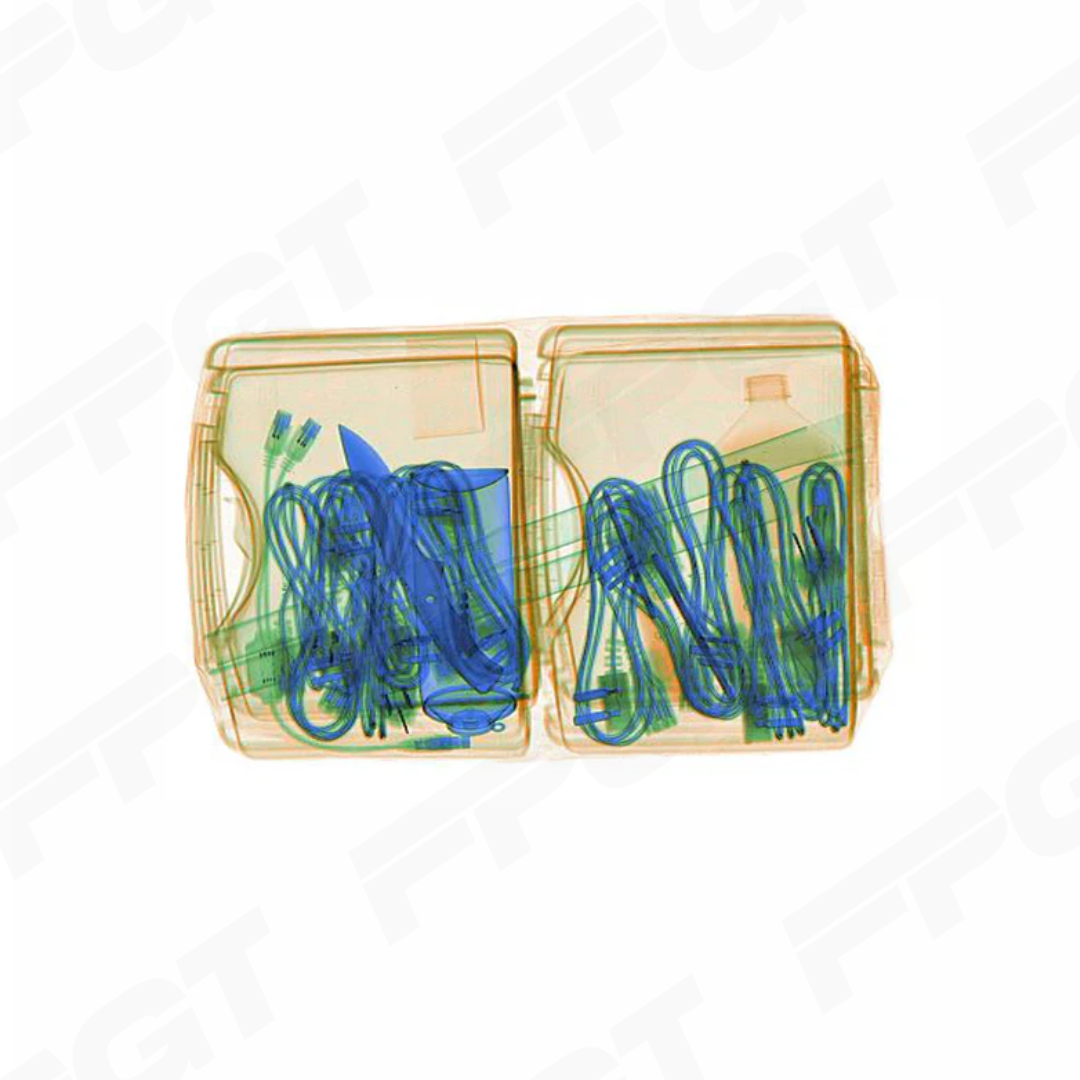

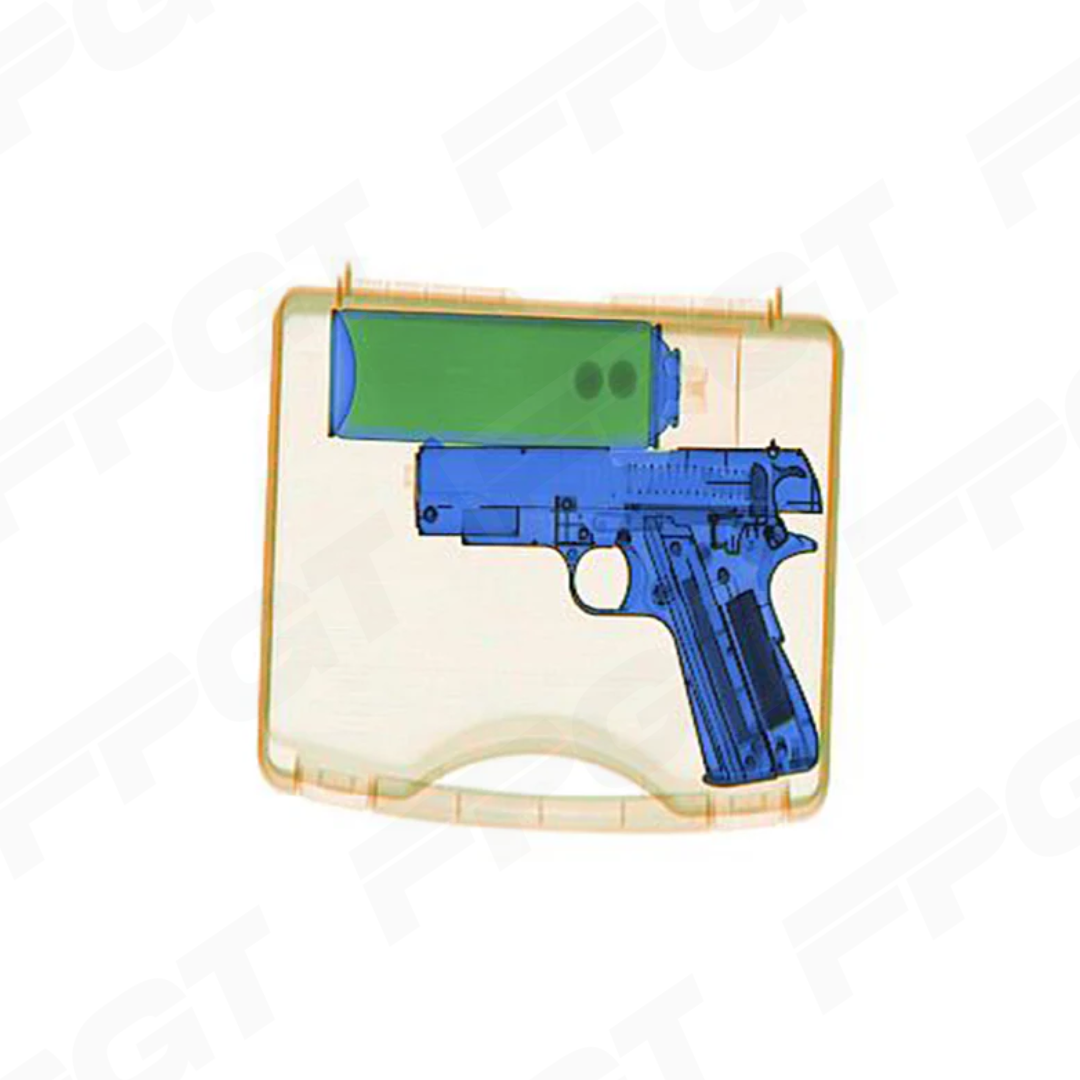

• Image processing: 3‑color pseudo‑color (6‑color optional), edge enhancement, reverse monochrome, material discrimination, 64x zoom, real‑time archiving.

• Optional: AI object recognition, remote network monitoring, UPS, fingerprint login, entrance/exit roller tables.

Benefits:

• High‑penetration capability – the 160 kV generator with adjustable current sees through dense objects (e.g., toolboxes, thick electronics), ensuring nothing is missed.

• Exceptional image clarity – L‑type detector and 40 AWG resolution reveal even the smallest threats, reducing false alarms and improving operator confidence.

• Safe for operators and public – extremely low radiation leakage (<0.1 μGy/h) and full certification meet the strictest international safety standards.

• Ergonomic & efficient – conveyor height can be adjusted (±50 mm) for operator comfort, and the 0.22 m/s speed keeps baggage flow moving without bottlenecks.

• User‑friendly interface – large 24” high‑resolution screen and integrated keyboard/mouse make image analysis easy; real‑time image tools (zoom, edge enhancement, colorization) speed up inspection.

• Reliable 24/7 operation – 100% duty cycle, no warm‑up needed, and rugged construction allow continuous use in high‑traffic environments like airports and government buildings.

• Flexible data management – store up to 100,000 images with adjustable retention, helping security teams review and archive screening records effortlessly.

• Customizable to your workflow – optional AI threat recognition, remote monitoring, UPS, and roller tables let you tailor the system exactly to your security requirements.

• Wide application range – suitable for exhibition centers, courthouses, prisons, hotels, and industrial sites – any place where hand luggage and small parcels need fast, reliable screening.

Description

• Display: High-resolution 19-inch color LCD display
• Color quality: 24-Bit
• X-ray sensor—L type photodiode array detector (energy), 24-bit depth
• Single energy: L-shaped Array detector
• Beam Direction: Upward
• Tube Current: 1.2mA
• Anode voltage: 180 Kv, Operating at 165 kv.
• X-ray divergence angle: 80 °
• Cooling: Sealed oil bath with forced air
• Sealed oil bath with forced air/100%
• Warranty Two years
• Have CE , ISO, FCC, ROSH certification
