XRC 60-40P
- Suitable for narrow spaces
- Latest generation technology and practical use
- Weapons, knives, explosives, etc. hazardous alarm
- Automatic archiving
- Detailed viewing
- Organic-inorganic separation (Dual Energy)
- Upgradable software based on Linux

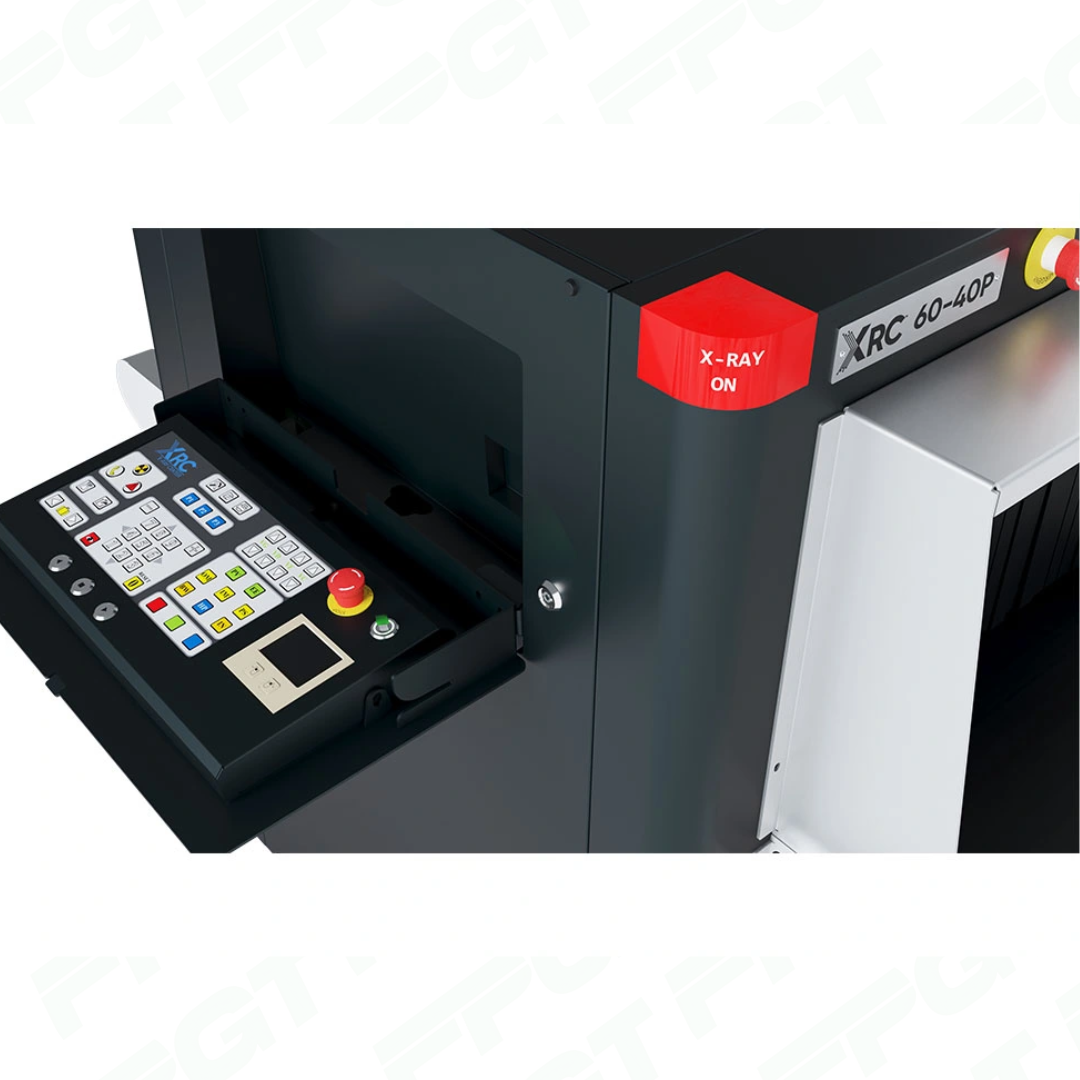

- Folding and lockable side console
- Multilanguage support
Product Specifications
| Alarm System | Organic and inorganic threat alarm indication |
|---|---|
| Applications | Airports courthouses offices malls prisons and hotels |
| Conveyor Capacity | 165 kg evenly distributed load |
| Conveyor Speed | 0.20 m/sec forward and reverse |
| Cooling System | Oil and forced air cooling system |
| Detection Capability | Detects explosives narcotics weapons and concealed threats |
| Detection Coverage | Suitable for cabin baggage parcels and small cargo inspection |
| Detection Technology | Advanced multi diode X ray imaging system |
| Display Features | Multi Energy Viewer and Atomic Number Display |
| Generator Power | 170kV operating at 147kV |
| Image Processing | Perfect View Edge Enhancement Pseudo Color and Sniper Zoom |
| Manufacturer | X-Ray Center |
| Material Separation | Organic inorganic and metallic material analysis |
| Product Name | XRC 60-40P X Ray Baggage Scanner |
| Product Type | Compact Baggage and Parcel X Ray Inspection System |
| Software Platform | Linux based upgradable operating system |
| Steel Penetration | 37 mm guaranteed and 39 mm typical |
| Tunnel Size | 620 mm x 420 mm |
| Wire Resolution | 38 AWG guaranteed and 40 AWG typical |
XRC 60-40P Documents

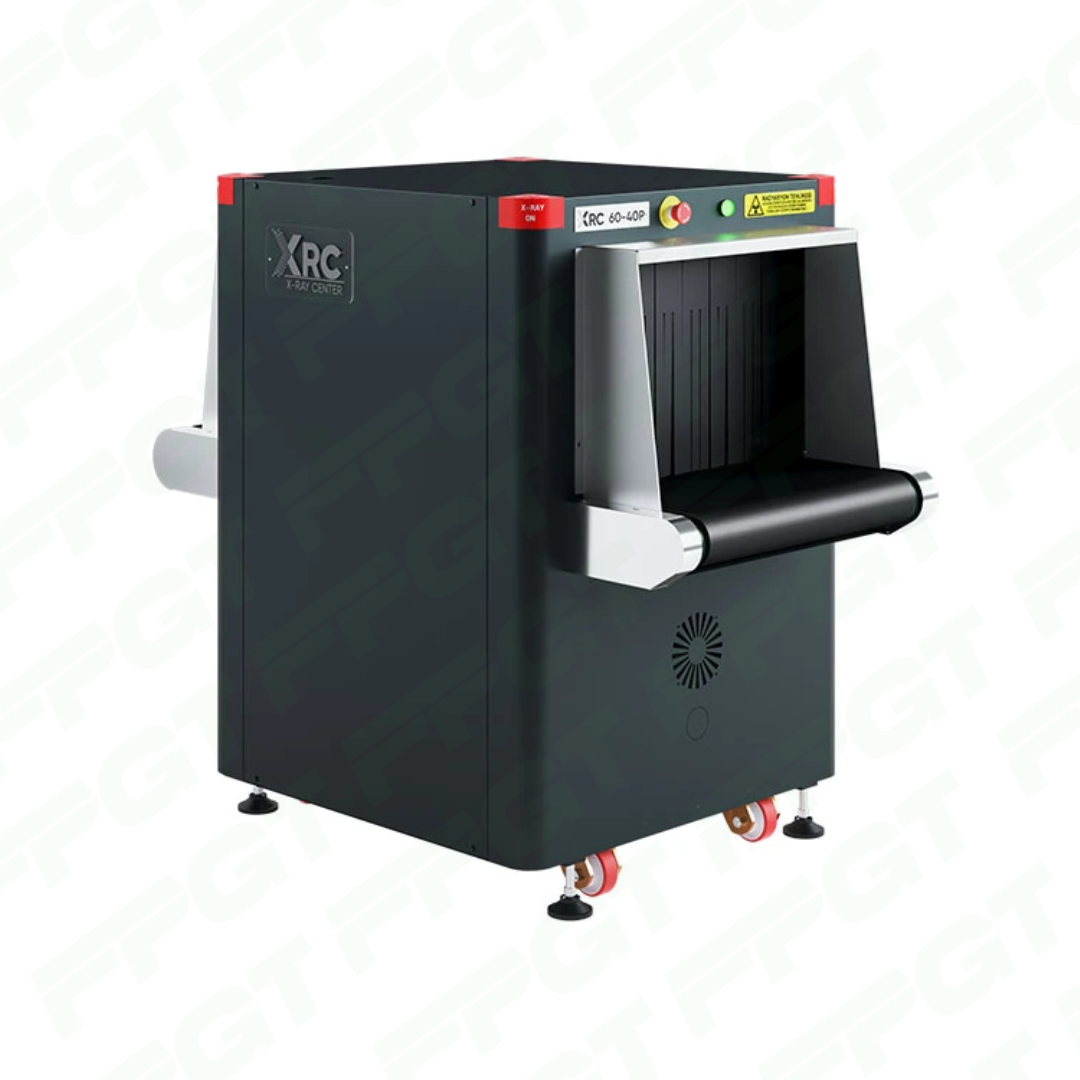

XRC 60-40P X-ray Baggage Scanning Machine
- Suitable for narrow spaces
- Latest generation technology and practical use
- Weapons, knives, explosives, etc. hazardous alarm
- Automatic archiving
- Detailed viewing
- Organic-inorganic separation (Dual Energy)
- Upgradable software based on Linux
- Folding and lockable side console
- Multilanguage support
| Tunnel Size | :610 mm (W) x 420 mm (H) | |
| :24,02 in (W) x 16,54 in (H) | ||
| Dimensions | ||
| Length | :1472 mm (57,95 in) | |
| Height | :1270 mm (50,00 in) | |
| Width | :870 mm (34,25 in) | |
| Approx. Weight Unpacked | :455 kg (1003 lbs) | |
XRC 60-40P model x-ray baggage scanner’s various image processing functions, hazard alarm, advanced computer technology and the best in class software features facilitates the operators usage. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate. Thanks to its multi-diode structure and quality in imaging of scanned objects, image is colored based on density and shows organic, inorganic and mixed materials in different tones.
This x-ray machine is a preferred model for locations with limited operating space and it is an efficient and a powerful device for scanning small handbags, packages parcels and cabin baggage in detail. Courts, police departments, offices, shopping malls, prisons and hotels are its main areas of application.
STANDARD IMAGE PROCESSING FEATURES
- Perfect View (Detail Enhancement) (PV)
- Edge Enhancement (EE)
- Pseudo Color (PS)
- Organic Materials (OM)
- Inorganic Materials (IM)
- Black & White (B/W)
- Inverse Colors (IN)
- High Penetration (HP)
- Variable Edge Enhancement (+E –E)
- Variable Density (+D –D)
- Variable Gamma (+G –G)
- Variable Color Separation (+C –C)
- Zoom (64x)
- Sniper Zoom
- Recall Previous Images
- Manual/Automatic Archive
- Annotated Archive
- Multi Energy Viewer (4 – 6 Color)
- Atomic Number Display (Z Value)
STANDARD FEATURES
- Programmable Function Keys
- Parcel Counter
- Date and Time Display
- Virtual Threat Image Projection (TIP)
- Organic/Inorganic Threat Alarm
- Operator Training Program (OTP)
- UPS (For Computer Supply)
- Multi Languages
- Self Diagnosis
- Generator Timer
- Bi-Directional Scanning
- Automatic Stop Conveyor
- Emergency Stop Buttons
