XRC 85-85 – XRC X-ray Center – X-ray Baggage Scanning machine – Tunnel size 85mm x 85mm
XRC 85-85 Datasheet
XRC 85-85 Datasheet
Additional information
| Weight | 1145 kg |
|---|---|
| Brand | XRC |
| Customer Application | X-ray Baggage Scanning |
| Customer Type | Airports, Exhibitions, Hotel, Jail / Prison, Law Enforcement |
| Tunnel Size | 85×85 |
| Anode Voltage | 180kV |
Description
XRC 85-85 – XRC X-ray Center – X-ray Baggage Scanning machine – Tunnel size 85mm x 85mm
- Low conveyor unit
- Latest generation technology and practical use
- Organic and inorganic alarm
- Upgradable software based on Linux
- Multilanguage support
| Tunnel Size | :865 mm (W) x 865 mm (H) | |
| :34,06 in (W) x 34,06 in (H) | ||
| Dimensions | ||
| Length | :3070 mm (120,87 in) | |
| Height | :1730 mm (68,11 in) | |
| Width | :1275 mm (50,20 in) | |
| Approx. Weight Unpacked | :1020 kg (2249 lbs) | |
The XRC 85-85 x-ray machine facilitates the placement of heavy objects into the device with the help of low conveyor unit. It simplified the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It makes it extraordinarily easy to scan threats such as cutting tools, explosive narcotics and reduces the rate of error.
It provides unique image quality by showing the scanned organic, inorganic and mixed items in different colors thanks to its multi-diode structure and quality in imaging of scanned objects. It is designed with the latest technology system to scan medium and large bags and packages.
This model x-ray device offers the ideal solution for locations where security screening is required like at high traffic checkpoints as city transportation (metro, ferry, train stations), customs border crossings, prisons, and courier depots, such as international logistics companies, goods acceptance points and etc.
Standard Features:
- Programable Function Keys
- Parcel Counter
- Date and Time Display
- Virtual Threat Image Projection (TIP)

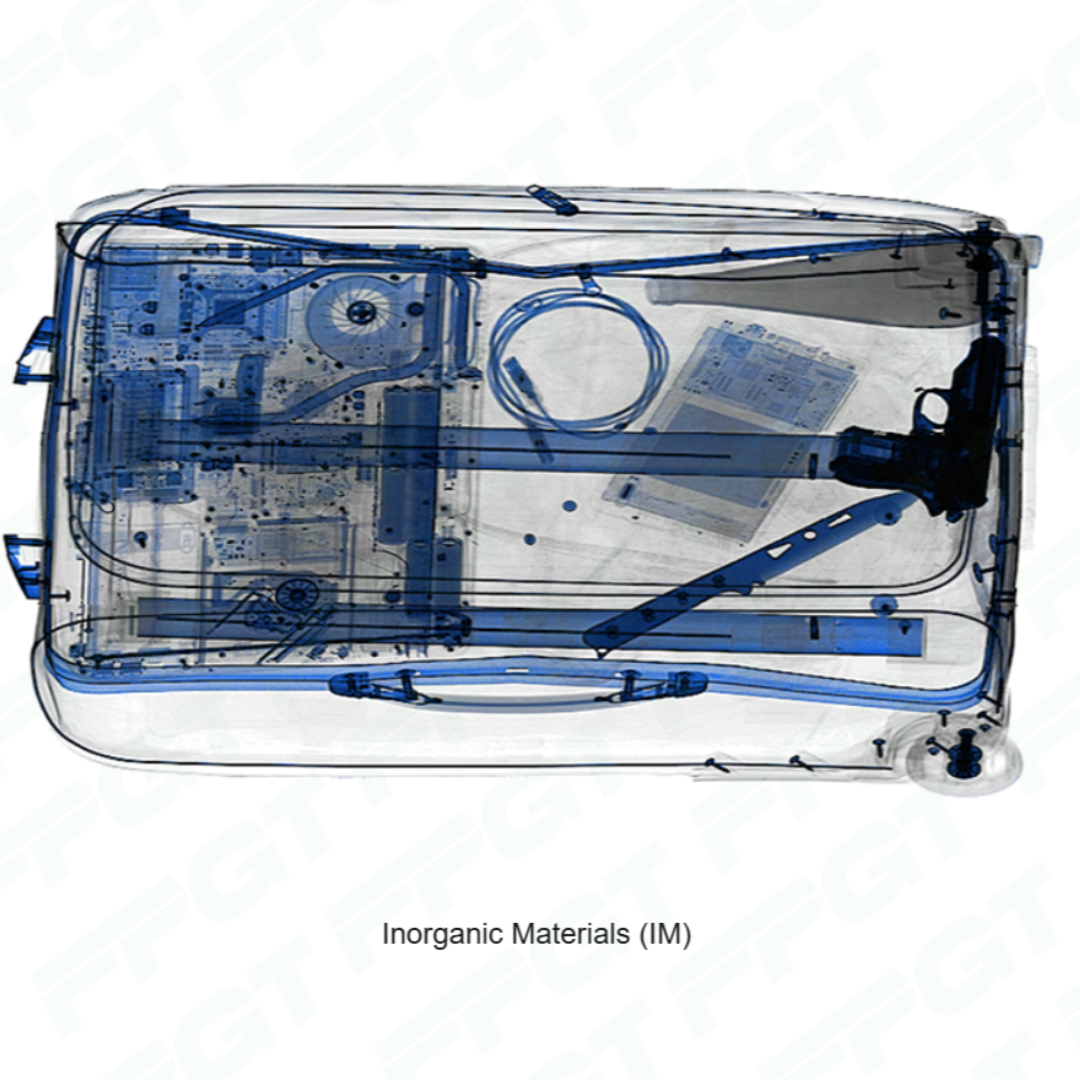

- Organic/Inorganic Threat Alarm
- Operator Training Program (OTP)
- UPS (For Computer Supply)
- Multi Languages
- Self Diagnosis
- Generator Timer
- Automatic Stop Conveyor

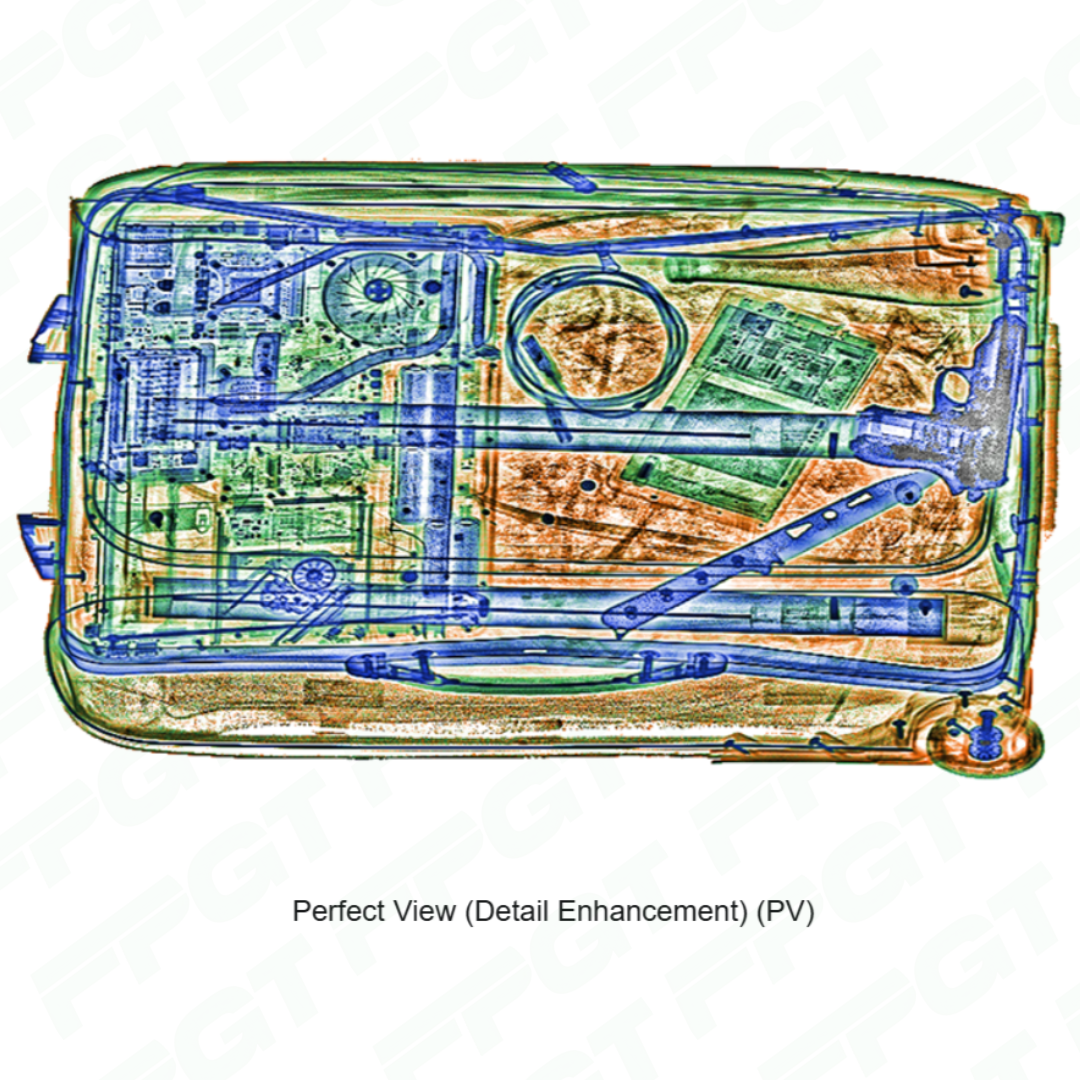

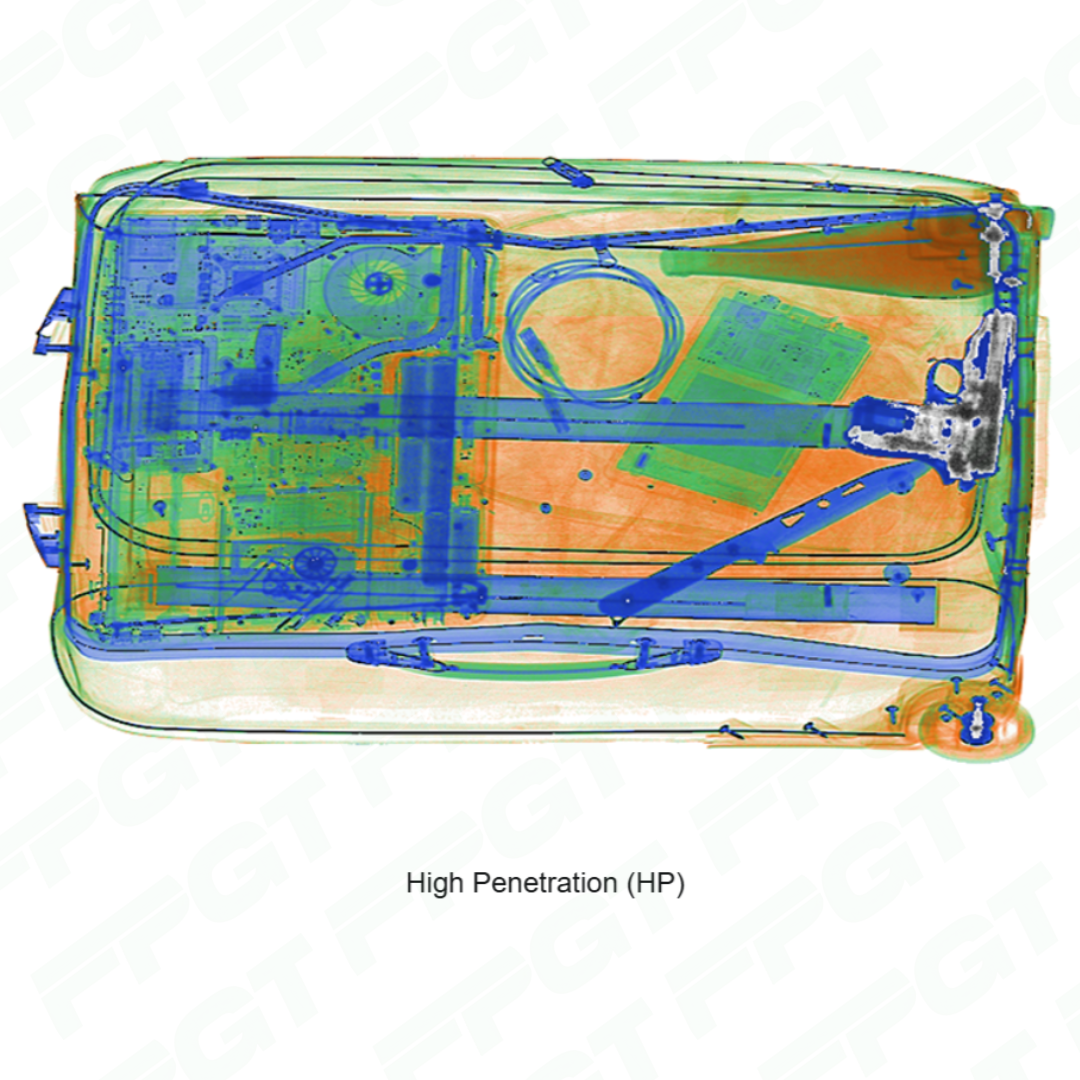

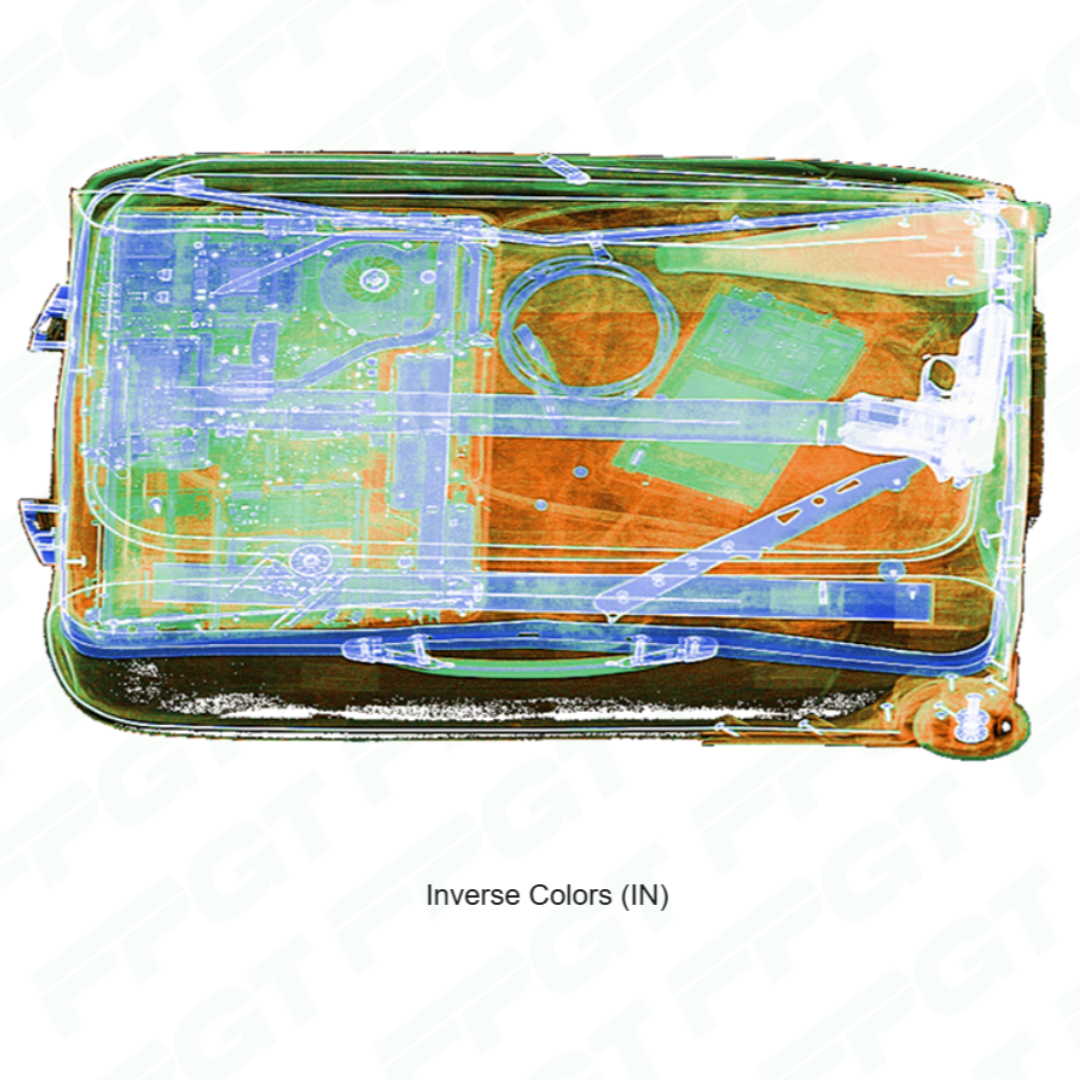

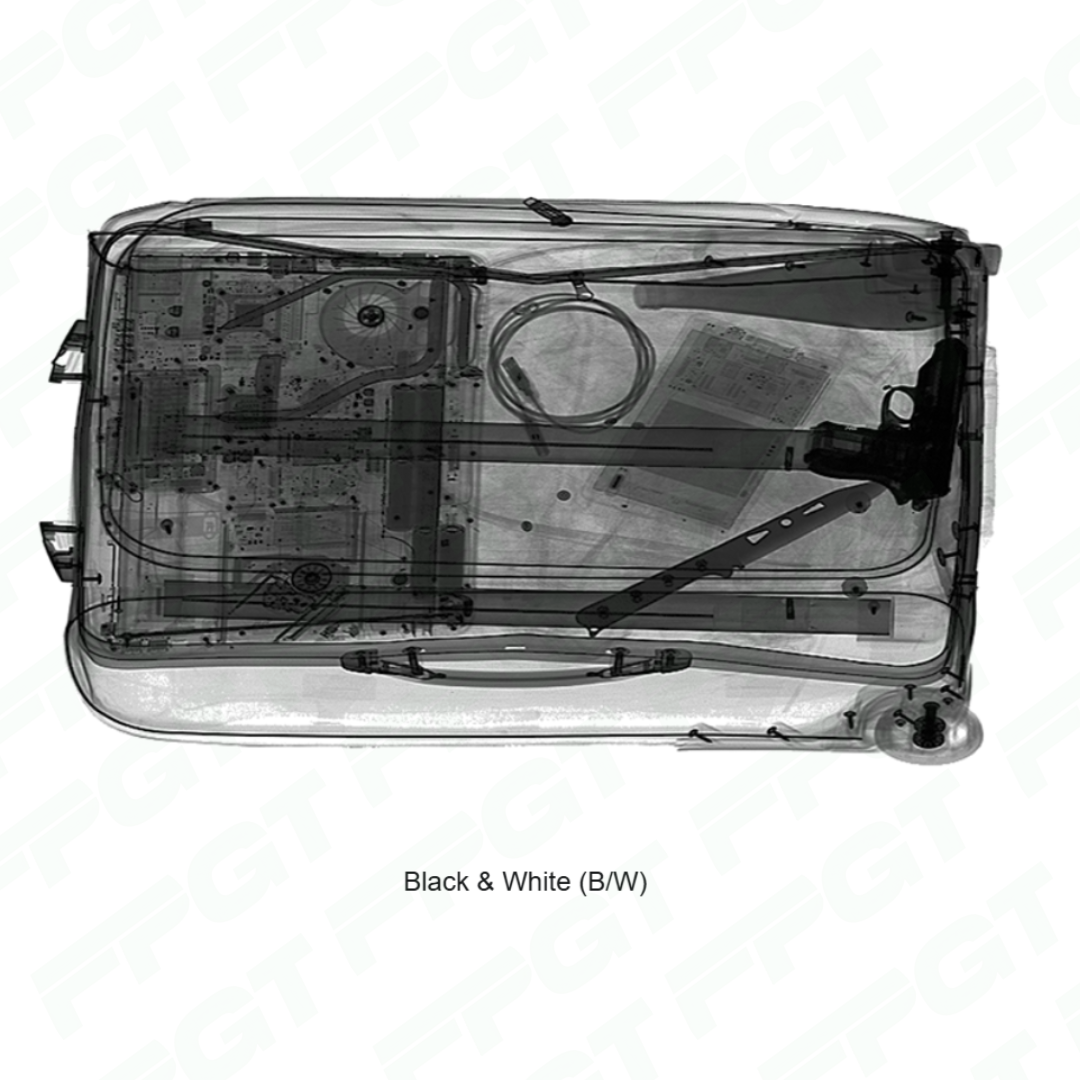

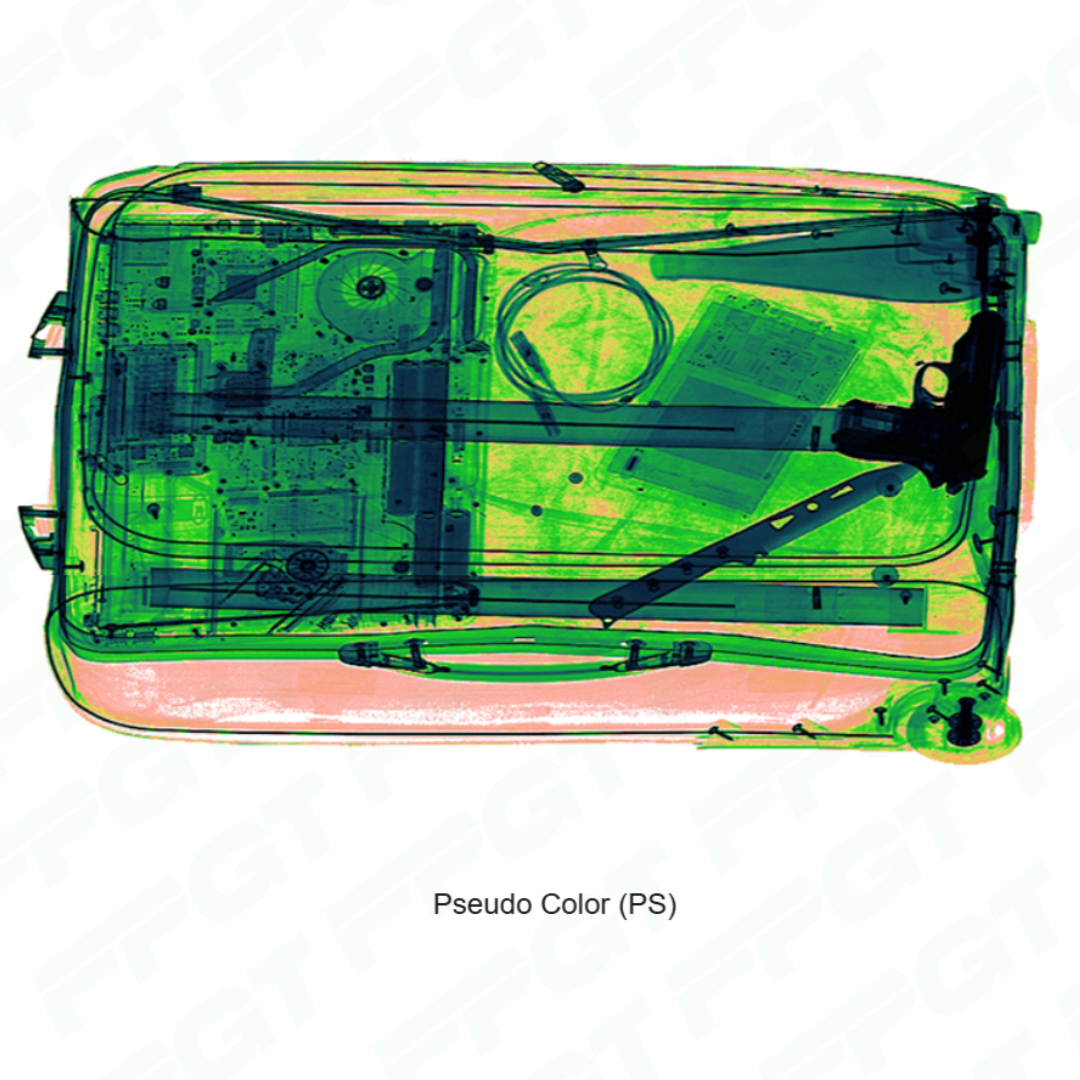

Standard Image Processing Features:

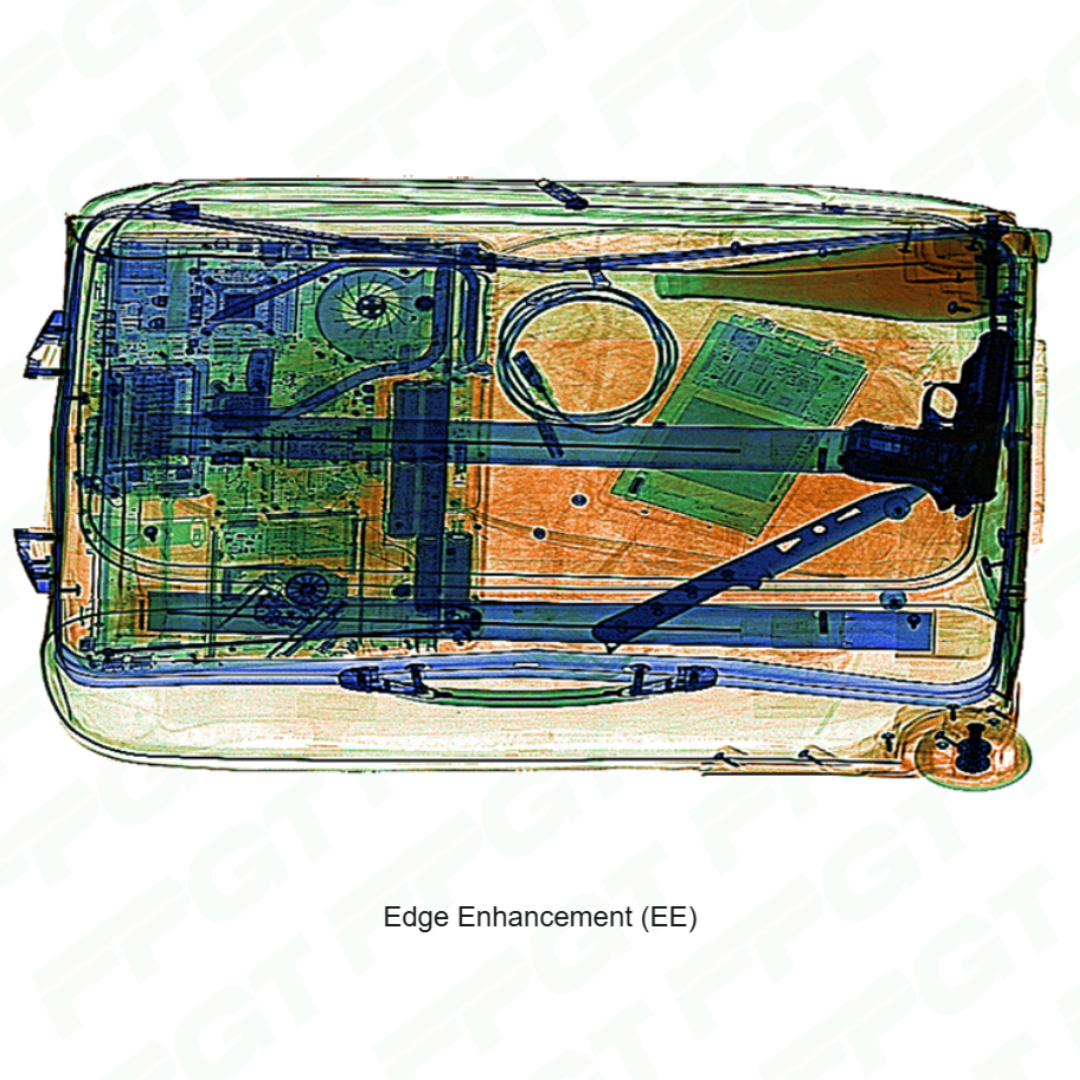

- Variable Edge Enhancement (+E –E)
- Variable Density (+D –D)
- Variable Gamma (+G –G)
- Variable Color Separation (+C –C)
- Zoom (64x)
- Sniper Zoom
- Recall Previous Images
- Manual/Automatic Archive
- Annotated Archive
- Multi Energy Viewer (4 – 6 Color)
- Atomic Number Display (Z Value)
