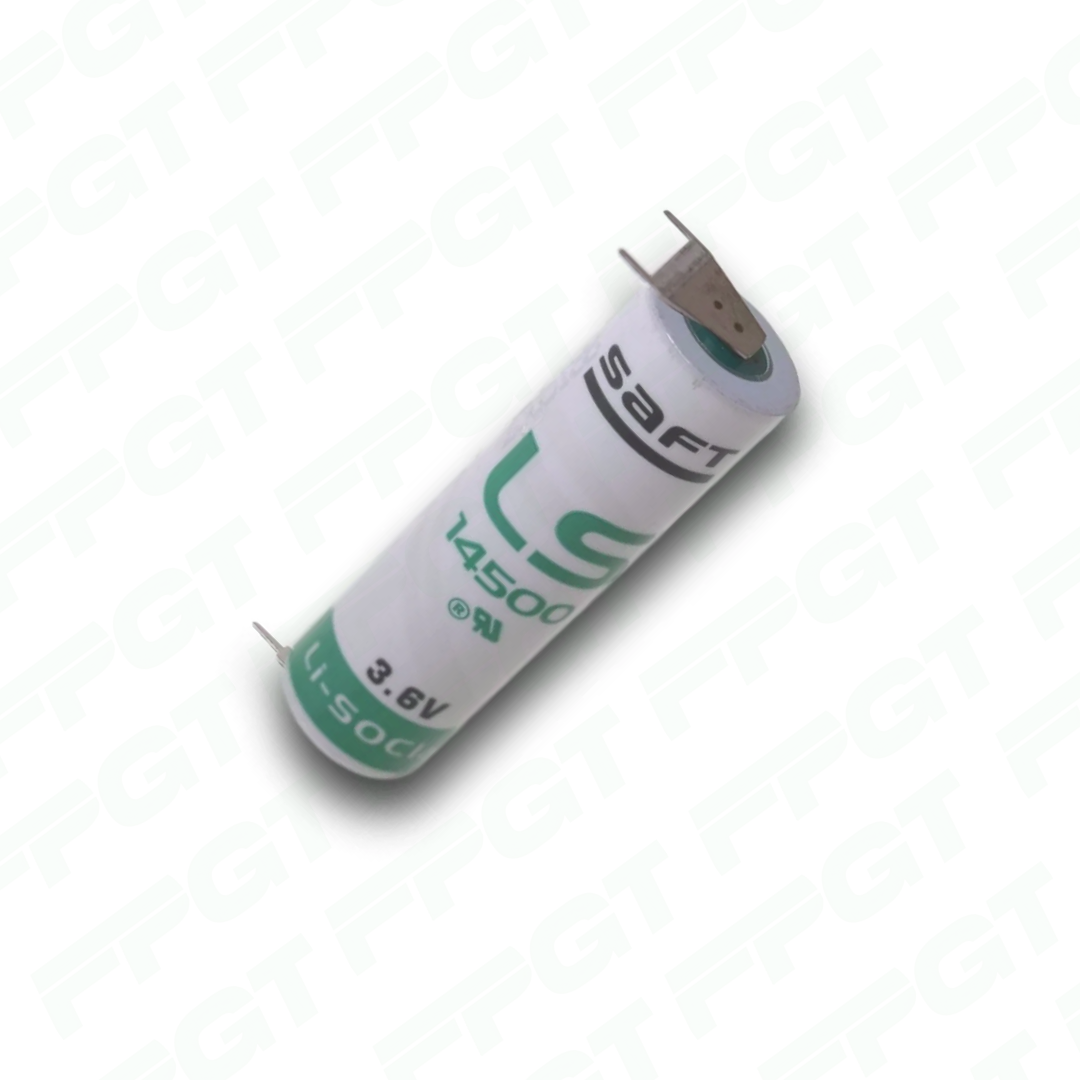

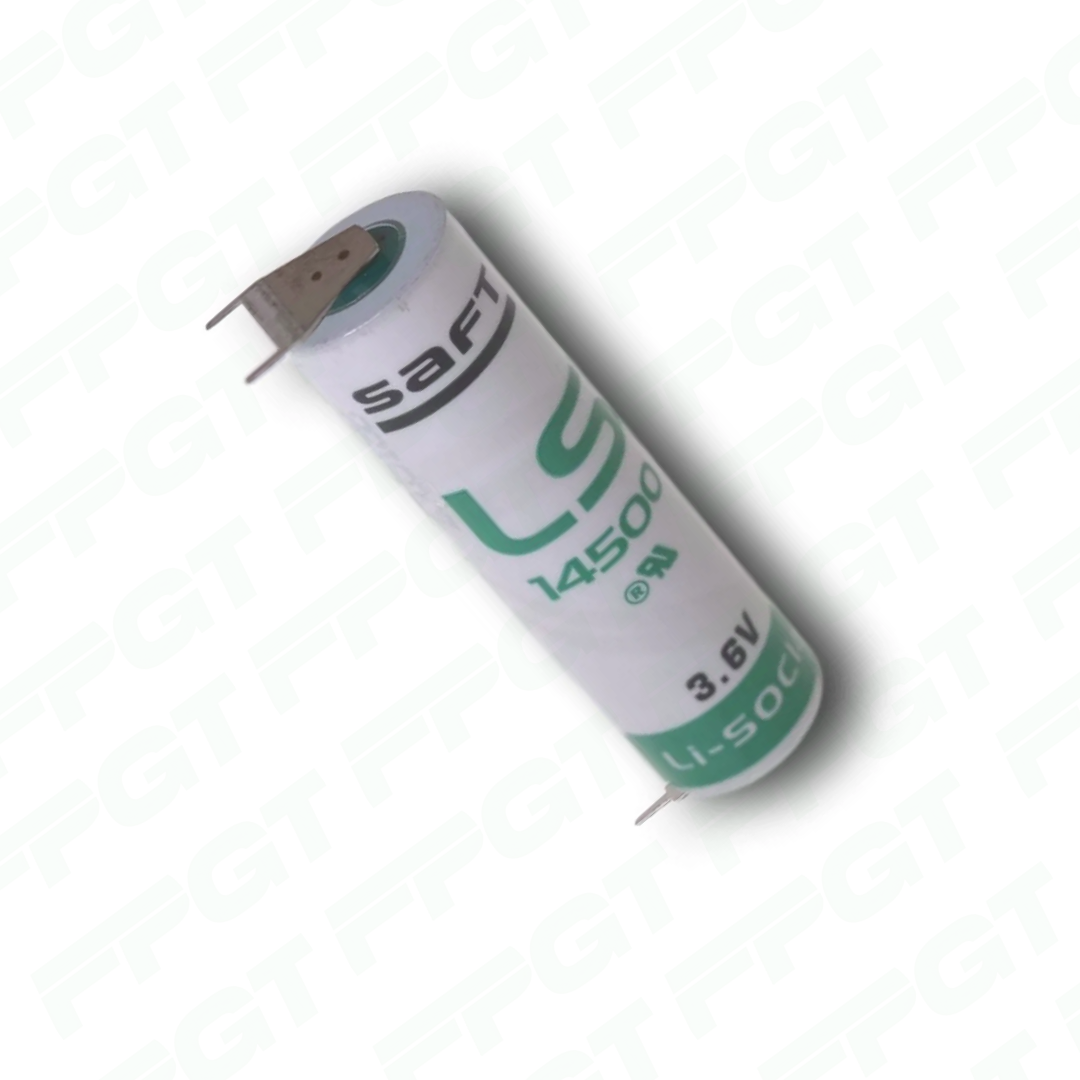

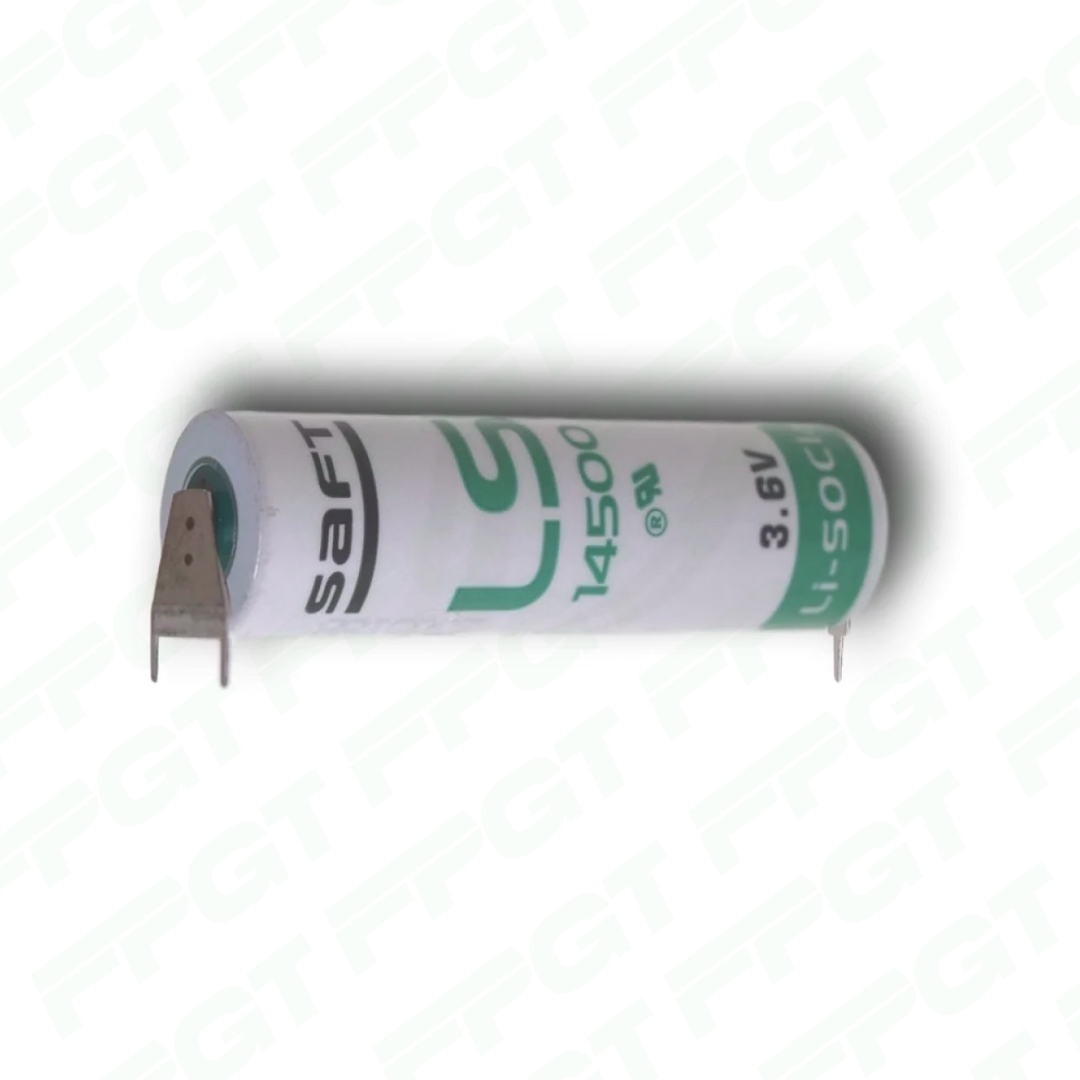

LS 14500 3PF AA lithium battery 3.6V 2600mah with pc pins, two pins on positive terminal & one pin on negative terminal
LS 14500 3PF Documents
Additional information
| Battery Features |
Non-rechargeable |
|---|---|
| Brand | |
| Capacity |
2600 mAh |
| Cell Size |
AA |
| Current Rating |
3.67 V |
| Leads |
3pin, positive pole: 2pin |
| Type of Battery |
Lithium |
Description
Here are the specifications for the Saft LS14500 With PC Pins, 2 Pin on Positive Terminal & 1 Pin on the Negative Terminal primary lithium battery:
- Nominal voltage: 3.6 volts
- Capacity: 2600 mAh
- Chemistry: Lithium-Thionyl Chloride (Li-SOCl2)
- Size: AA (50.5mm x 14.5mm)
- Operating temperature range: -60°C to +85°C
- Shelf life: 10 years
- Weight: 19 grams
- Single PC Pins, 2 Pin on Positive Terminal & 1 Pin on the Negative Terminal
The Saft LS14500 is a long-lasting and high-quality battery designed for demanding applications. It boasts a high energy density of 950 Wh/l, a low self-discharge rate of less than 1% per year at 20°C, and a maximum continuous current of 100 mA. Safety features such as an airtight glass-to-metal seal and a built-in safety vent to release gas during overheating or overcharging make the battery highly reliable and safe for use. The Saft LS14500 with PC pins is a variant that comes with pins attached to the battery terminals, making it easy to solder onto printed circuit boards. This variant can replace various part numbers of other battery brands with PC pins.
Additionally, the Saft LS14500 is designed to replace the following part numbers: 480010, 94060101, 94112601, 96686102, 96726402, 104186-001, 15-5104-21000, 1770-xy, 1771 Series, 1772 Series, 1772-LR, 1772-LS, 1772-LSP, 1772-LW Series A, 1772-LWP Series A, 1772-LX Series B, 1772-LXP Series A, 1785-LT, 1785-LT2, 1785-LT3, 1785-LT4, 3b 940 418-0042, 3B940, 418-0042, 5130-RS2, 5130-RS5, 5150-RM1, 5150-RM2, 5250-LP1, 5250-LP2, 5250-LP3, 5250-LP4, 60-0515-000, 6008-LTV Series, 6135-01-301-8776, 6630-u1, 6632-P3A, 6632-P3B, 6632-P3C, 6633-P3, 6634-P3, 6es5-980-0ae11, 96686102-batt, A-2/05, A-2/16, A-2/17 Series, Cta – 17 C, Er14505h, Er6aa, Er6c, Er6h, Lct2400, Lct2400aae, Ls 14500, LS14500, Ls6, Lst14500, Ltc17c, LTC-17C, Maxell Er6s-tc, Minamoto Er14505, MINI-PLC-2, MINI-PLC-2/05, MINI-PLC-2/16, MINI-PLC-2/17, PLC-5 Series, PLC-5 VME, PLC-5/10 Classic, PLC-5/12 Classic, PLC-5/15 Classic, PLC-5/25 Classic, PLC-5/250 Pyramid Integrator Remote, PLC-5/250 Pyramid Logic Processor, PLC-5/250 Pyramid Resource Manager, PLC-5/30 Enhanced Energy+, Saft Ls-14500c, Series A Basic Module, Series B Basic Module, Sl360, Sl760, Sl-760/s, Sonnenschein Sl-360/s, T06/41, T06/51, Tadiran Tl-5903, Tl-2100, Tl2100/s, Tl2100s, Tl4903, Tl-4903, Tl4903s, TL5104, Tl-510
The Saft LS14500 battery with PC pins can be used as a replacement for various part numbers of other battery brands with PC pin configurations, including:
- Tadiran TLH-2450/P
- Sonnenschein SL-360/P
- Xeno XL-060F/P
- Maxell ER6S-TC/P or ER6S-VC/P
- Panasonic BR-2/3AP
As always, when replacing batteries, it’s essential to ensure that the voltage, chemistry, capacity, and size of the replacement battery match the specifications of the original battery and the requirements of the device or system. Consult the manufacturer’s specifications and guidelines for proper battery replacement procedures, especially when dealing with batteries with PC pins, as proper soldering techniques may be required.
