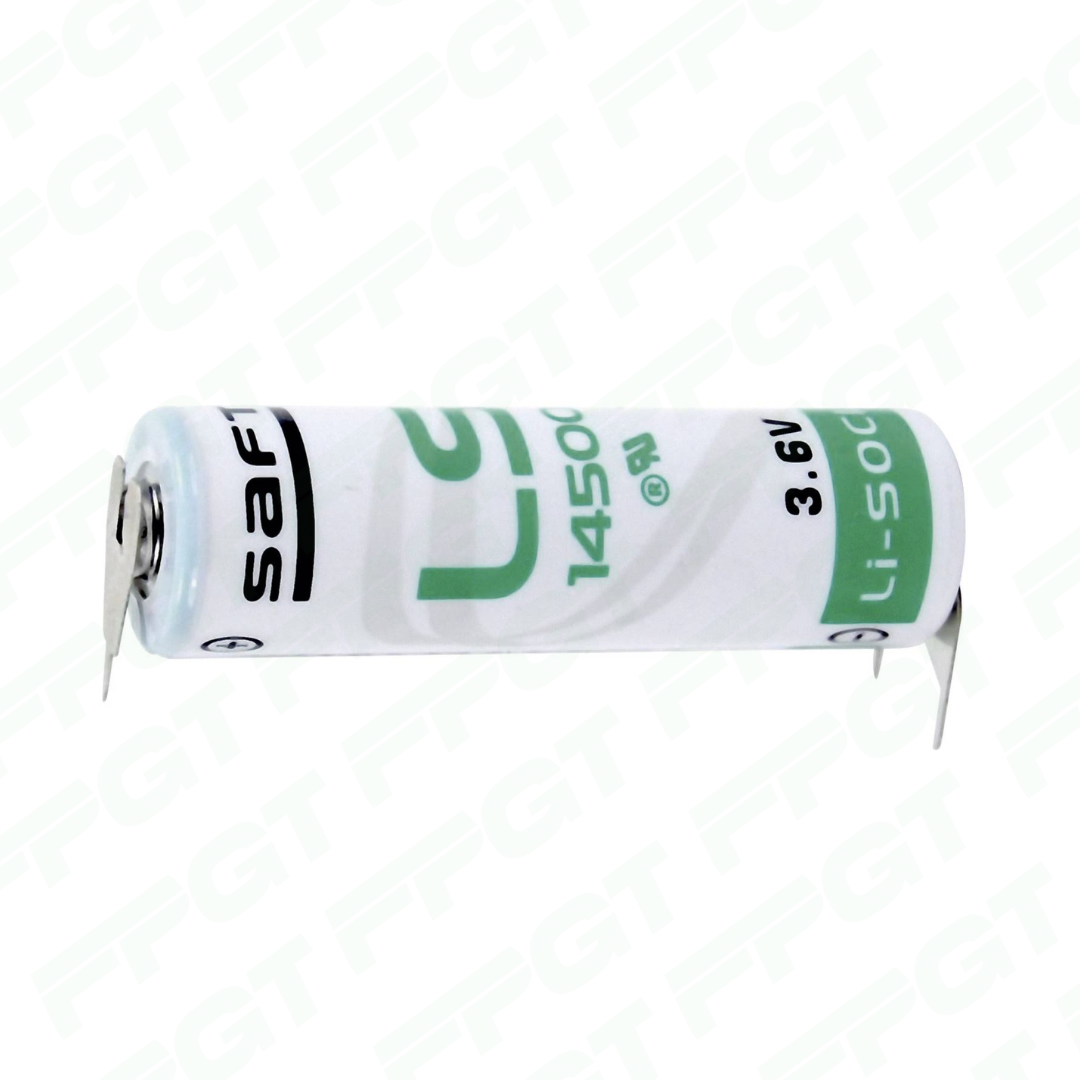

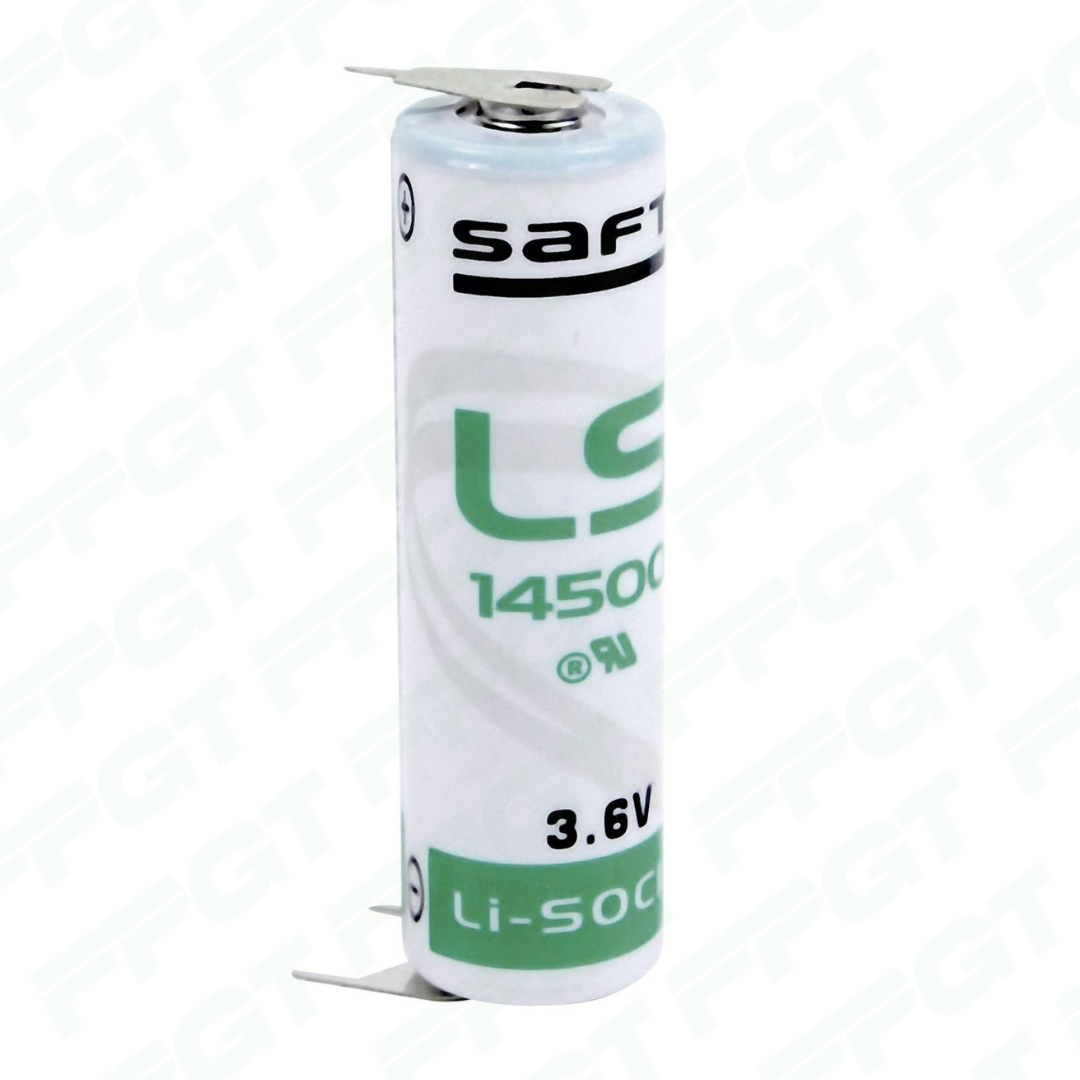

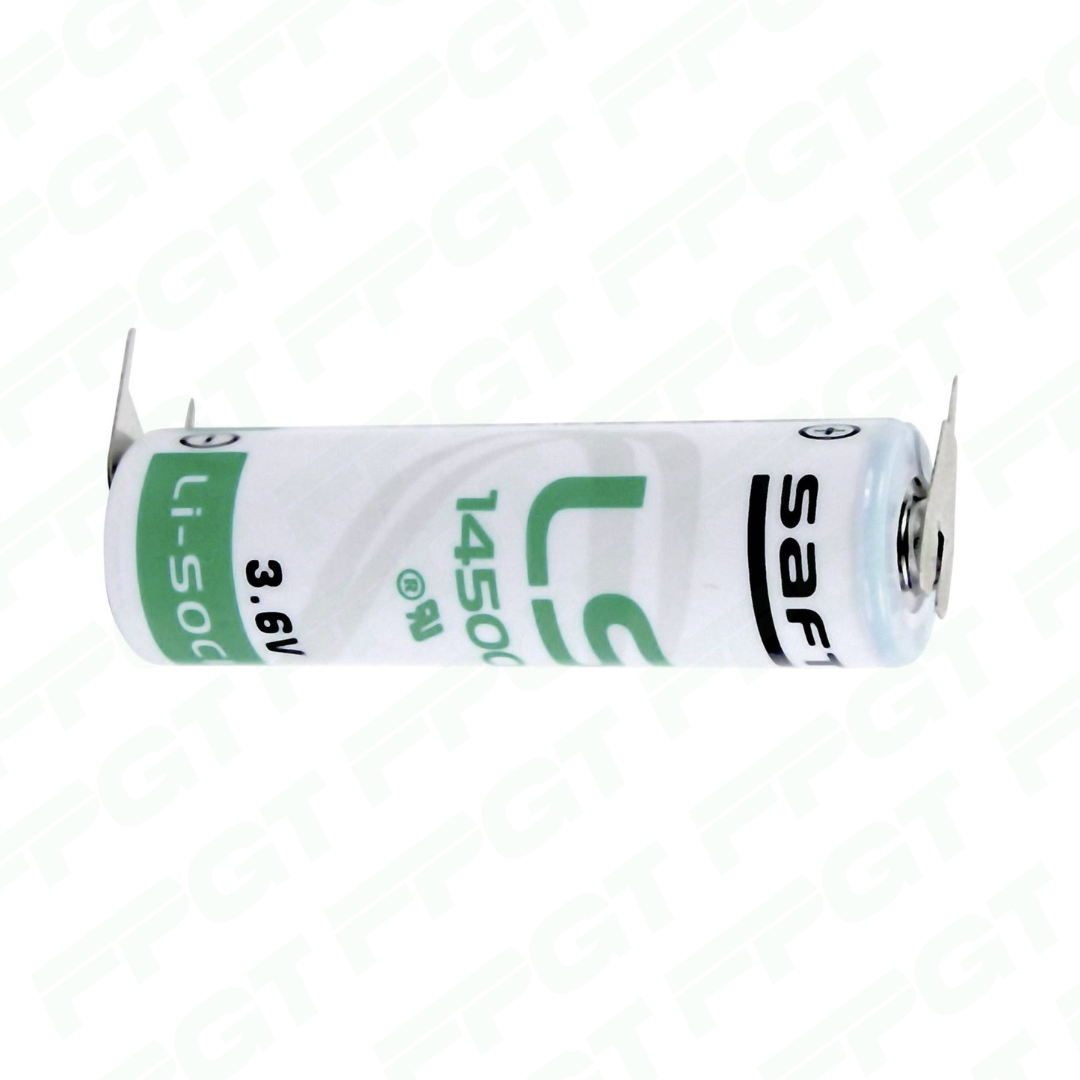

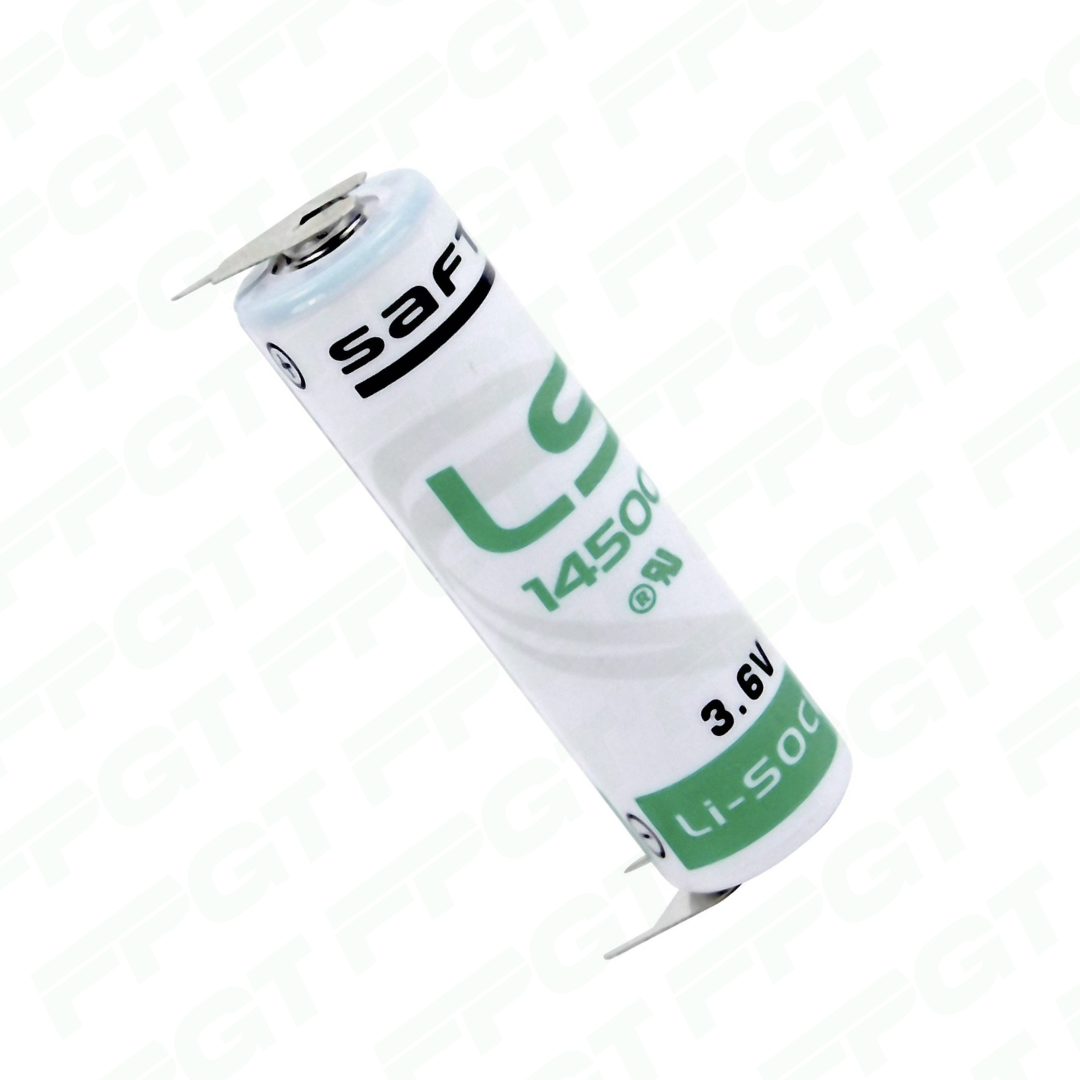

Saft LS 14500 3PFRP AA lithium battery 3.6V 2600mah with two pins on negative terminal & one pin on positive terminal
LS 14500 3PFRP Documents
Additional information
| Battery Features |
Non-rechargeable |
|---|---|
| Brand | |
| Capacity |
2600 mAh |
| Cell Size |
AA |
| Current Rating |
3.67 V |
| Leads |
3pin, positive pole: 1pin |
| Type of Battery |
Lithium |
Description
Saft LS 14500 3PFRP AA
| Parameter | Specifications |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 2.6 Ah (2600mAh) |
| Maximum Continuous Current | 50 mA |
| Pulse Capability | 0.25 A |
| Operating Temperature Range | : -60°C to +85°C |
| Storage Temperature (Recommended) | Up to +30°C |
| Diameter | 14.55 mm |
| Height | 50.3 mm |
| Weight | 16.7 g |
| Self-Discharge Rate | < 1% after 1 year at 20°C |
| Safety Standards | IEC 60079-11, UL 1642 |
| Applications | Utility metering, alarms, tracking, IoT devices, medical and security equipment |
Here are the specifications for the Saft LS14500 With PC Pins, 2 Pin on Negative Terminal & 1 Pin on Positive Terminal primary lithium battery:
- Nominal voltage: 3.6 volts
- Capacity: 2600 mAh
- Chemistry: Lithium-Thionyl Chloride (Li-SOCl2)
- Size: AA (50.5mm x 14.5mm)
- Operating temperature range: -60°C to +85°C
- Weight: 19 grams
- Single PC-PINS
Some additional specifications include a high energy density of 950 Wh/l, a low self-discharge rate of less than 1% per year at 20°C, and a maximum continuous current of 100 mA. The Saft LS14500 is also designed to be highly reliable and safe, with features such as an airtight glass-to-metal seal and a built-in safety vent to release gas during overheating or overcharging. The Saft LS14500 is a high-quality, long-lasting battery suitable for various industrial, medical, and other demanding applications.
Battery Part Numbers that the Saft LS-14500 will replace
480010, 94060101, 94112601, 96686102, 96726402, 104186-001, 15-5104-21000, 1770-xy, 1771 Series, 1772 Series, 1772-LR, 1772-LS, 1772-LSP, 1772-LW Series A, 1772-LWP Series A, 1772-LX Series B, 1772-LXP Series A, 1785-LT, 1785-LT2, 1785-LT3, 1785-LT4, 3b 940 418-0042, 3B940, 418-0042, 5130-RS2, 5130-RS5, 5150-RM1, 5150-RM2, 5250-LP1, 5250-LP2, 5250-LP3, 5250-LP4, 60-0515-000, 6008-LTV Series, 6135-01-301-8776, 6630-u1, 6632-P3A, 6632-P3B, 6632-P3C, 6633-P3, 6634-P3, 6es5-980-0ae11, 96686102-batt, A-2/05, A-2/16, A-2/17 Series, Cta – 17 C, Er14505h, Er6aa, Er6c, Er6h, Lct2400, Lct2400aae, Ls 14500, LS14500, Ls6, Lst14500, Ltc17c, LTC-17C, Maxell Er6s-tc, Minamoto Er14505
Also used in the following applications:-
Suitable For 115cpu Series 115u, 6es5-980-0ae11, Siemens Simatic S5-101u, S7-400, 6es5 980-0ae11, 6es7 971-0ba00, 984 Series, 984-351, 984-380, 984-381, 984-385, 984-455 984-480 984 – 485, 984-680, 984-780, 984-785, 985-685 Series, B984 Series, B984-100 B984-101 B984-200 Series, C996 Series, M984 Series, Micro 984 Series, Nice Battery, Fta2, 2ah, For Cells Nice Ft210, Ft210b Transmitters, 210 Series Automation, Scale 7949002 Opal, Balance Tefal Ts-cy9894, Rowenta Ts-cy9894, Hq Li6a/1800, Hager Ek529
The Saft LS14500 battery with PC (Printed Circuit) pins is a variant of the standard LS14500 battery. It comes with pins attached to the battery terminals, making it suitable for direct soldering onto printed circuit boards. The PC pins provide a convenient means of integrating the LS14500 battery into electronic devices or systems that require a reliable and compact power source.
The Saft LS14500 battery with PC pins can be used as a replacement for various part numbers of other battery brands with PC pin configurations, including:
- Tadiran TLH-2450/P
- Sonnenschein SL-360/P
- Xeno XL-060F/P
- Maxell ER6S-TC/P or ER6S-VC/P
- Panasonic BR-2/3AP
As always, when replacing batteries, it’s essential to ensure that the voltage, chemistry, capacity, and size of the replacement battery match the specifications of the original battery and the requirements of the device or system. Consult the manufacturer’s specifications and guidelines for proper battery replacement procedures, especially when dealing with batteries with PC pins, as proper soldering techniques may be required.
